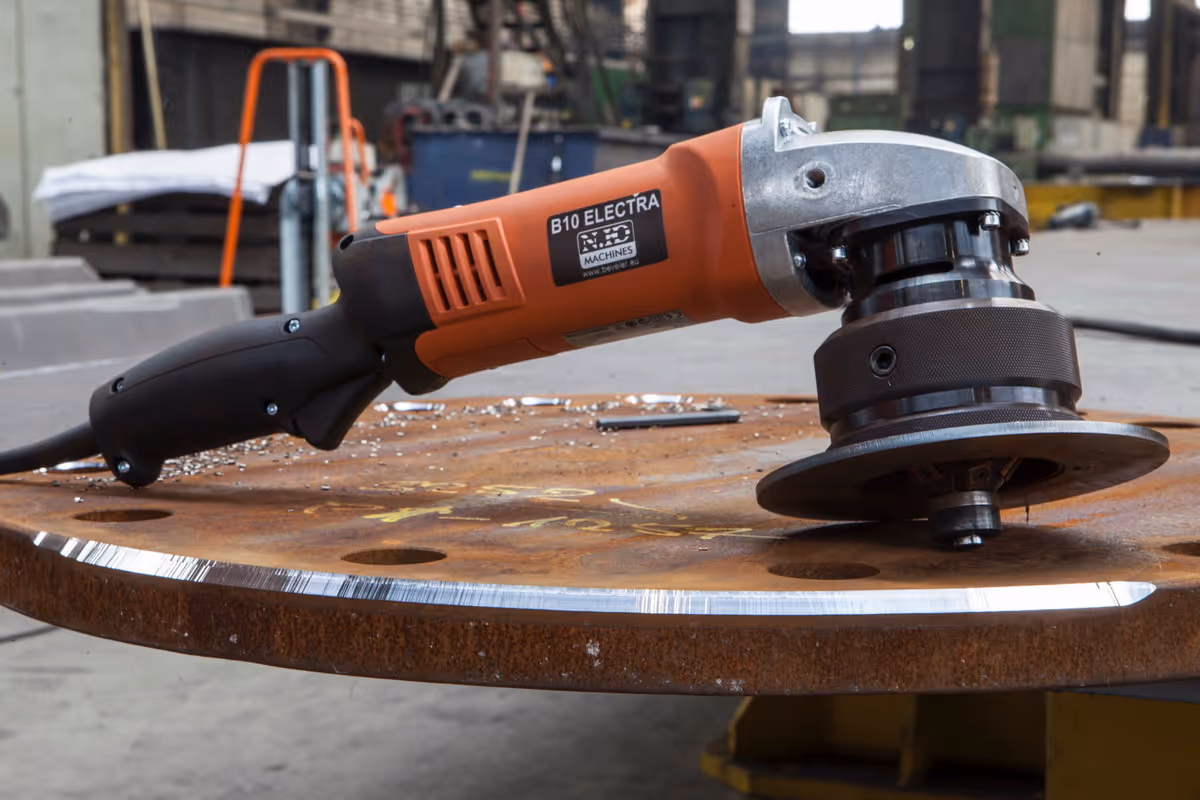

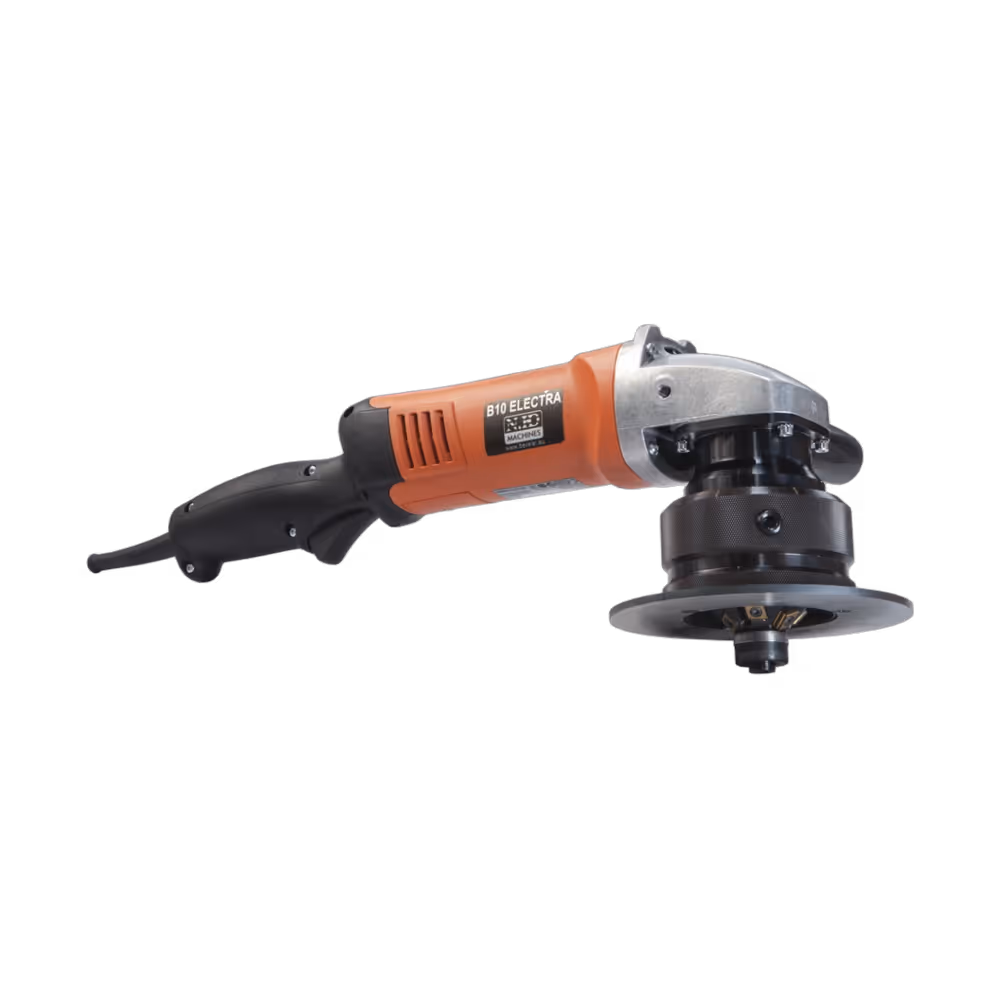

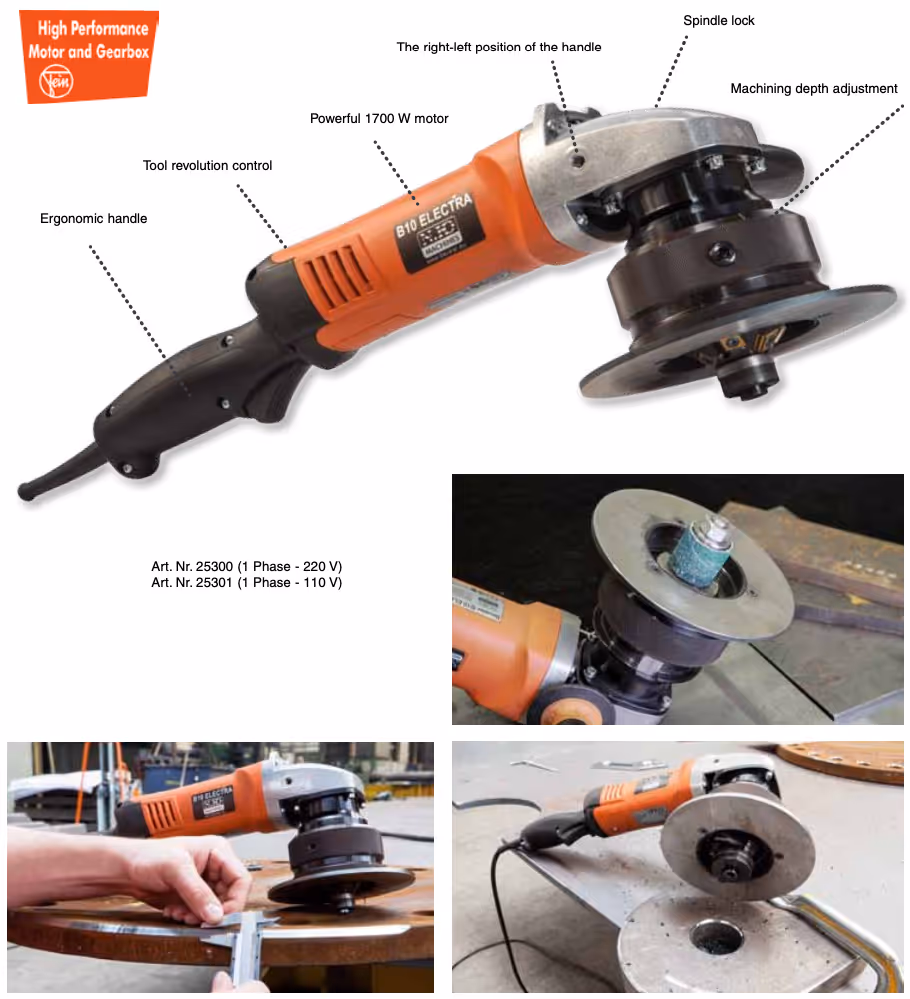

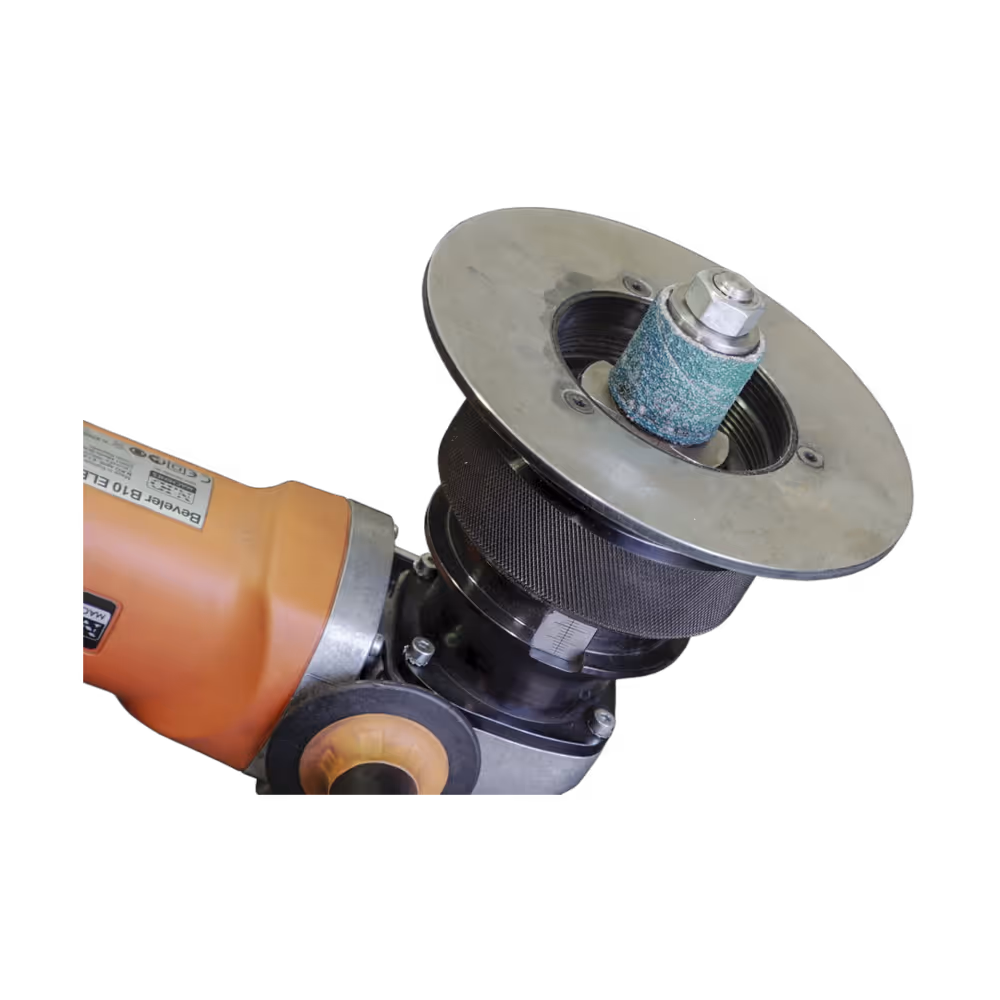

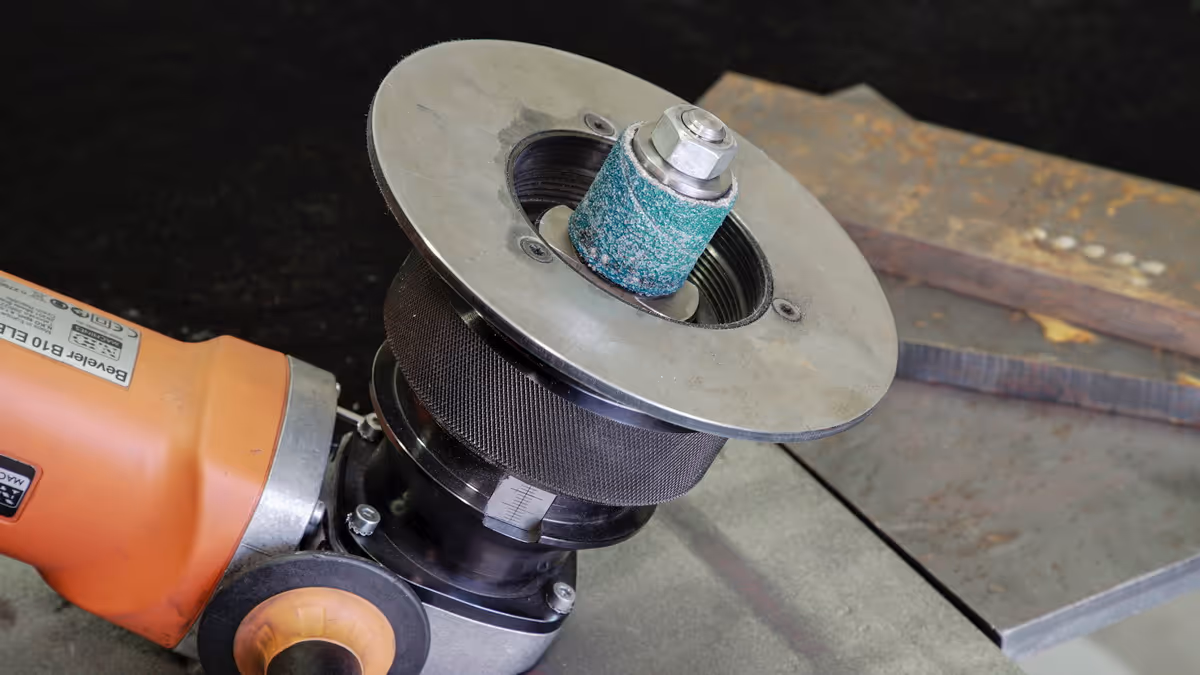

HAND BEVELER

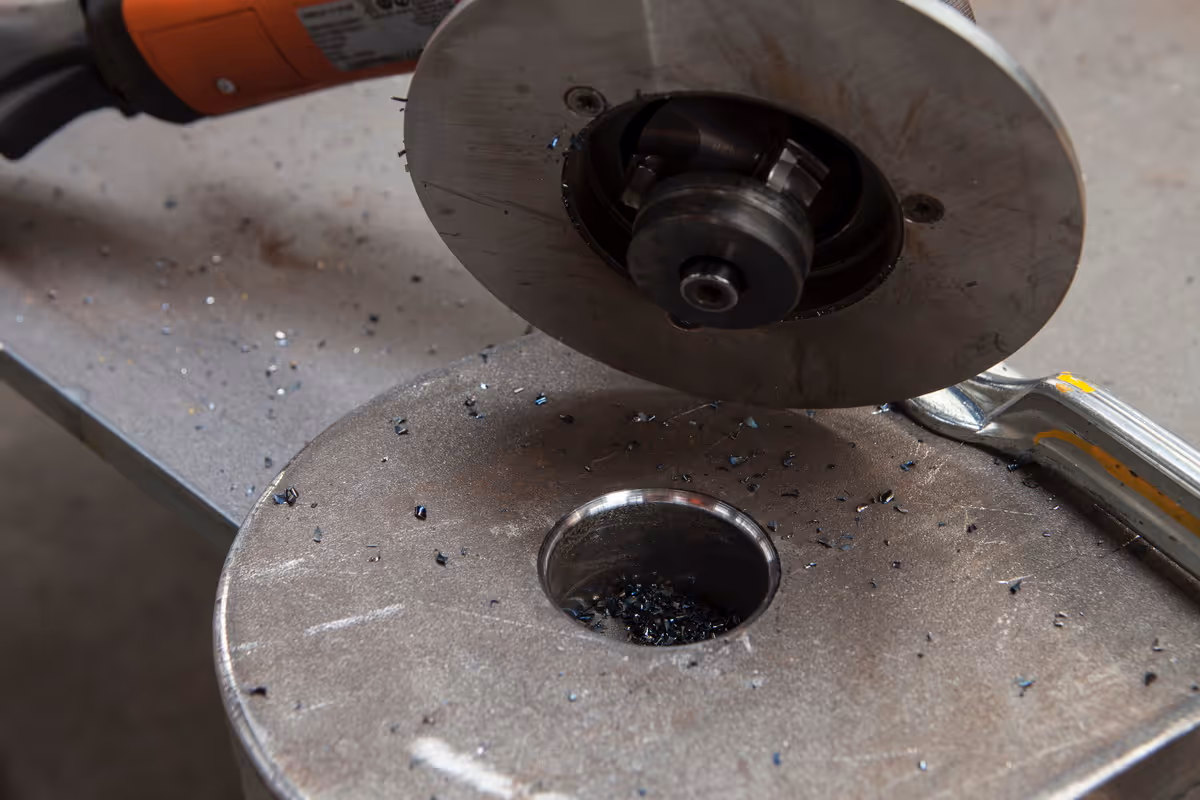

Made for beveling workpieces along with internal and external radiuses and holes, and for rounding edges. Purpose-built for cutting bevels and preparing weld seams, in a rugged, no-compromise design that stays stable in use.
We offer this machine in the following models and voltages:
Line
Art. Nr.
25300
Product Name
B10 ELECTRA
POWER
1700W
Max. Bevel Width
0 to 0.4 in/0 to 10 mm < 400 MPa
Bevel Angle
replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand
Rounding Radius
R 0.09/ R 0.13/ R 0.15 in (R 2,5 mm / R 3,5 mm / R 4 mm)
Speed
2700-8500 RPM
Feeding
Manual
Weight
13,2 lb/6 kg
PRODUCT MANUALS
Bevel Types
V-Bevel
Facing
Radius
BEVEL TYPES
V-Bevel
Facing
Radius
