BEVELING SYSTEM

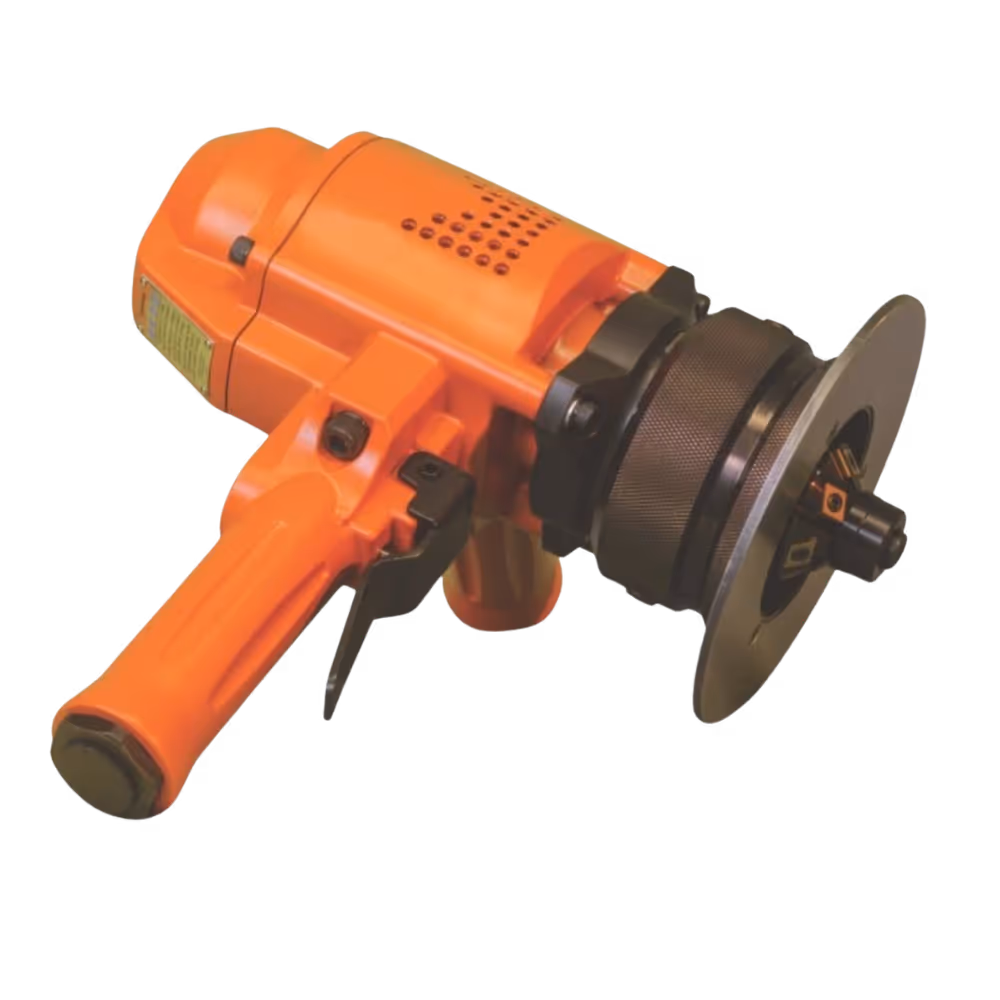

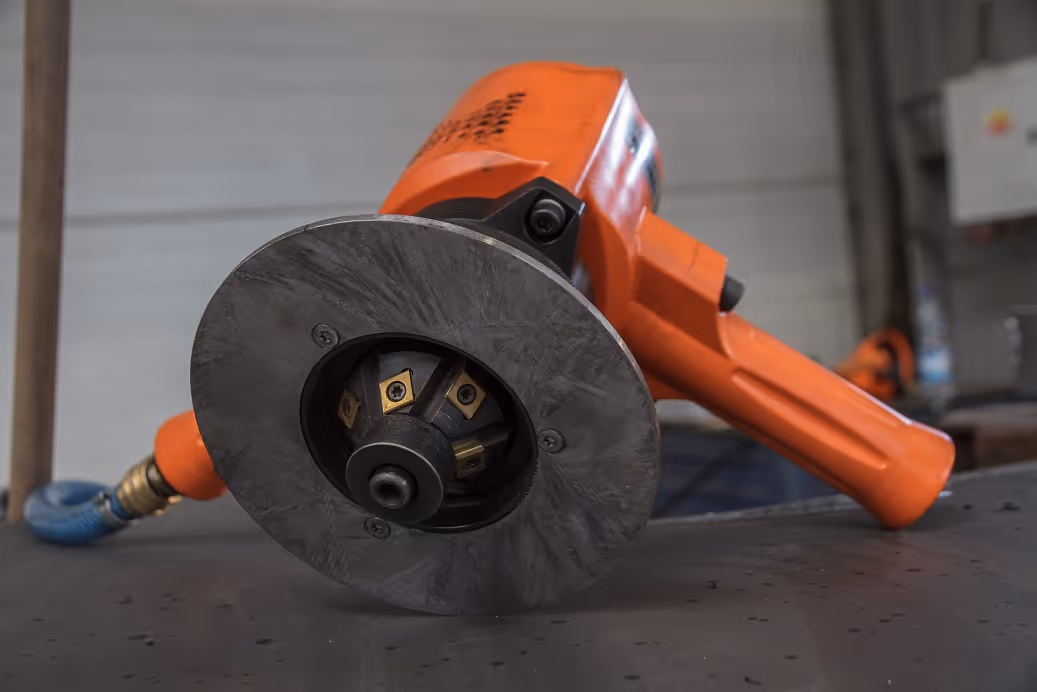

A high-power pneumatic hand beveler for straight edges, contours, bore holes and radiuses. Designed and made by N.KO Machines, it pairs a fresh, highly ergonomic design with serious power for everyday beveling. The body houses an aluminum-alloy motor, a Hardox support plate, and a milling head and inserts developed specifically for a hand tool.
We offer this machine in the following models:
Line
Art. Nr.
27220
Product Name
B15 AIR
POWER
2 984W
Max. Bevel Width
0 to 0,59 in/0 to 15mm < 400 N/mm2
Bevel Angle
replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on request
Rounding Radius
R 0.09/ R 0.13/ R 0.15 in (R 2,5 mm / R 3,5 mm / R 4 mm)
Speed
6000 rpm
Feeding
manual
Air Consumption
6 bar/750 l/min
Weight
16.53 lb / 7,5 kg
PRODUCT MANUALS
Bevel Types
V-Bevel
Facing
Radius
BEVEL TYPES
V-Bevel
Facing
Radius
