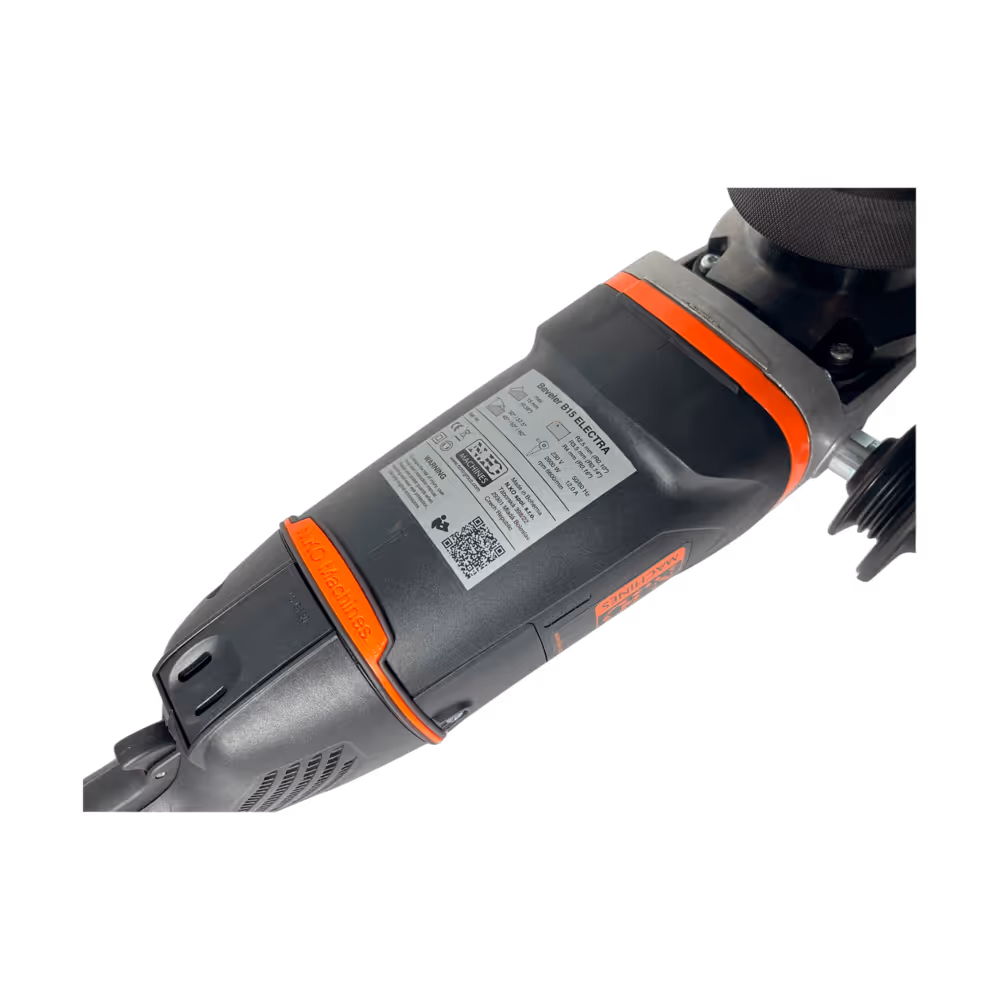

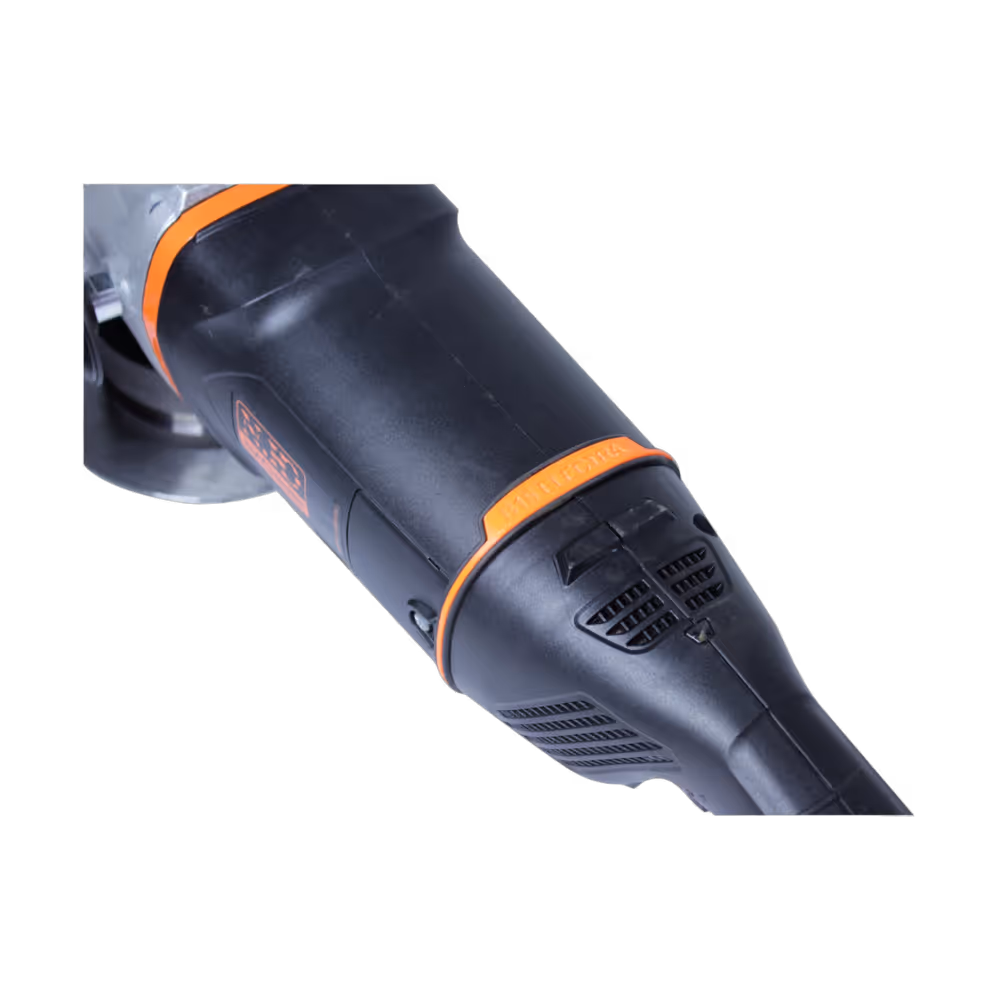

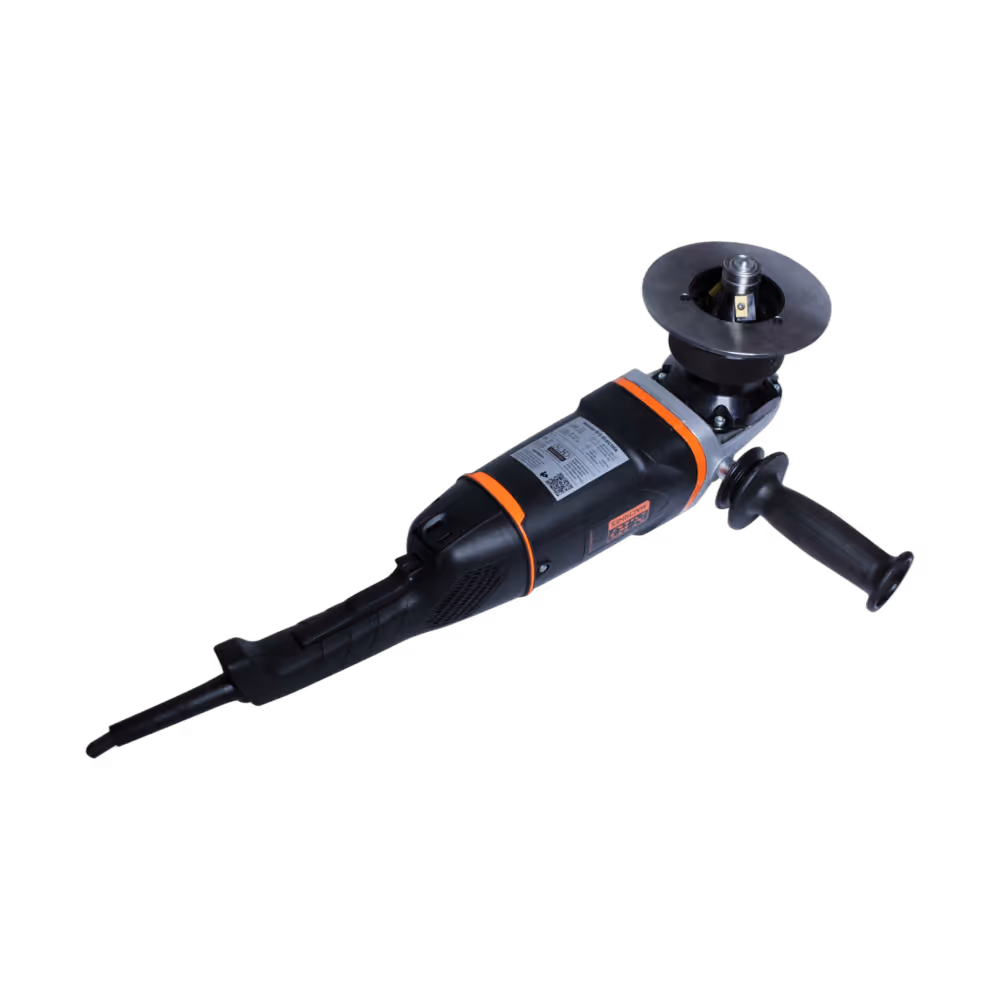

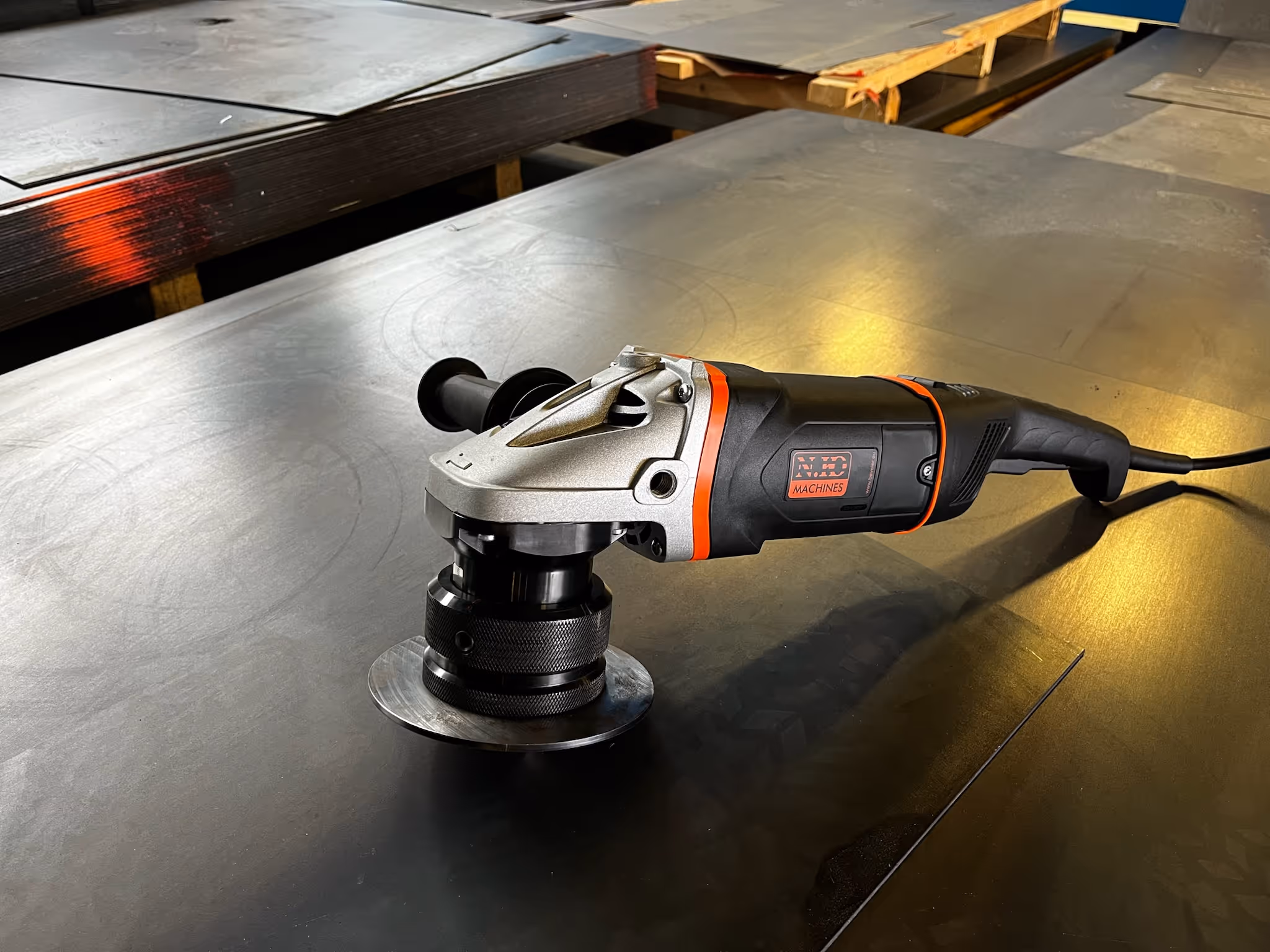

B15 ELECTRA NG

Name: B15 ELECTRA NG
Brand: N.KO Machines

HAND BEVELER

Built for beveling and deburring workpieces, internal and external radiuses and holes, with an edge-rounding function. Engineered for producing bevels and weld prep, with an electric drive that shrugs off heavy loads. Over the years the B15 Electra has become a real benchmark in its category, and this new generation raises the bar again: a completely redesigned motor with patented dust protection delivers long service life and reliable output even in tough conditions, paired with strong power, safety and operator comfort.

‍

We offer this machine in the following models and voltages:

‍

Beveling and deburring system B15 ELECTRA (without the milling head)
- Art.Nr. 25250 - 1 Phase, 220V
- Art.Nr. 25251 - 1 Phase, 110V

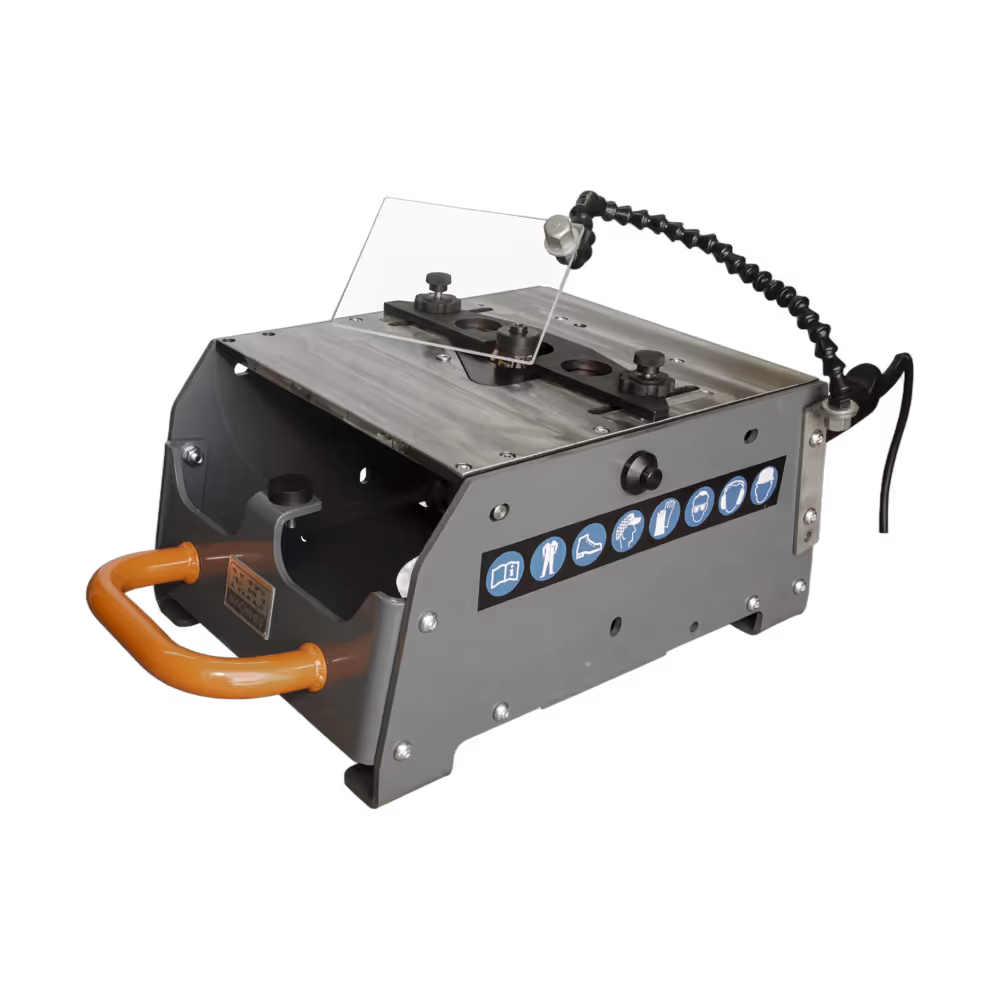

SET Beveling system B15 ELECTRA + dock station B-Dock (without the milling head)
- Art.Nr. 25252 - 1 Phase, 220V
- Art.Nr. 25253 - 1 Phase, 110V

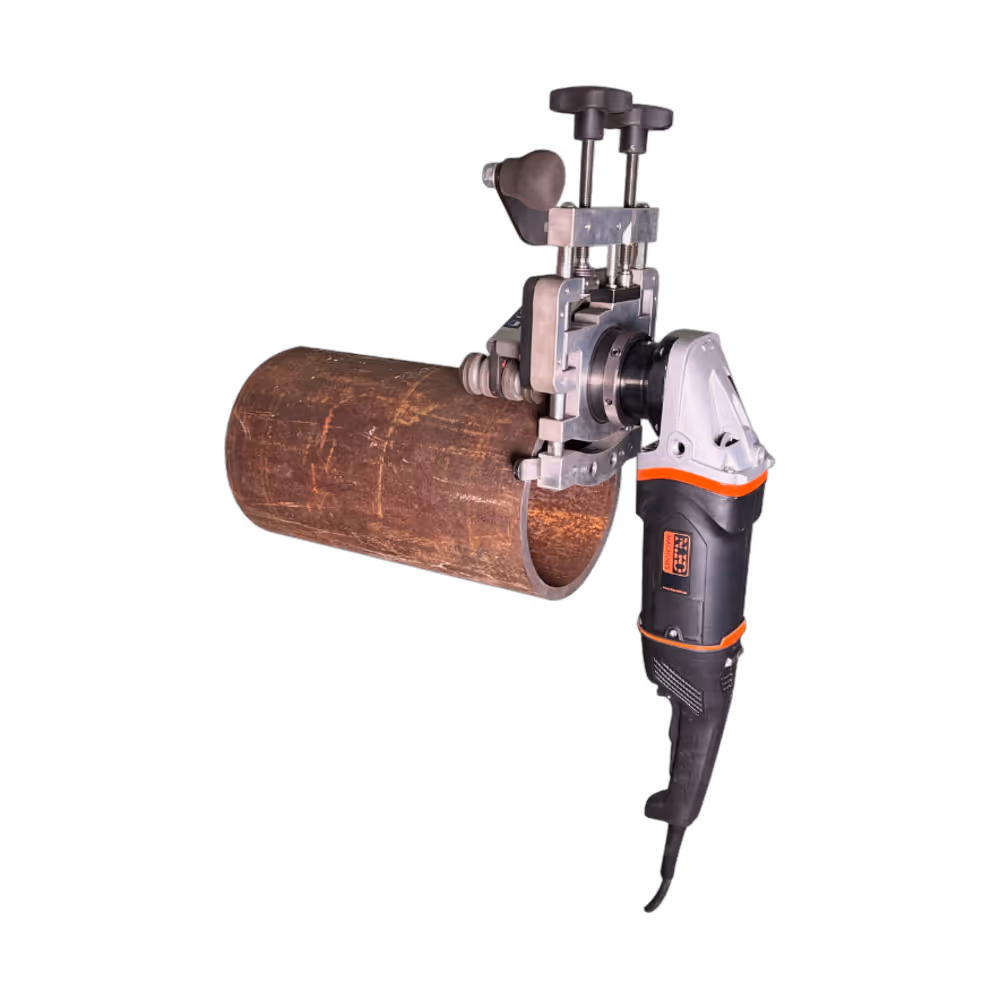

SET Beveling system B15 ELECTRA + inoxXpipe Beveler (without the milling head)
- Art.Nr. 25254 - 1 Phase, 220V
- Art.Nr. 25256 - 1 Phase, 110V
SET Beveling system B15 ELECTRA + dock station B-Dock + inoXpipe Beveler (without the milling head)
- Art.Nr. 25255 - 1 Phase, 220V
- Art.Nr. 25257 - 1 Phase, 110V

‍

Share Product

Inquire Now

Line

B-Line

Art. Nr.

25250

Product Name

B15 ELECTRA NG

POWER

2.600 W (230V) / 15 AMPS (120V)

Max. Bevel Width

0 to 0.6 in/0 to 15 mm 400 MPa

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius

R 0.09/ R 0.13/ R 0.15 in (R 2,5 mm / R 3,5 mm / R 4 mm)

Speed

6.600 RPM

Feeding

manual

Weight

20.9 lb/9,5 kg

PRODUCT MANUALS

B15 ELECTRA NG User Manual EN

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

Scale for precise bevel-size setting.
Bevels and deburrs steel, aluminum and other materials.
Swap the head to change the bevel angle.
Powerful hand-held tool with a swiveling ergonomic handle.
Edge-rounding function for surface-treatment prep.
Built in the Czech Republic around a high-output German motor.
Electronic safety shutoff cuts kickback if the milling head jams.
Rotatable main handle; auxiliary handle mounts in three positions.
Soft start with inrush-current limiter avoids tripping breakers.
Electronic overload protection plus restart lock-out against accidental restarts.
Anti-vibration damping in the body and auxiliary handle protects the operator.
Safety switch guards against unintended startup.
Motor shuts off automatically once the carbon brushes wear out.
LED indicator shows restart-protection or overheating status.
