B15 INOX

Name: B15 INOX
Brand: N.KO Machines

BEVELER

B15 INOX‍

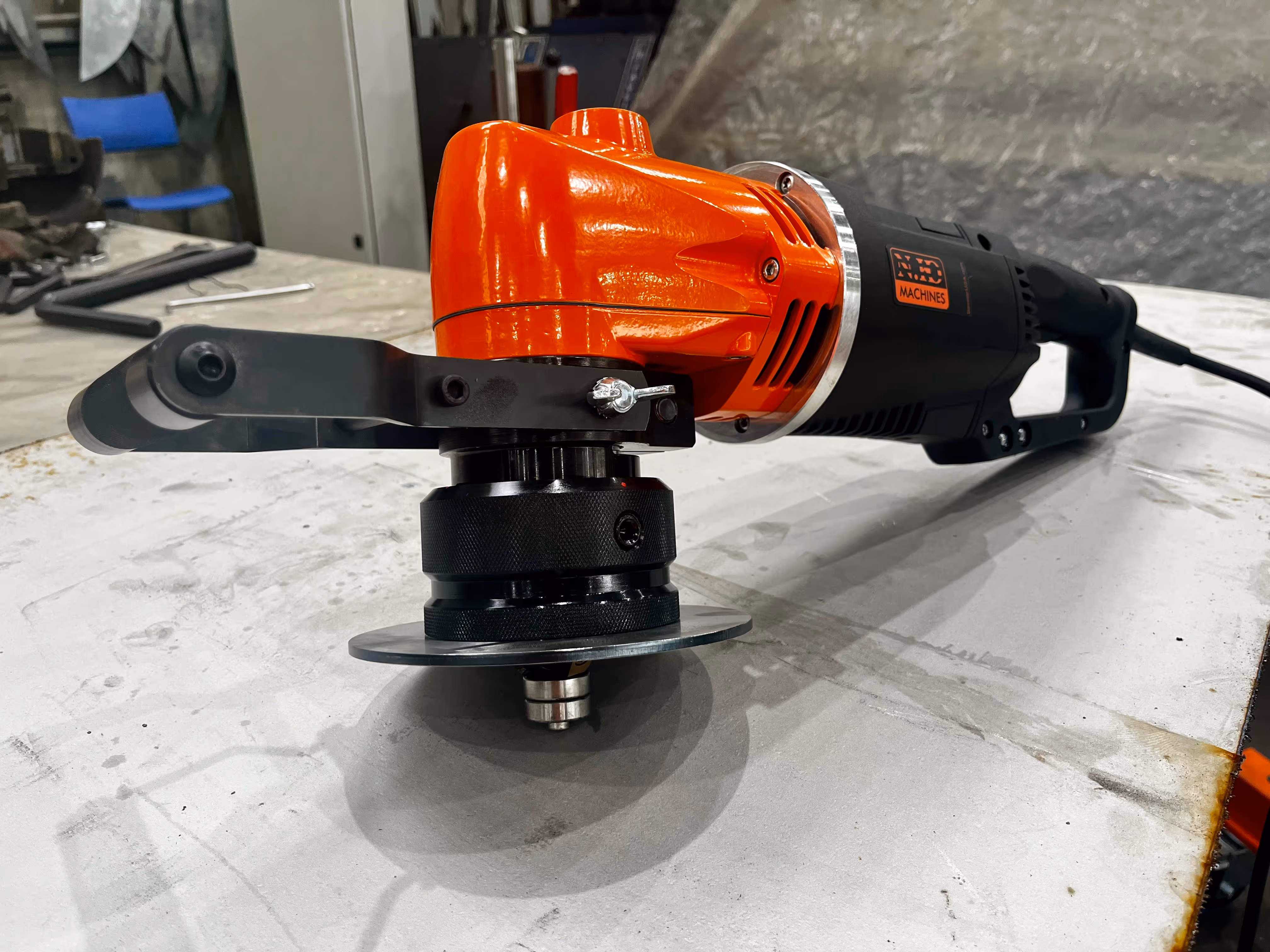

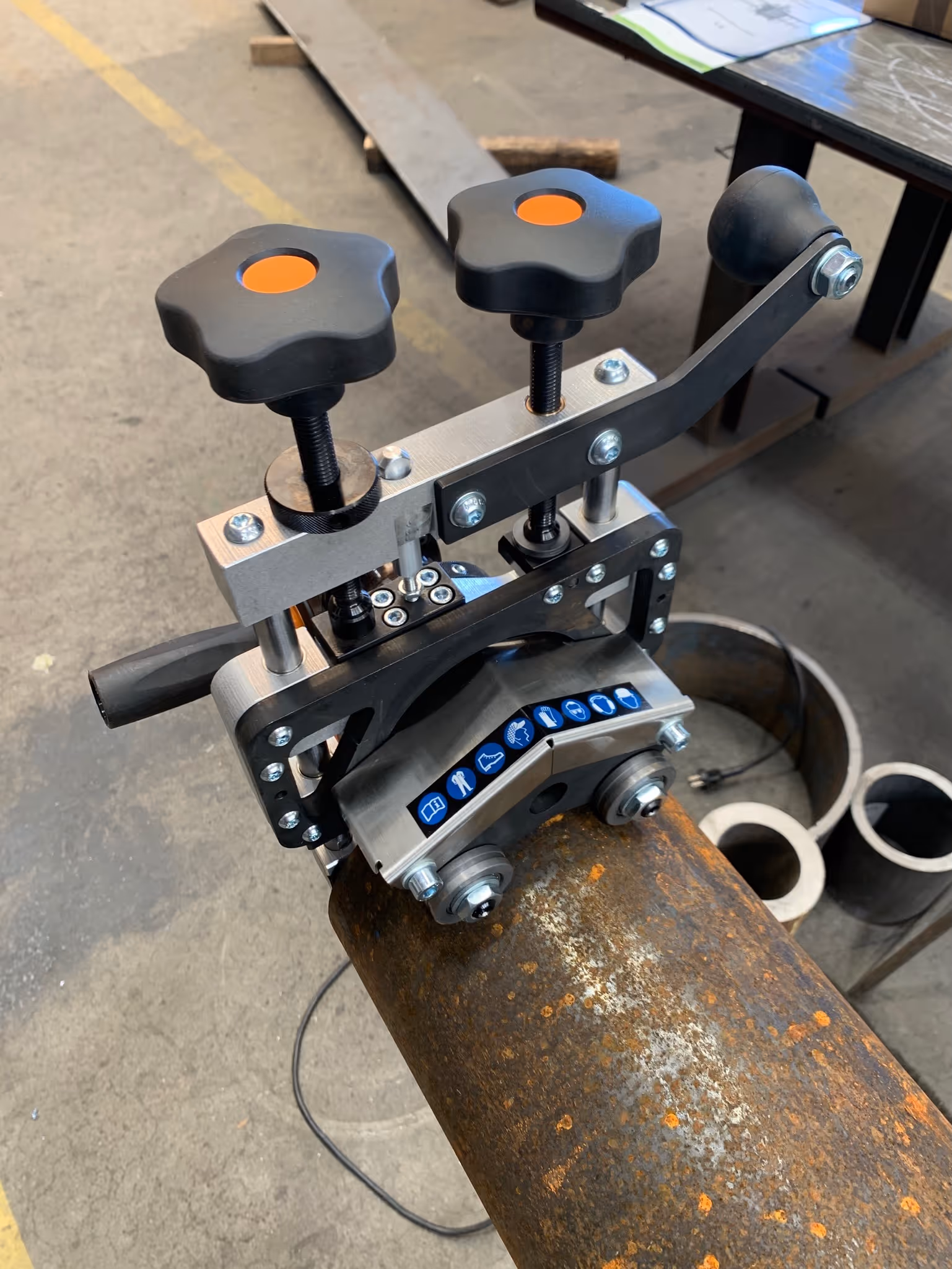

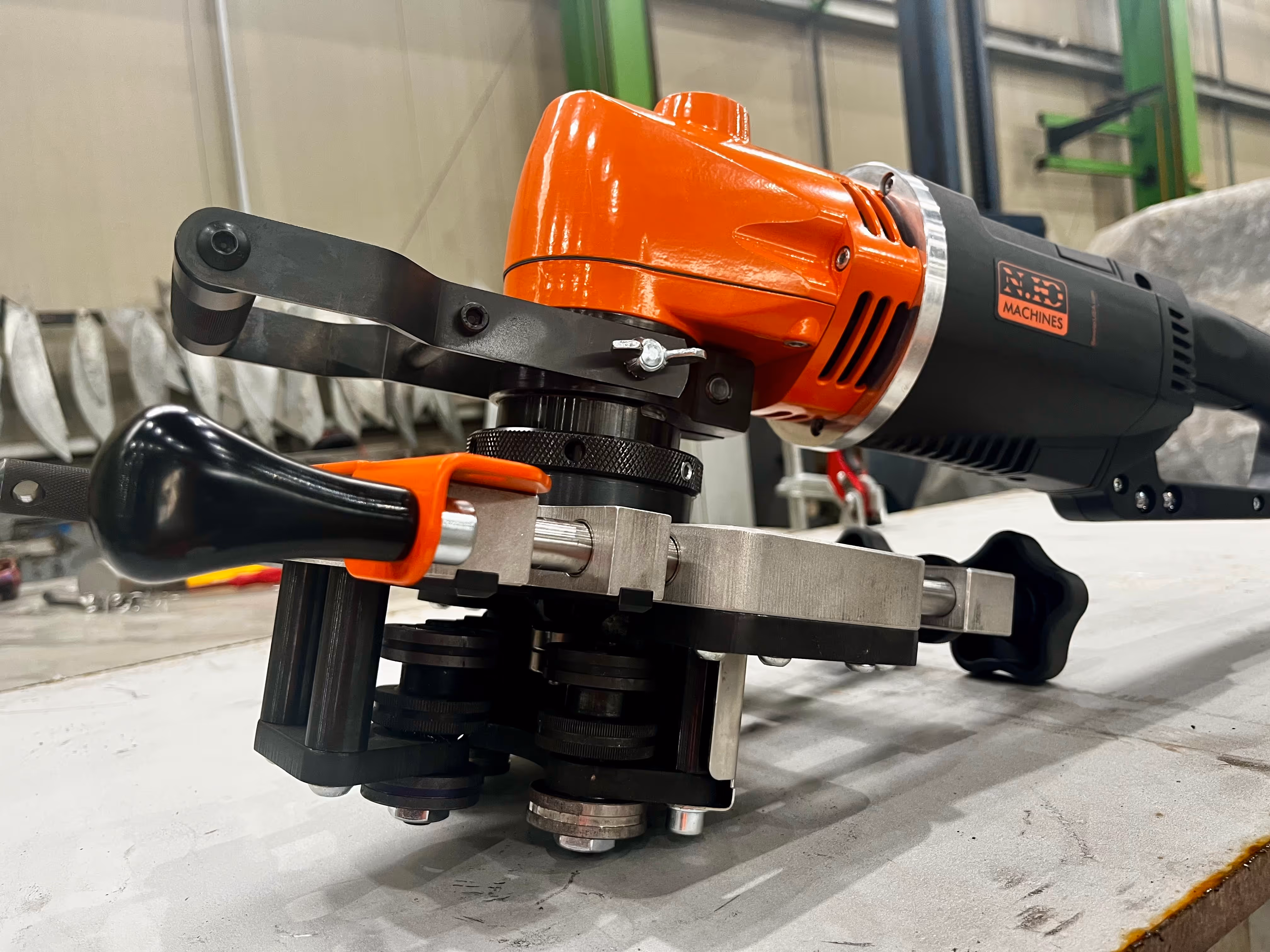

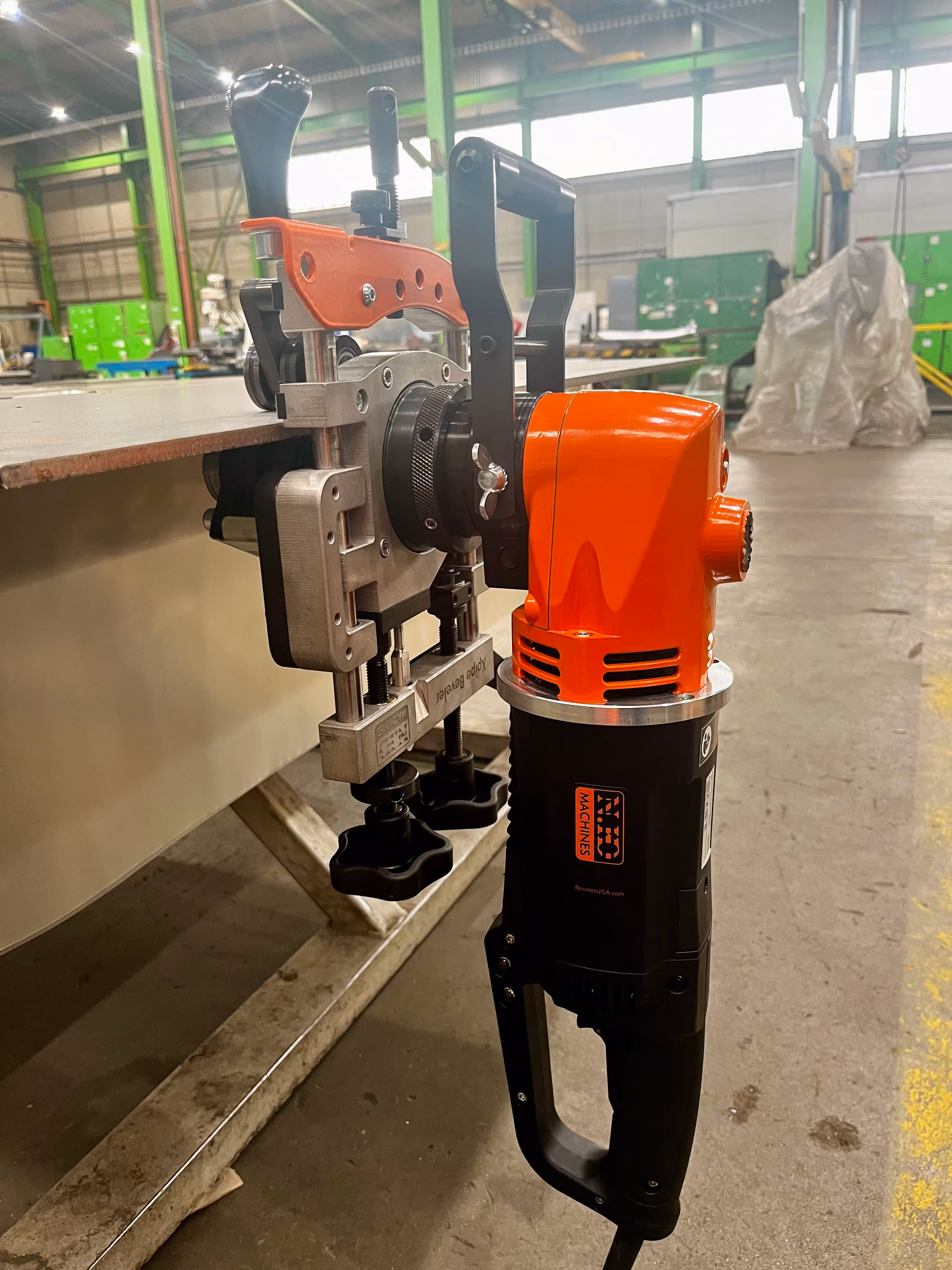

The B15 INOX is a hand-guided beveler built specifically for stainless steel. It runs on its own or together with the inoXpipe attachment. Used solo, it machines shaped, curved parts; paired with inoXpipe it excels on long straight edges, where the attachment guides the tool smoothly through the material. It also handles pipe beveling.

‍

We offer this machine in the following models and voltages:

‍

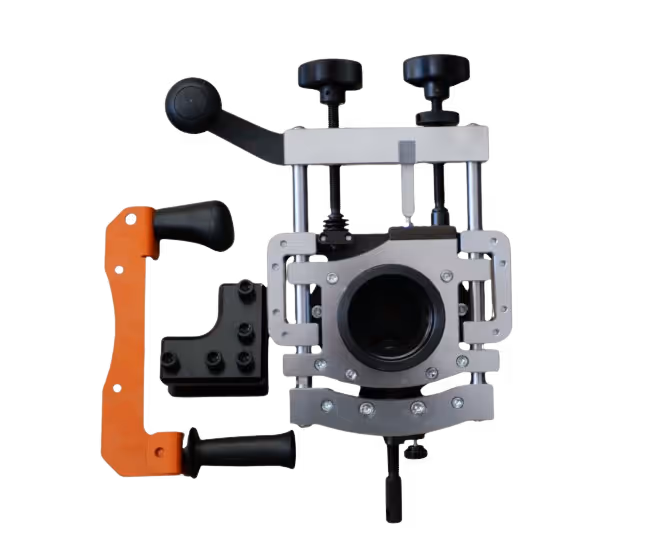

B15 INOX (machine B15 INOX, InoXpipe, auxiliary handle, clamp)
- Art.Nr. 26254 - 230V
- Art.Nr. 26256 - 120V
B15 INOX (machine only. No accessories)
- Art.Nr. 26250 - 230V
- Art.Nr. 26251 - 120V

Share Product

Inquire Now

Line

B-Line

Art. Nr.

26254

Product Name

B15 INOX

POWER

2850W

Max. Bevel Width

0 to 0.6 in/0 to 15 mm < 400 MPa

Bevel Angle

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius

R 0.09/ R 0.13/ R 0.15 (R 2,5 mm / R 3,5 mm / R 4 mm)

Speed

1950 rpm

Feeding

Manual

Weight

41,3 lb/18,75 kg

PRODUCT MANUALS

B15 INOX Operation Manual EN 04112025

Bevel Types

V-Bevel

Facing

Radius

View Bevel Details

V-Bevel

Facing

Radius

Key benefits

Mechanically lowered speed extends cutting-insert life.
Can be combined with the inoXpipe attachment.
Smoother guiding of the tool across the material.
Optional inlet/outlet plate clamp for safe, comfortable entry onto the workpiece.
LED indicator for machine load.
LED indicator for carbon-brush replacement.
Purpose-built for stainless steel.
Bevels sheets and profiles — ideal for long, straight edges.
Bevels pipes and shaped workpieces.
Edge-rounding capability.
