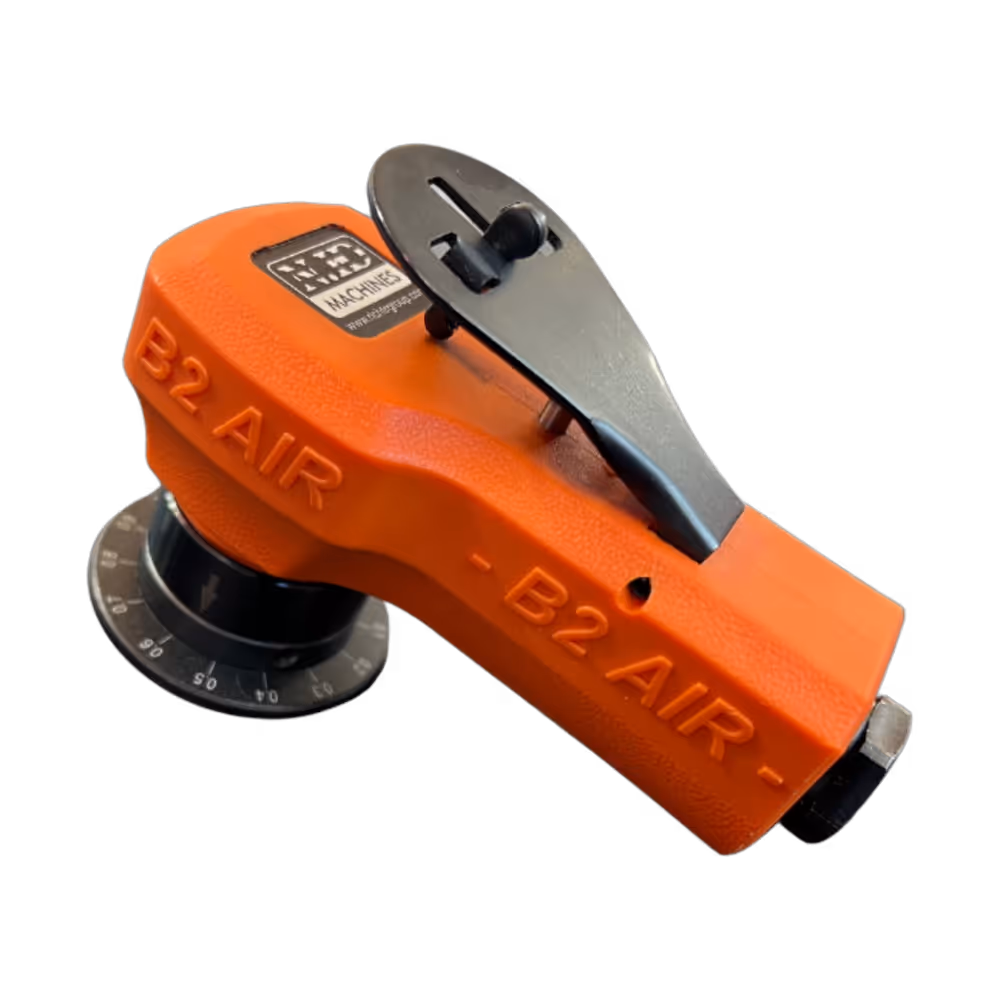

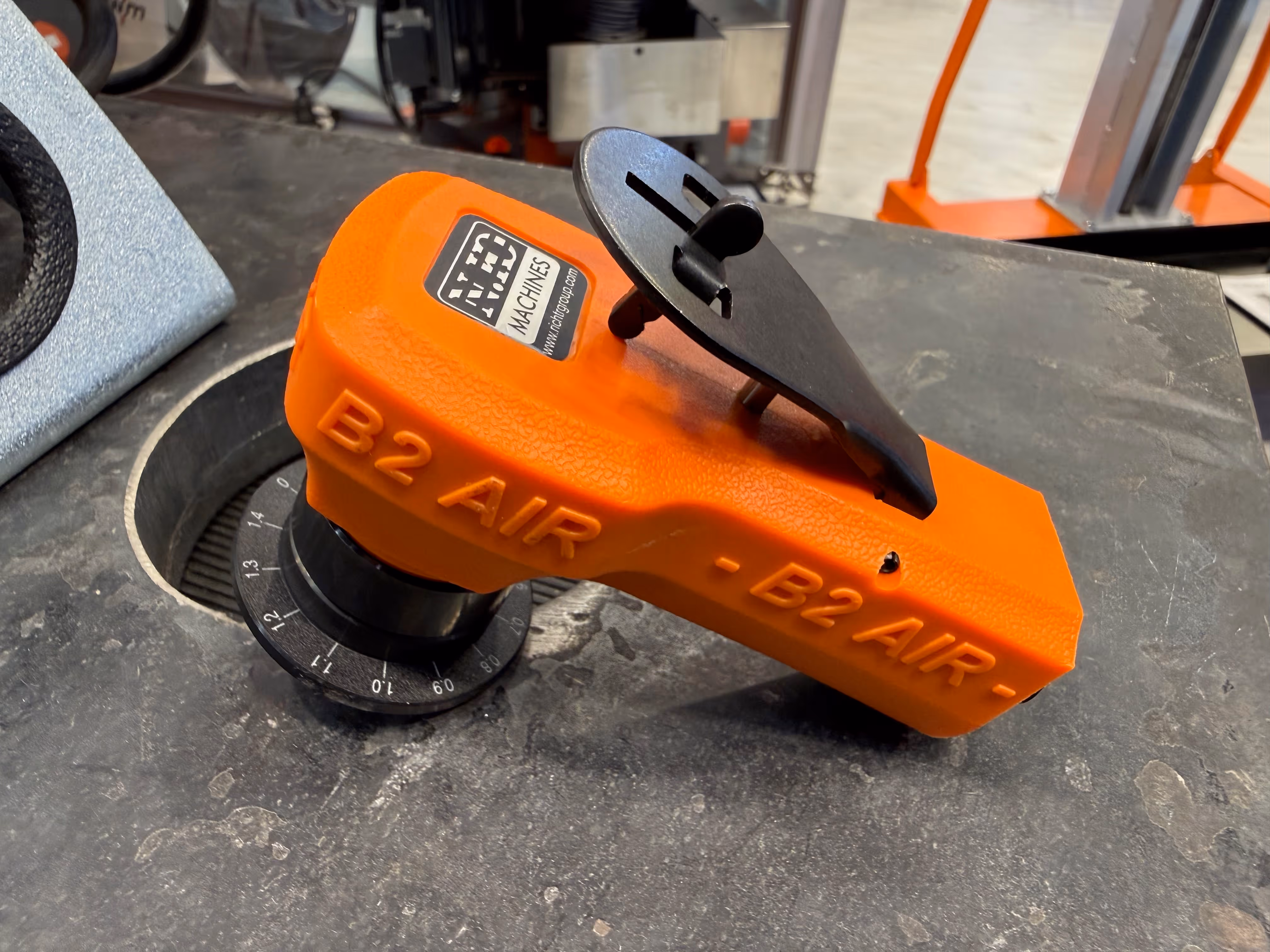

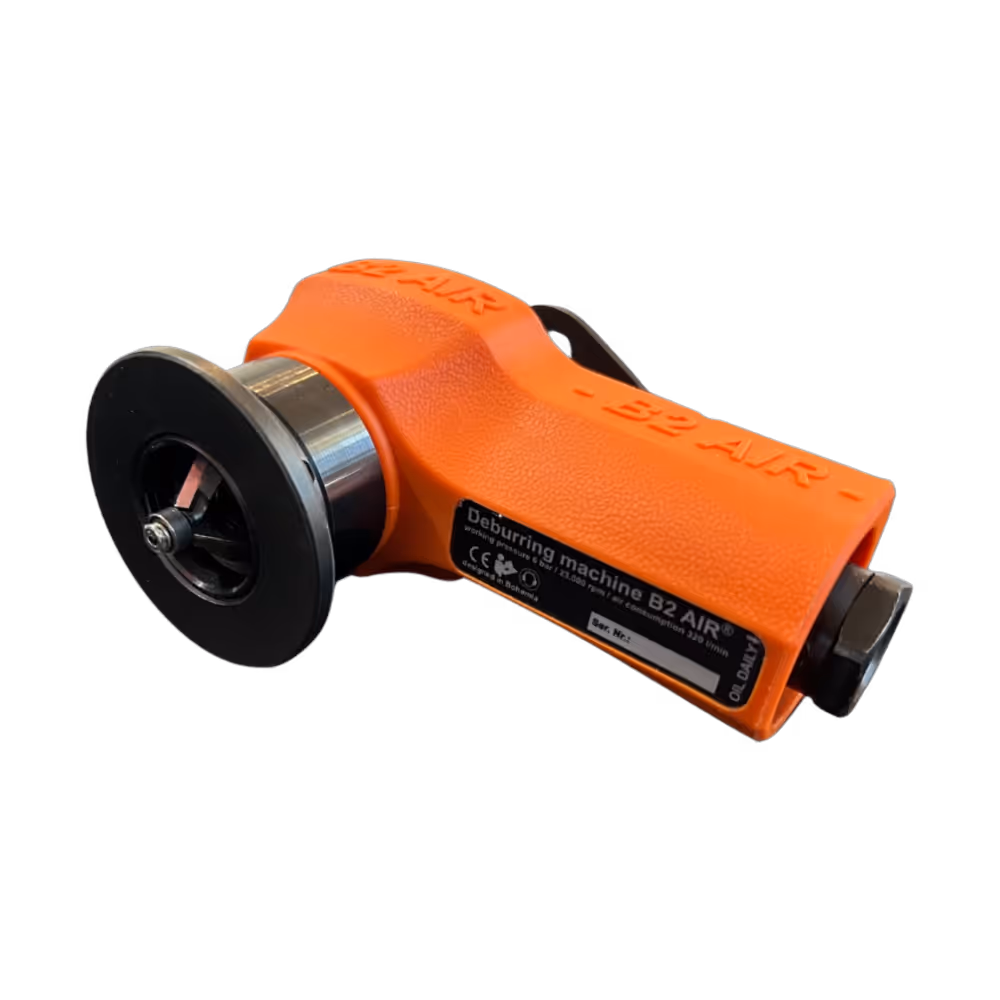

Deburring system

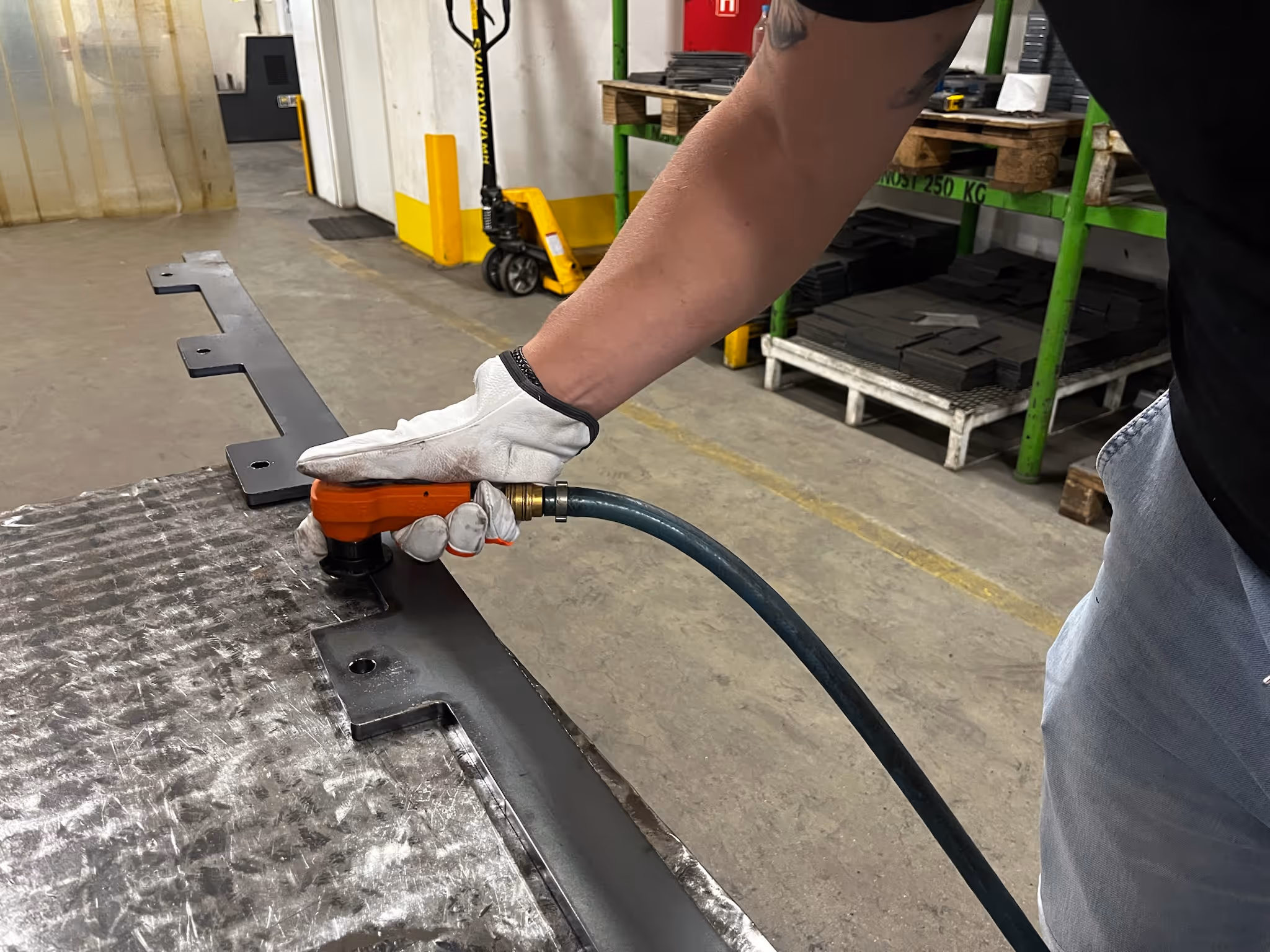

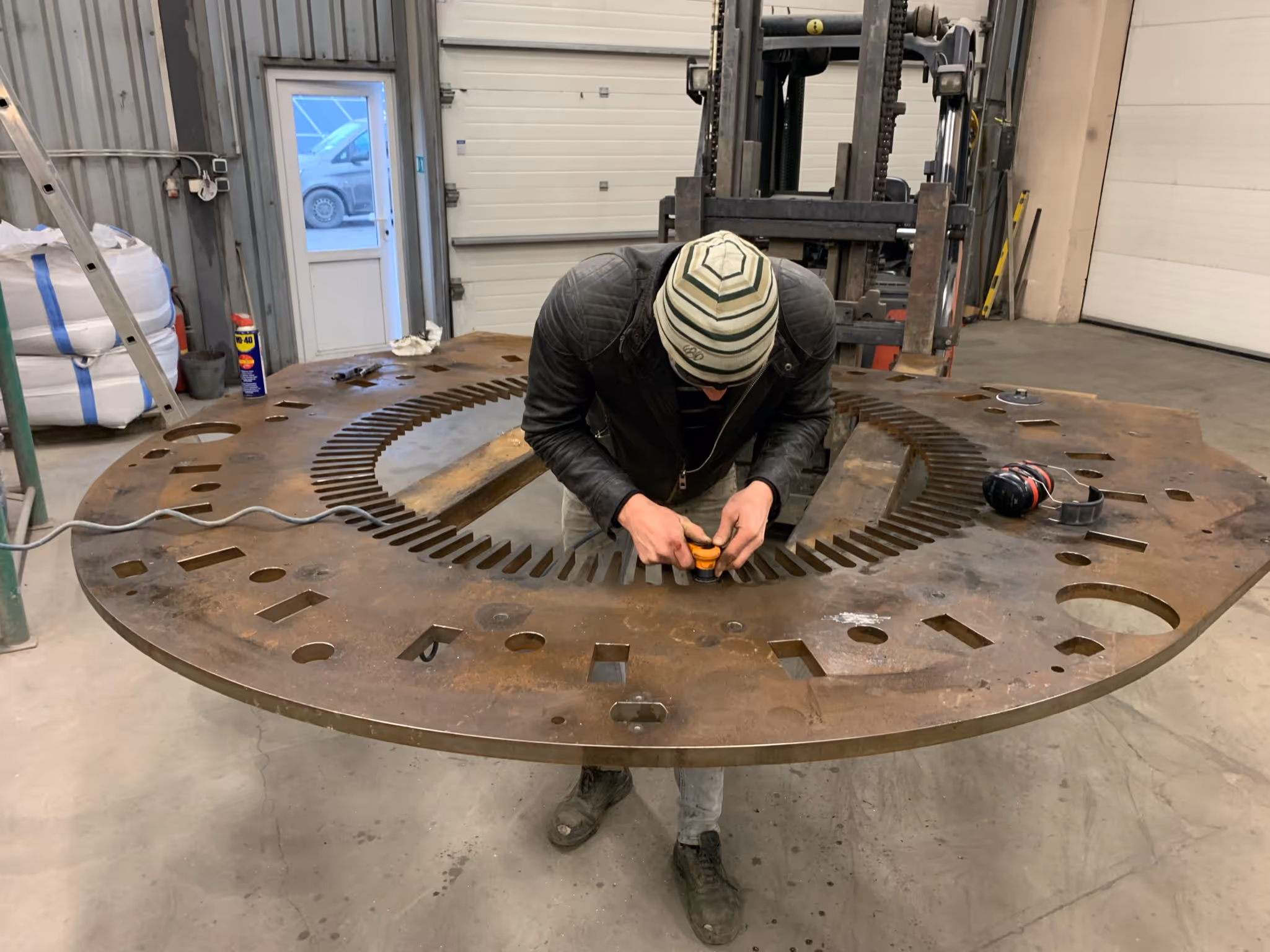

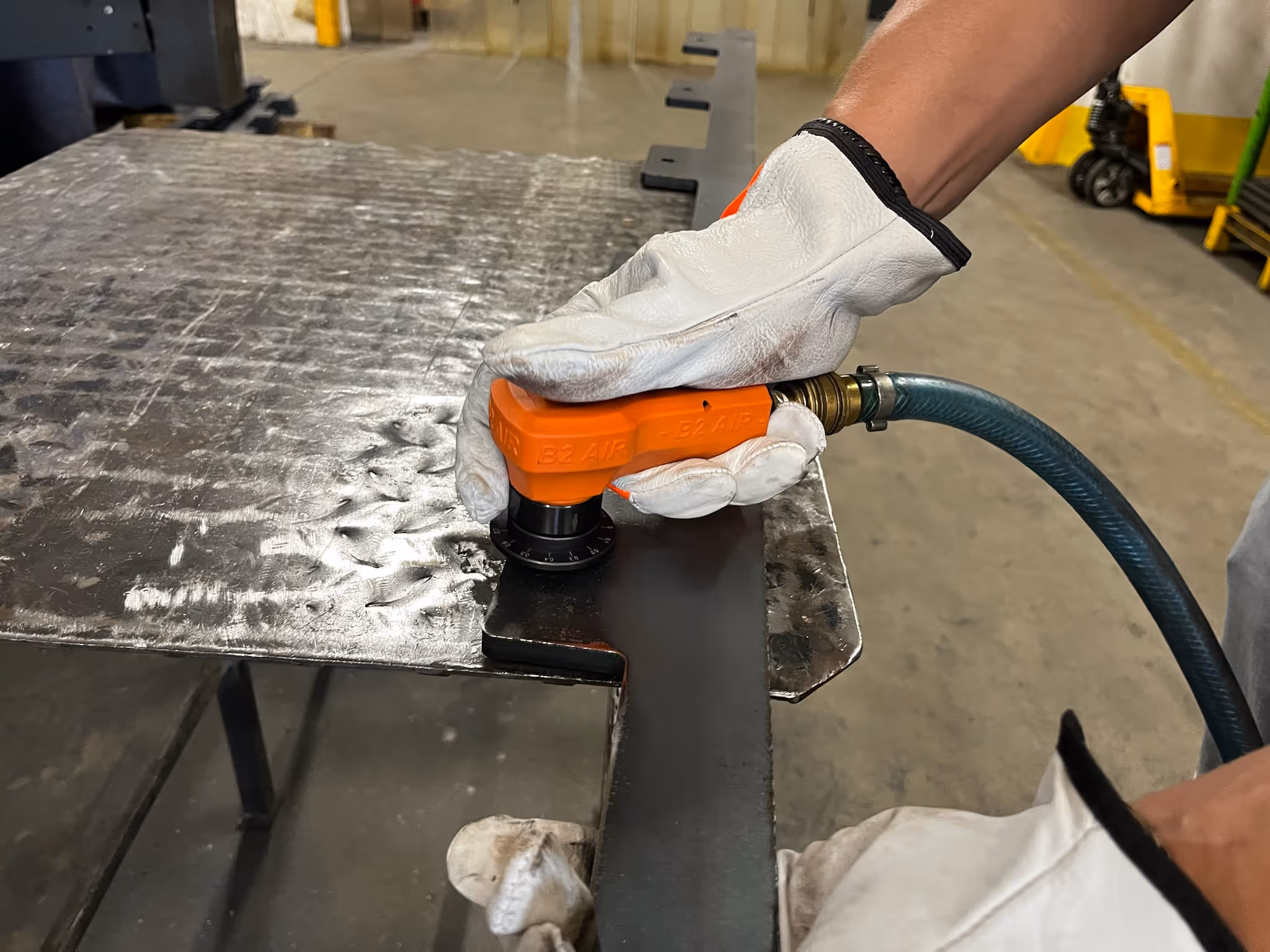

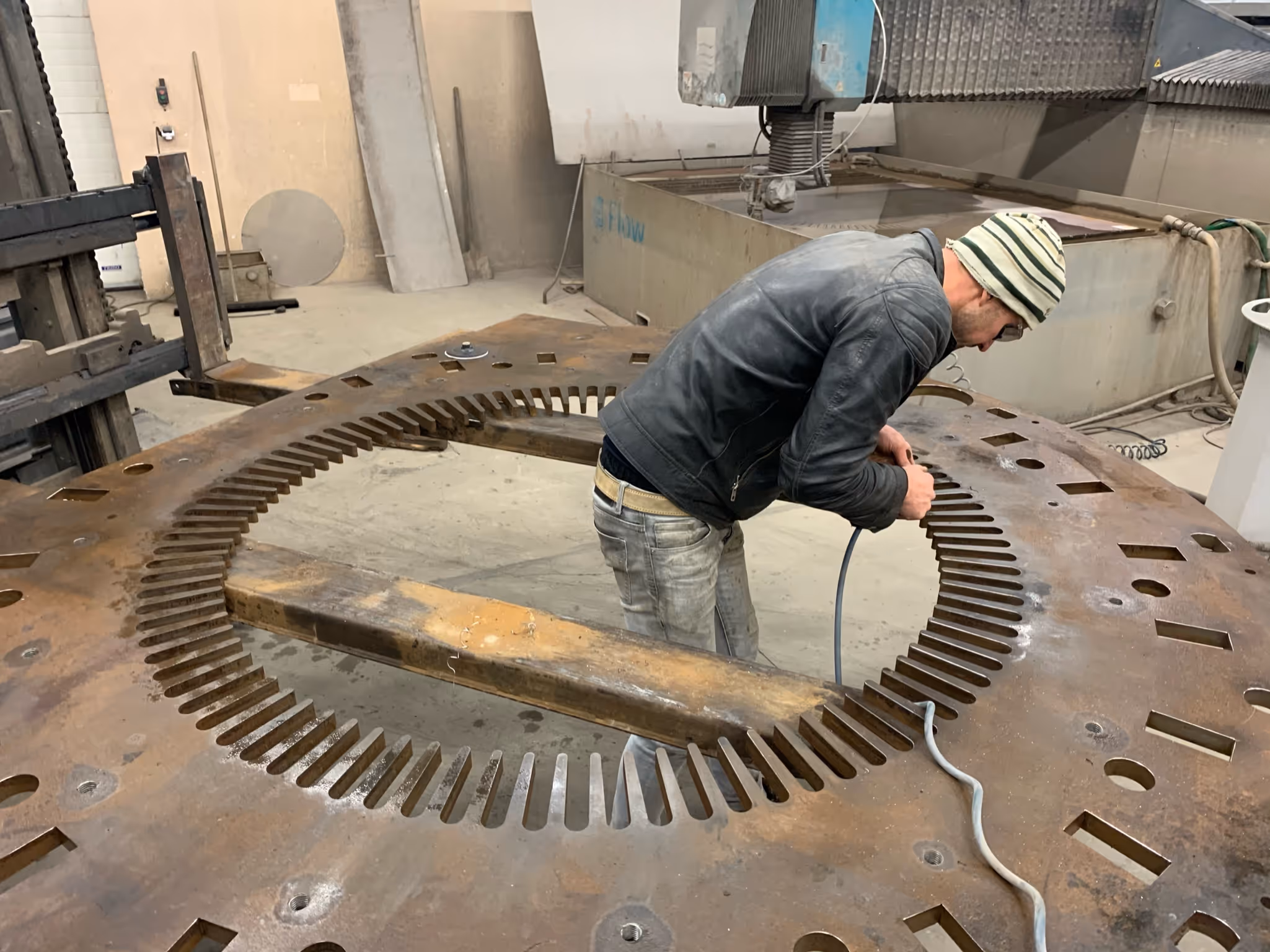

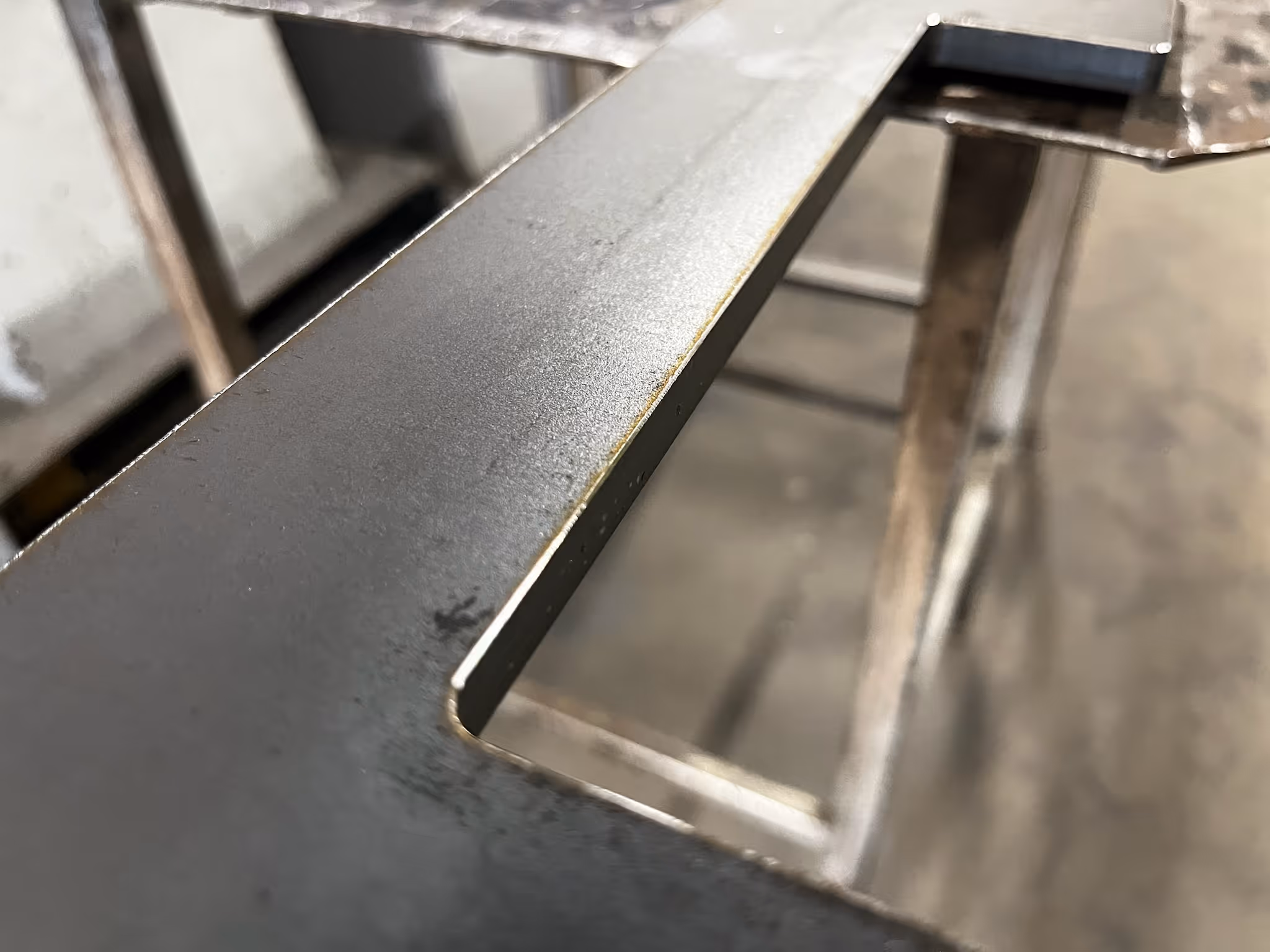

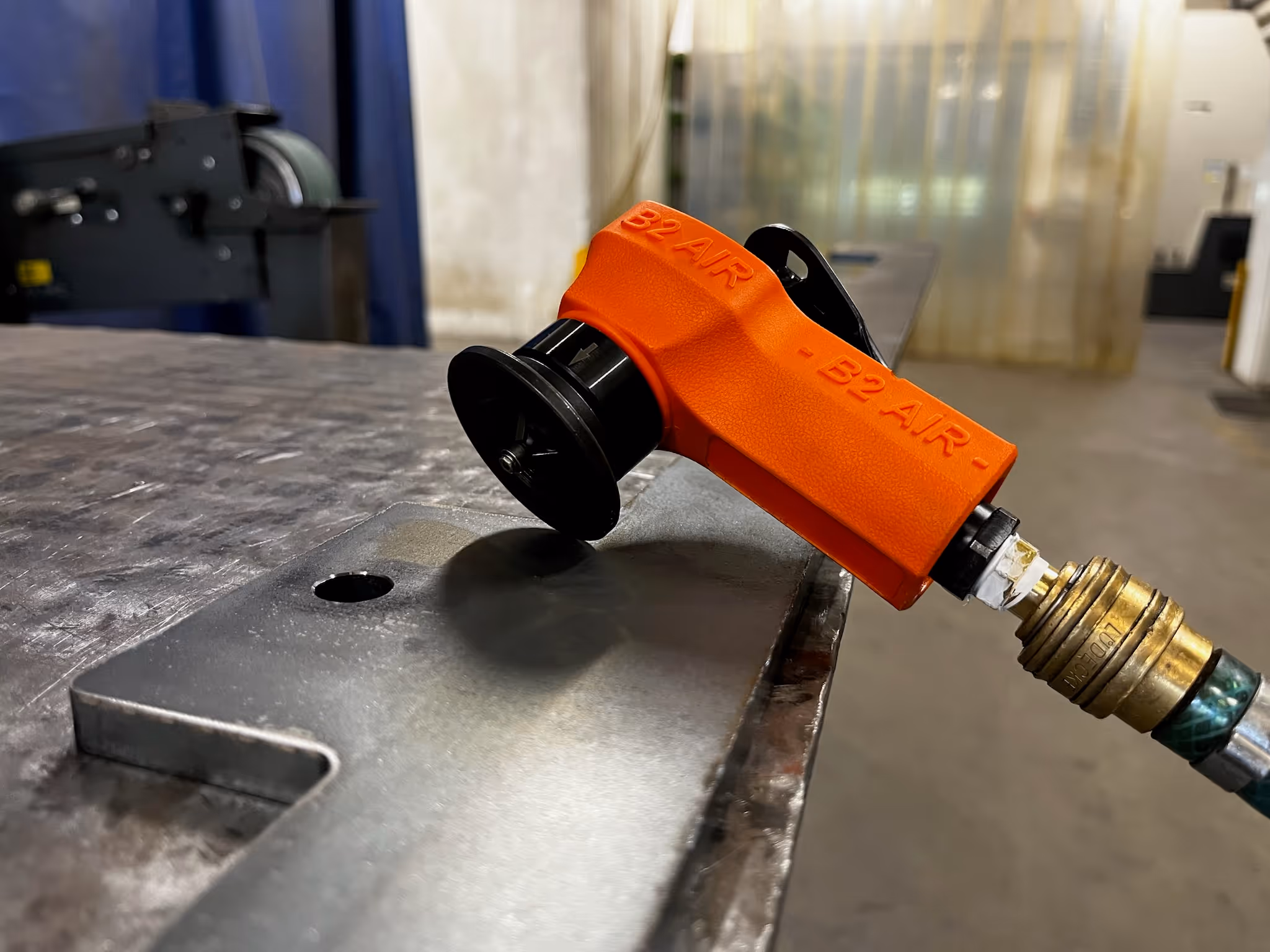

An air-driven hand tool (max. bevel width (/0.08 in/2 mm) made for knocking down burrs and rounding the edges of steel, stainless steel, aluminum and other parts. It also reaches into holes from an internal diameter of (0.27 in/7 mm).
Line
Art. Nr.
24220
Product Name

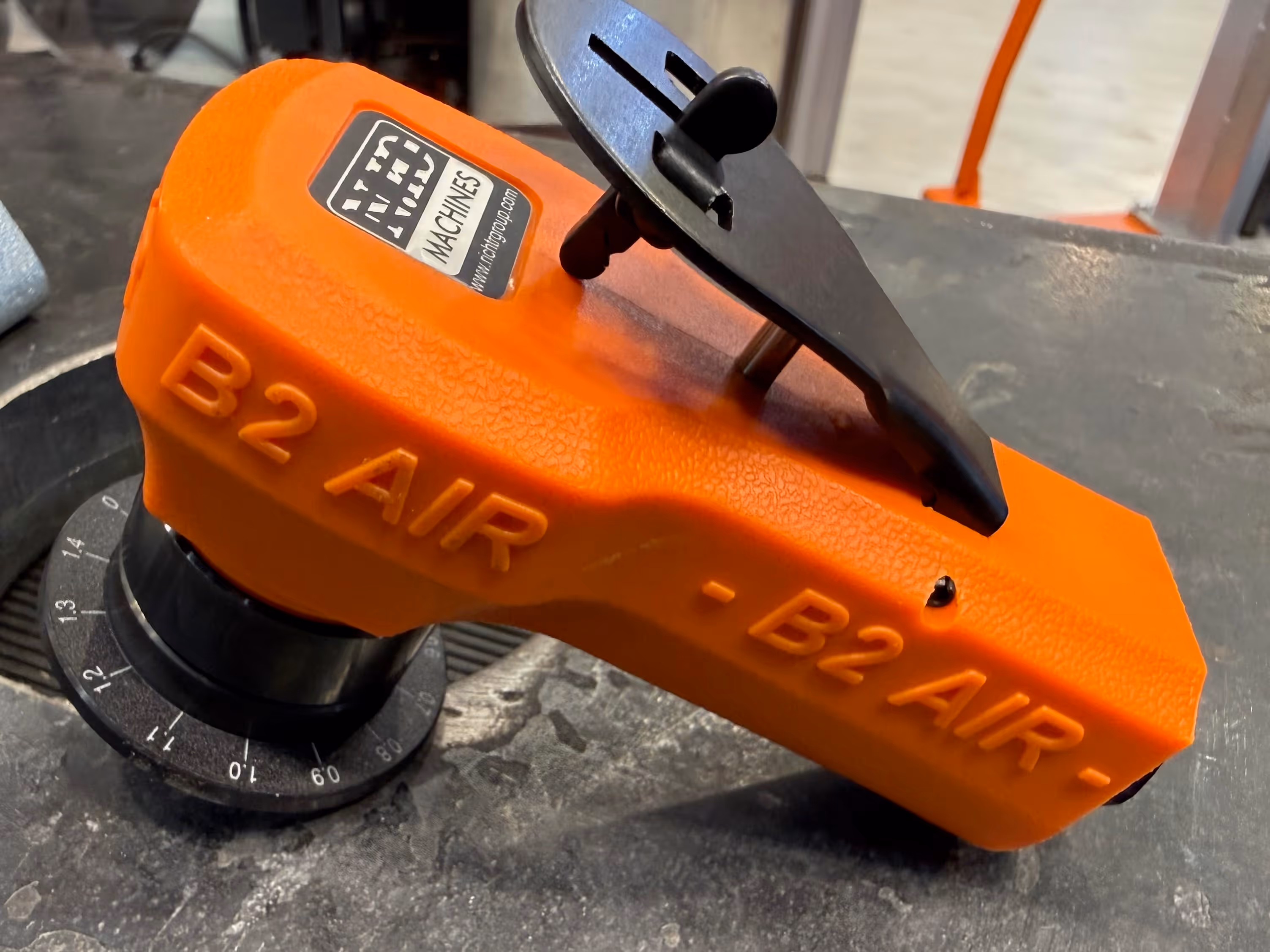

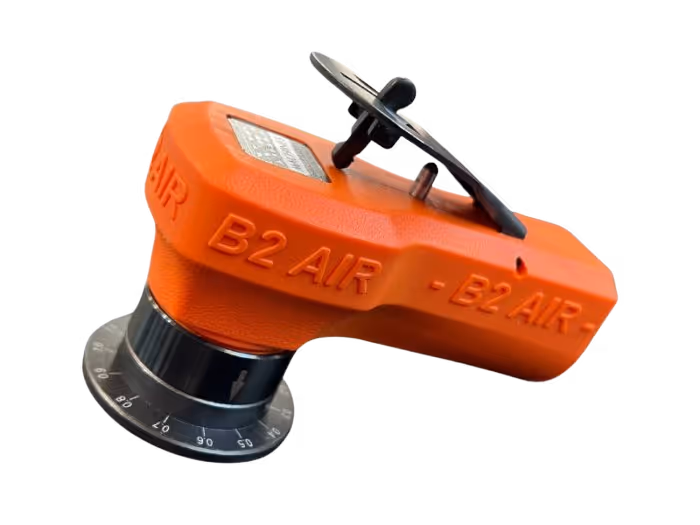

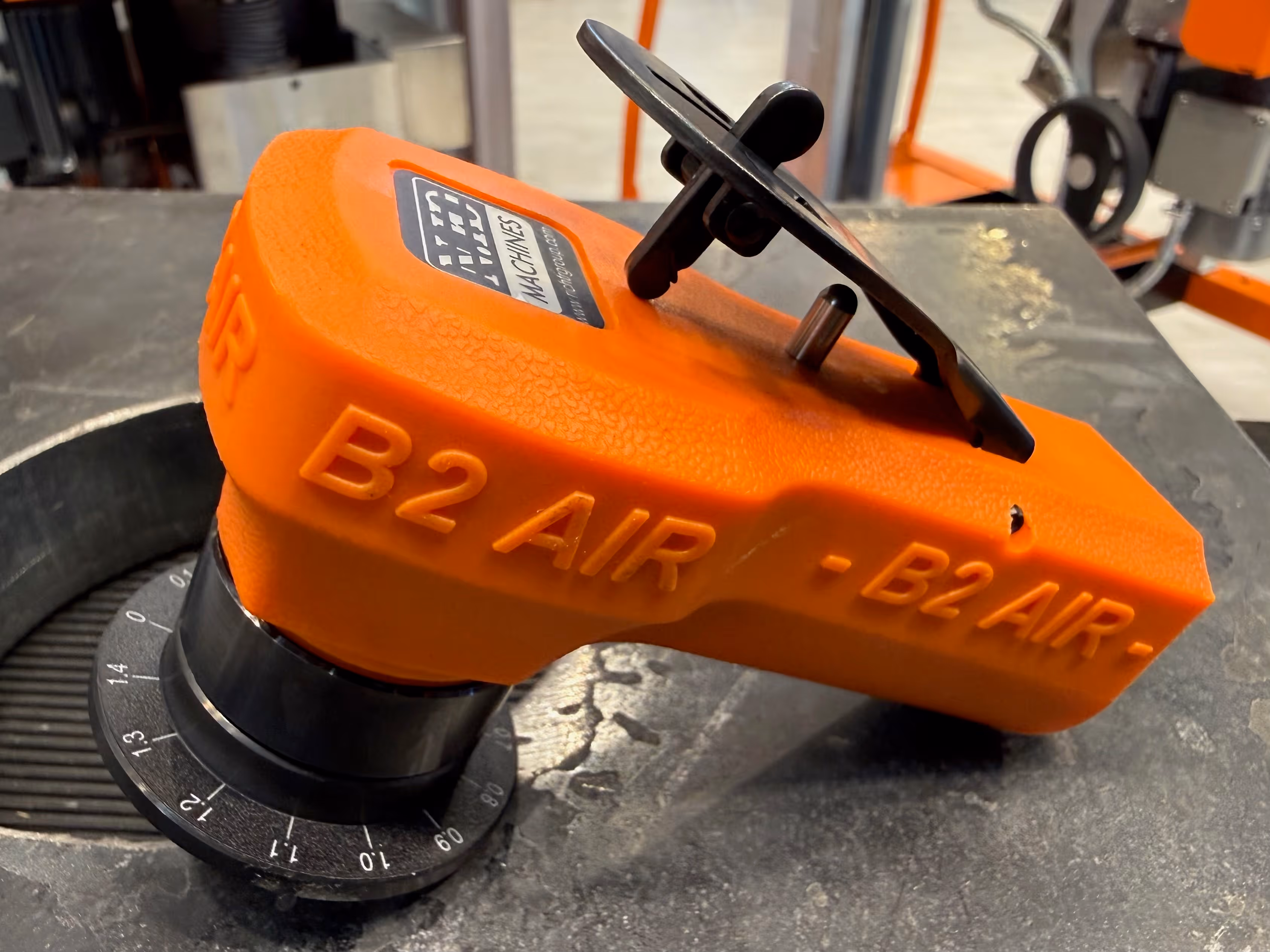

B2 AIR
Bevel Angle
45°
Rounding Radius
R 0.06 in/ R 1,5 mm
Speed
23.000 rpm.
Feeding
manual
Air Consumption
320 l/min.
Weight
0.88 lb / 400 g
Dimensions
4.4 x 2.36 x 1.9 in/112 x 60 x 48 mm
PRODUCT MANUALS
Bevel Types
V-Bevel

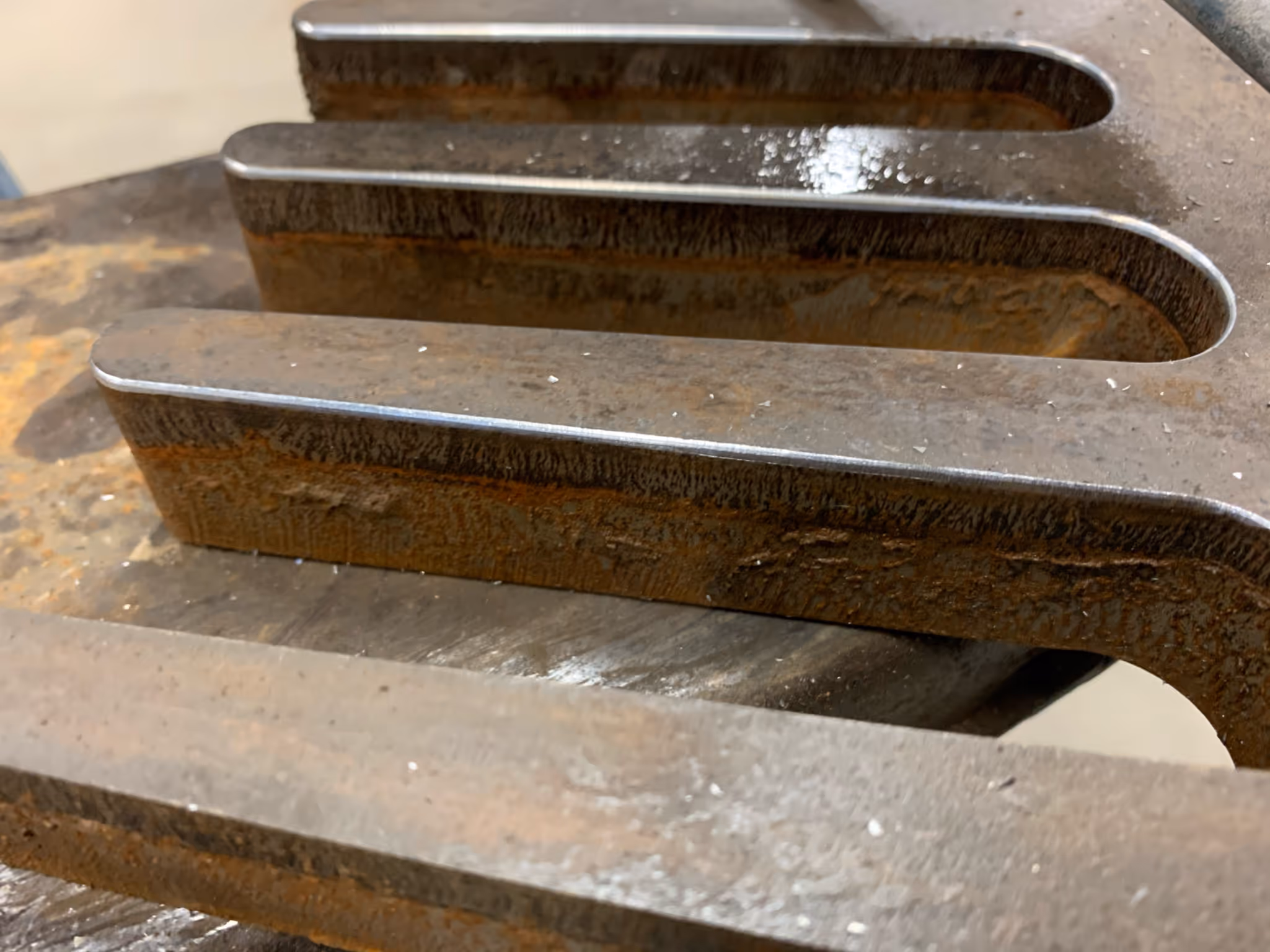

Radius
BEVEL TYPES
V-Bevel
Radius
