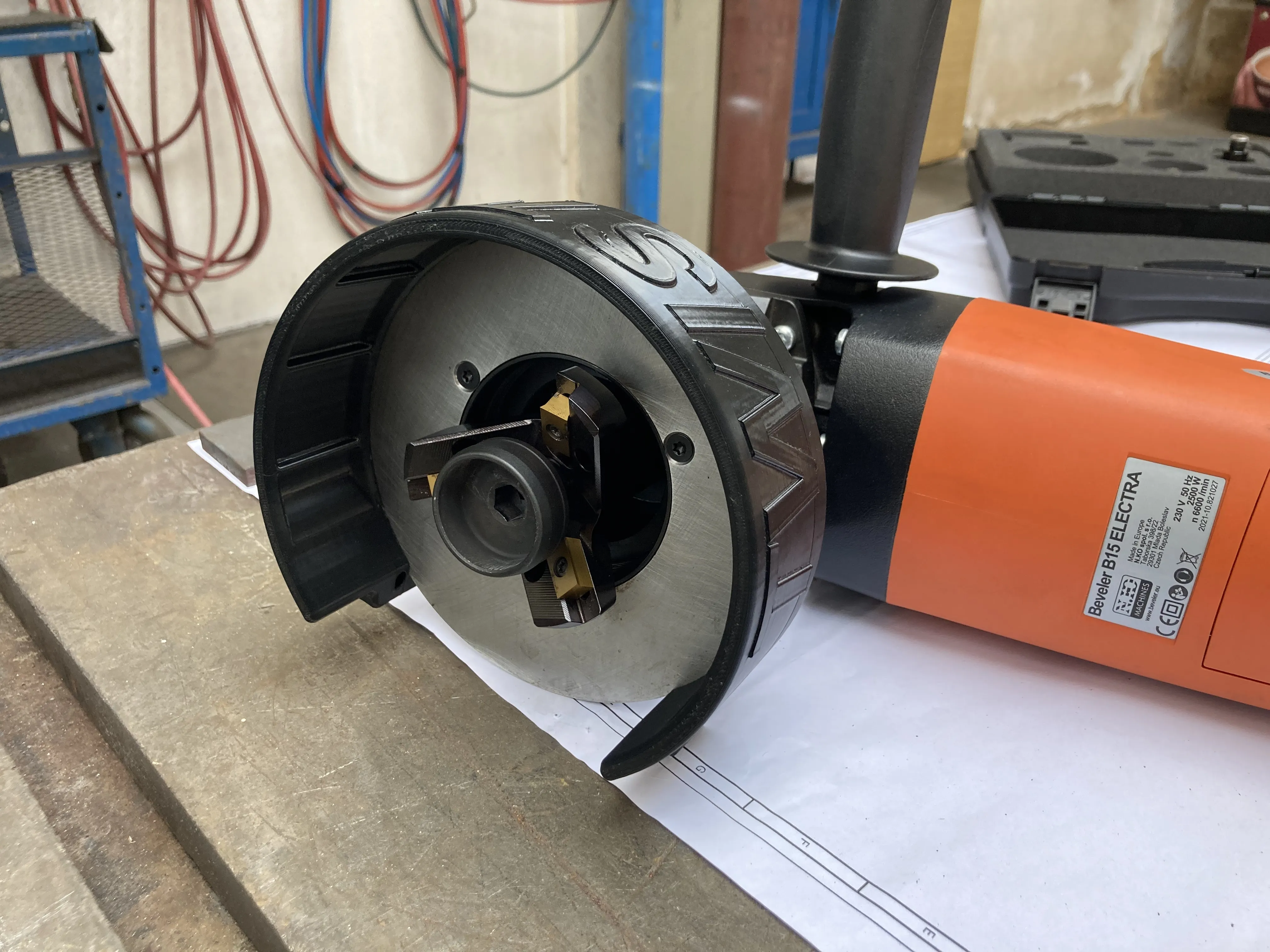

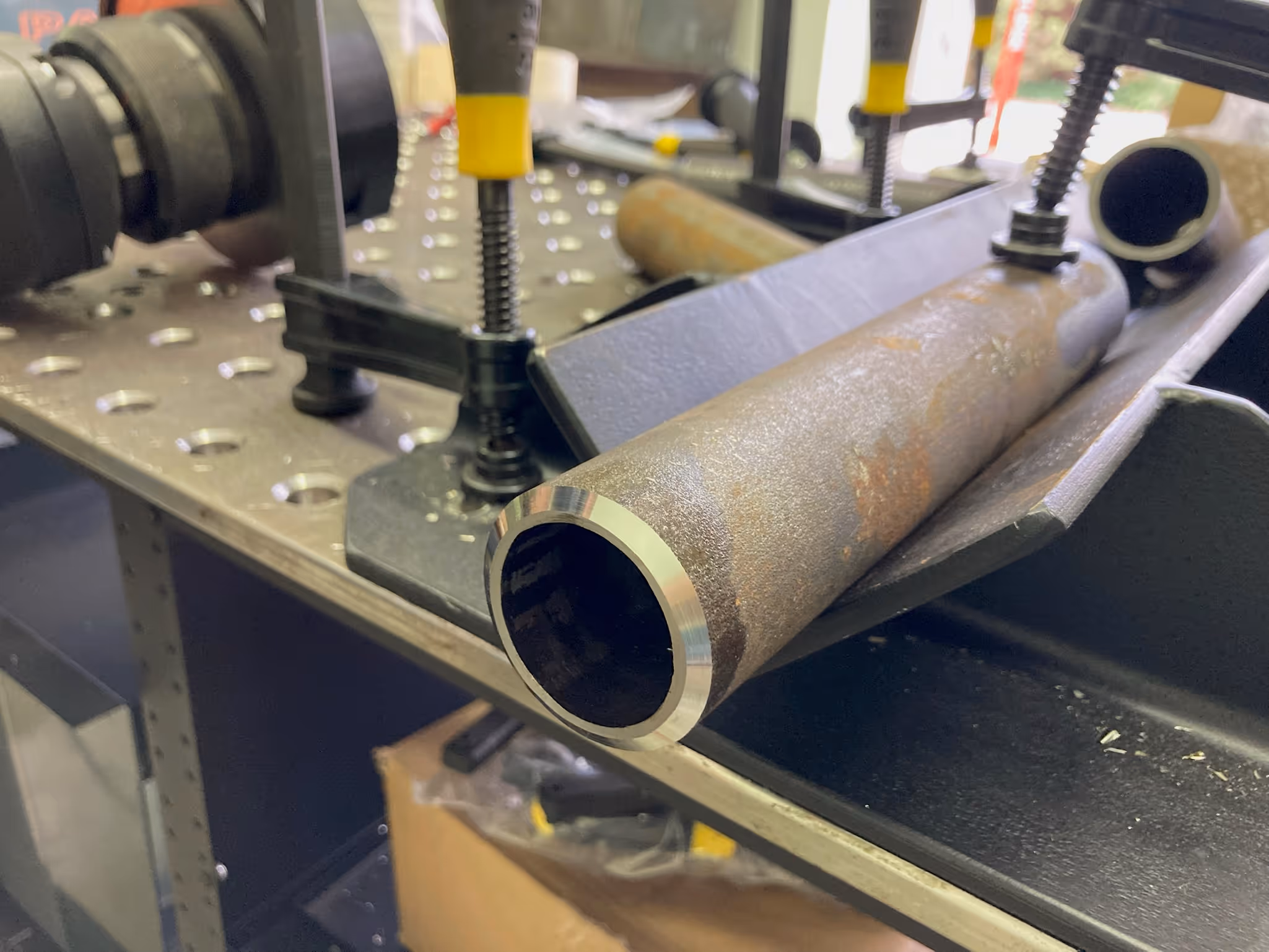

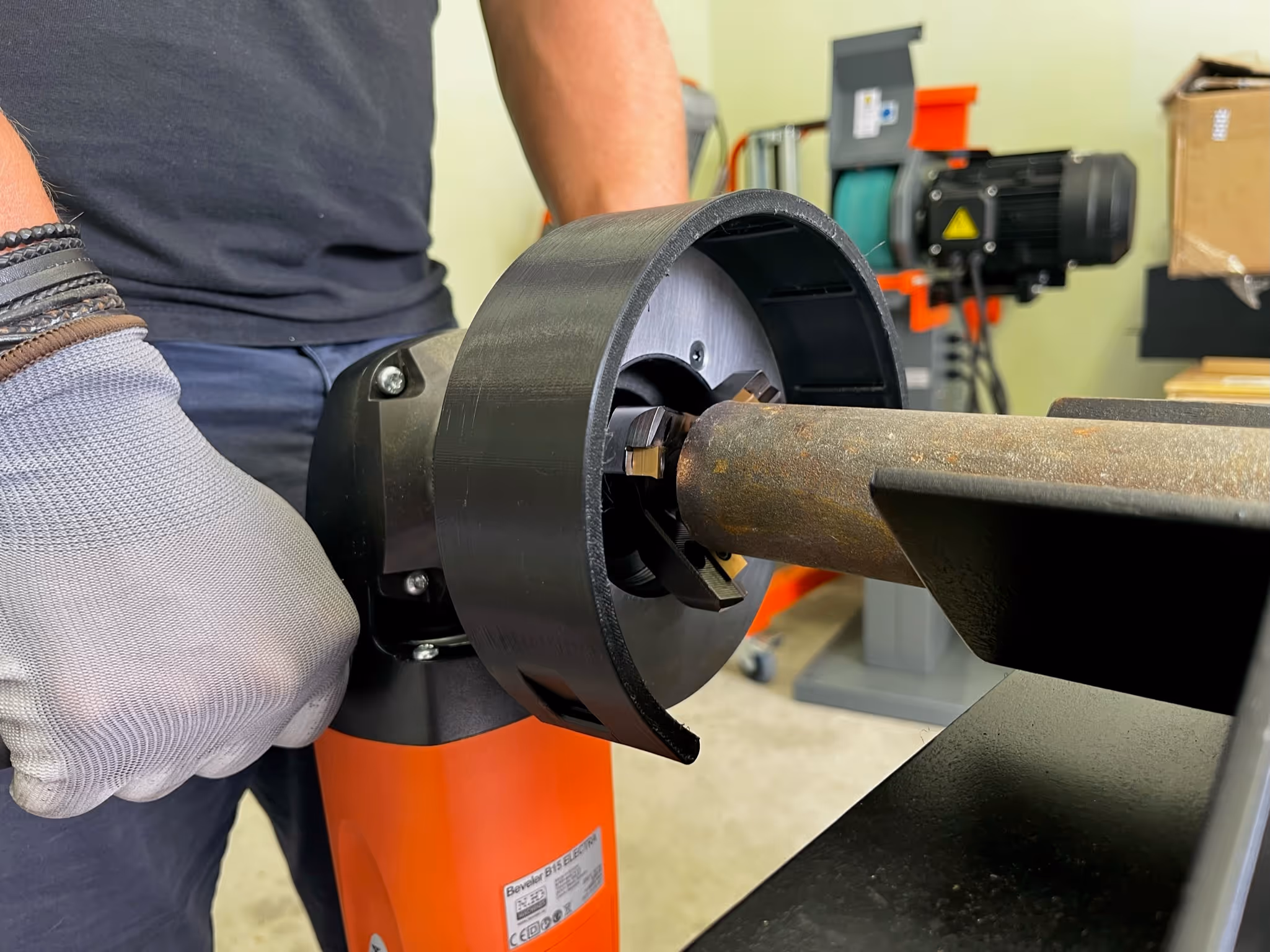

TWISTER is a pipe-edge beveling attachment for tubes Ø 0.76 - 2.75 in (19.5 - 70 mm). It machines pipe ends to prepare weld surfaces or to deburr, and mounts on the N.KO Machines B15 Electra and B15 AIR (and, alternatively, the B10 Electra). It's made for iron, carbon structural steel, non-ferrous metals and plastics. TWISTER must always be run with the safety cover, which is not included in the price (cover Art. 27409).

The Twister uses double-sided coated cutting inserts - set of 10: Art. Nr. 28015

‍

Art. Nr. 27200 - Twister 2-3000‍

• Bevel angle: 30°
• Min. diameter of machined pipe: 0.76“ (19.5 mm)
• Max. diameter of machined pipe: 2.75“ (70 mm)
• Max. bevel width: 0.39“ (10 mm)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450g)

Art. Nr. 27201 - Twister 2-3705‍

• Bevel angle: 37.5°
• Min. diameter of machined pipe: 0.76“ (19.5 mm)
• Max. diameter of machined pipe: 2.75“ (70 mm)
• Max. bevel width: 0.39“ (10 mm)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450g)

Art. Nr. 27202 - Twister 2-4500‍

• Bevel angle: 45°
• Min. diameter of machined pipe: 0.76“ (19.5 mm)
• Max. diameter of machined pipe: 2.75“ (70 mm)
• Max. bevel width: 0.39“ (10 mm)
• Number of cutting inserts: 3 pcs
• Number of mounting positions for cutting inserts: 3
• Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450g)
