PIPE BEVELING SYSTEM
STINGER is a portable, self-centering pipe beveler built to prepare weld surfaces on pipes and tubes. Operators reach for it because it's simple to run, dependable, and powerful enough to carry out up to three operations in a single pass. With STINGER you can true up the pipe end and edge, cut the bevel, and calibrate the inner diameter of the pipe being machined — combining several of these steps at once, or running any one of them on its own.
Line
Product Name
STINGER
POWER
1200-2400W
Weight
22–485 lb/10-220kg
PRODUCT MANUALS
Bevel Types
V-Bevel
Facing
J-Bevel
Counterboring
BEVEL TYPES
V-Bevel
Facing
J-Bevel
Counterboring
Art. Nr.

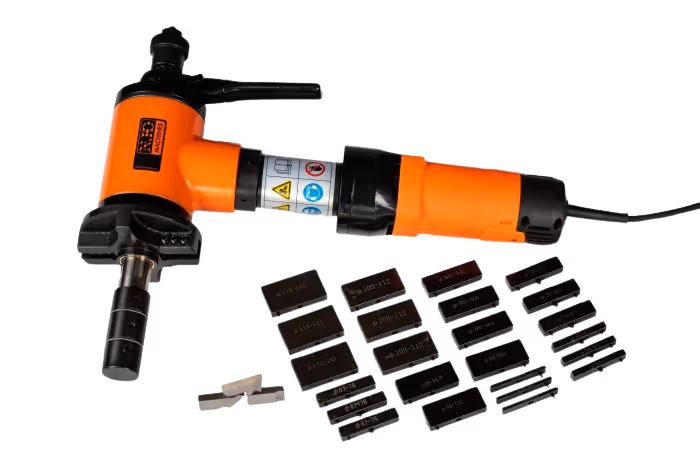

STINGER 120E
30013
ID: 1.57“ - 4.72“ (OD max 4.96“)/40-120mm (OD max 126mm)
≤ 0,59″ (15 mm)
1500W
39Lb/18Kg

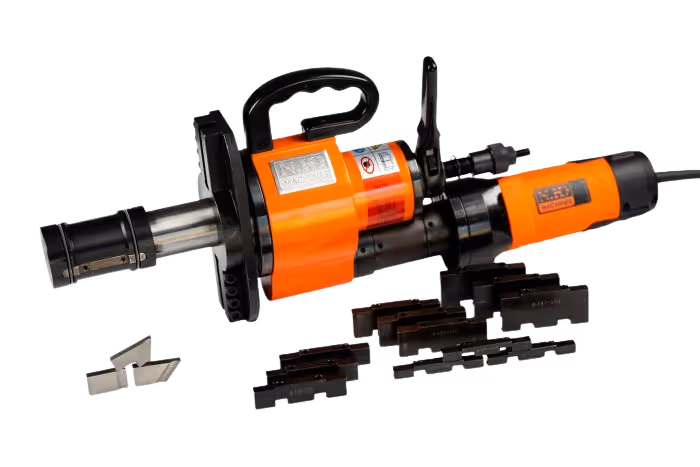

STINGER 159E
30014
ID:2.55“ - 6.25“ (OD max 6.61“)/65-159mm (OD max 168mm)
≤ 0,79 (20 mm)
1500W
55Lb/25Kg

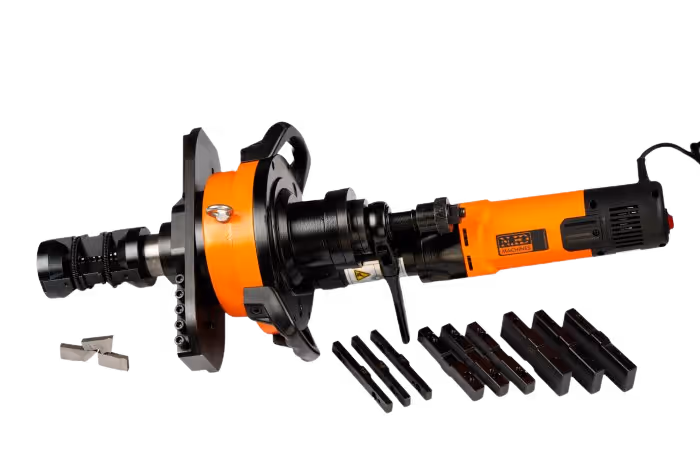

STINGER 240E
30015
ID: 3.14“ - 9.44“ (OD max 10.74“)/80-240 mm (OD max 273mm)
≤ 0,79″ (20 mm)
2000W
77Lb/35Kg

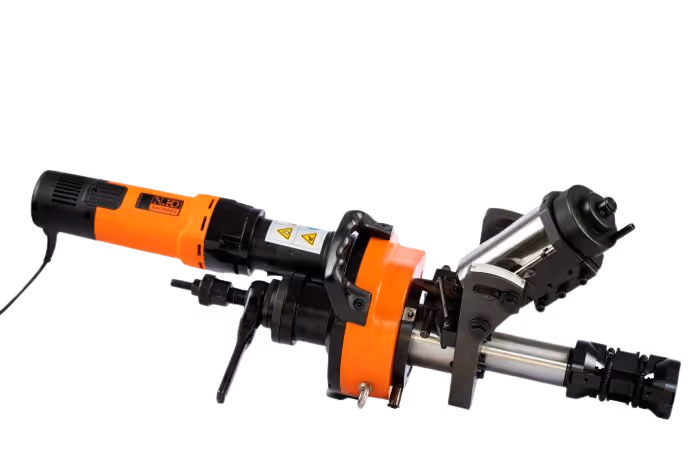

STINGER 240EA
30016
ID: 5.90“ - 9.44“inch (OD max 10.74“)/80-240mm (OD max 273mm)
≤ 2.95" (75mm).
2000W
99Lb/45Kg

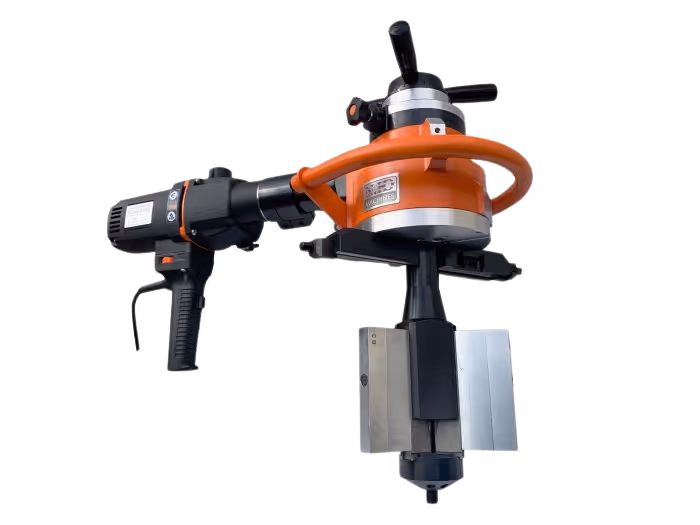

STINGER 300
30002
1.41 - 10.59“ (OD max 10.59“)/ID: 36-269mm (OD max 269mm)
≤ 0,59″/15 mm
1800W
80,69 lb/36,6kg
STINGER 330E
30017
ID: 5.90" - 12.99“ (OD max 13.97“)/150-330mm (OD max 355mm)
≤ 0,79″ (20 mm)
2000W
114Lb/52Kg

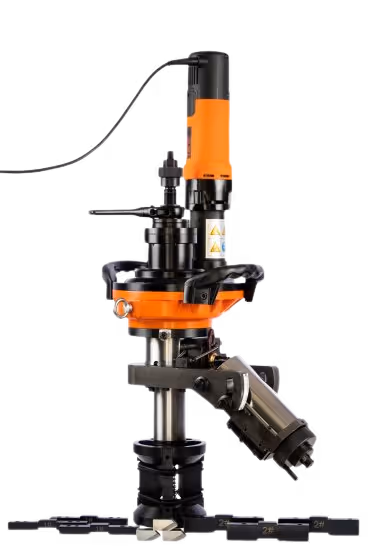

STINGER 330EA
30018
ID: 5.90“ - 12.99“inch (OD max 13.97“)/150-330mm (OD max 355mm)
≤ 2.95" (75mm).
2000W
132Lb/62Kg

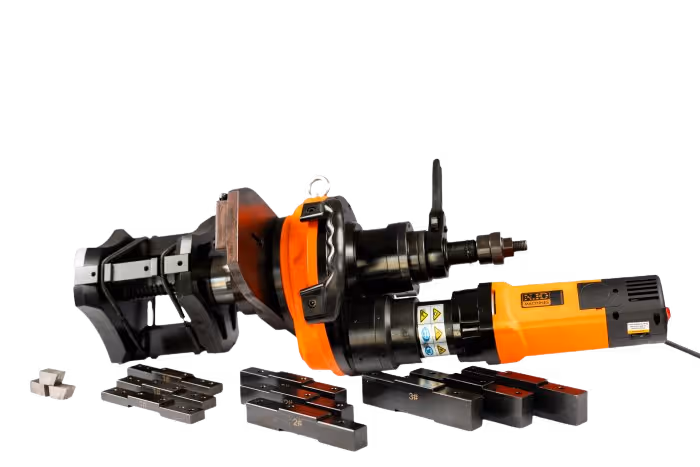

STINGER 426E
30019
ID: 9.84“ - 16.73“ (OD max 16.73“)/ 250-426mm (OD max 426mm)
≤ 0,79″ (20 mm)
2400W
198,5Lb/90Kg

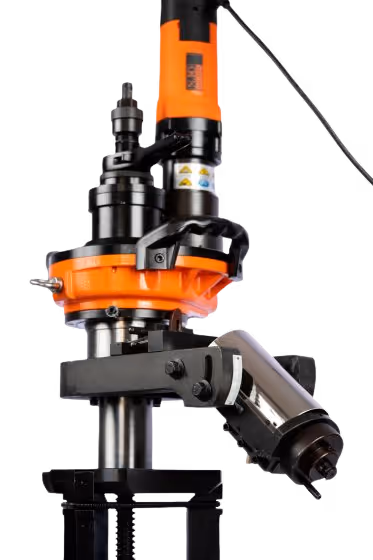

STINGER 426EA
30020
ID: 9.84“ - 16.73“inch (OD max 17.99“)/250-426mm (OD max 457mm)
≤ 2.95" (75mm).
2400W
236Lb/107 Kg

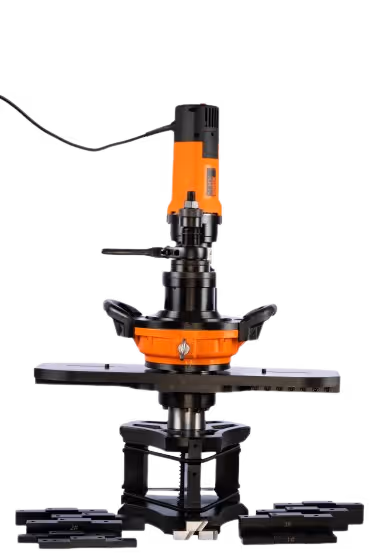

STINGER 600E
30021
ID: 11.81“ - 23.62“ (OD max 24.8“)/300-600mm (OD max 630mm)
≤ 0,79″ (20 mm)
2400W
253,5Lb/115 Kg
STINGER 600EA
30022
ID: 11.81“ - 23.62“ (OD max 24.8“)/300-600mm (OD max 630mm)
≤ 2.95" (75mm).
2400W
242,5Lb/110 Kg
STINGER 830E
30029
ID:23.62“ - 32.67“ (OD max 33.46“)/ 600-830mm (OD max 850mm)
≤ 0,79″ (20 mm)
2400W
401 Lb/182 Kg
