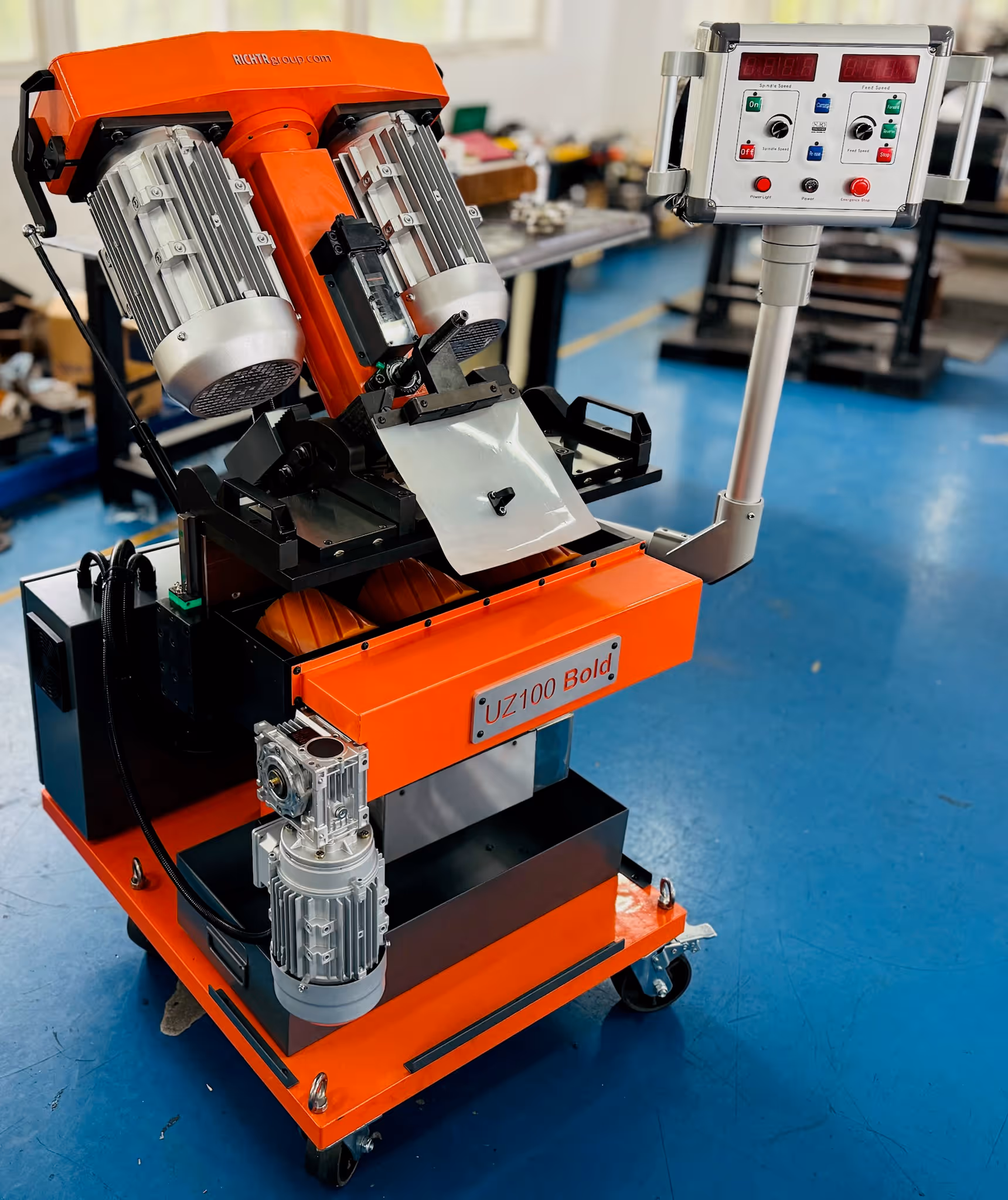

BEVELING SYSTEM

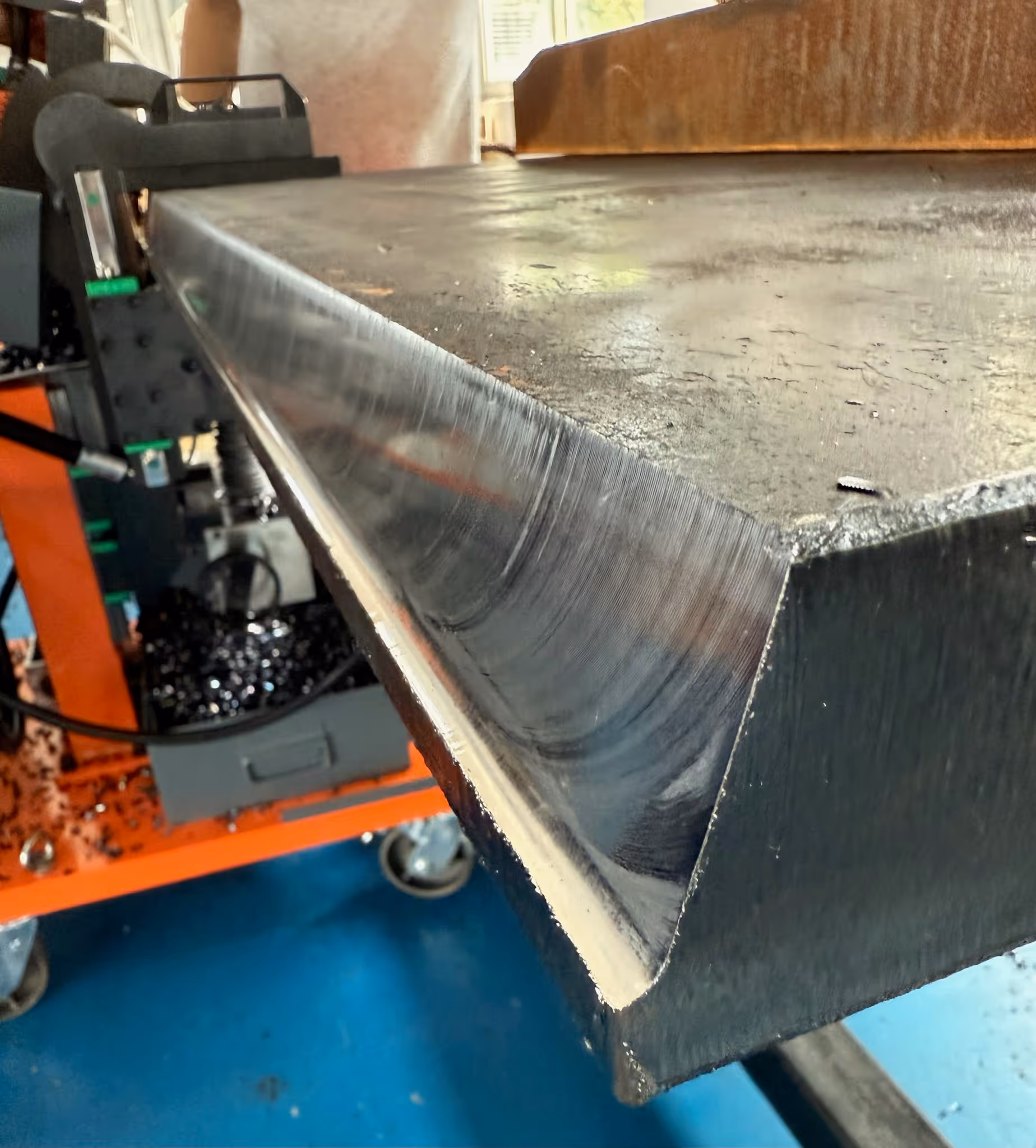

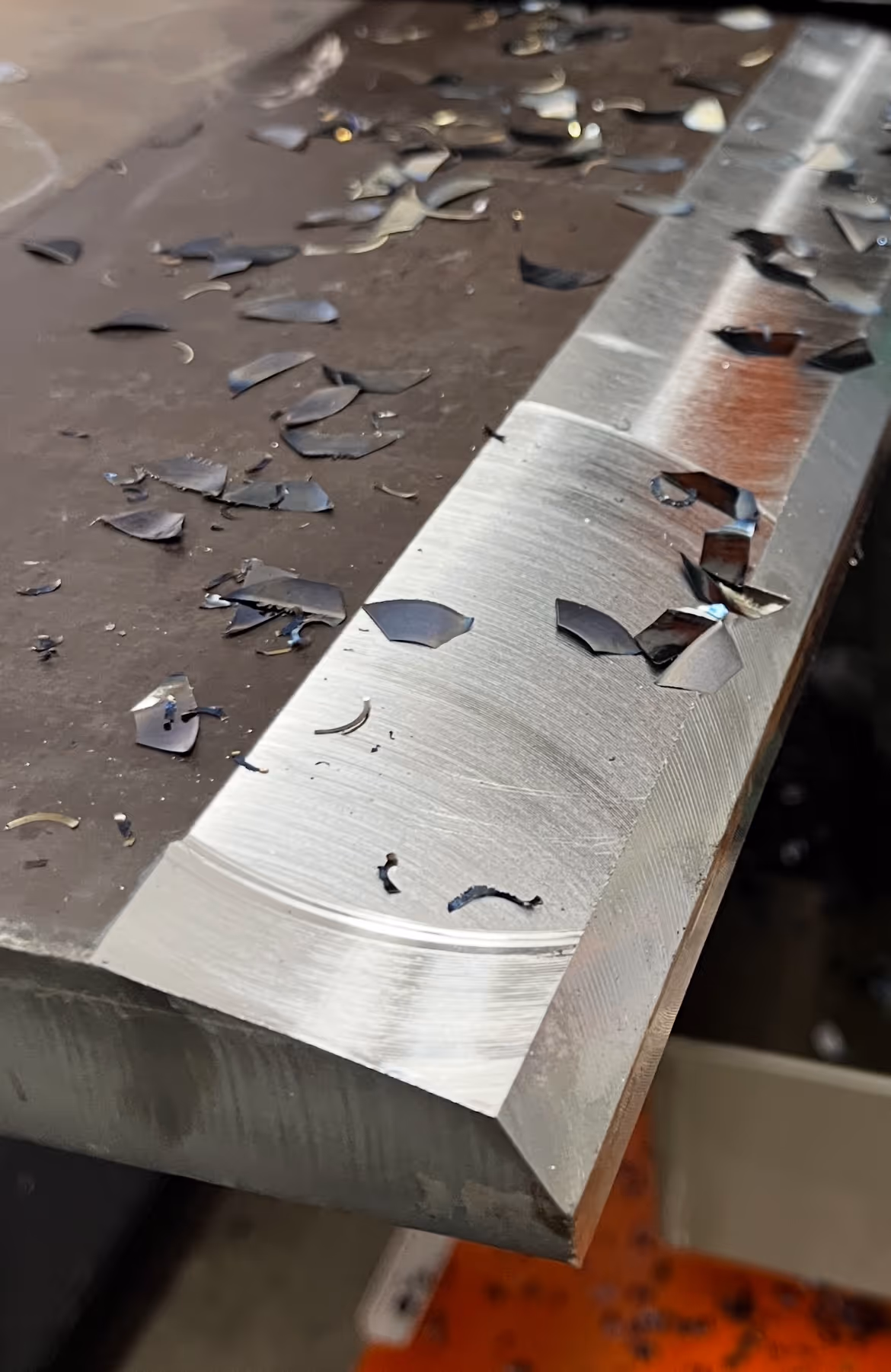

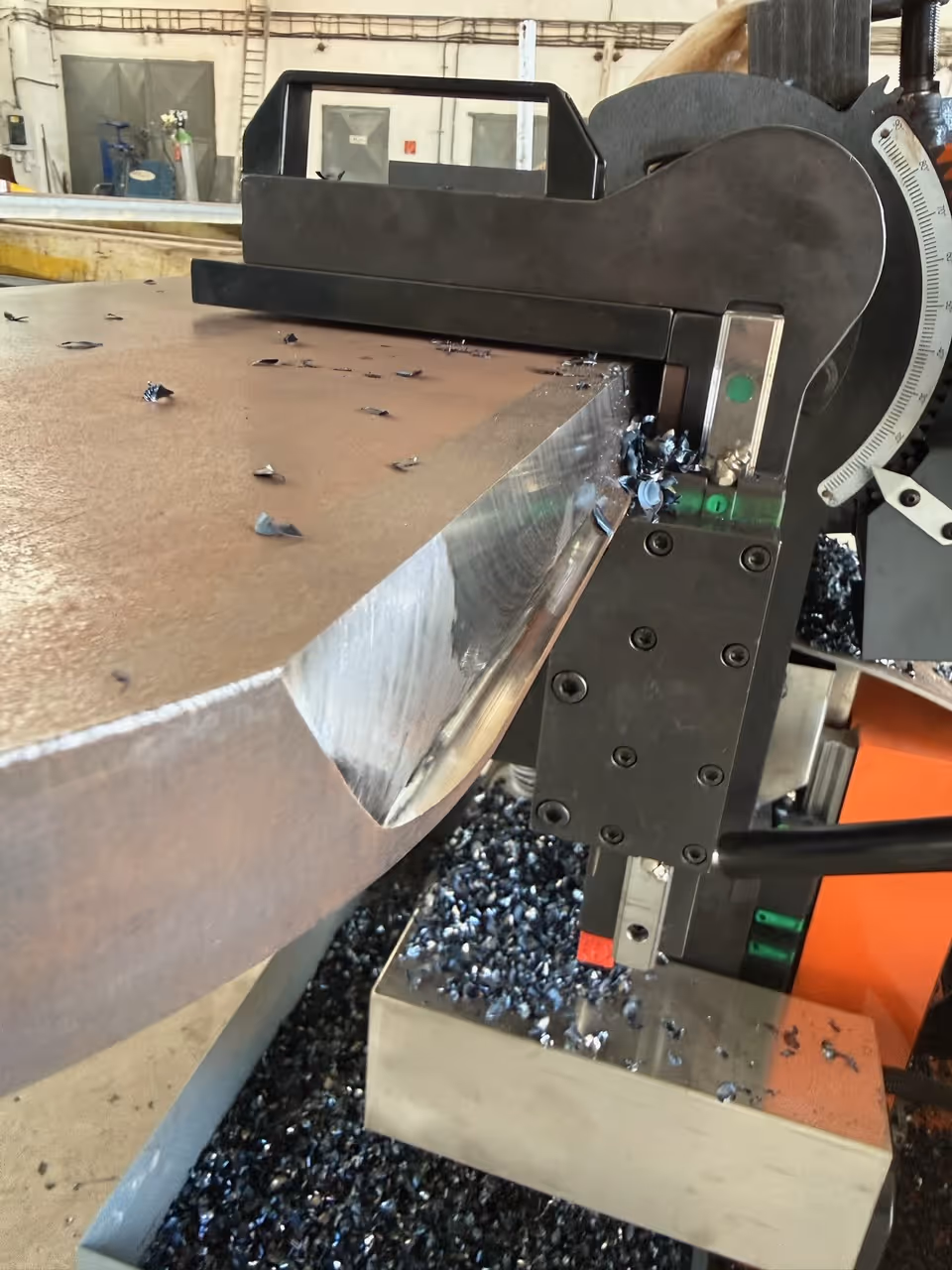

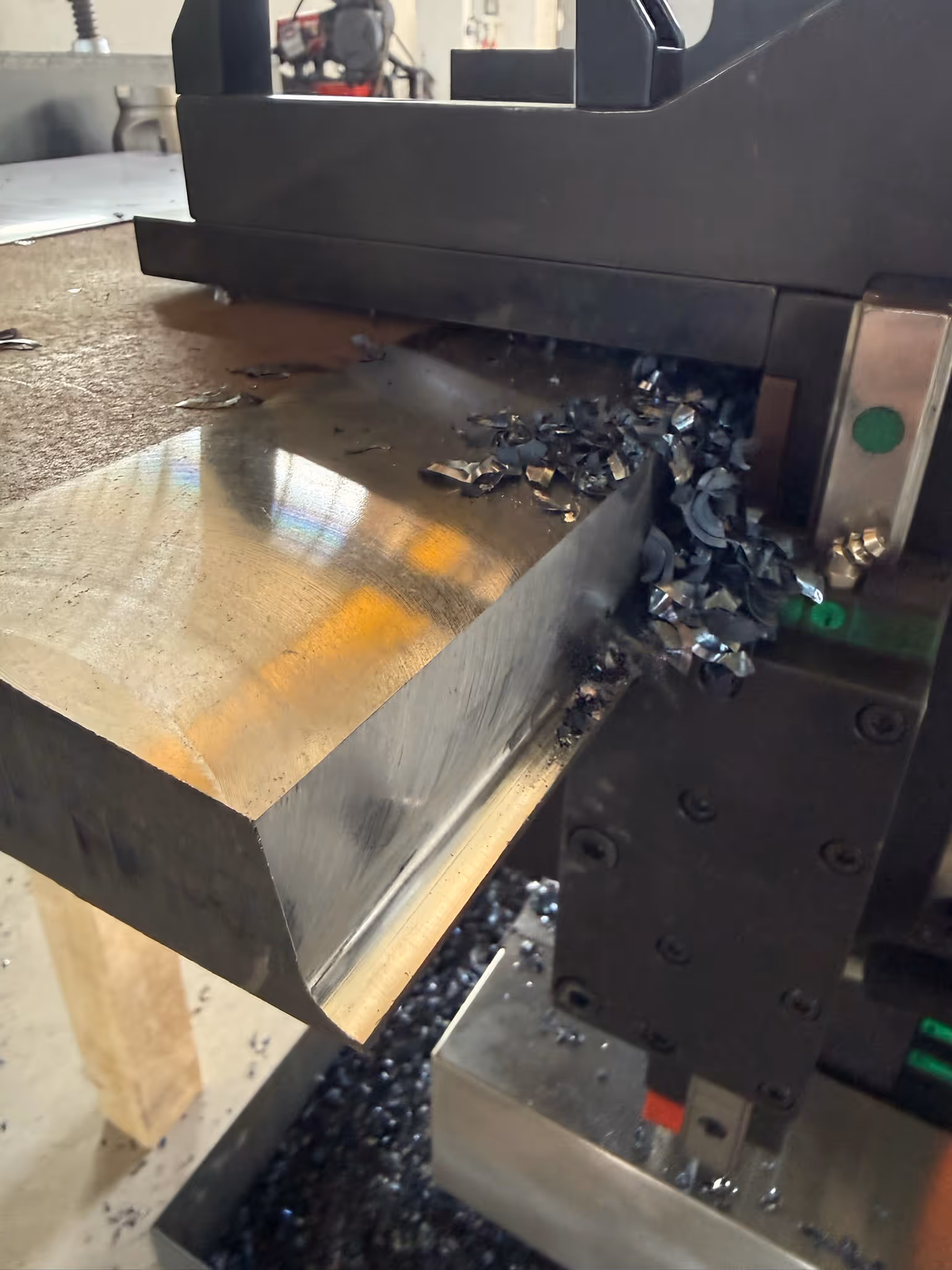

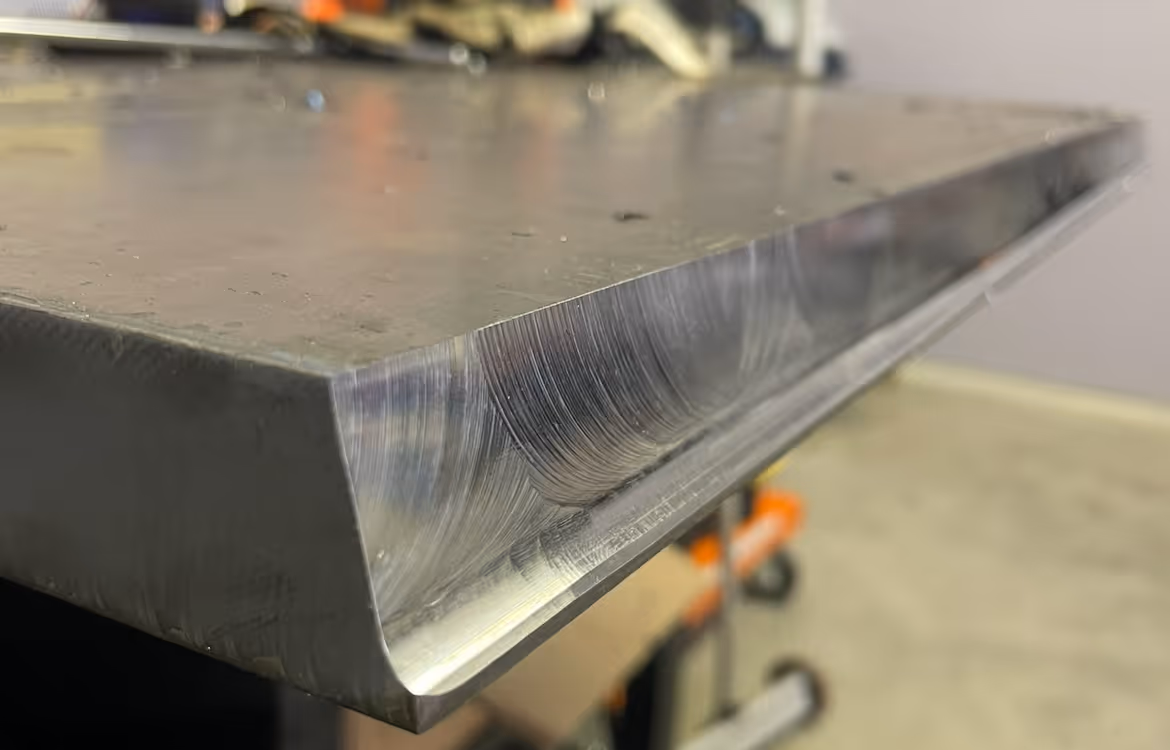

A distinctive multipurpose auto-feed beveler handling V-bevels, J-bevels, cladding removal, facing and chamfers past 70°. It's engineered for structural steels — high-strength grades included — plus stainless and harder-to-cut materials like Hardox and Domex.
We offer this machine in the following voltages:
Line
Art. Nr.
1000

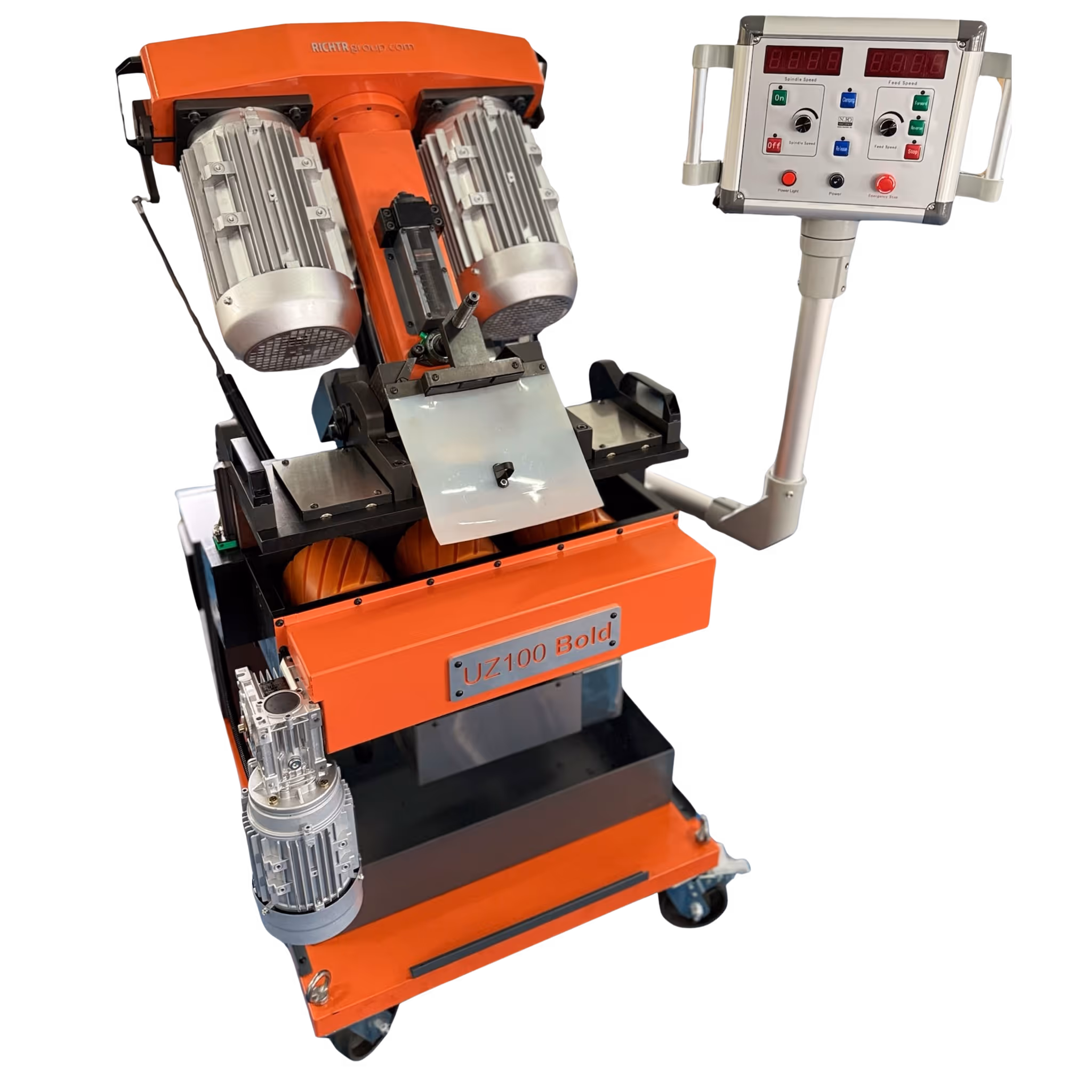

Product Name

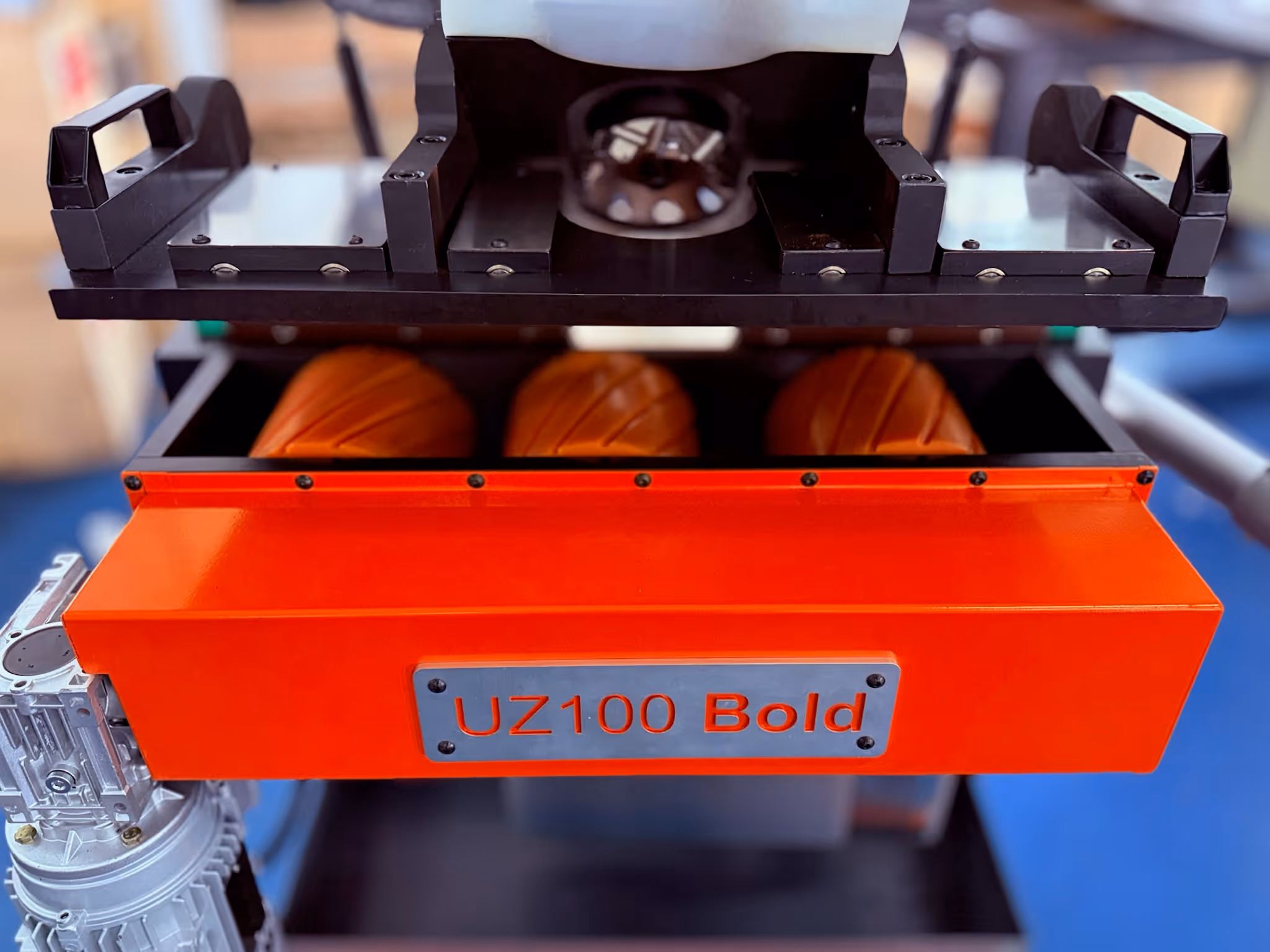

UZ100 BOLD
POWER
4000 W
Max. Bevel Width
3.93“/100mm
Bevel Angle
0° - 90°
Feeding
Automatic
Feed Rate
0 - 3.28 ft/min (0-1 m/min)
Material Thickness
.31“ - 3.93“/8 - 100mm
Weight
1012lb/459kg
Dimensions
42.52×40.16×53.54 in (1080x1020x1360mm)
PRODUCT MANUALS
Bevel Types
V-Bevel
Facing
J-Bevel
Tapering
Double Bevel
Compound Bevel
Cladding Removal
BEVEL TYPES
V-Bevel
Facing
J-Bevel
Tapering
Double Bevel
Compound Bevel
Cladding Removal
