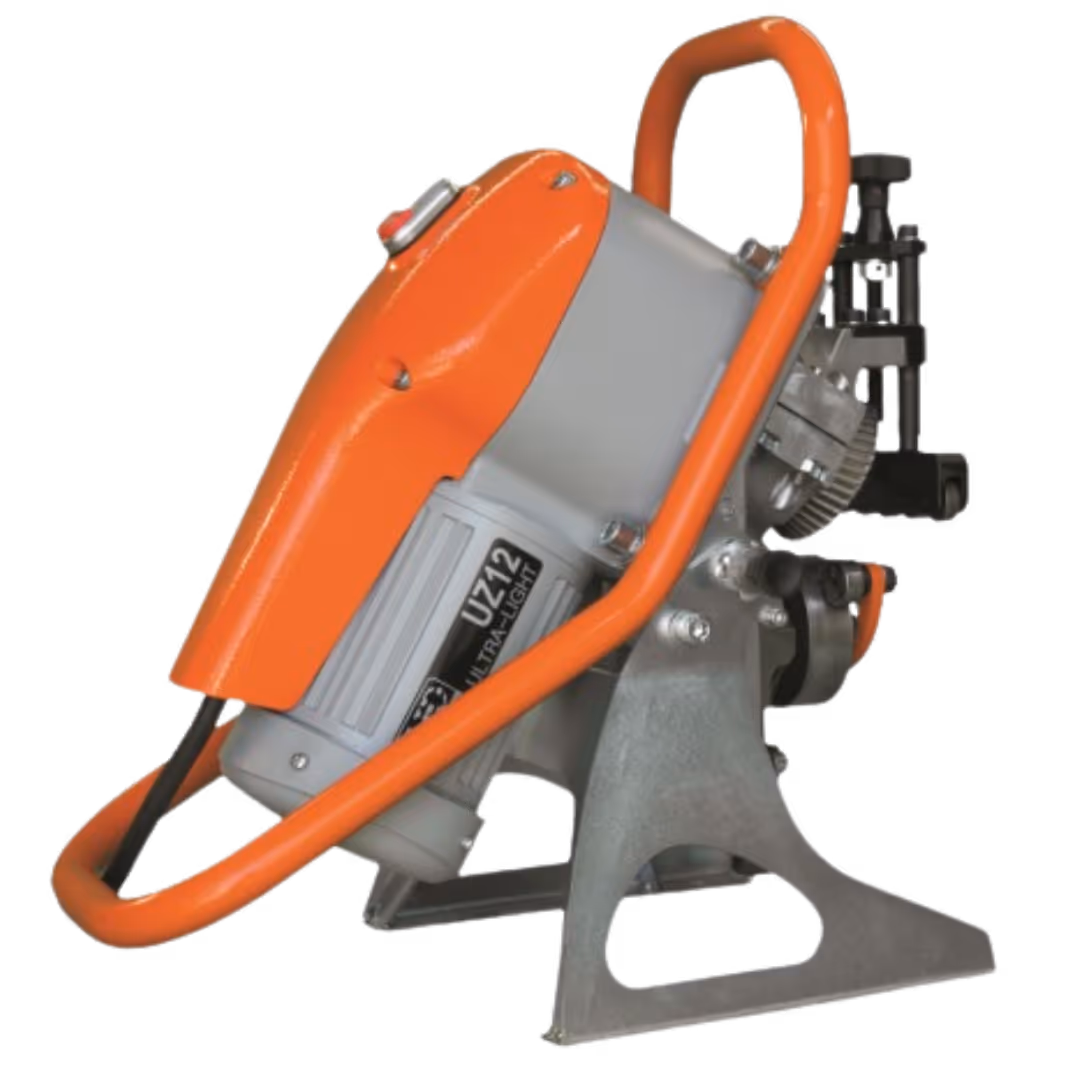

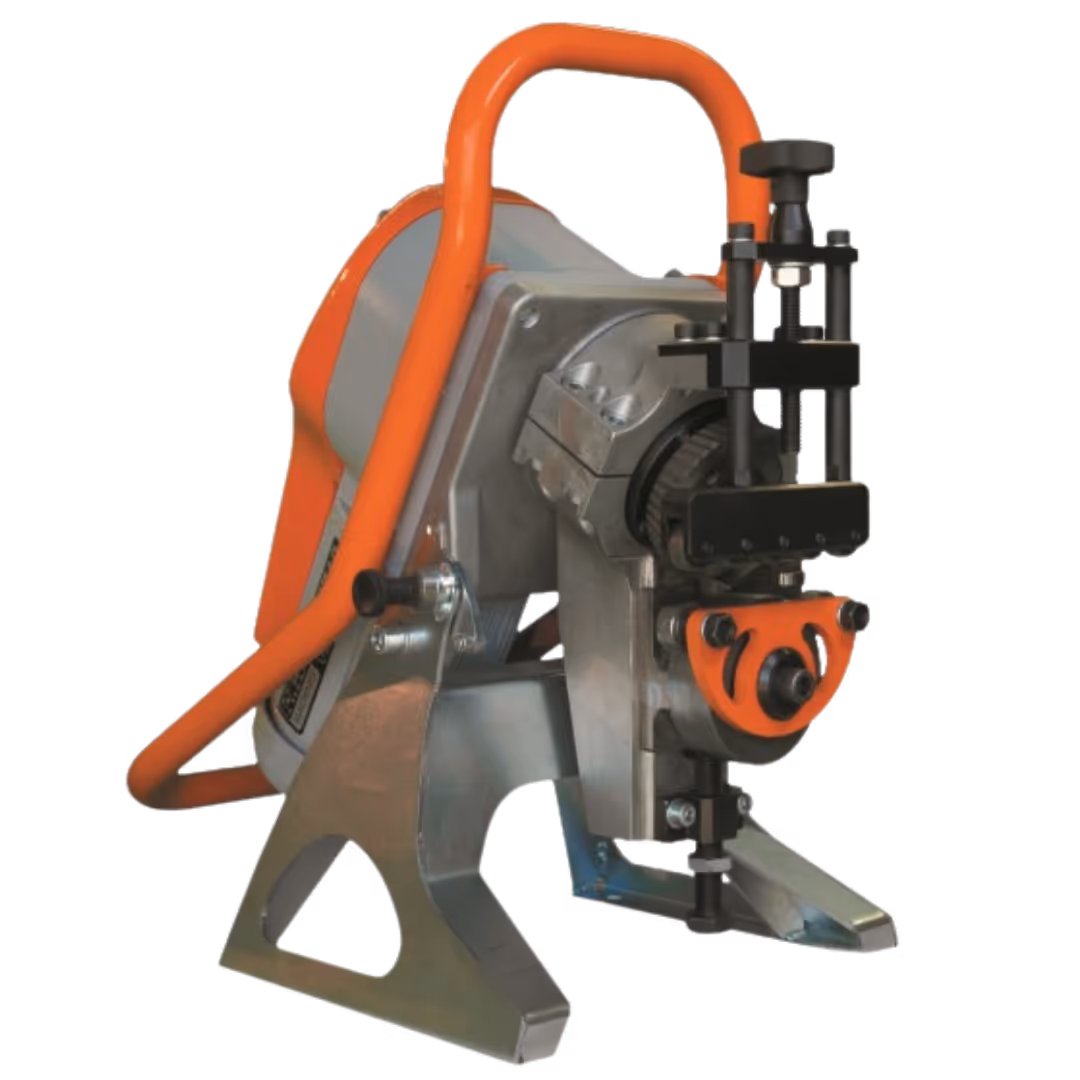

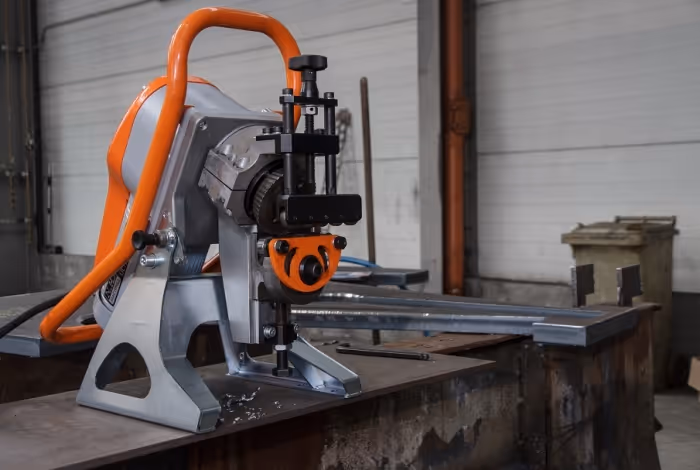

UZ12 ULTRALIGHT

Name: UZ12 ULTRALIGHT
Brand: N.KO Machines

BEVELING SYSTEM

Weighing in as one of the lightest auto-feed bevelers you can buy, the UZ12 ULTRALIGHT was built for portability without giving up performance. Its compact footprint and low weight make it equally at home on the shop floor or out on assembly sites. Automatic feed handles the workpiece for you, so operation stays effortless and fatigue-free — and it does all of this as the quietest beveler in its class.

‍

We offer this machine in the following models and voltages:

Beveling system UZ12 ULTRALIGHT - set (KIT 30° + 45°)
- Art. Nr. 1922 - 400V, 3 phase
Beveling system UZ12 ULTRALIGHT - set (KIT 22,5° + 30°
+ 37,5° + 45° + 50° + pipe bevelling tool)
- Art. Nr. 1918 - 400V, 3 phase
- Art. Nr. 1818 - 480V, 3 phase
- Art. Nr. 1912 - 220V, 3 phase

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

1922

Product Name

UZ12 ULTRALIGHT

POWER

400 W

Max. Bevel Width

0.47 in/12 mm

Bevel Angle

22.5°, 30°, 37.5°, 45°, 50° (replaceable KIT)

Feeding

Automatic

Feed Rate

5.9 ft/min./1,8 m/min.

Material Thickness

0.12 - 1.37 in/3 - 35 mm

Weight

66 lb/30 kg

Dimensions

18.5 x 11.57 x 20.59 in/470 x 294 x 523 mm

PRODUCT MANUALS

UZ12 Ultralight User Manual EN

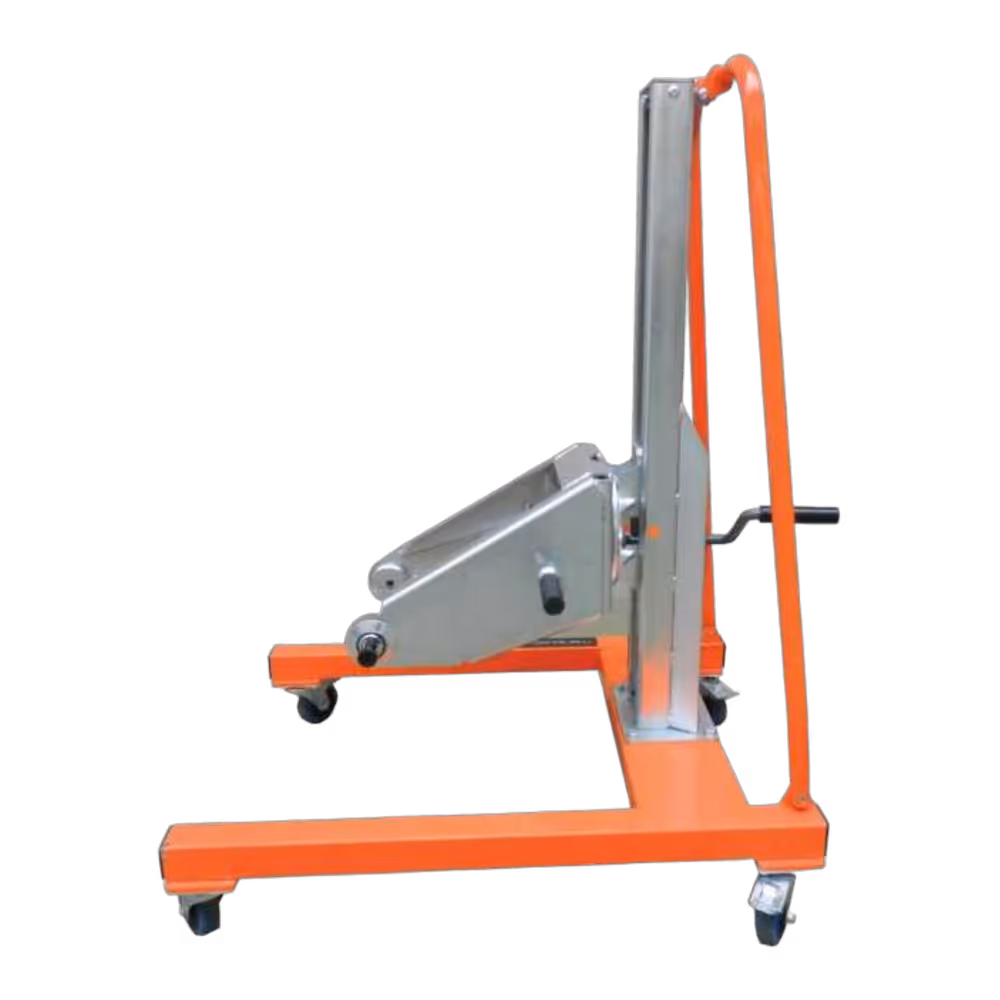

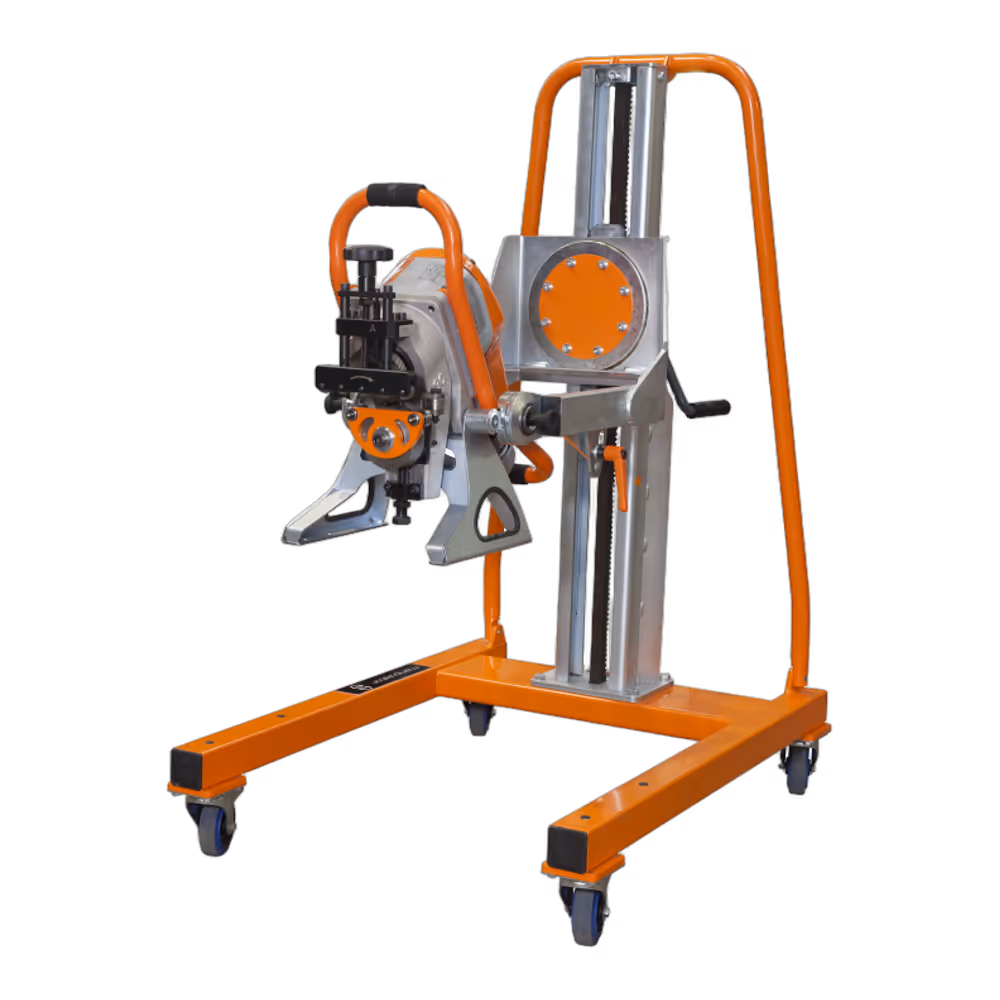

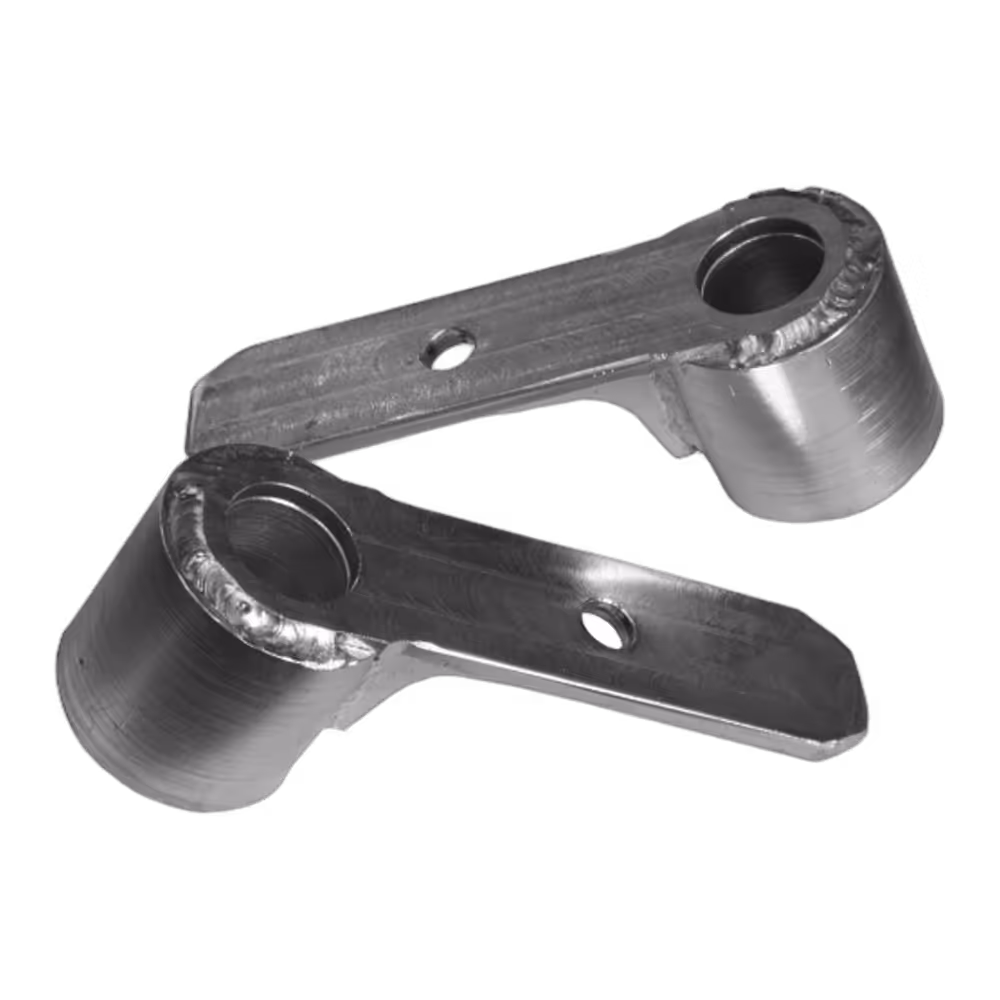

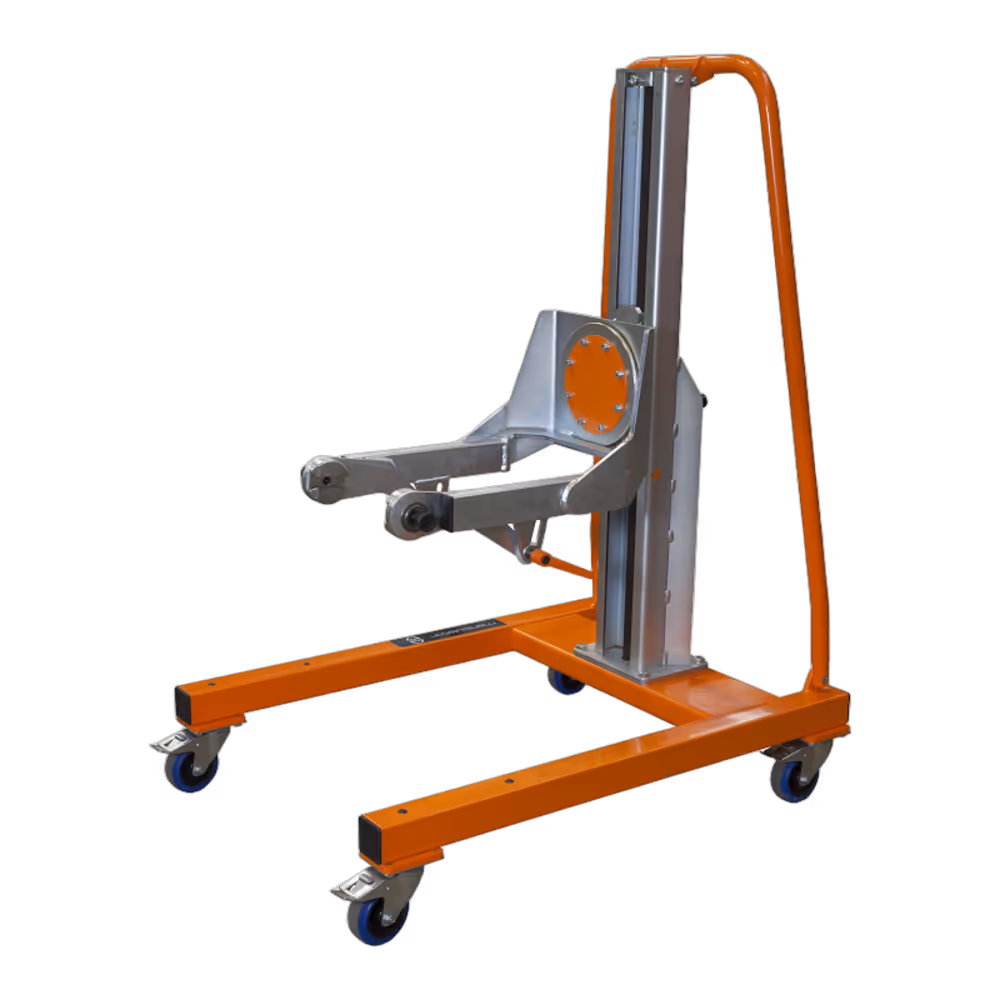

3D Manipulator User Manual EN

UZ12 Ultralight Catalogue Sheet EN

Bevel Types

V-Bevel

Double Bevel

View Bevel Details

V-Bevel

Double Bevel

Key benefits

- Handles standard steel rated up to 600 MPa / 87,022 PSI, plus stainless steel, brass, copper and aluminum.
- Accepts small parts down to 2.56 in/65 mm wide, 2.36in/60 mm long and 0.12 in/3 mm thick.
- Processes material from 0.12-1.37/3 to 35 mm in thick.

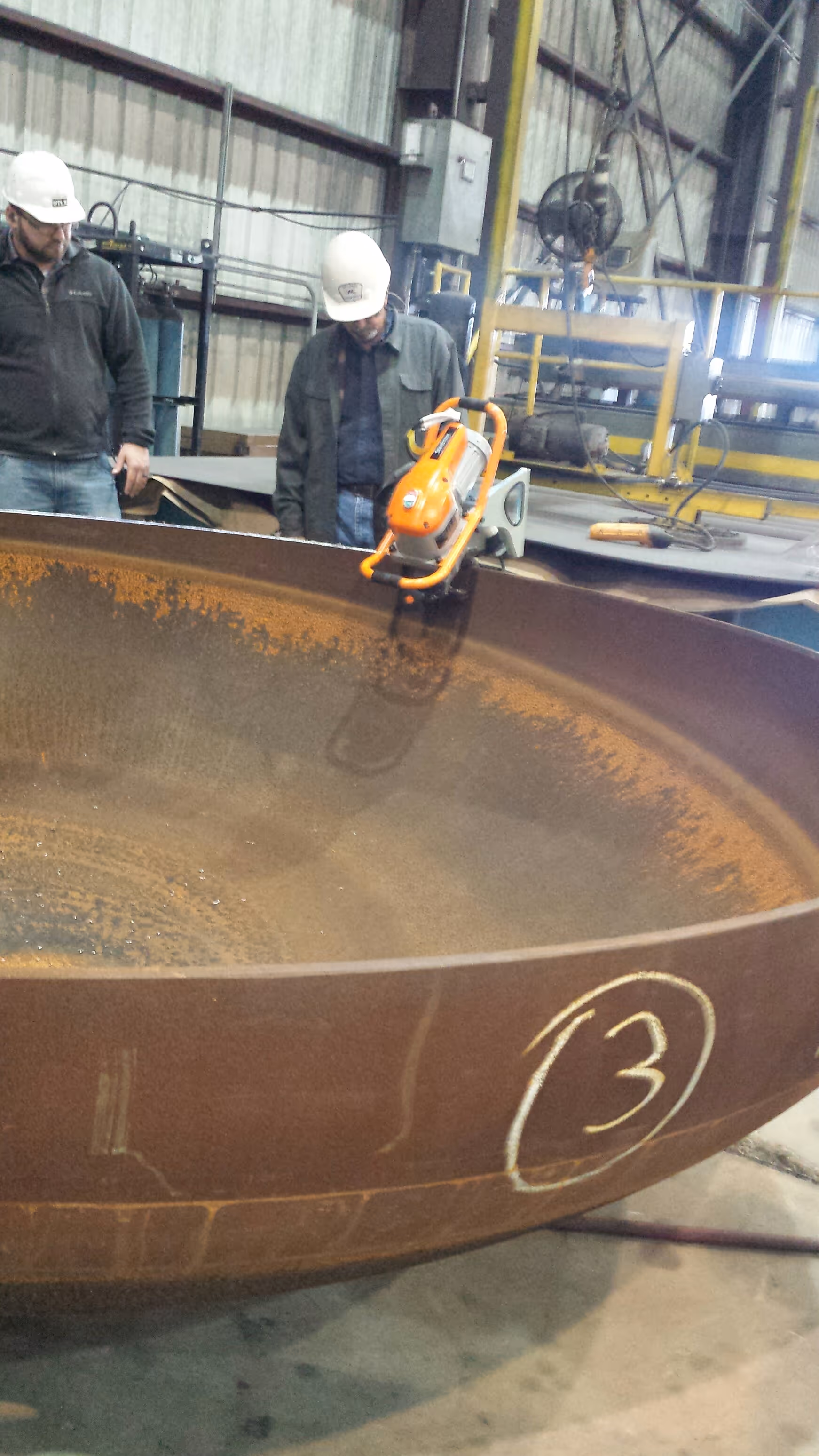

- Bevels the inside of pipes from an internal diameter of Ø 3.74 in/95 mm.
- Swap the angle simply by fitting the corresponding arm (a KIT per angle).
- Cuts double-sided X and K bevels with no need to reposition the part.
- Runs remarkably quietly.
- Ships with automatic feed as standard.

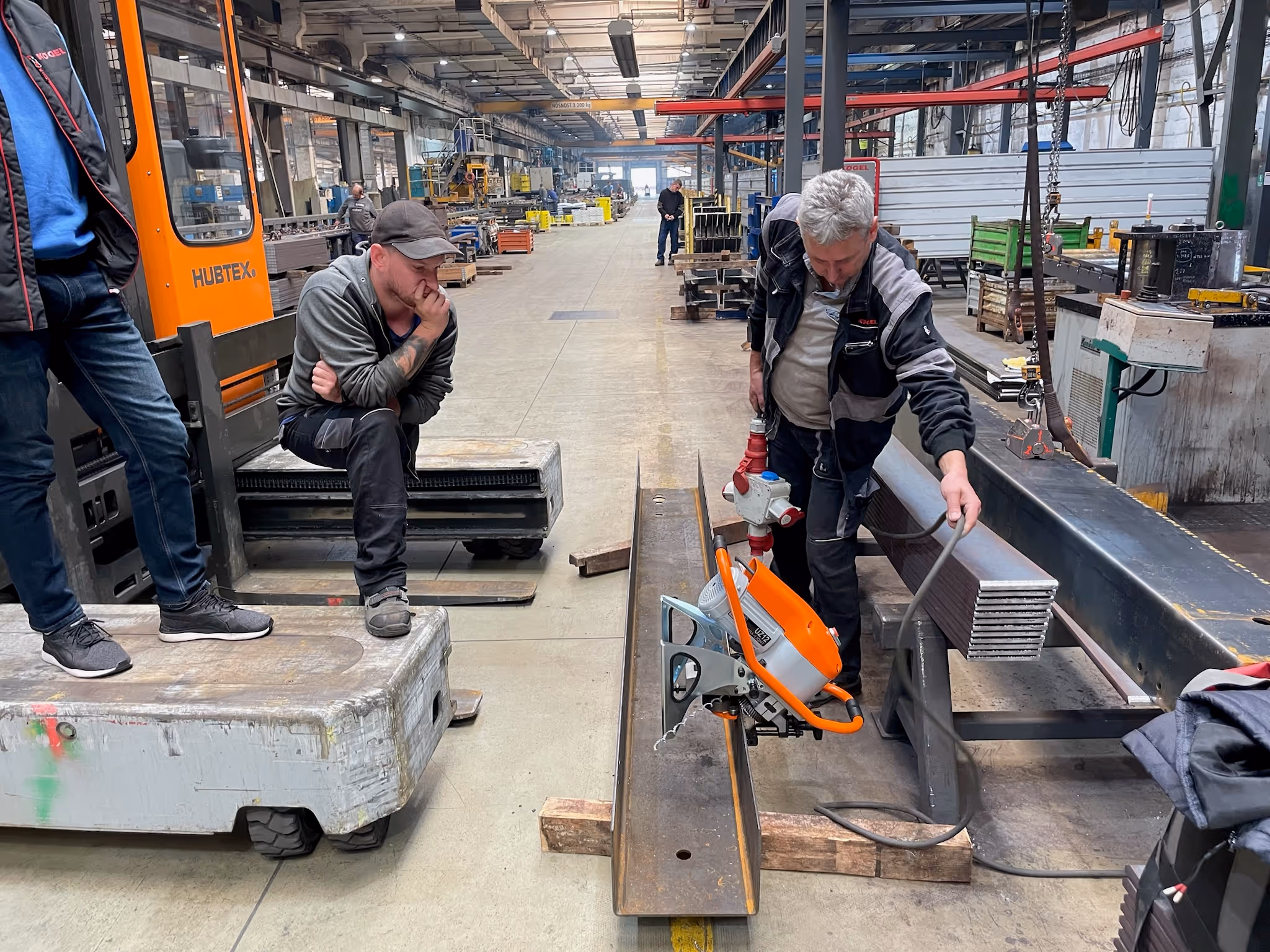

- Works either as a fixed station or on the move.

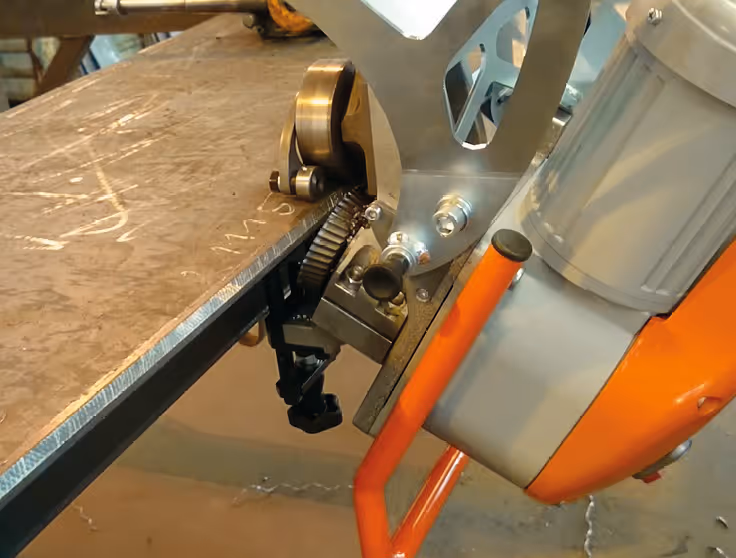

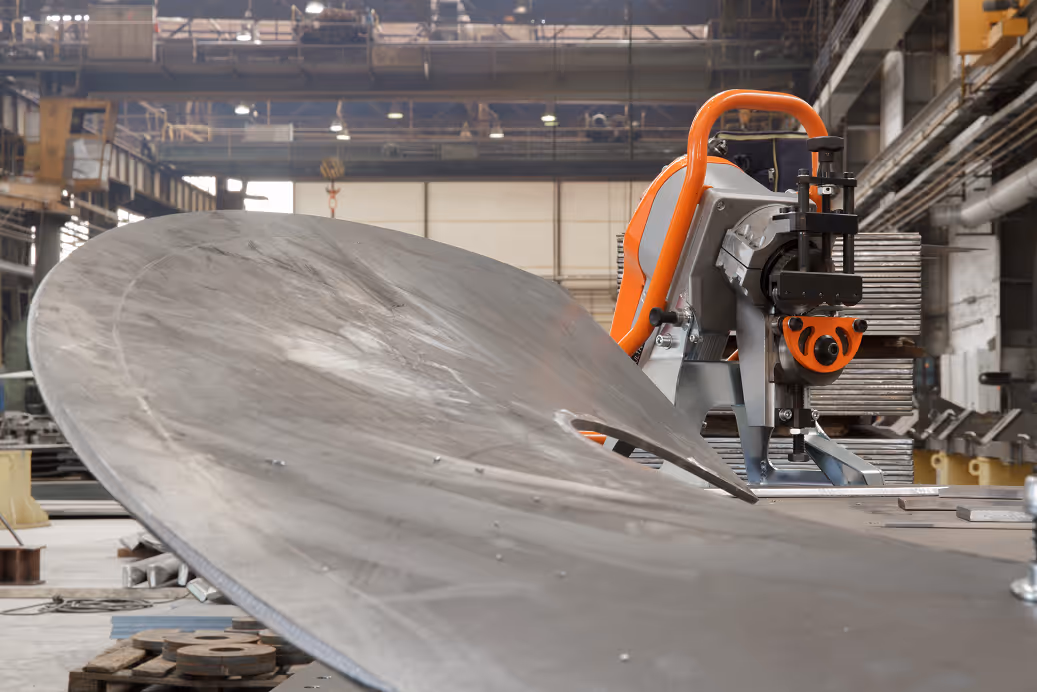

- Advances along large plates unsupported at 5.9 ft/min/1.8 m/min.

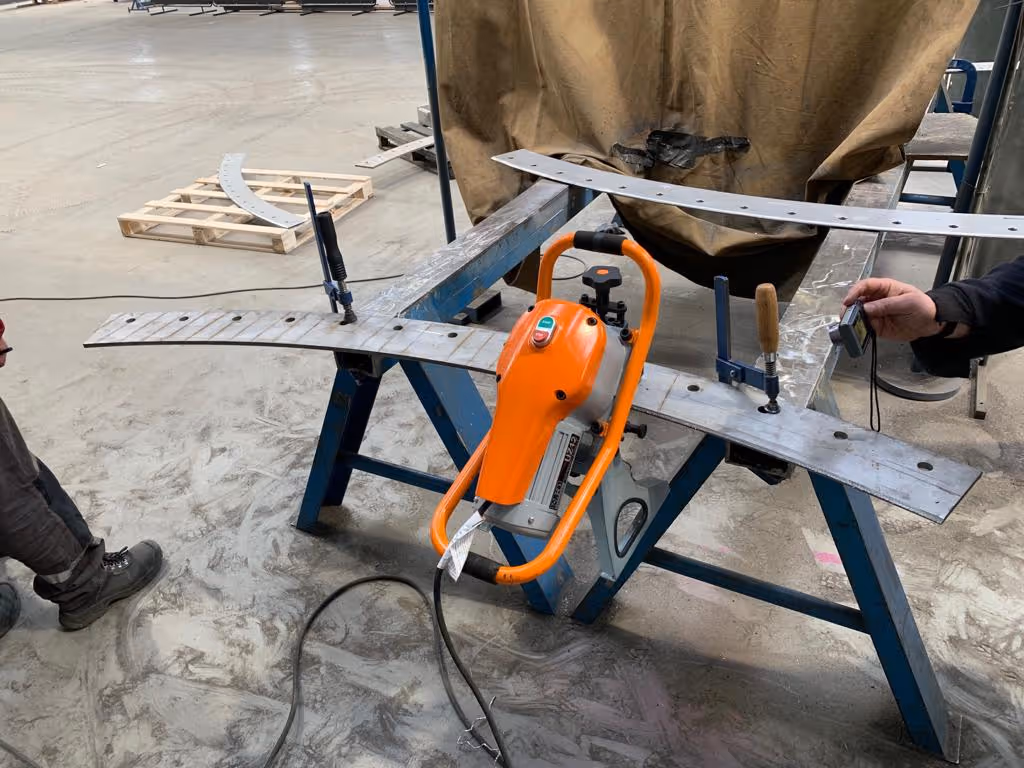

- Smaller pieces feed straight into the machine.
- Compact, lightweight build — a genuine one-operator tool.
- Motor is protected against thermal overload.
