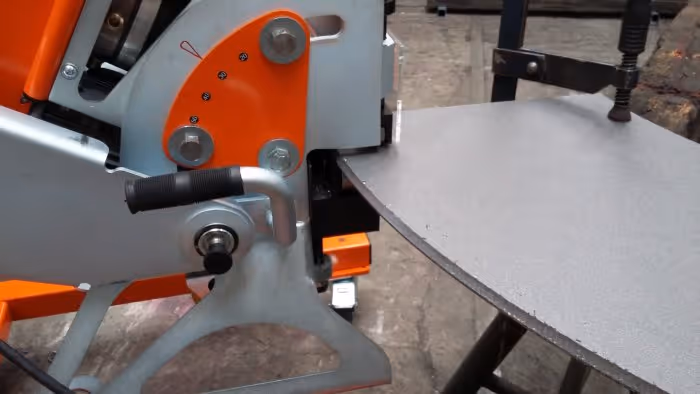

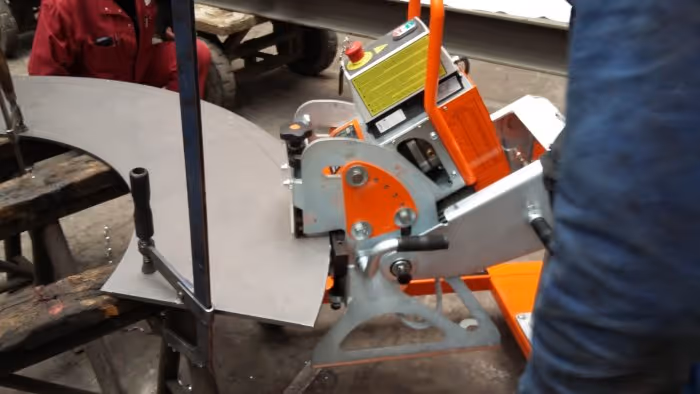

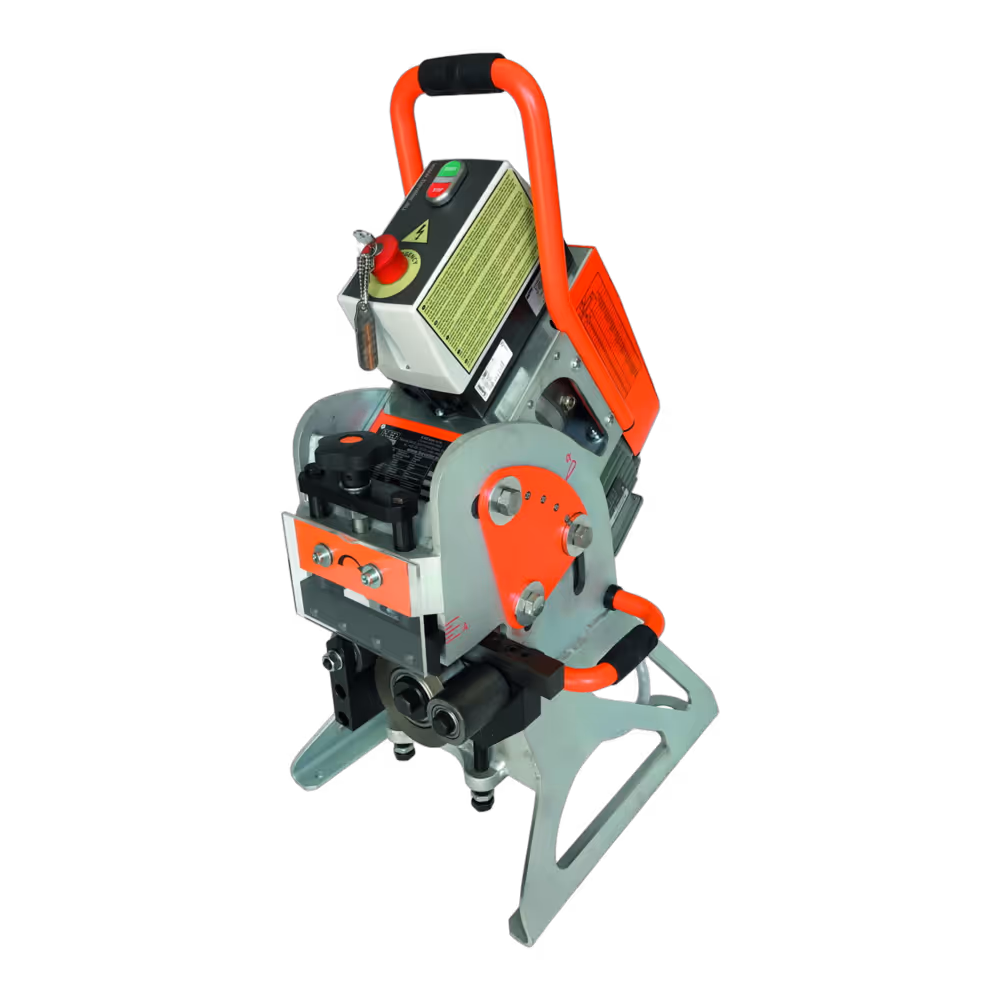

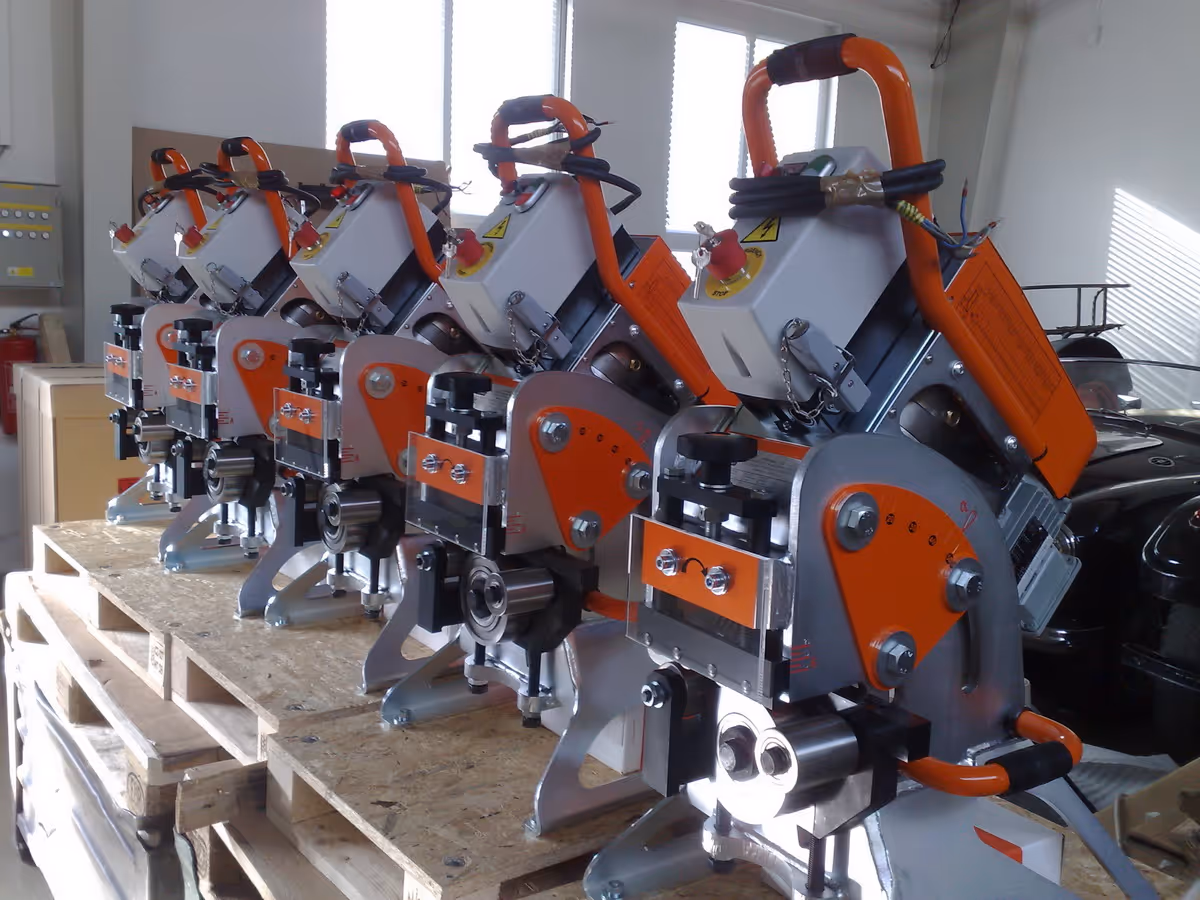

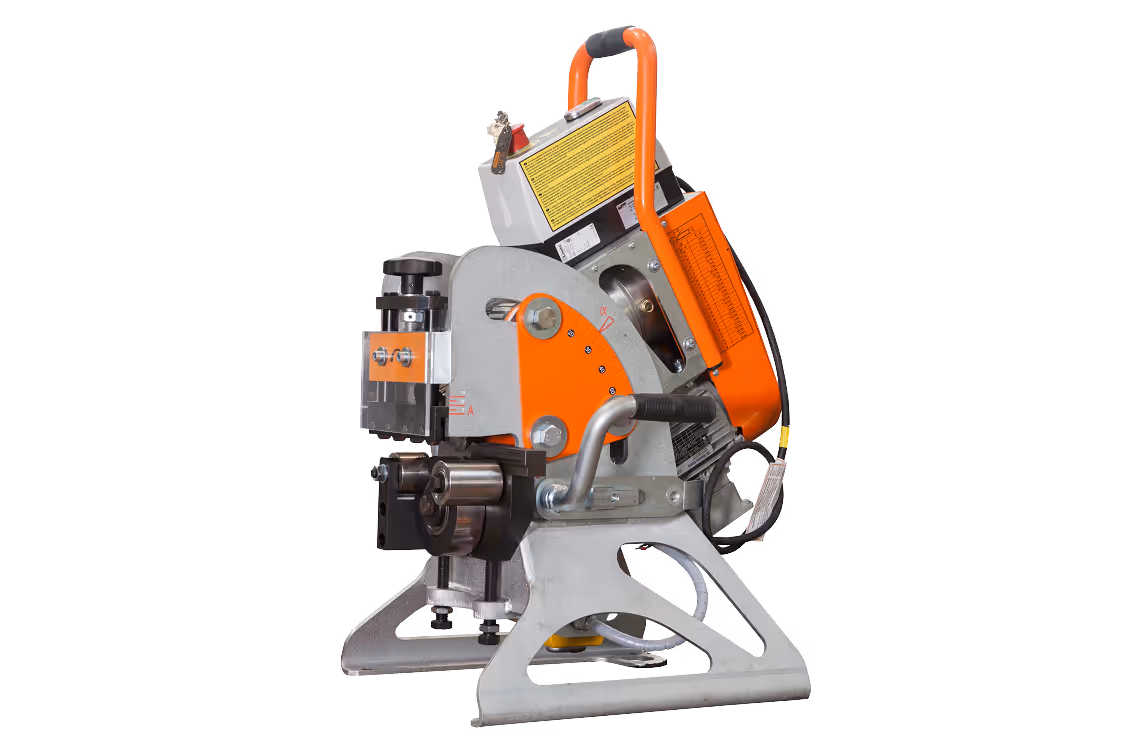

UZ15 RAPID

• Suited to common steels up to 60 kg/mm² strength, select stainless grades, brass, copper and aluminum.
• Takes parts as small as 70 mm wide, 150 mm long and 6 mm thick.

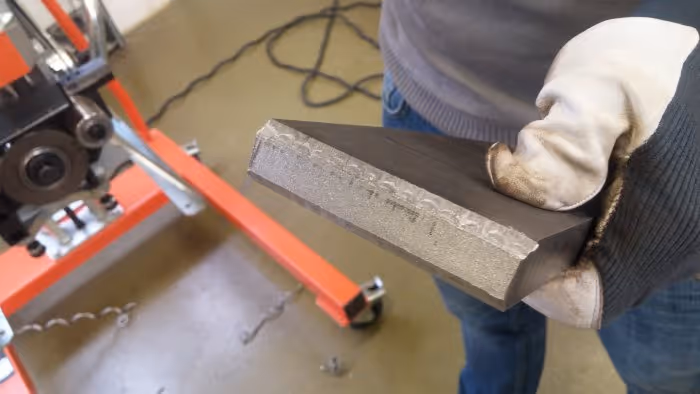

• Bevels material 6 - 40 mm thick.
• Automatic feed built in.
• Exceptionally low-noise operation.
• Usable both stationary and mobile.

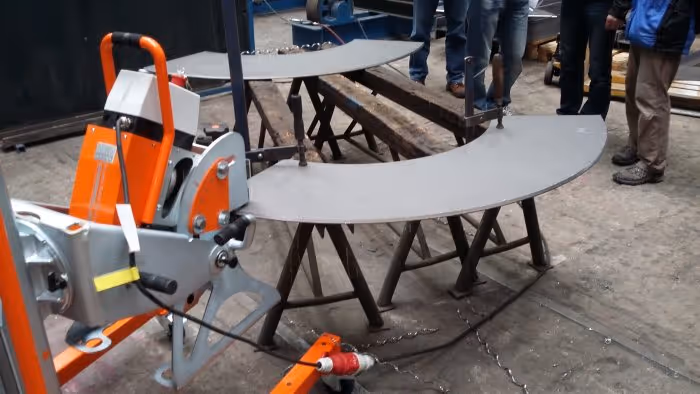

• Travels along large plates without a support unit at 3.5 m/min.
• Smaller stock loads directly into the machine.

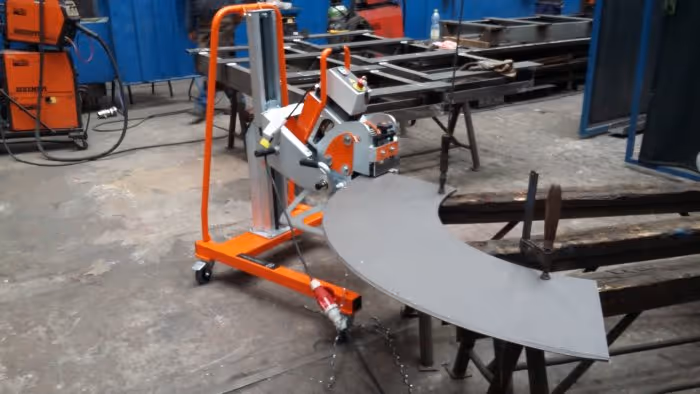

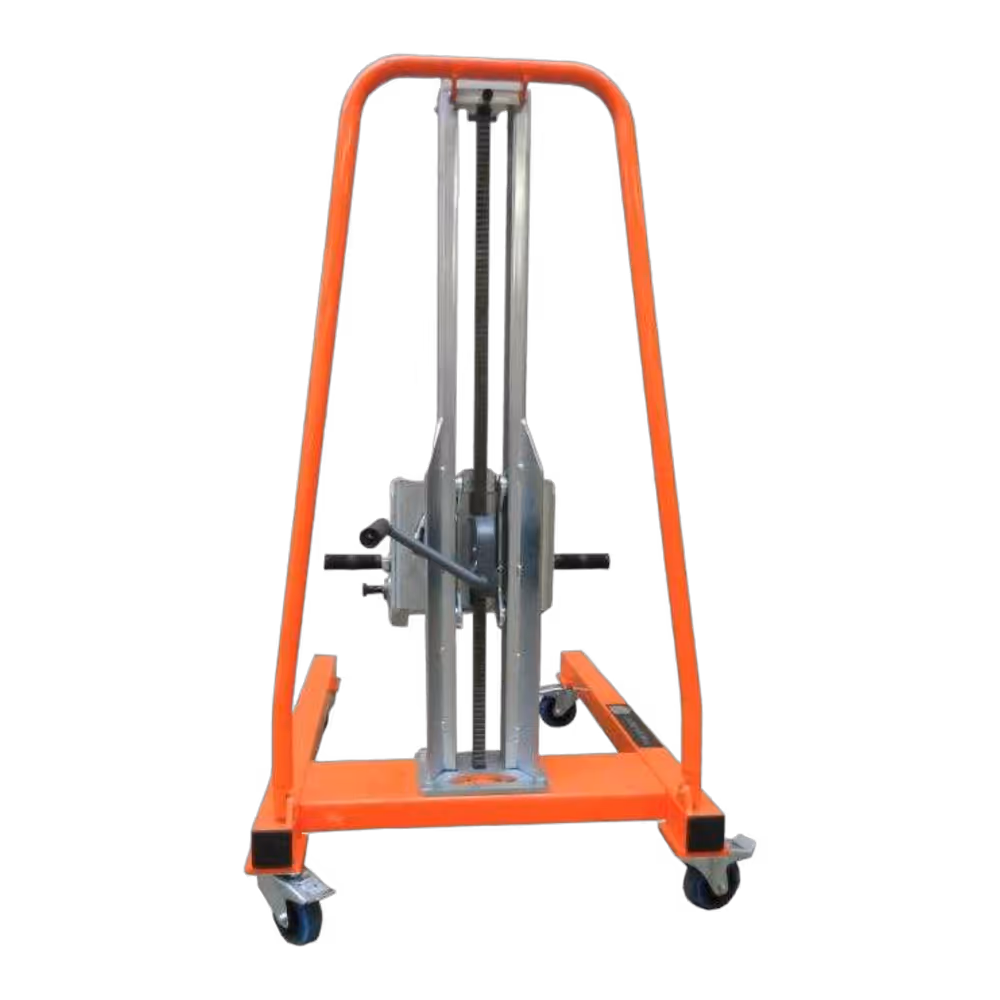

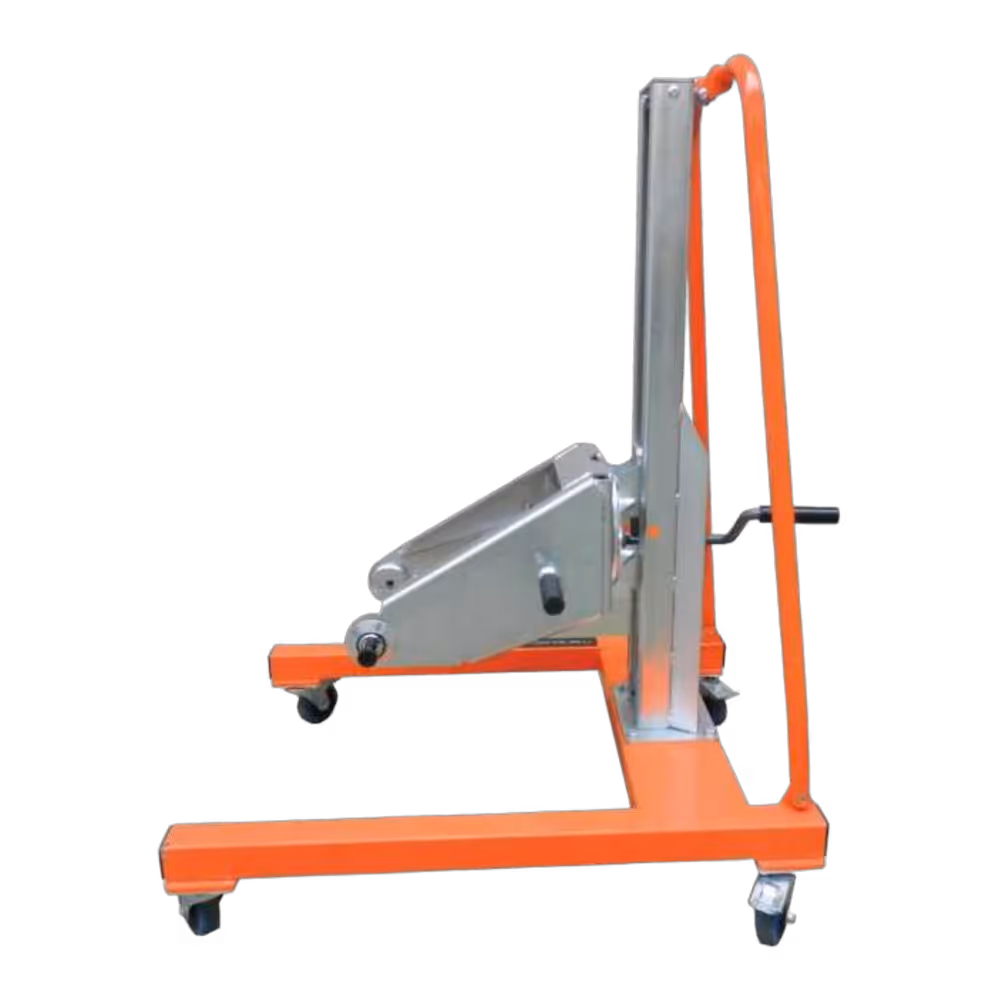

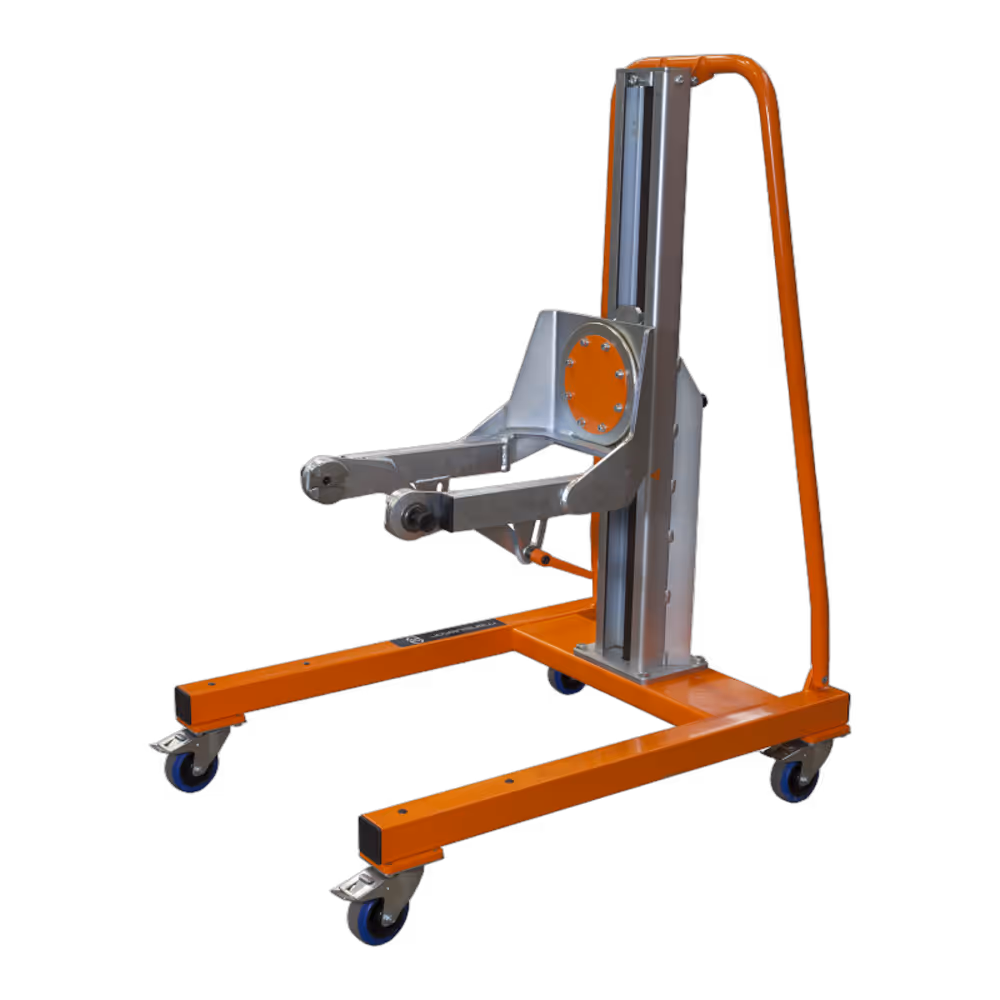

MANIPULATOR 3D

• The 3D Manipulator flips the machine a full 180° for X or K bevels — no crane, no handling the plate.
• For double-sided bevel (X, K) without the need of material handling
• The machine can work upside down, no need to rotate the bevelled material
• Unique clamping system allows the beveller UZ 15 RAPID assemble and disassemble within few seconds without using any tools
• The unit 'floats' on the 3D Manipulator, absorbing uneven floors and plate deformation.
• The 3D Manipulator allows easy manipulation with the beveller
• The required height of the machine can be set up by a lift handle
• Travel is provided by massive wheels mounted on the carriage
• 3D Manipulator can be used as a stationary station
• The Manipulator doubles as a fixed workstation and as a service stand for maintenance.

If you order the UZ 15 RAPID beveler only, the following is included in the price:

• ‍Beveling system UZ15 RAPID

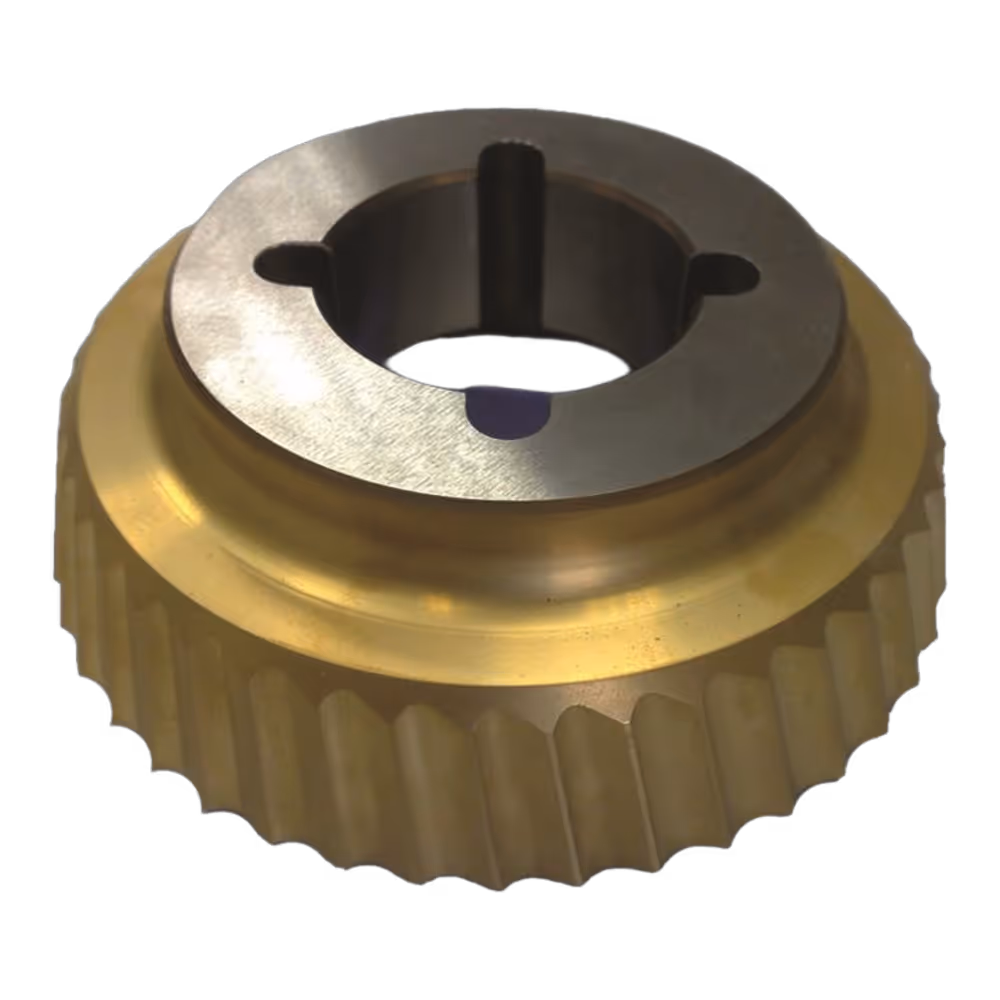

• ECO blade for steel
• Tools User manual

We recommend that the 3D MANIPULATOR is ordered, as well, for the benefits. Included in the price:

• Beveling system UZ15 RAPID
• 3D Manipulator
• Clamping mechanisms, lift handle
• User manual

‍
