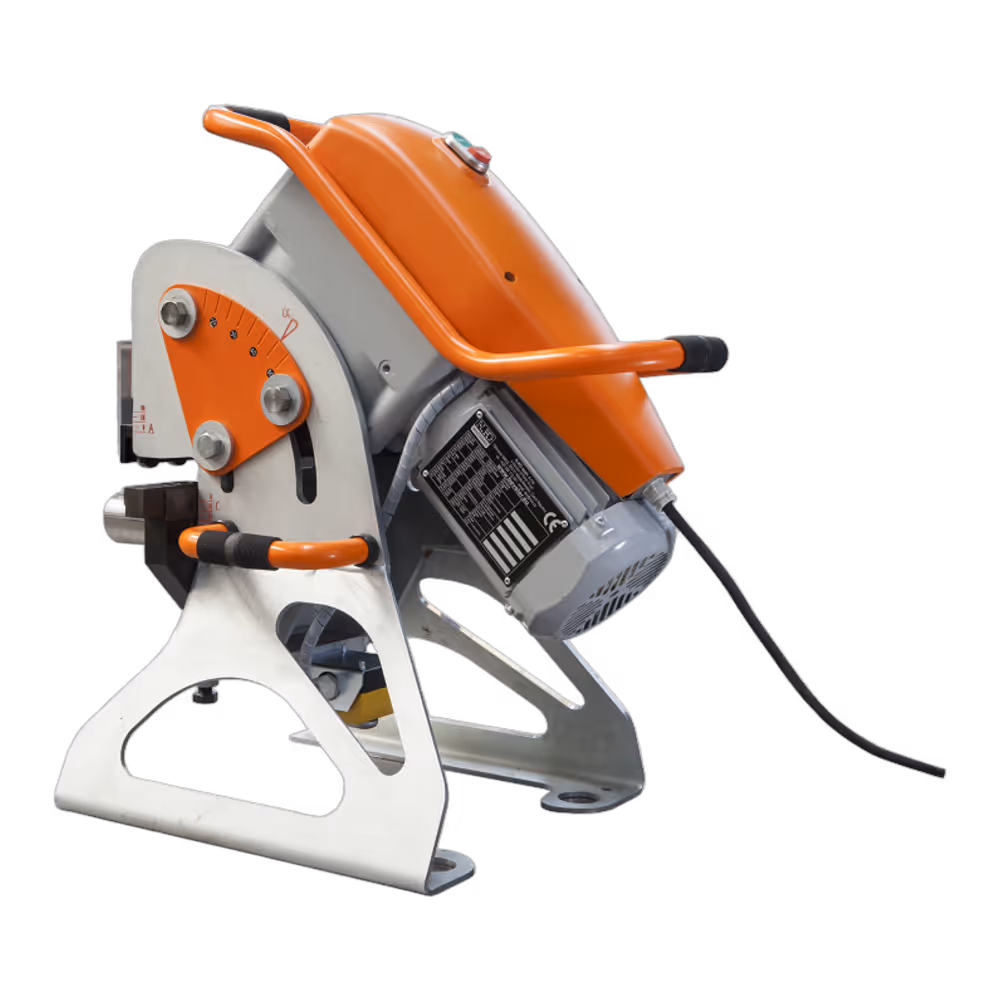

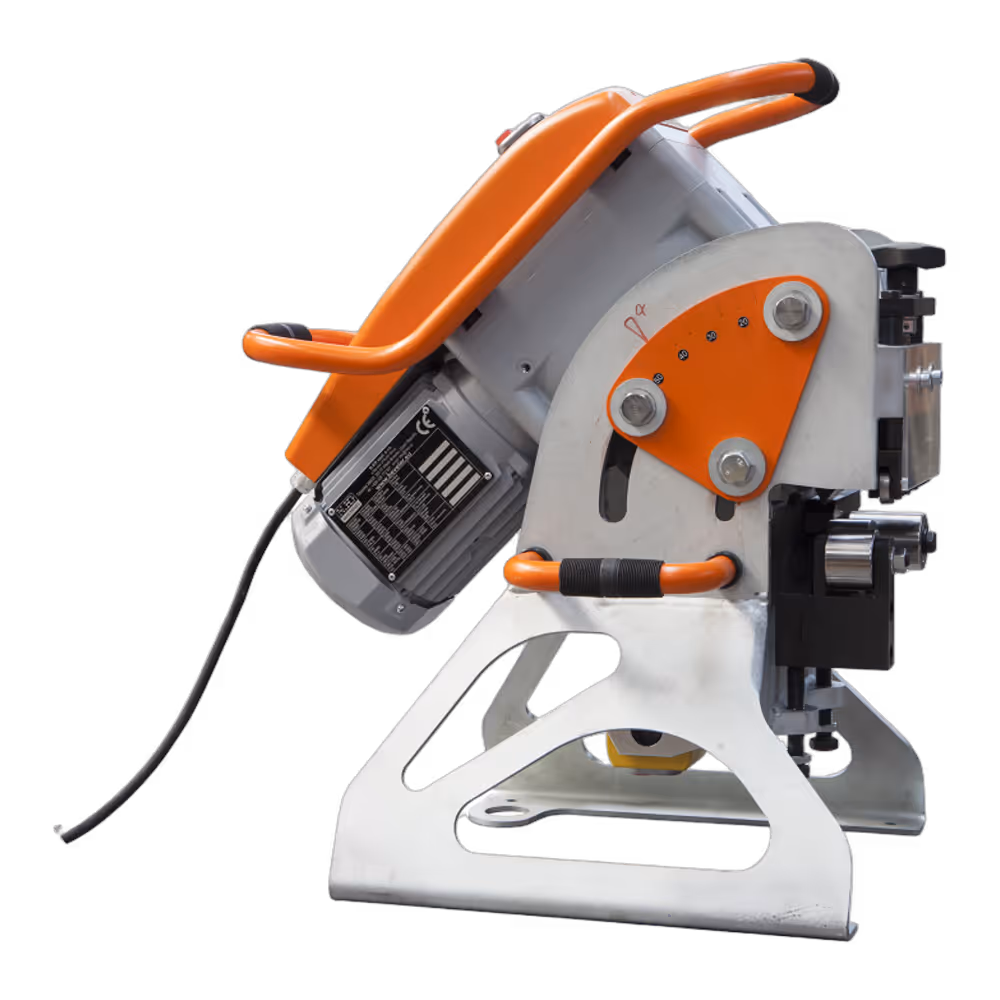

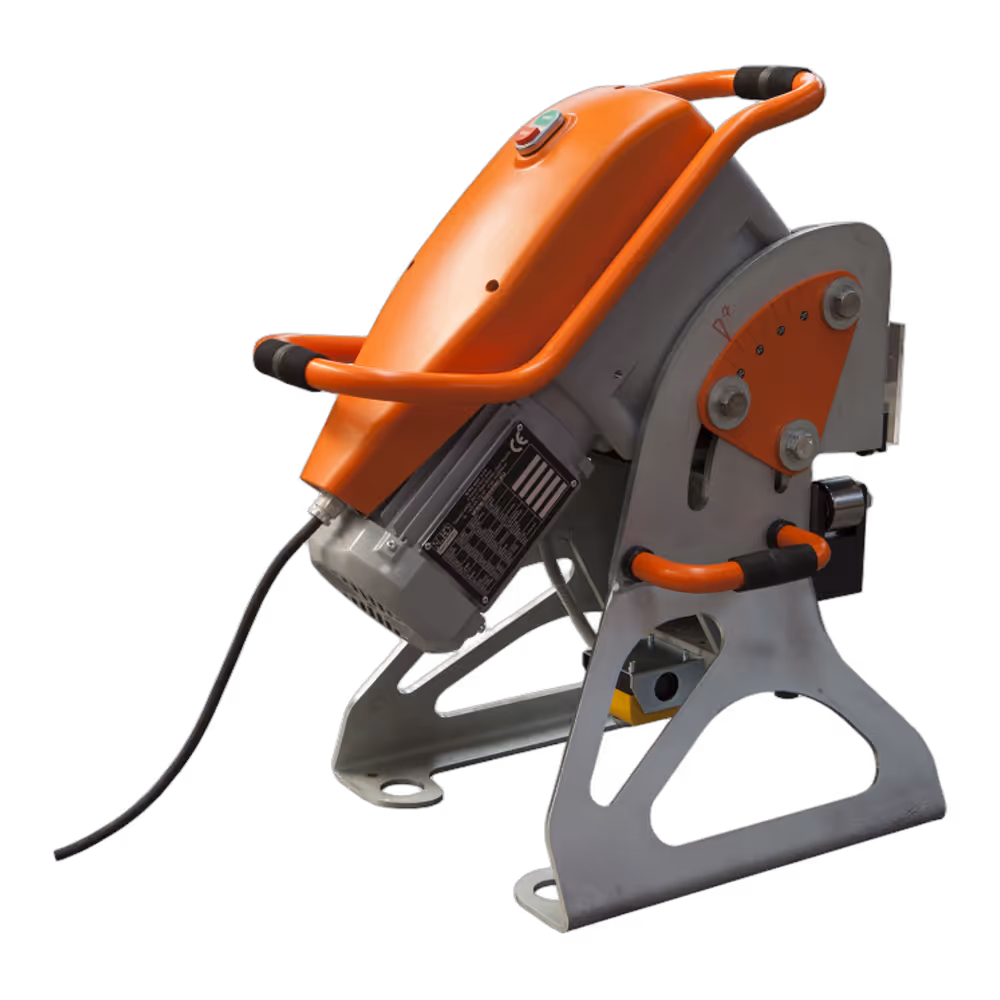

UZ18 HardWorker

Name: UZ18 HardWorker
Brand: N.KO Machines

BEVELING SYSTEM

The UZ18 HardWorker ranks among the strongest auto-feed double-sided plate bevelers available. Equally suited to workshop and on-site assembly work, it offers stepless working-angle adjustment, and a purpose-built drivetrain lets it bite into tougher grades of material. Every component reflects a build-quality-first approach: a steel frame, an aluminum-alloy worm gearbox and an aluminum-alloy housing. Automatic feed keeps operation comfortable throughout.

‍

We offer this machine in the following models and voltages:

Beveling system UZ18 Hardworker
- Art. Nr. 1980 - 400V, 3 phase
- Art. Nr. 1981 - 480V, 3 phase
- Art. Nr. 1982 - 220V, 3 phase
SET - Beveling system UZ18 Hardworker
including the 3D MANIPULATOR
- Art. Nr. 1983 - 400V, 3 phase
- Art. Nr. 1984 - 480V, 3 phase
- Art. Nr. 1985 - 220V, 3 phase

‍

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

1980

Product Name

UZ18 HARDWORKER

POWER

750 W / 380 V

Max. Bevel Width

0.7" (87,022 PSI)/18 mm (600 MPa)

Bevel Angle

15° - 50°

Feeding

Automatic

Feed Rate

6.2 ft/min (1,9 m/min)

Material Thickness

0.23-1.57 (6 - 40 mm)

Weight

242 lb/110kg

Dimensions

1.44"x2.36"x2.11" (438 x 719 x 644 mm)

PRODUCT MANUALS

UZ18 HARDWORKER User Manual EN

3D MANIPULATOR User Manual EN

UZ18 HardWorker Catalogue Sheet EN

Bevel Types

V-Bevel

Double Bevel

View Bevel Details

V-Bevel

Double Bevel

Key benefits

UZ18 HARDWORKER

Works steel up to 700 MPa strength, along with brass, copper and aluminum.
Minimum part size: 70 mm wide, 150 mm long, 6 mm thick.
Bevels stock from 6 to 40 mm thick.
Dial the angle steplessly from 15° to 50° — nothing to swap out.
Delivers double-sided X and K bevels without repositioning the part.
Connects quickly to the 3D Manipulator for easier handling.
Automatic feed comes standard.
Runs either fixed in place or mobile.
Advances along large workpieces unsupported.
Smaller pieces feed straight into the machine.
Bundling it with the 3D Manipulator brings a favorable package price.

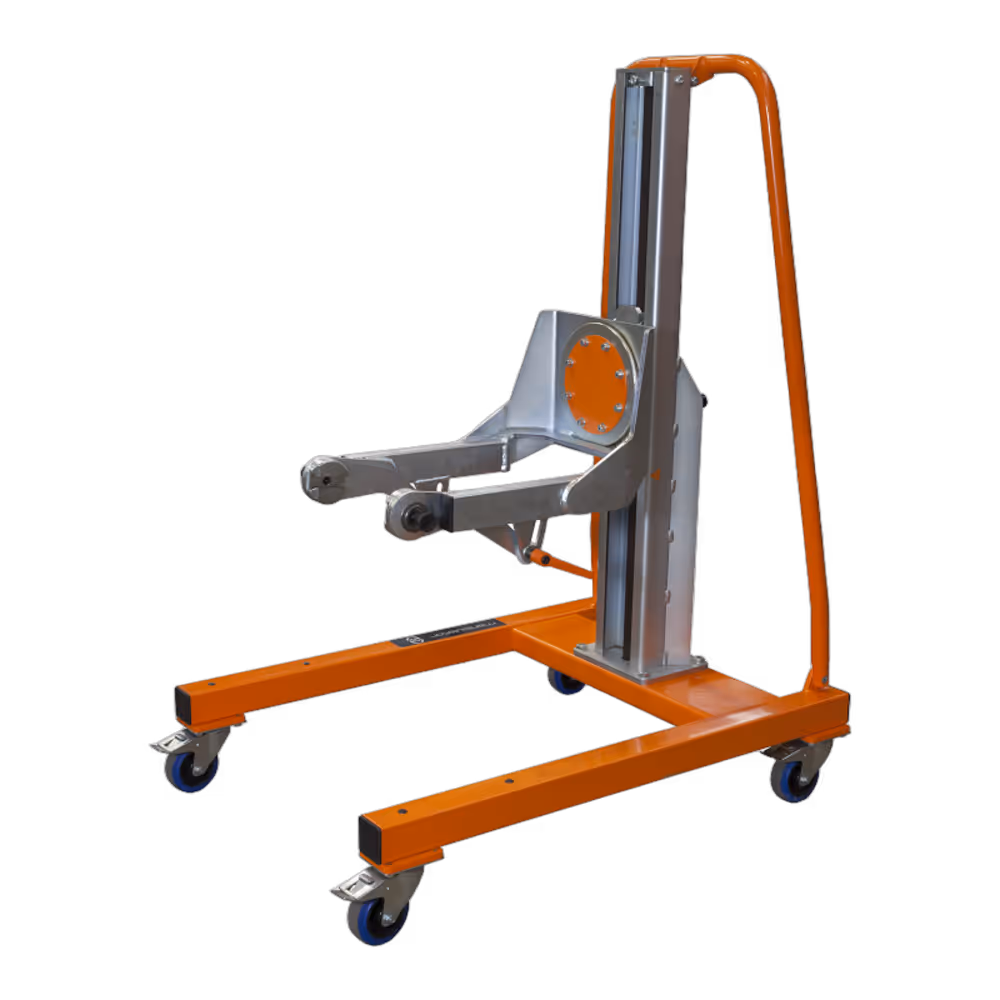

3D MANIPULATOR

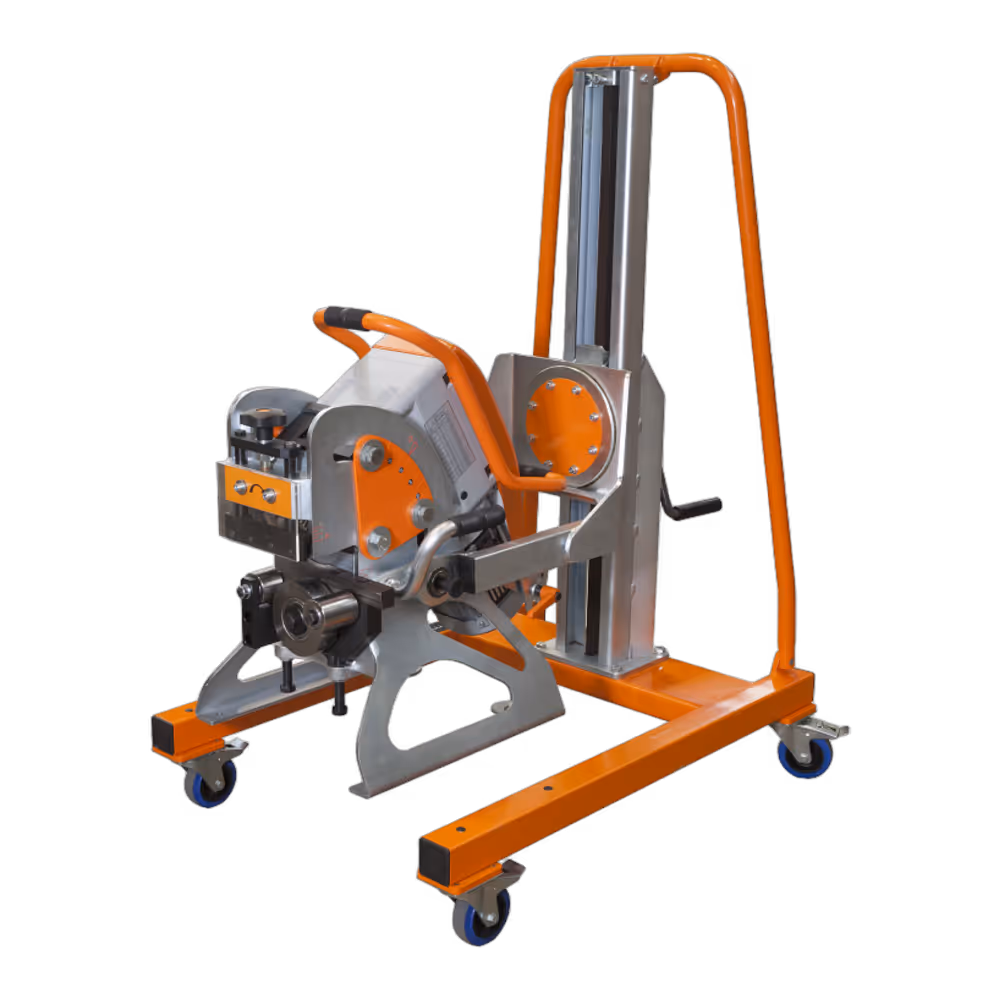

The 3D Manipulator flips the machine a full 180° for X or K bevels — no crane, no handling the plate.
For double-sided bevel (X, K) without the need of material handling
The machine can work upside down, no need to rotate the bevelled material
Unique clamping system allows the beveller UZ 15 RAPID assemble and disassemble within few seconds without using any tools
The unit 'floats' on the 3D Manipulator, absorbing uneven floors and plate deformation.
The 3D Manipulator allows easy manipulation with the beveller
The required height of the machine can be set up by a lift handle
Travel is provided by massive wheels mounted on the carriage
3D Manipulator can be used as a stationary station
The Manipulator doubles as a fixed workstation and as a service stand for maintenance.
