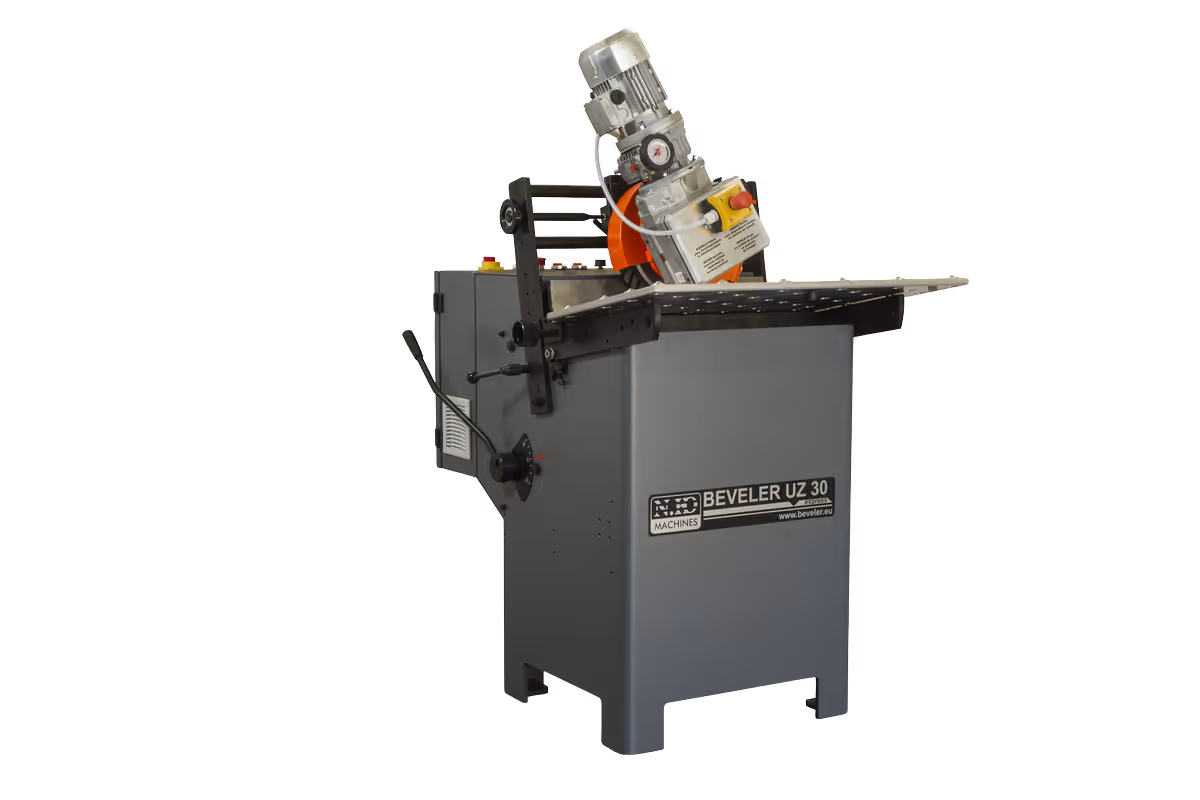

UZ30 Express

Name: UZ30 Express
Brand: N.KO Machines

BEVELING SYSTEM

A high-output stationary machine for beveling and deburring flat bar, plate and profile stock quickly. It handles the full range of carbon steels, cast iron, aluminum and light-metal alloys, non-ferrous metals and virtually any machinable material.

‍

We offer this machine in the following voltages:

Beveling system UZ30 Express
- Art. Nr. 25999 - 400V, 3 phase
- Art. Nr. 25997 - 480V, 3 phase
- Art. Nr. 25998 - 220V, 3 phase

‍

Share Product

Inquire Now

Line

UZ-Line

Art. Nr.

25999

Product Name

UZ30 EXPRESS

POWER

450W

Max. Bevel Width

1,18 in/30mm

Bevel Angle

Infinitely variable 30°- 60°

Speed

0-5500 rpm

Feeding

Automatic

Feed Rate

23"-137"/ min (0,6-3,5m/min)

Material Thickness

2 - 100 mm (0,078"-3,93")

Weight

881lb/400kg

Dimensions

32.5"x47.2x63.5"(825 x 1200 x 1615 mm)

PRODUCT MANUALS

UZ30 EXPRESS Catalogue Sheet EN

UZ30 EXPRESS User Manual EN

Bevel Types

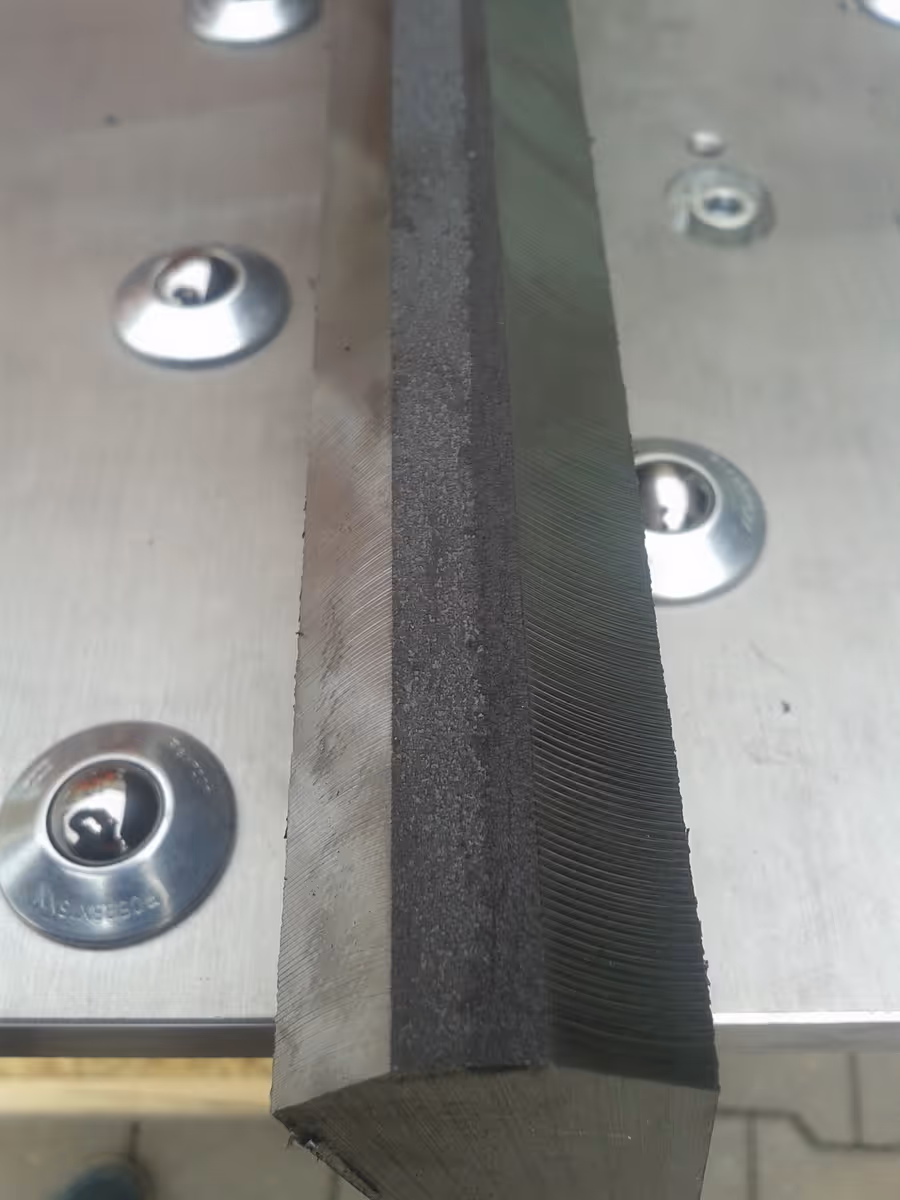

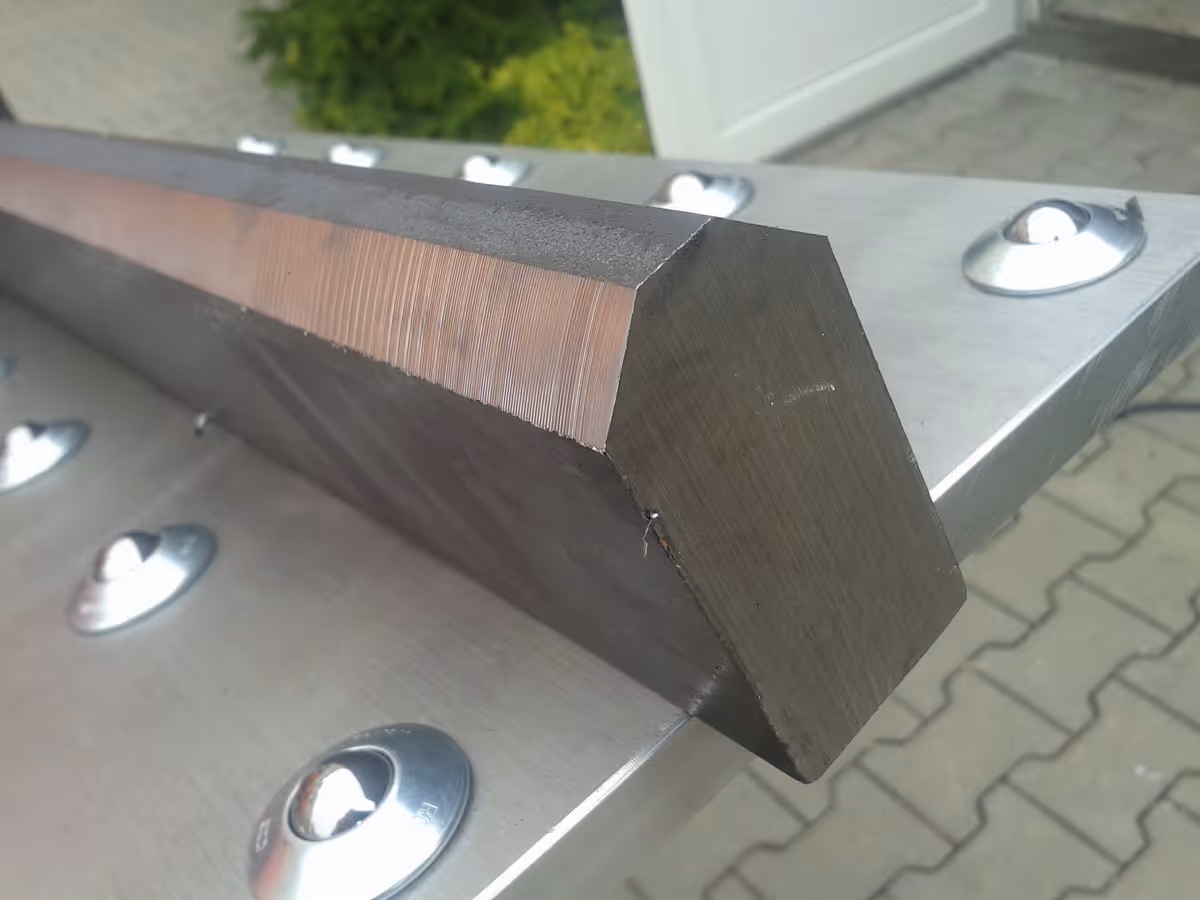

V-Bevel

Double Bevel

View Bevel Details

V-Bevel

Double Bevel

Key benefits

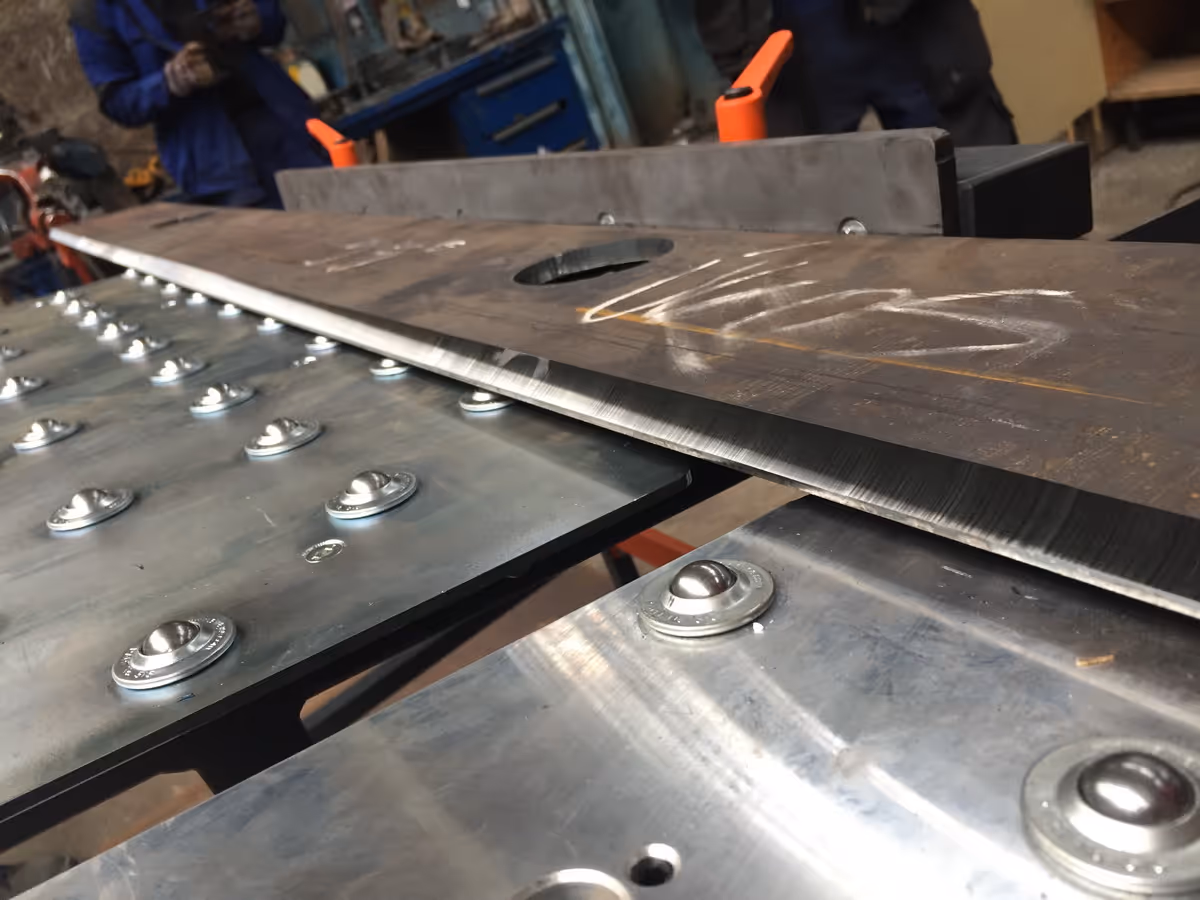

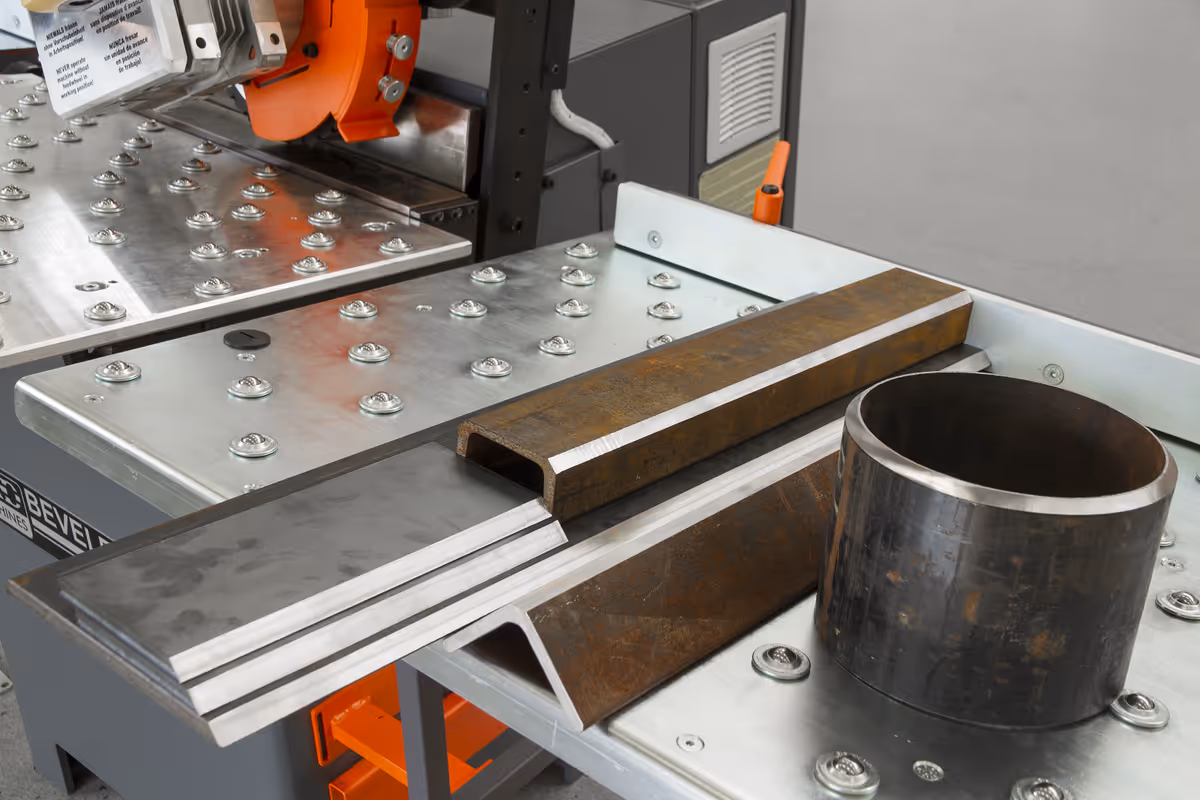

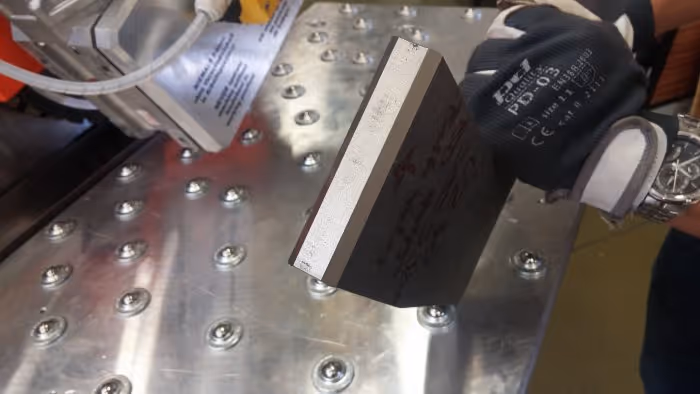

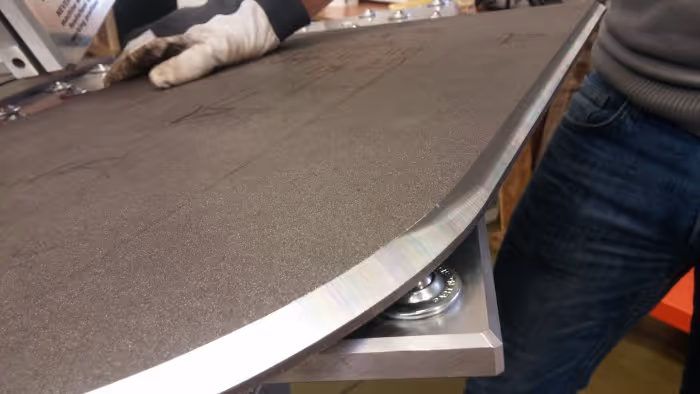

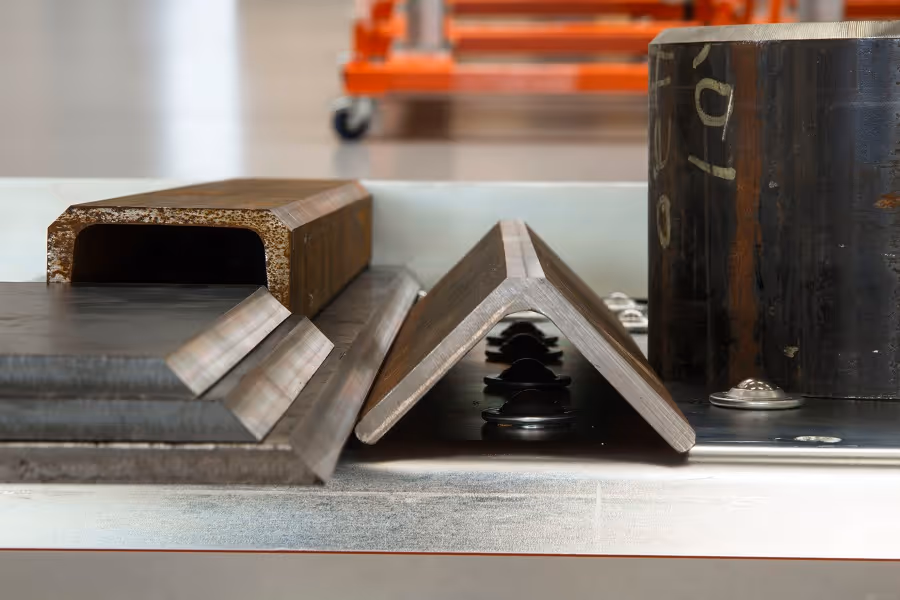

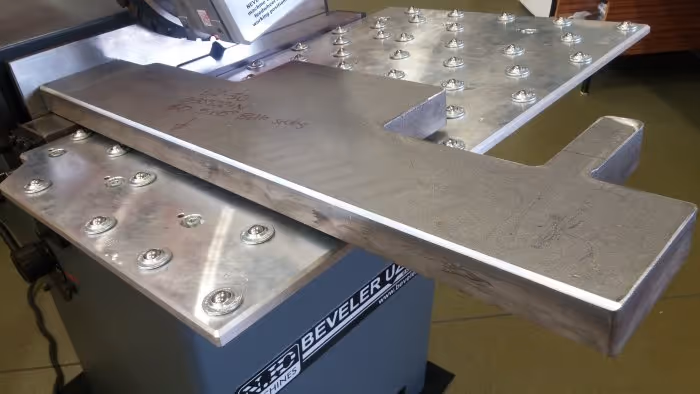

High-output stationary beveler and deburrer for flat bar, plate and profile material.
Covers all carbon steels, cast iron, aluminum and light-metal alloys, non-ferrous metals and every machinable material.
Powered feed removes the need to clamp the workpiece tightly.
The tilting milling spindle sets any angle across a continuous 30° - 60° range.

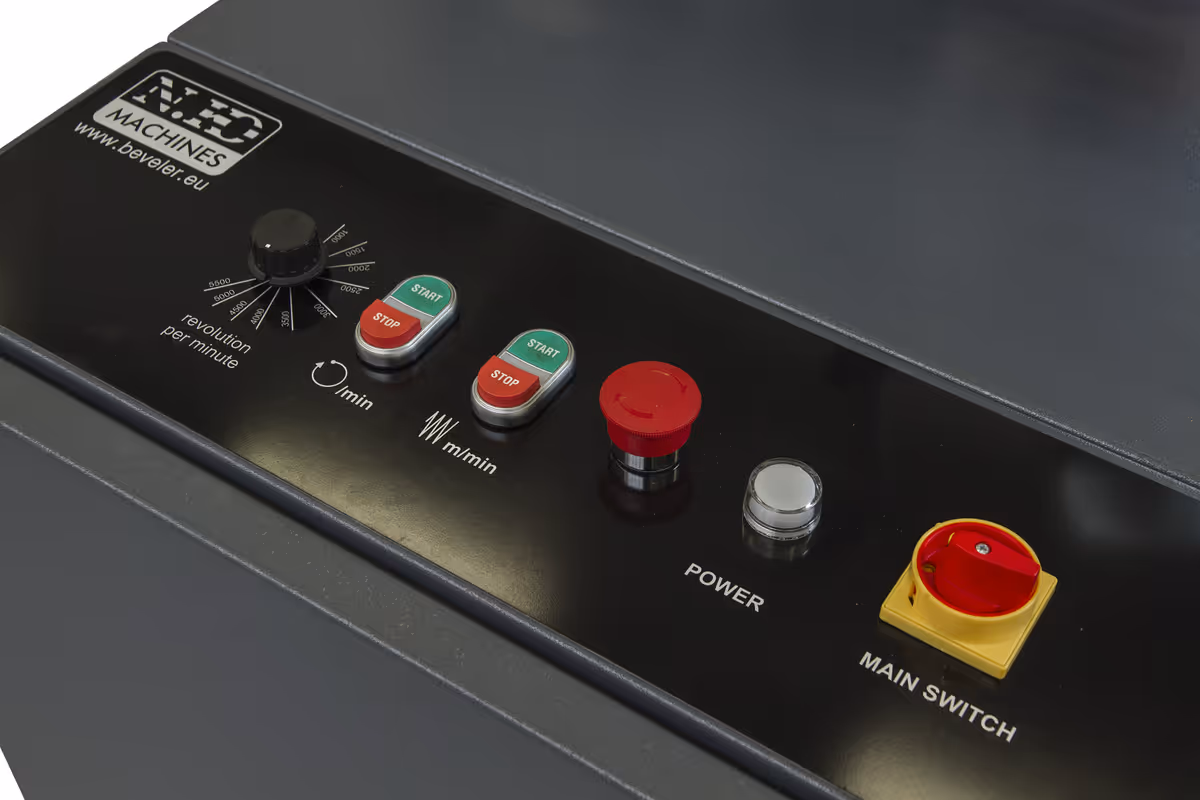

Both feed speed and cutting tool are adjustable.

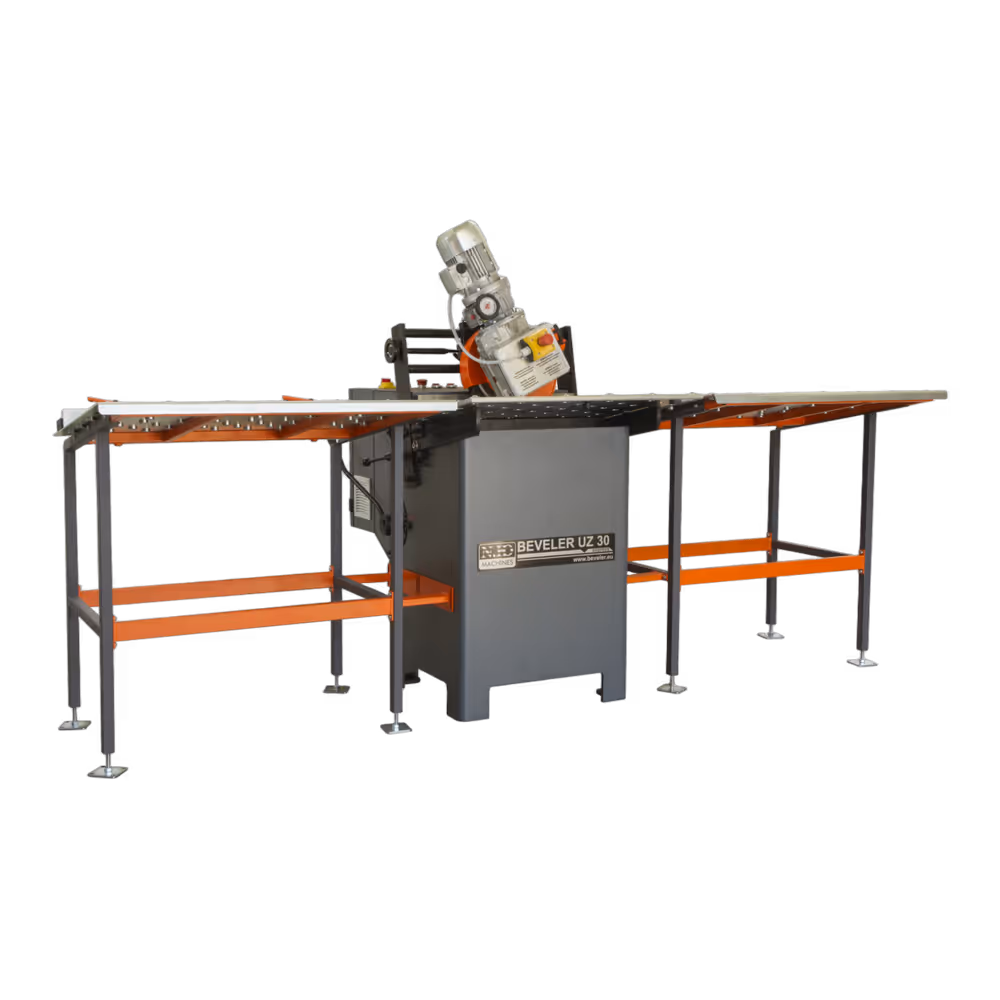

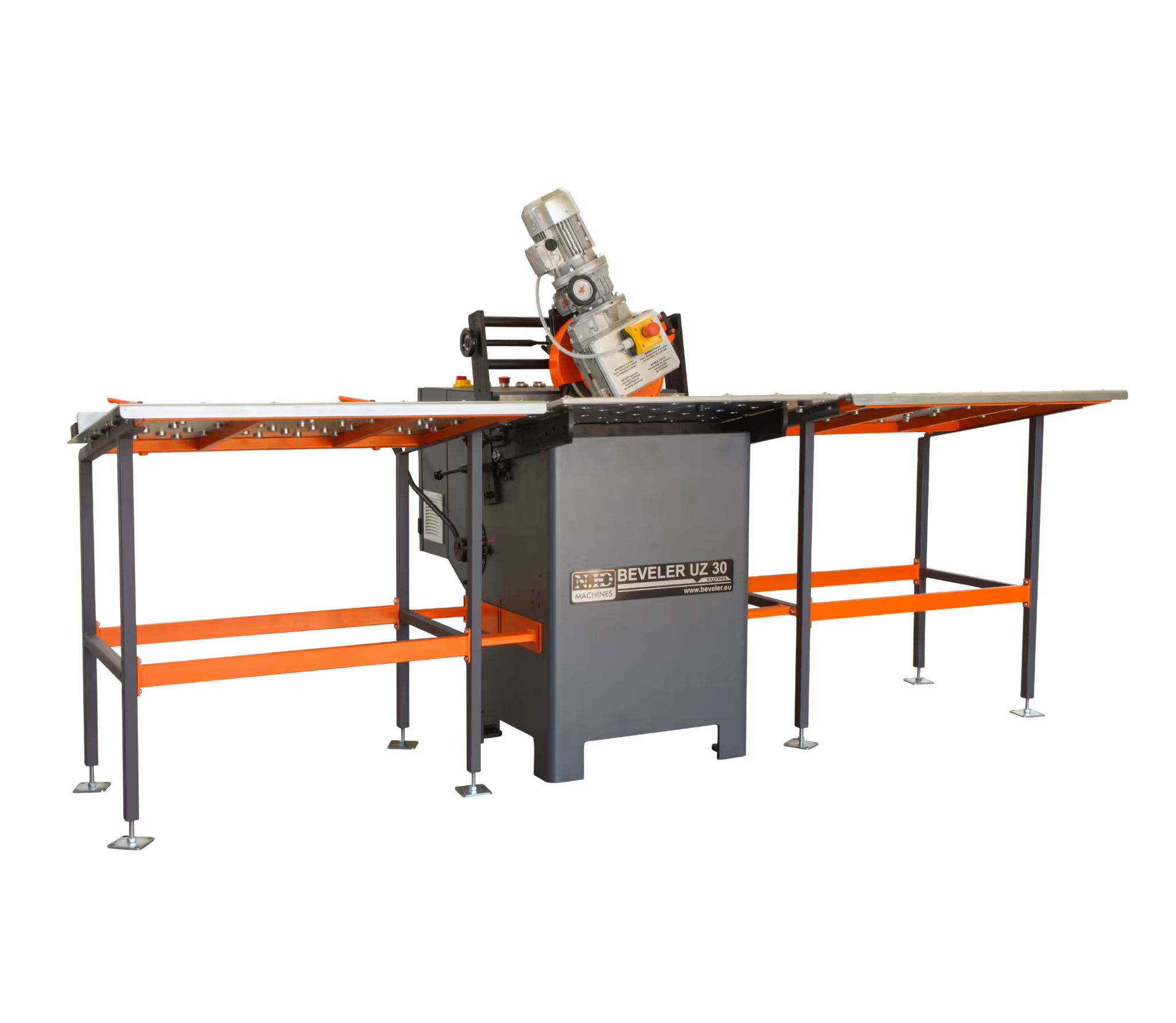

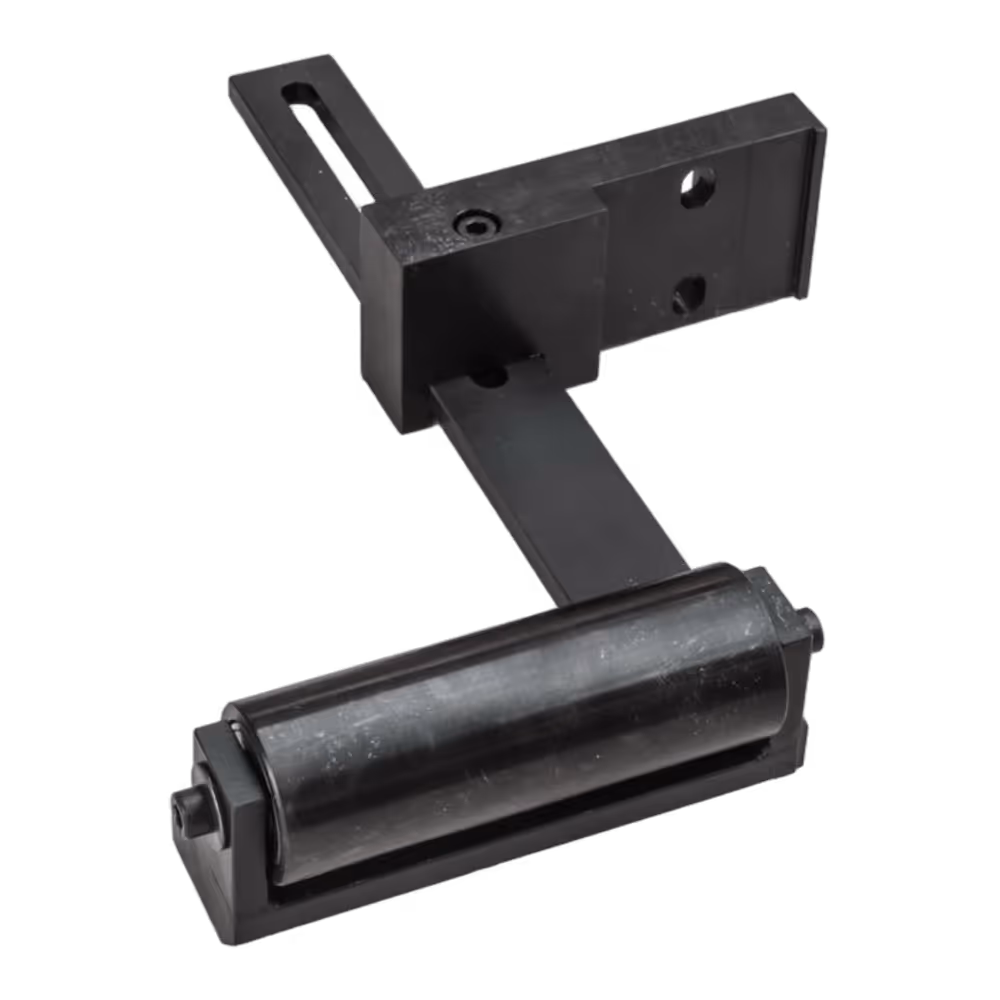

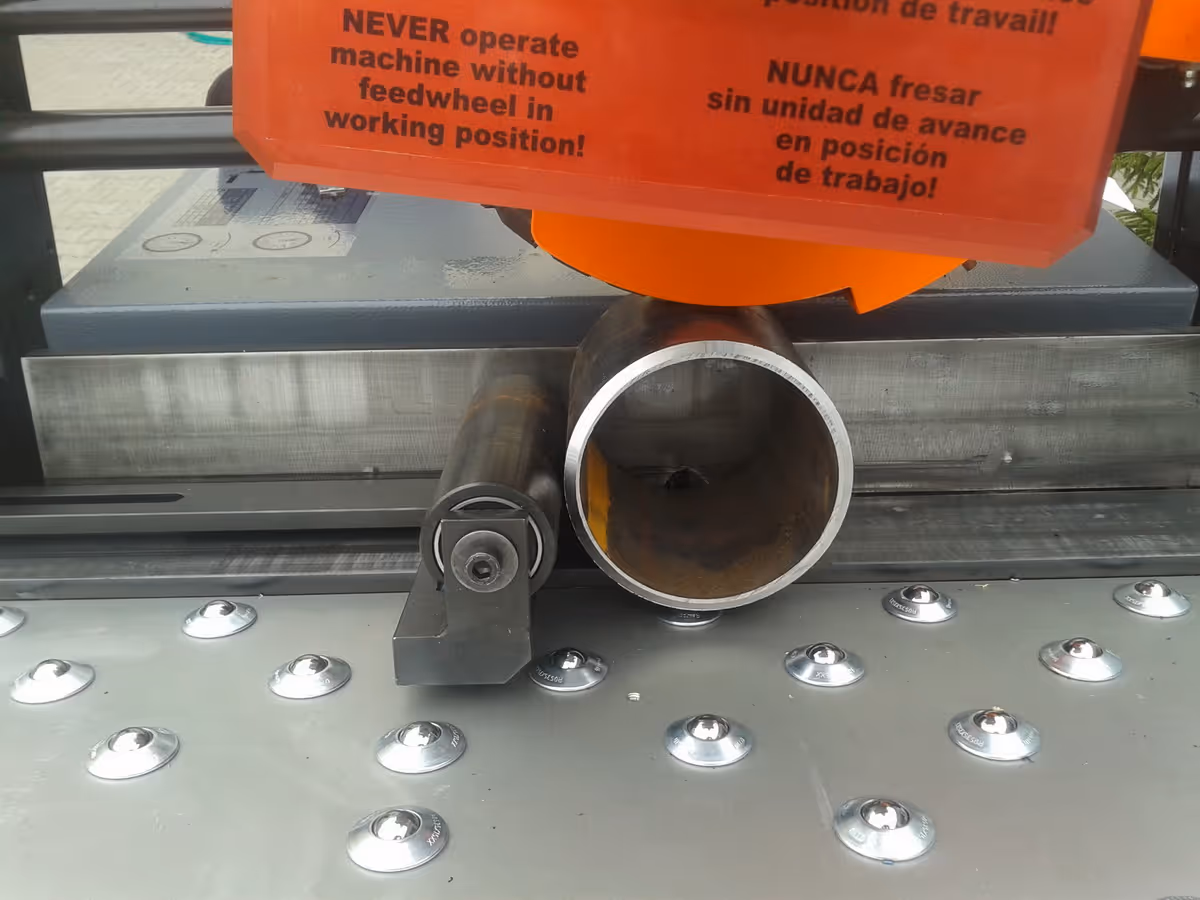

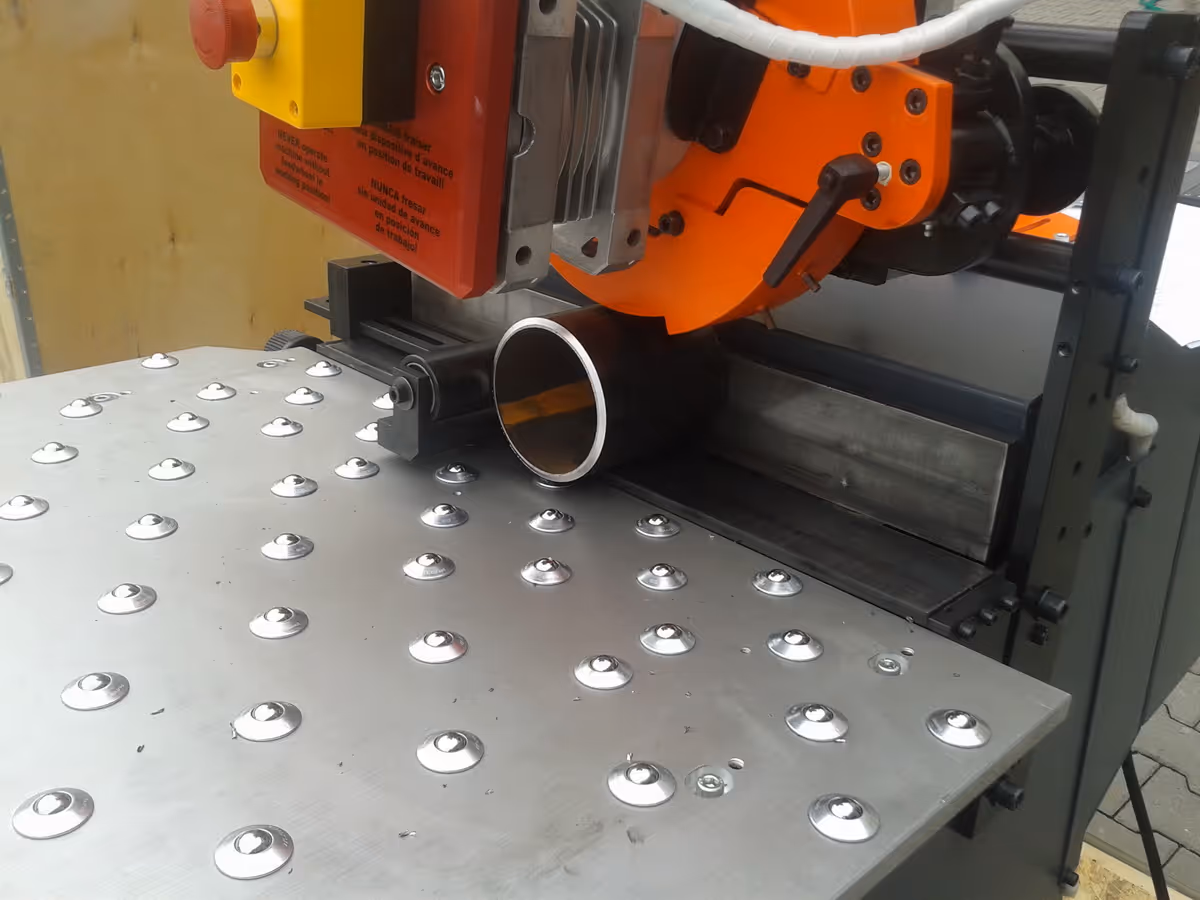

Optional add-ons include a pipe-milling fixture and left/right table extensions (2800 mm total) with adjustable side stops.
Minimum workpiece size: L = 2.36/60 mm, W = 0.79/20 mm.

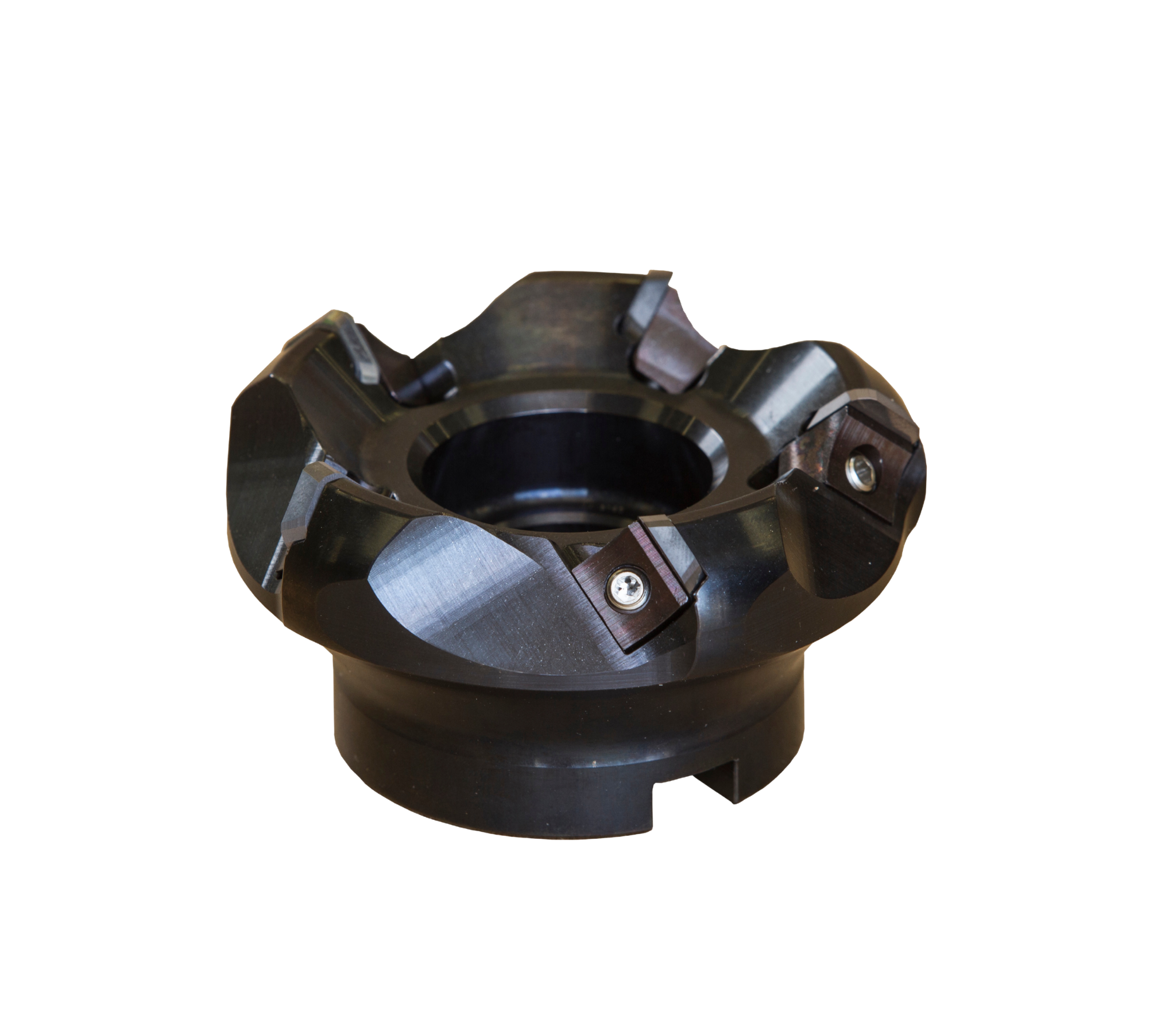

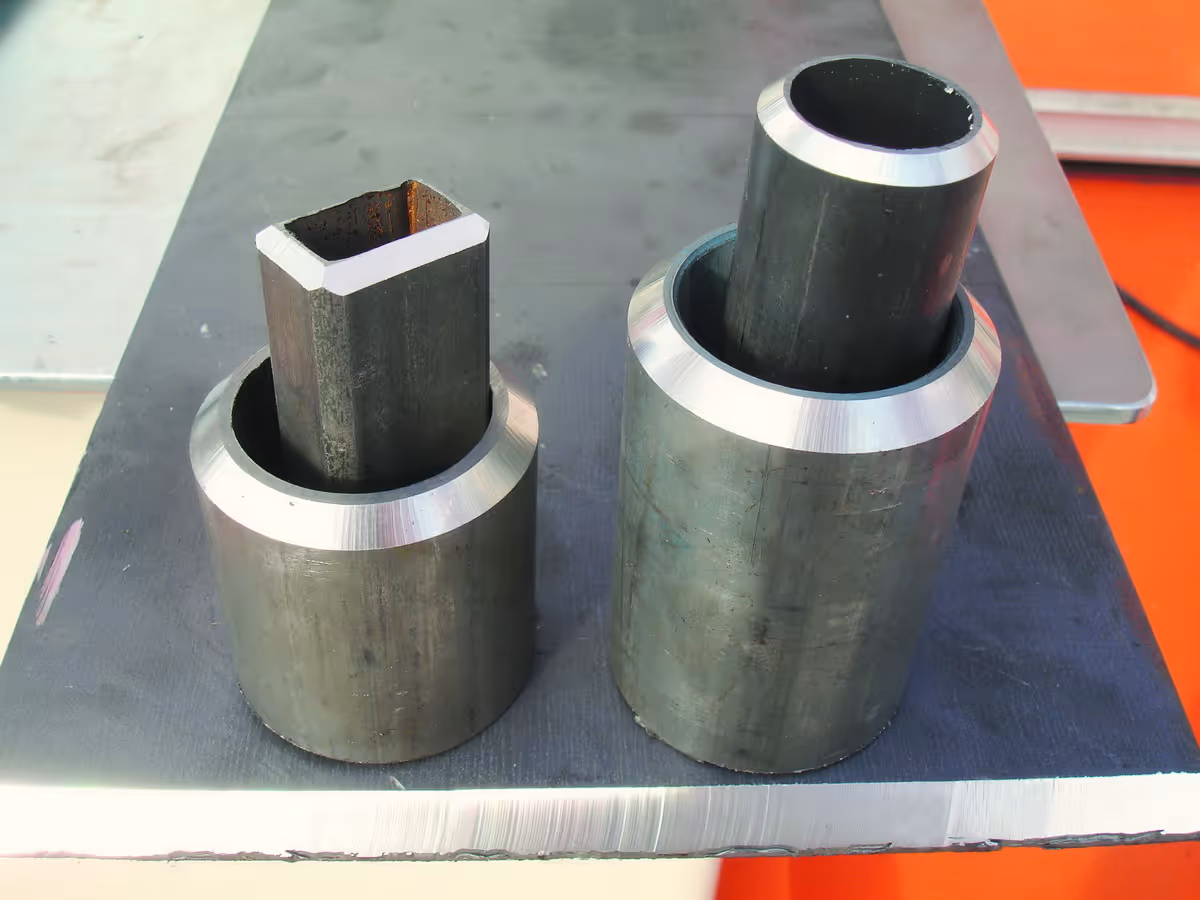

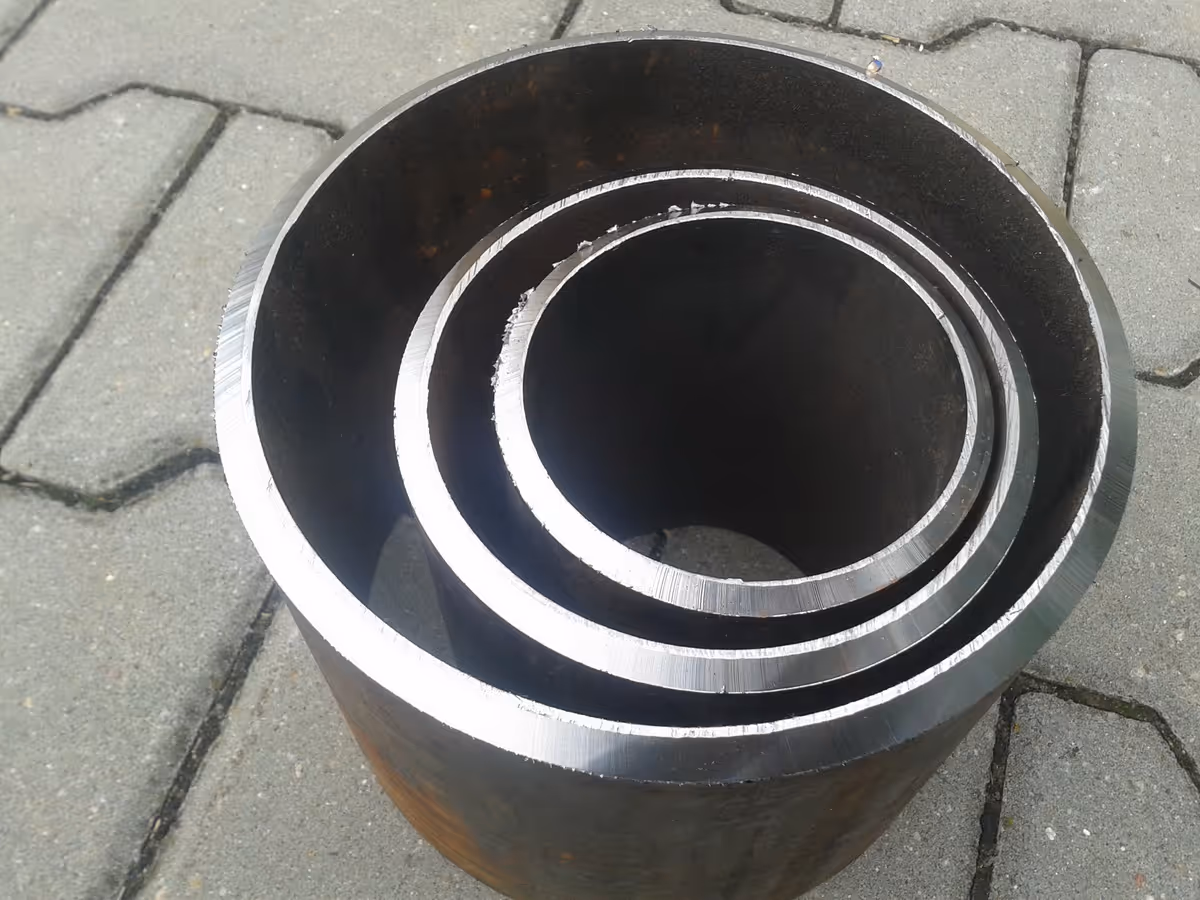

Pipe capacity Ø 4.02-6.14 in/102 - 156 mm; tool diameter Ø 3.70/94 mm;

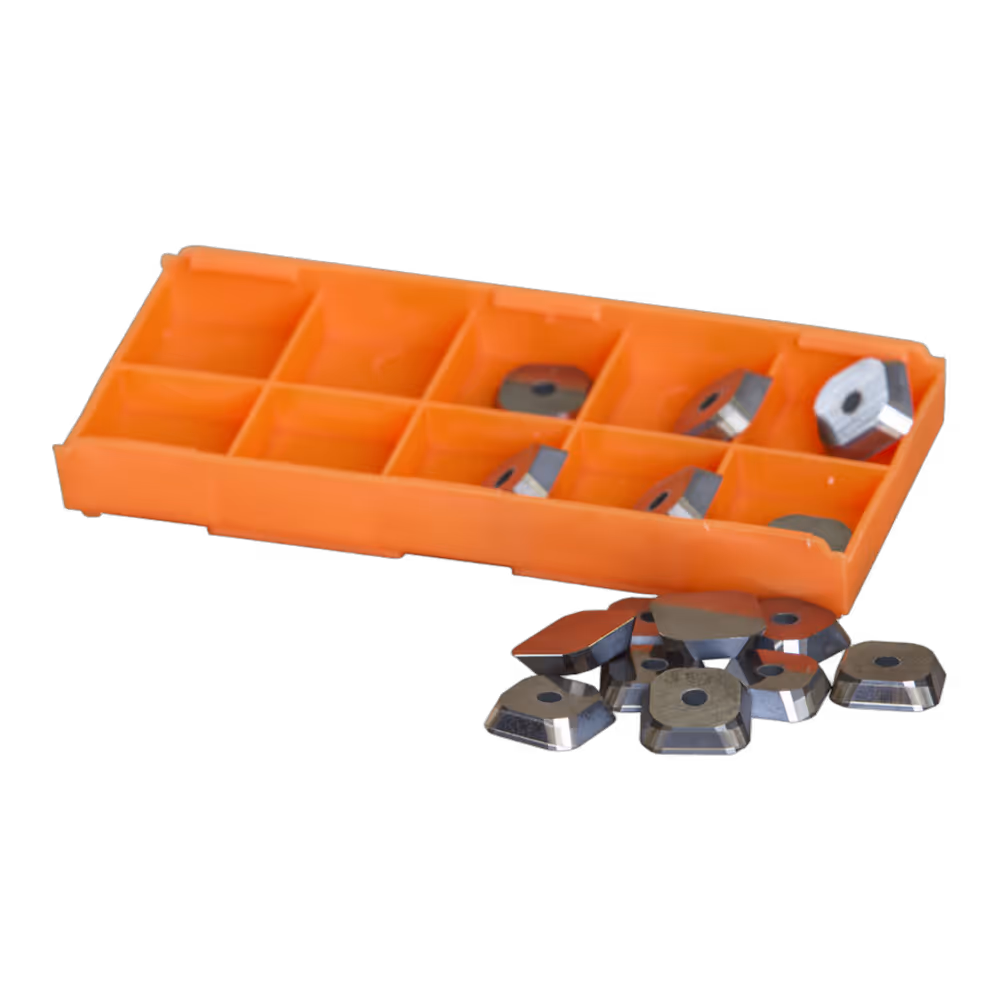

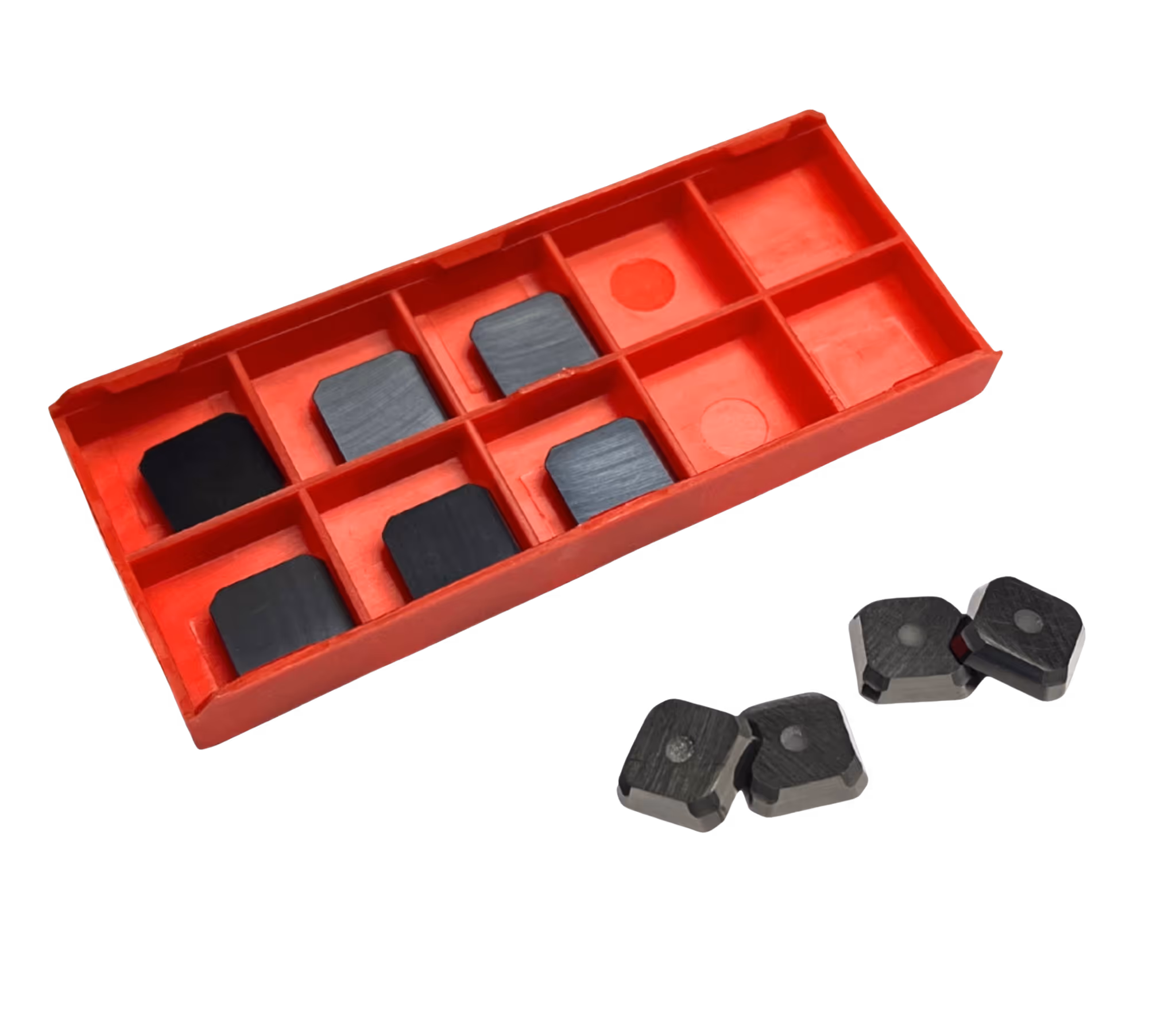

5 indexable inserts.
