BEVELLING SYSTEM
A one-of-a-kind multipurpose auto-feed beveler that covers V-bevels, J-bevels, cladding removal, facing and chamfers beyond 70°. It's built to machine structural steels — including high-strength grades — as well as stainless and other demanding materials such as Hardox and Domex.
We offer this machine in the following voltages:
Line
Art. Nr.
4700
Product Name

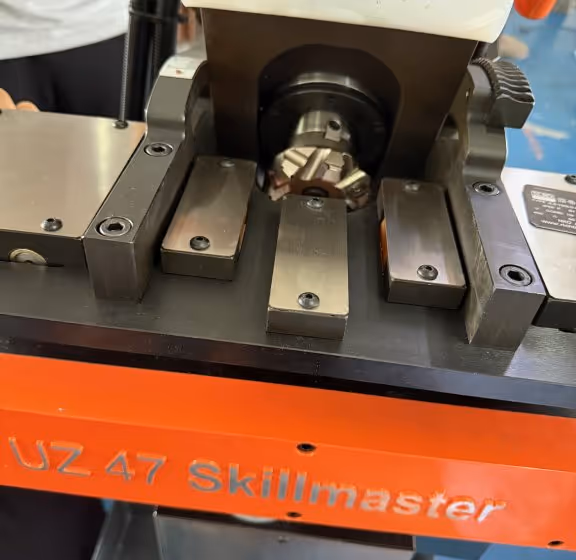

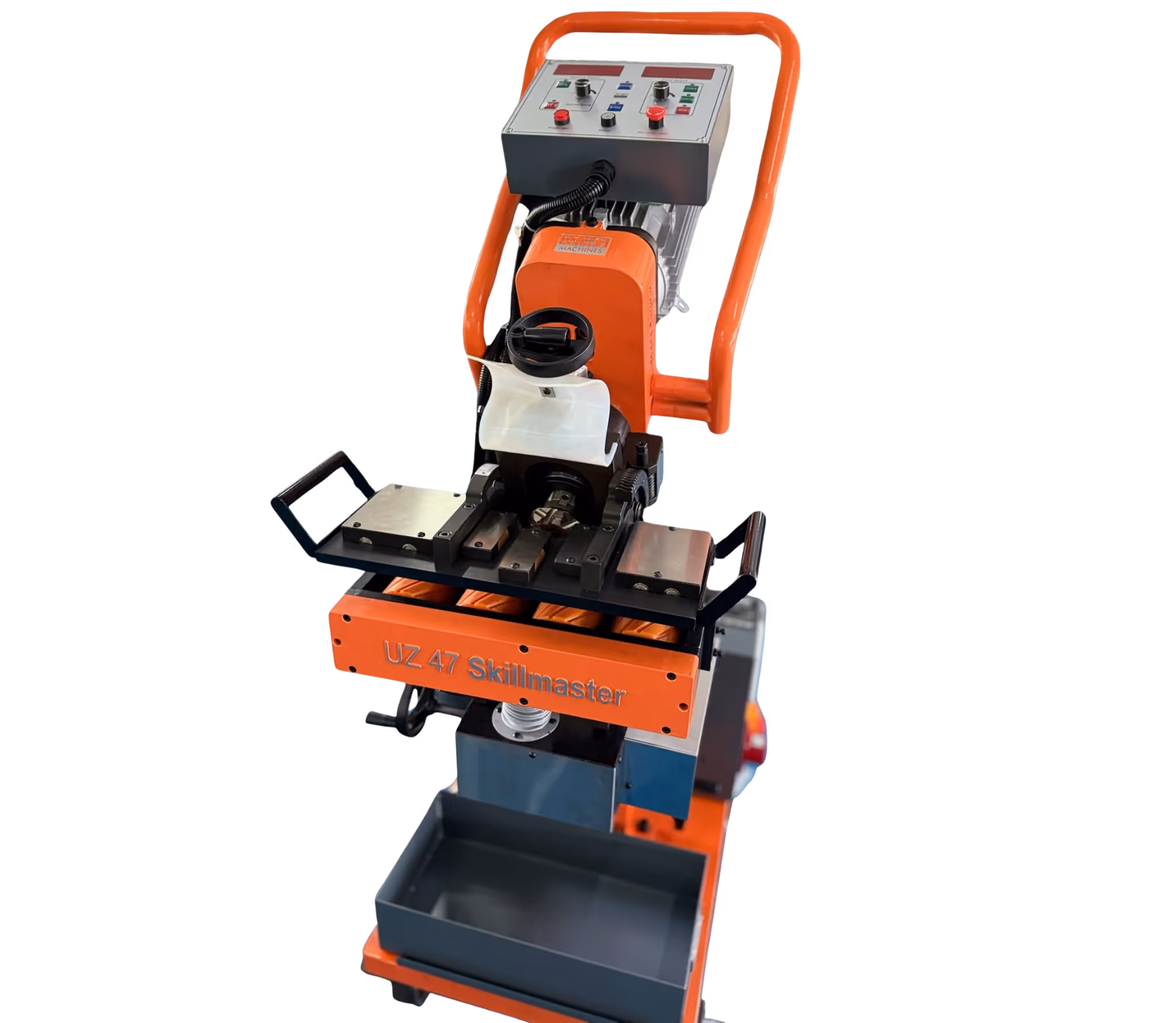

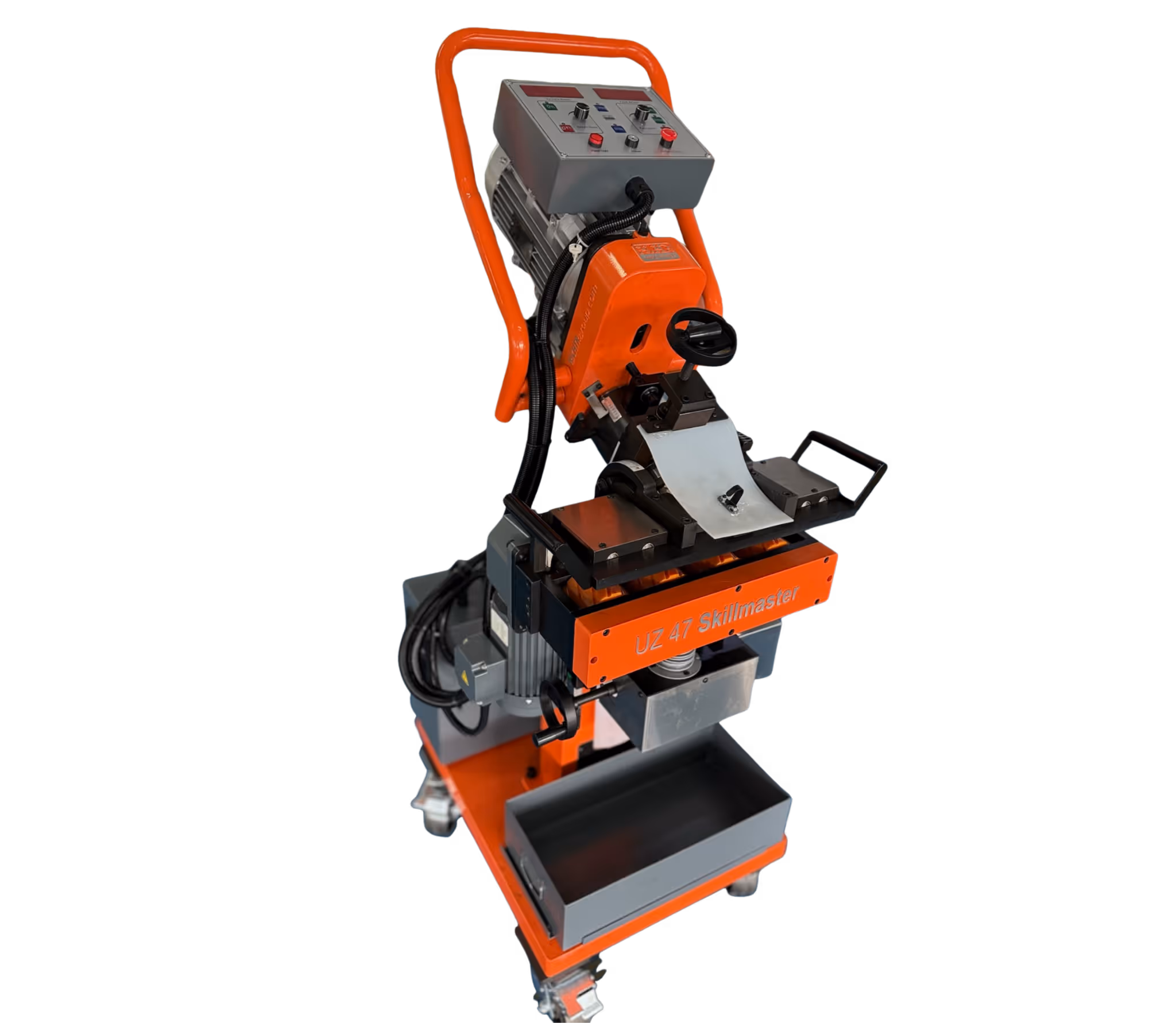

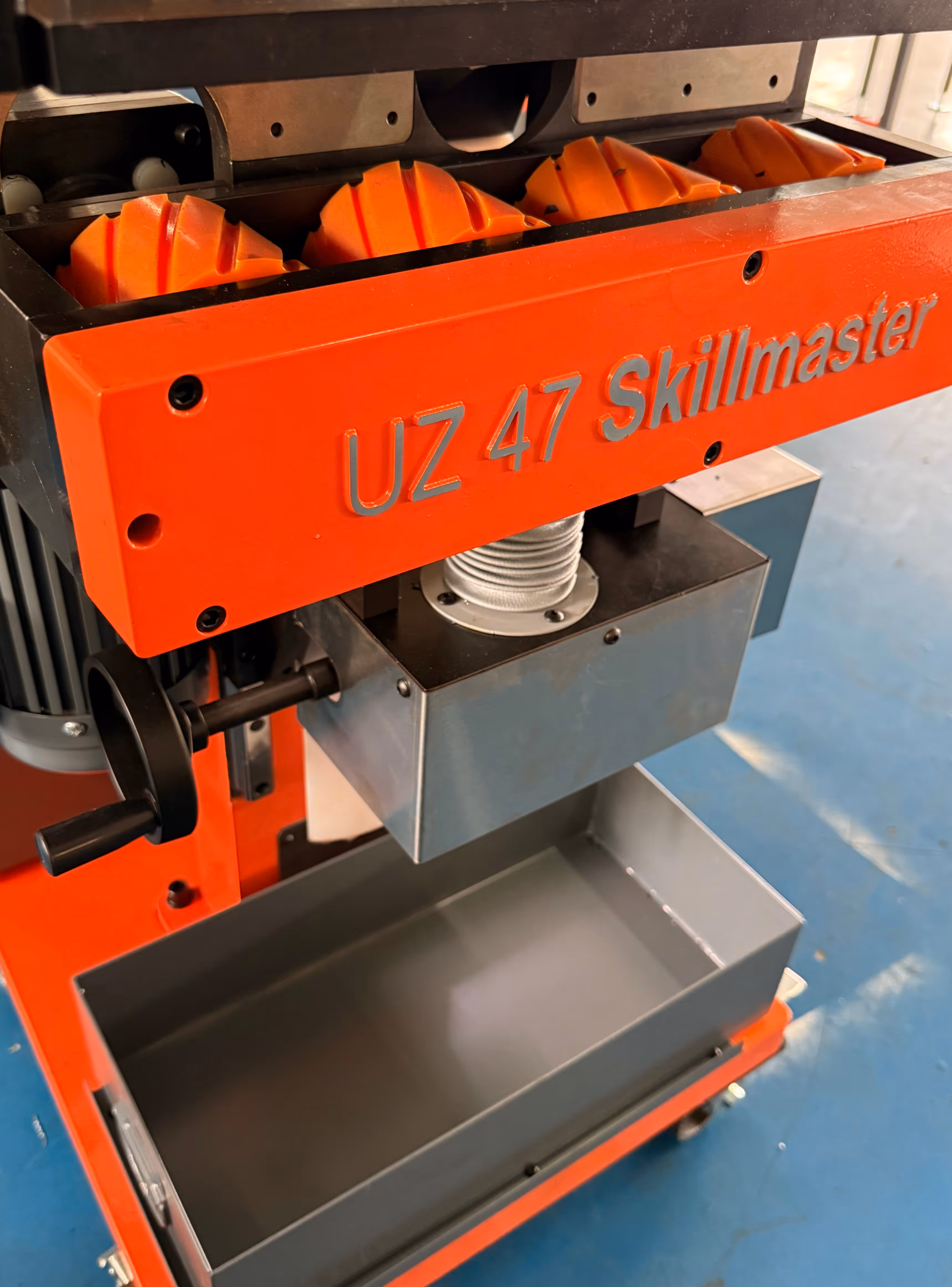

UZ47 SKILLMASTER
POWER
4000W
Max. Bevel Width
1.87“/47mm
Bevel Angle
0° - 90°
Feeding
Automatic
Feed Rate
0 - 4.59 ft/min (0-1,4m/min)
Material Thickness
0.23“ - 2.36“/6 - 60mm
Weight
540lb/245kg
Dimensions
38.19×28.35×58.27 in (970x720x1480 mm)
PRODUCT MANUALS
Bevel Types

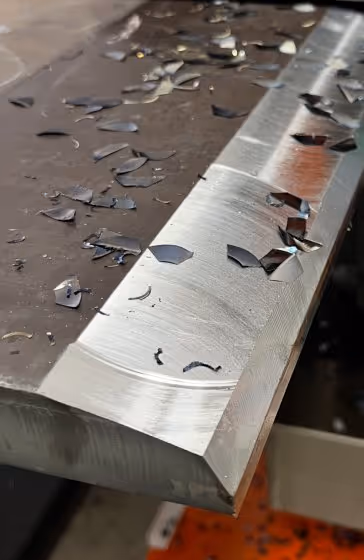

V-Bevel
Facing
J-Bevel
Tapering
Double Bevel
Compound Bevel
Cladding Removal
BEVEL TYPES
V-Bevel
Facing
J-Bevel
Tapering
Double Bevel
Compound Bevel
Cladding Removal
