• Automatic feed, 0 - 1.2 m/min.

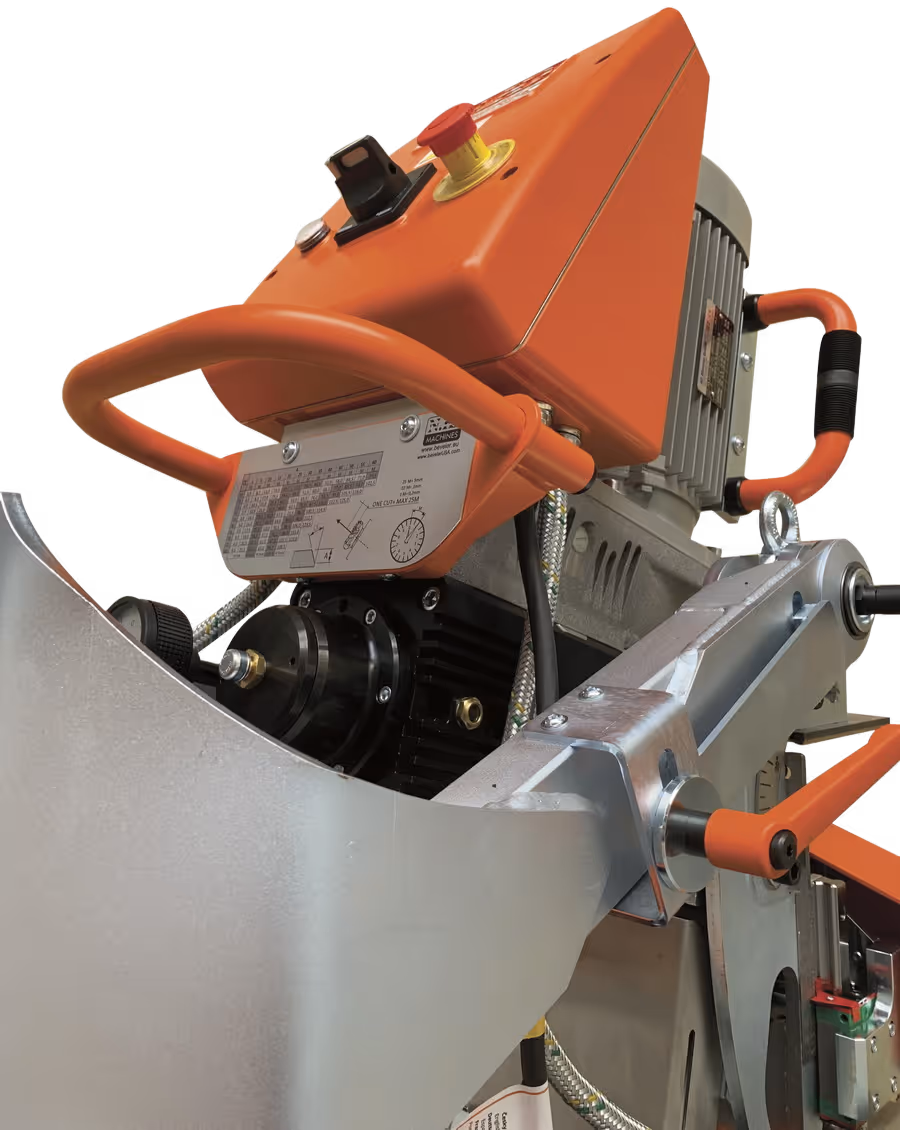

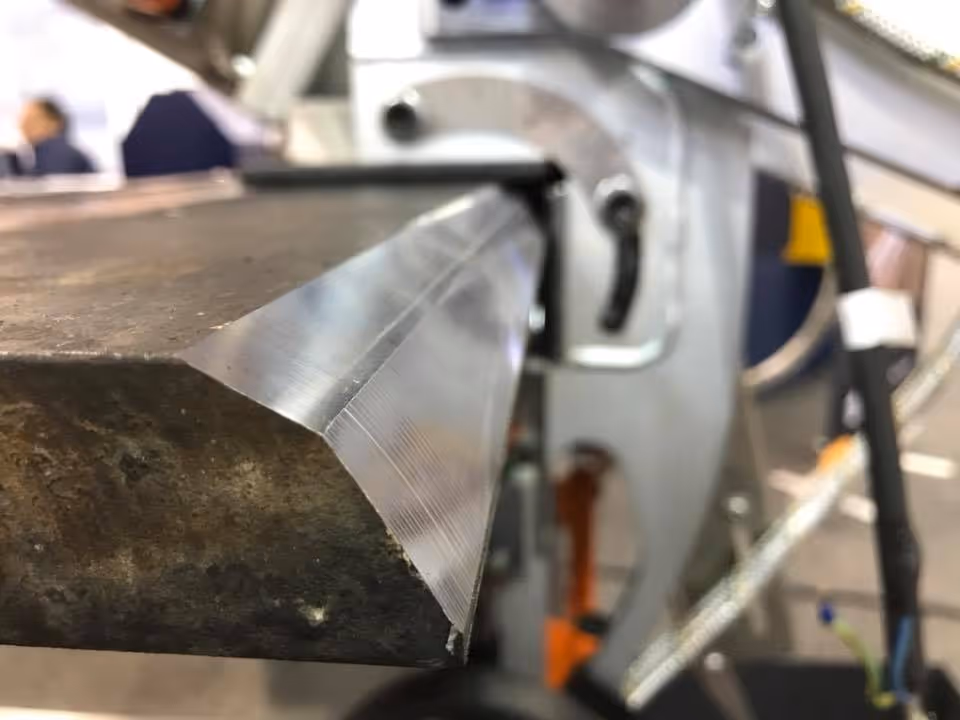

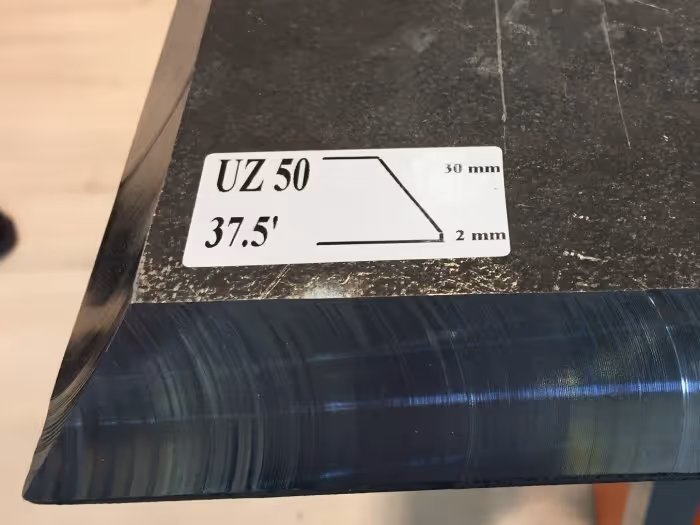

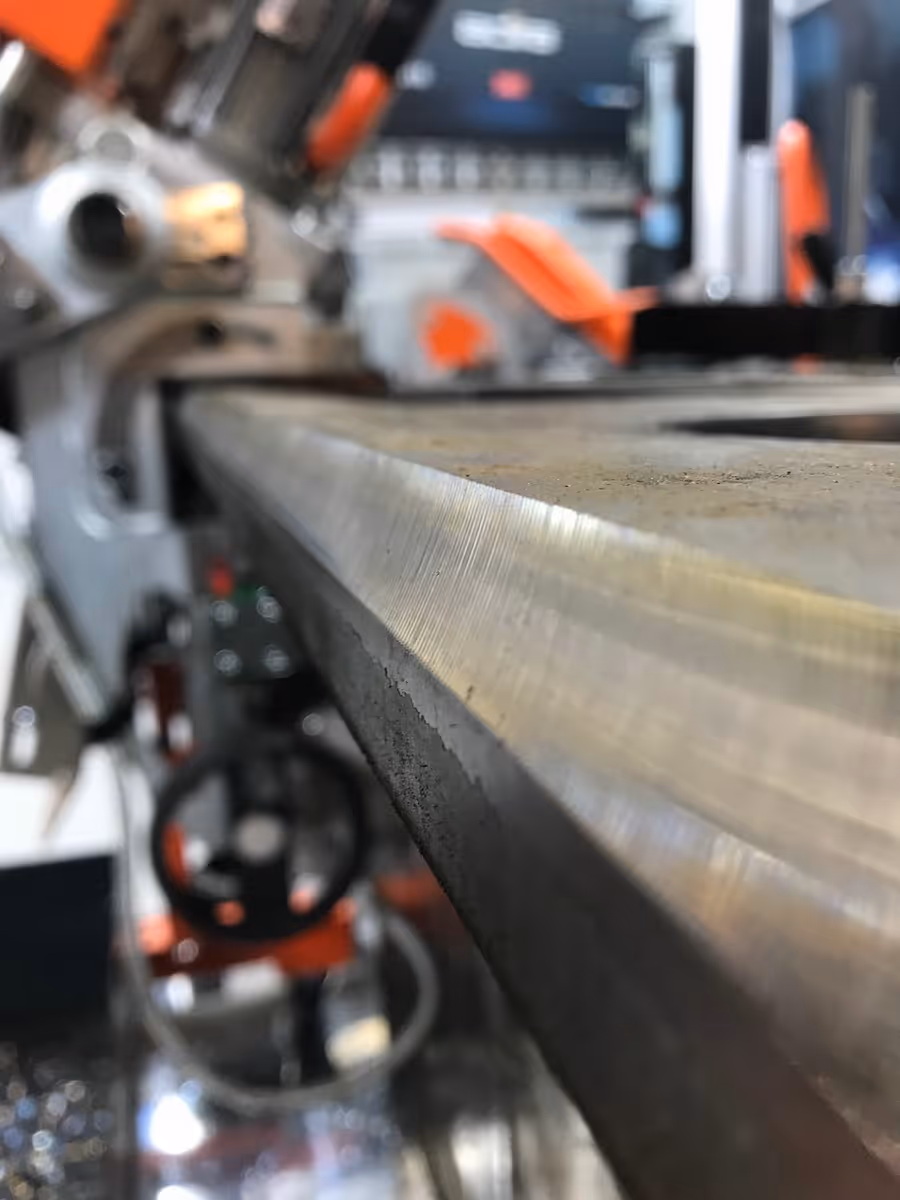

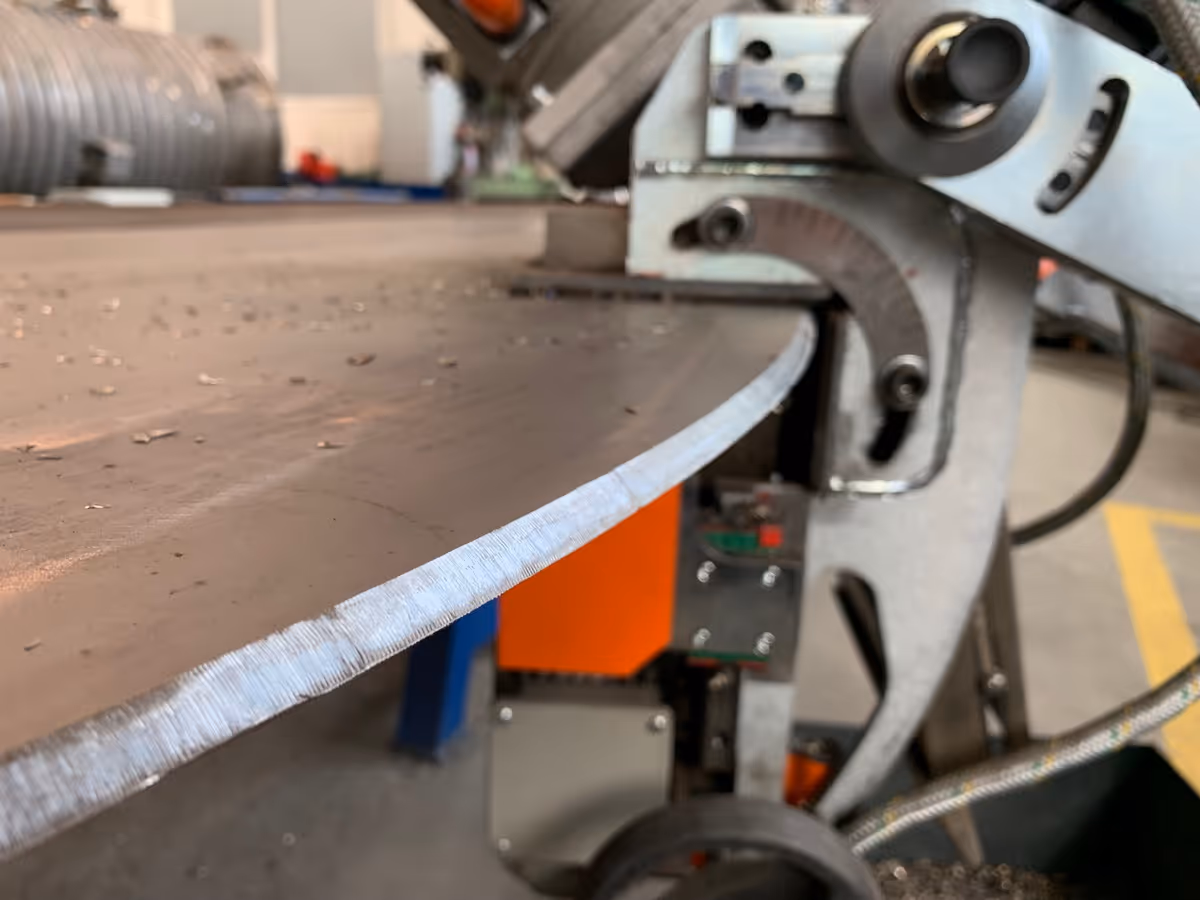

• High-speed milling head with hard-wearing inserts; max. bevel 62 mm at 15°, 50 mm at 45°.

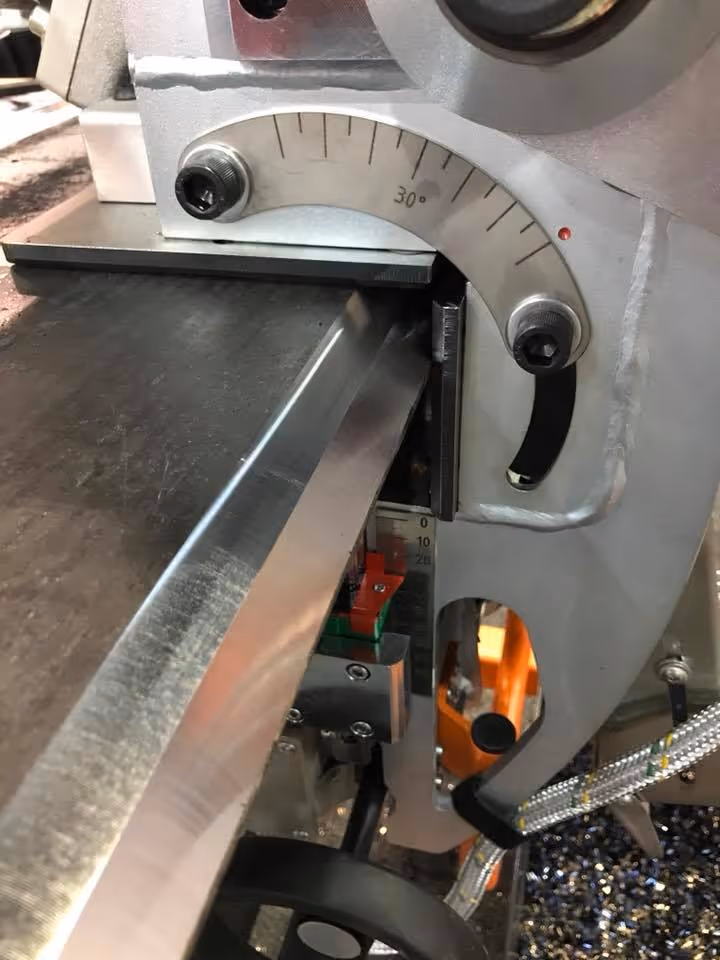

• Stepless 15 - 60° angle with no parts to change.
• Material thickness 7 - 80 mm.

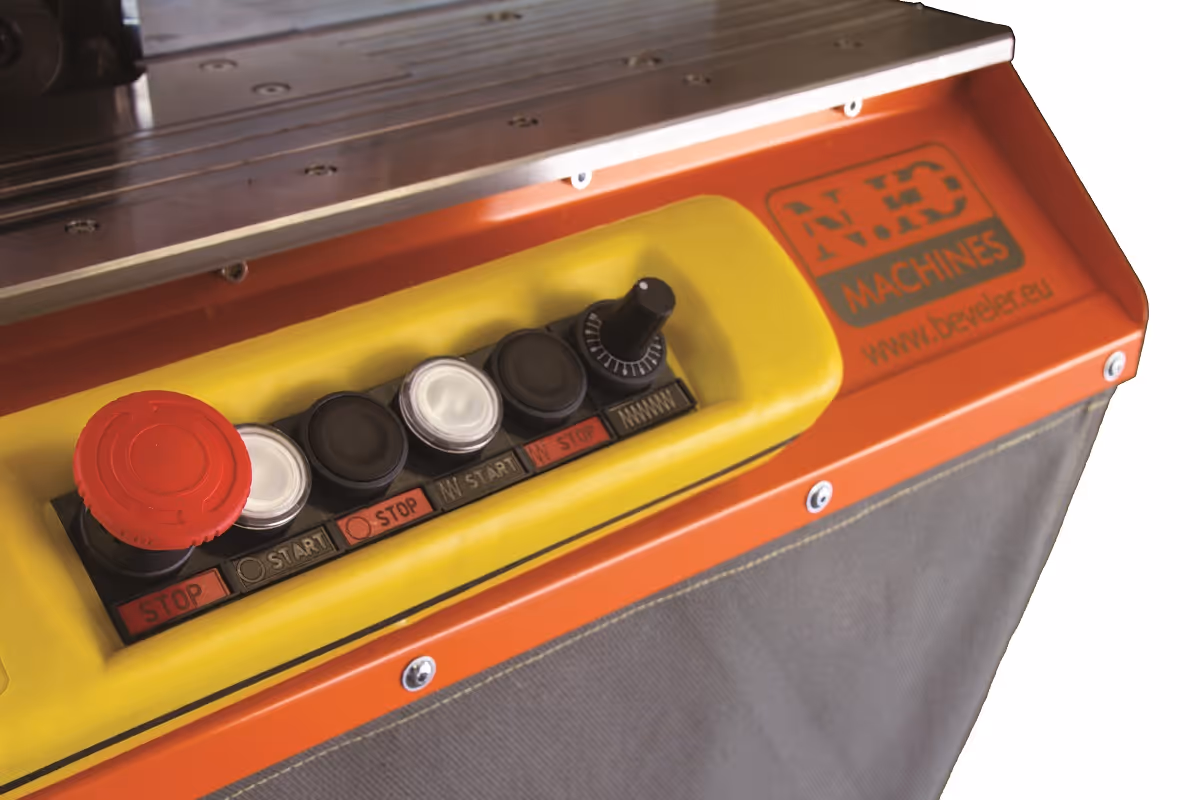

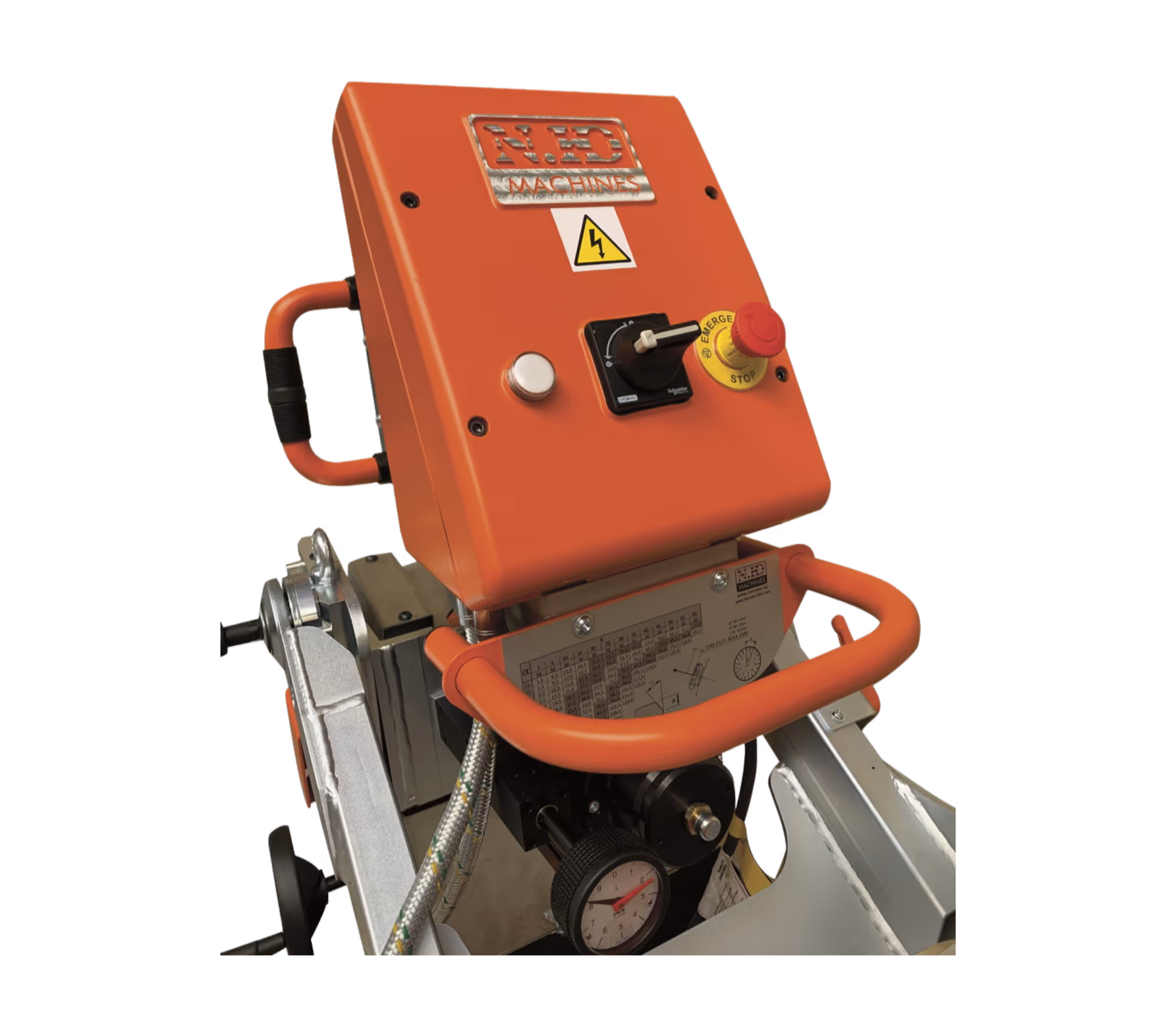

• The electrical system is sealed in a dust-tight enclosure with all required safety devices.
• CE declaration of conformity

‍

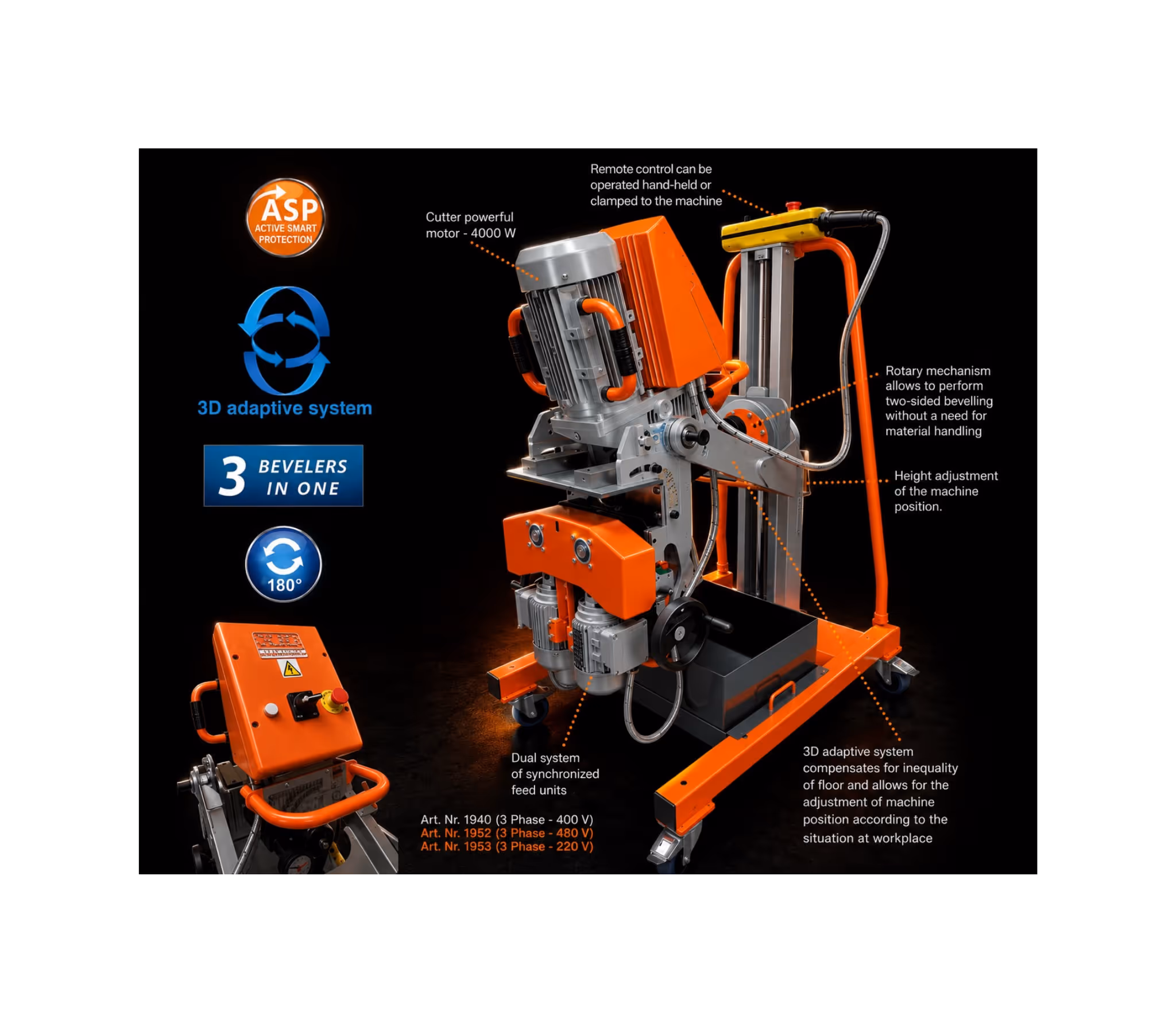

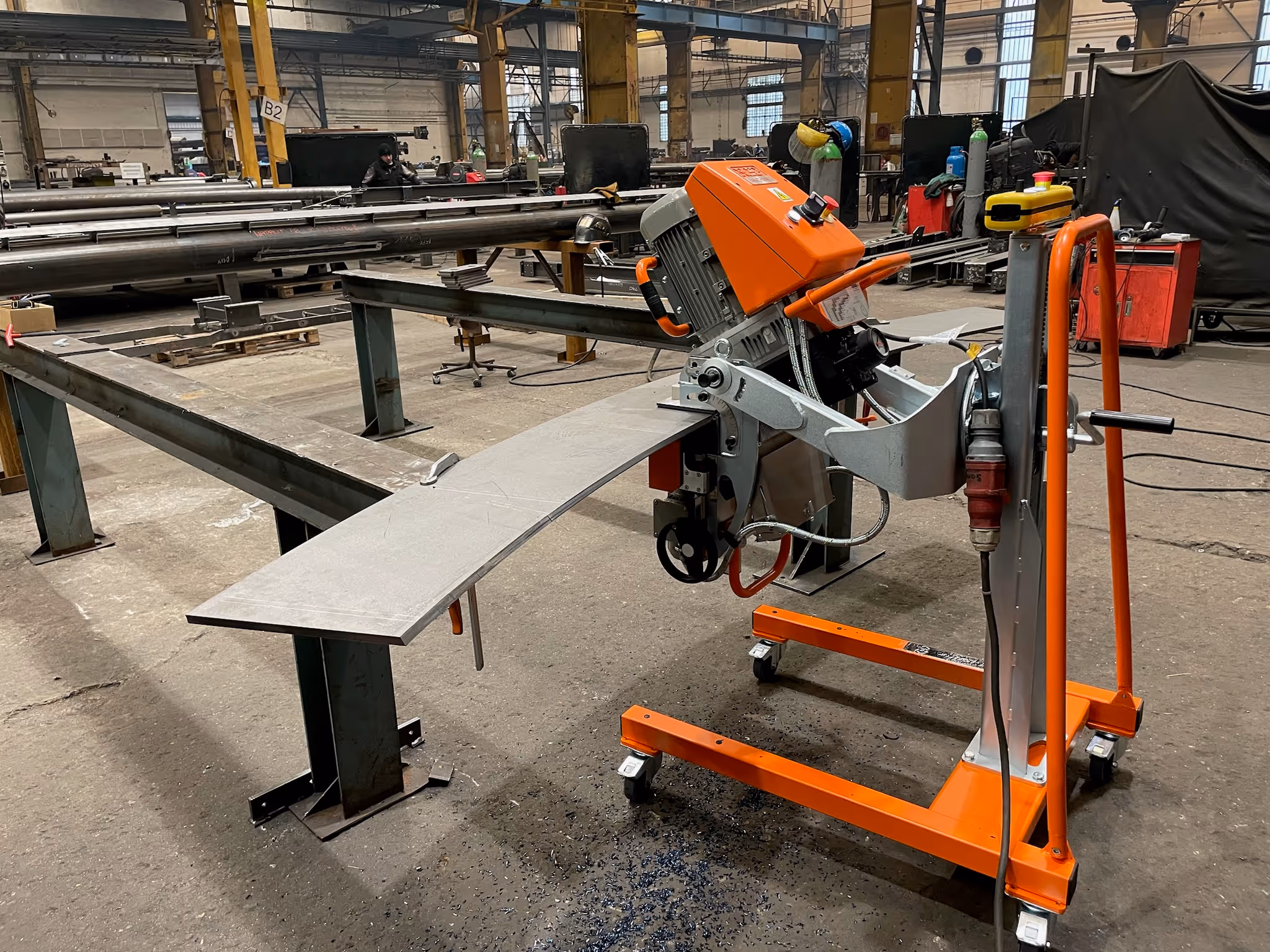

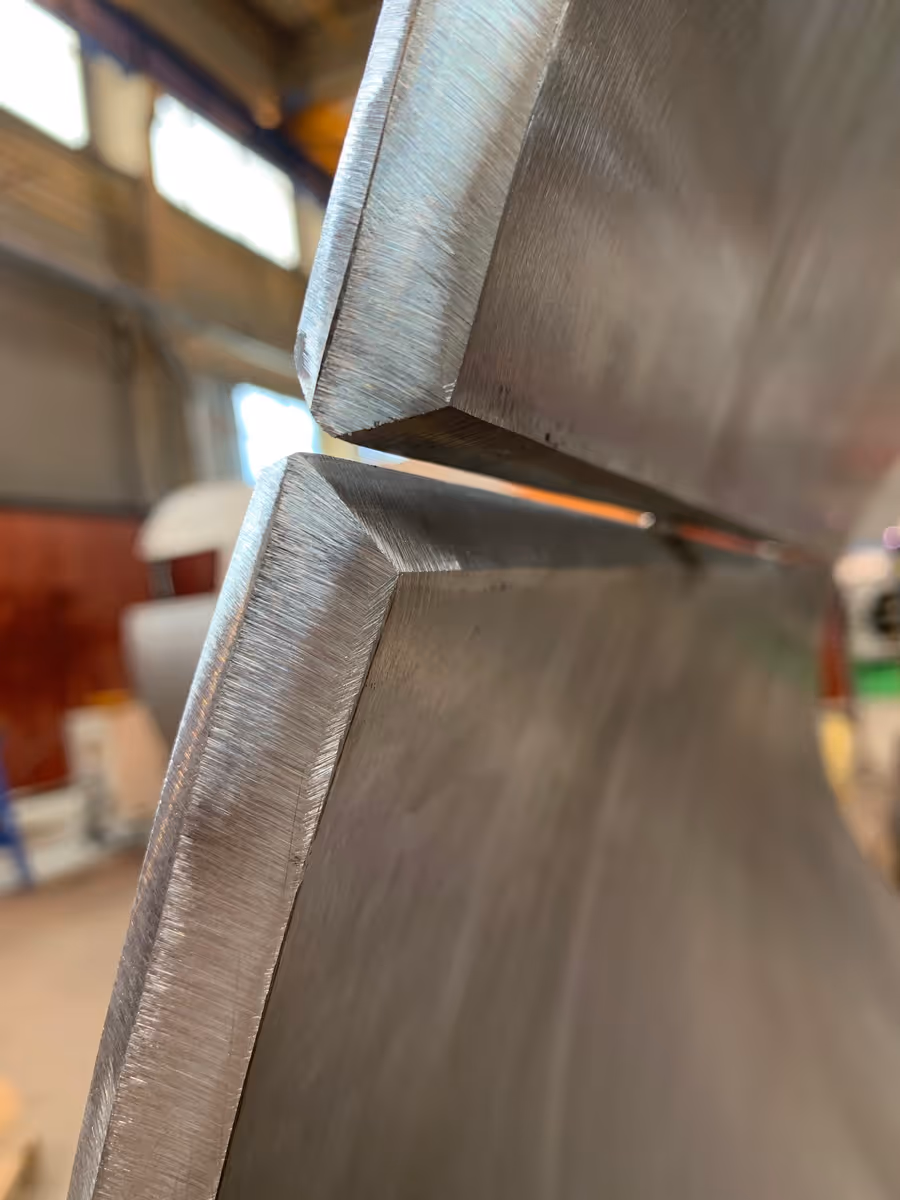

• unique MANIPULATOR 3D - turns the machine 180° in one move for double-sided X and K bevels — no crane needed. There is a significant saving of work time.
• Quick-System clamping mounts or removes the machine in seconds without tools.
• The beveler 'floats' on the 3D Manipulator, absorbing floor unevenness and plate distortion.
• MANIPULATOR 3D allows the easy manipulation with beveler
• the required height of the machine can be set up by MANIPULATOR 3D by lift handle
• the movement of the machine is provided by massive wheels mounted on the carriage
• the possibility to bevel with MANIPULATOR 3D or without
• the possibility to use the MANIPULATOR 3D like a stationary station

‍

• EQUIPMENT for bevelling small flat steel
• Equipment is intended for use with the machine UZ50 TRIUMPH
• With the equipment is machine UZ50 TRIUMPH possible use for processing small workpieces
• Optional UZP30 setup for small flat-steel parts, with a stepless 20 - 60° angle.

‍

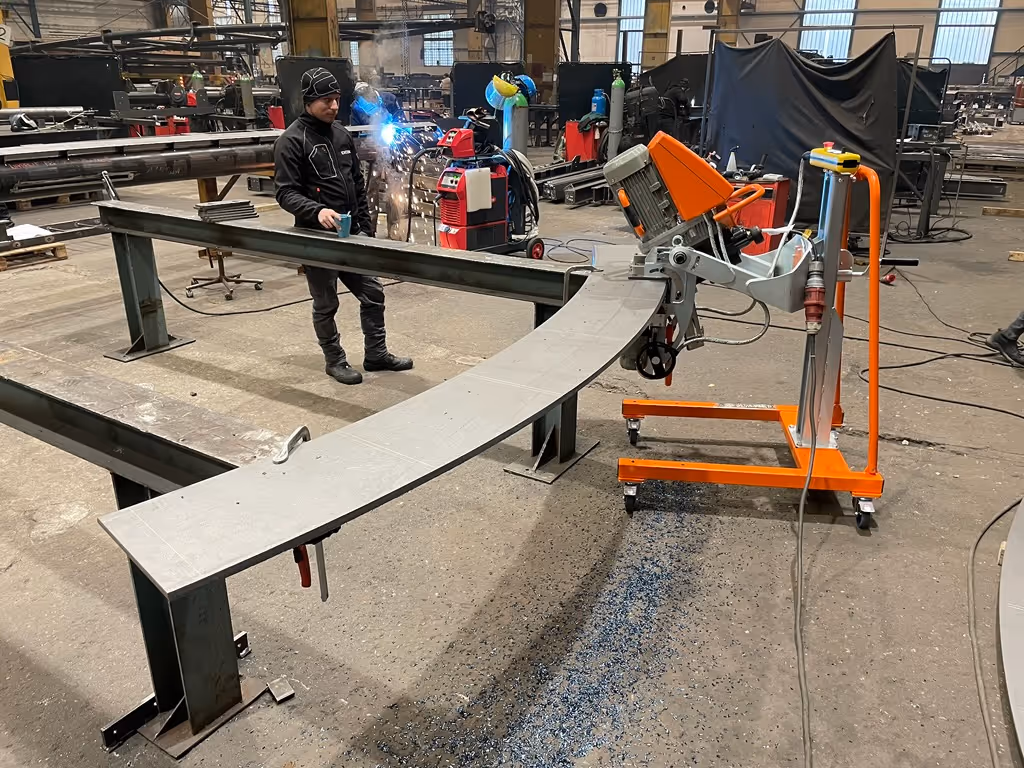

• UZ50 TRIUMPH beveling system with 3D manipulator

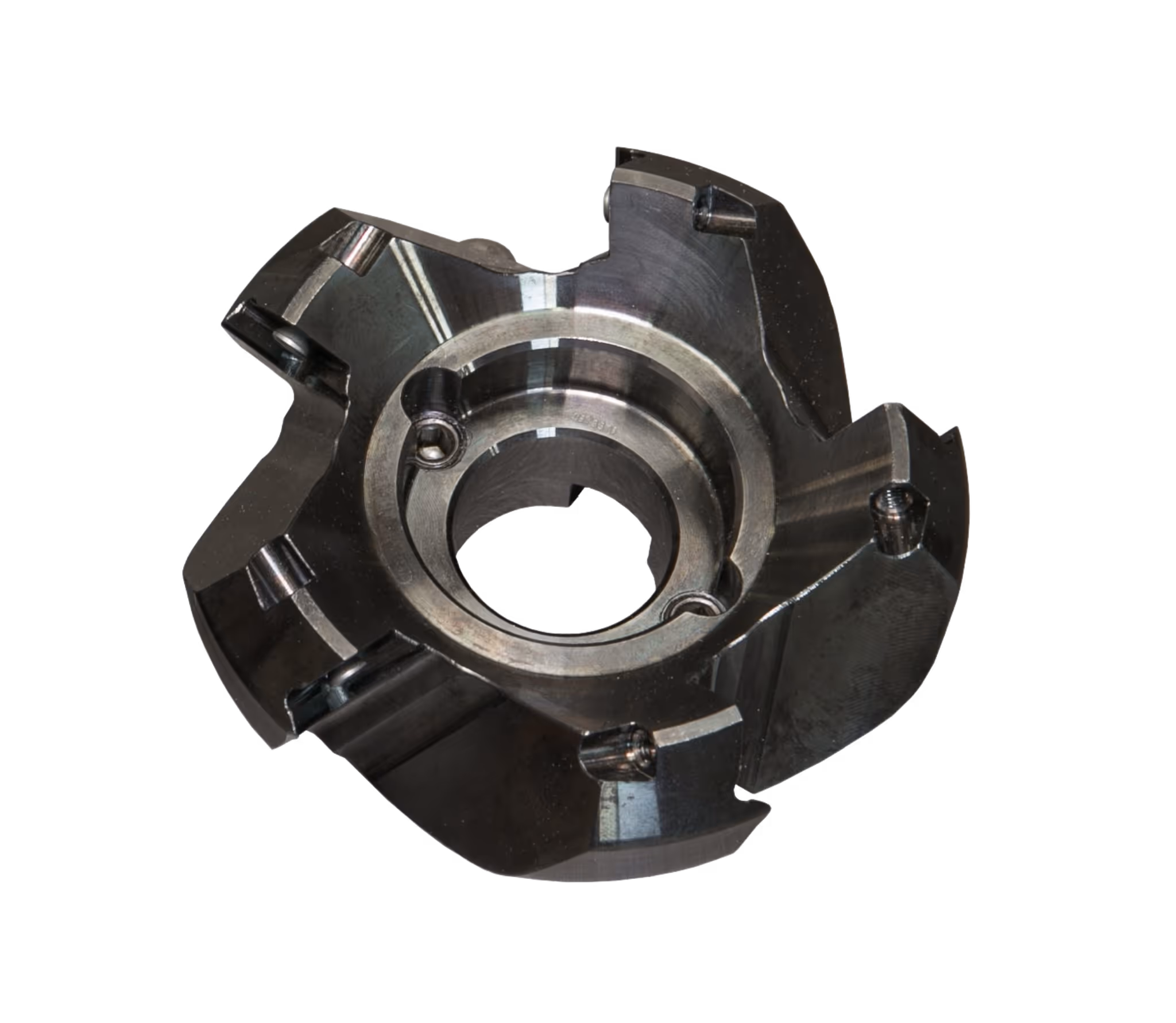

• ECO cutter and 5 indexable inserts
• UZP30 small-sheet beveling table (with the SET option)
• Tools
• User manual
