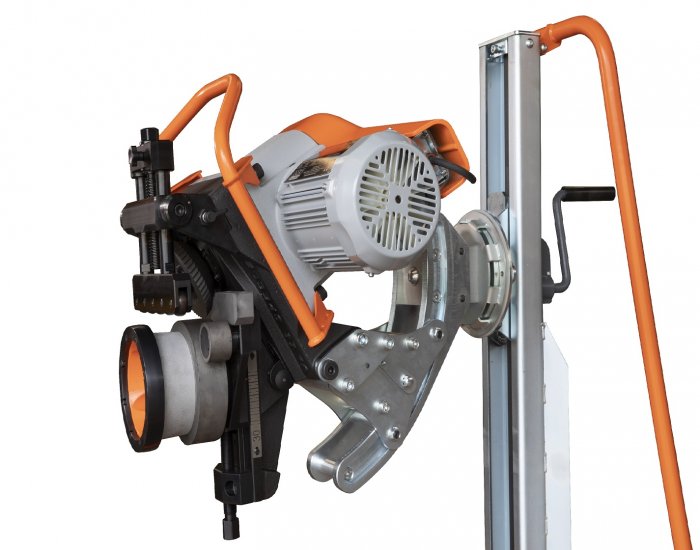

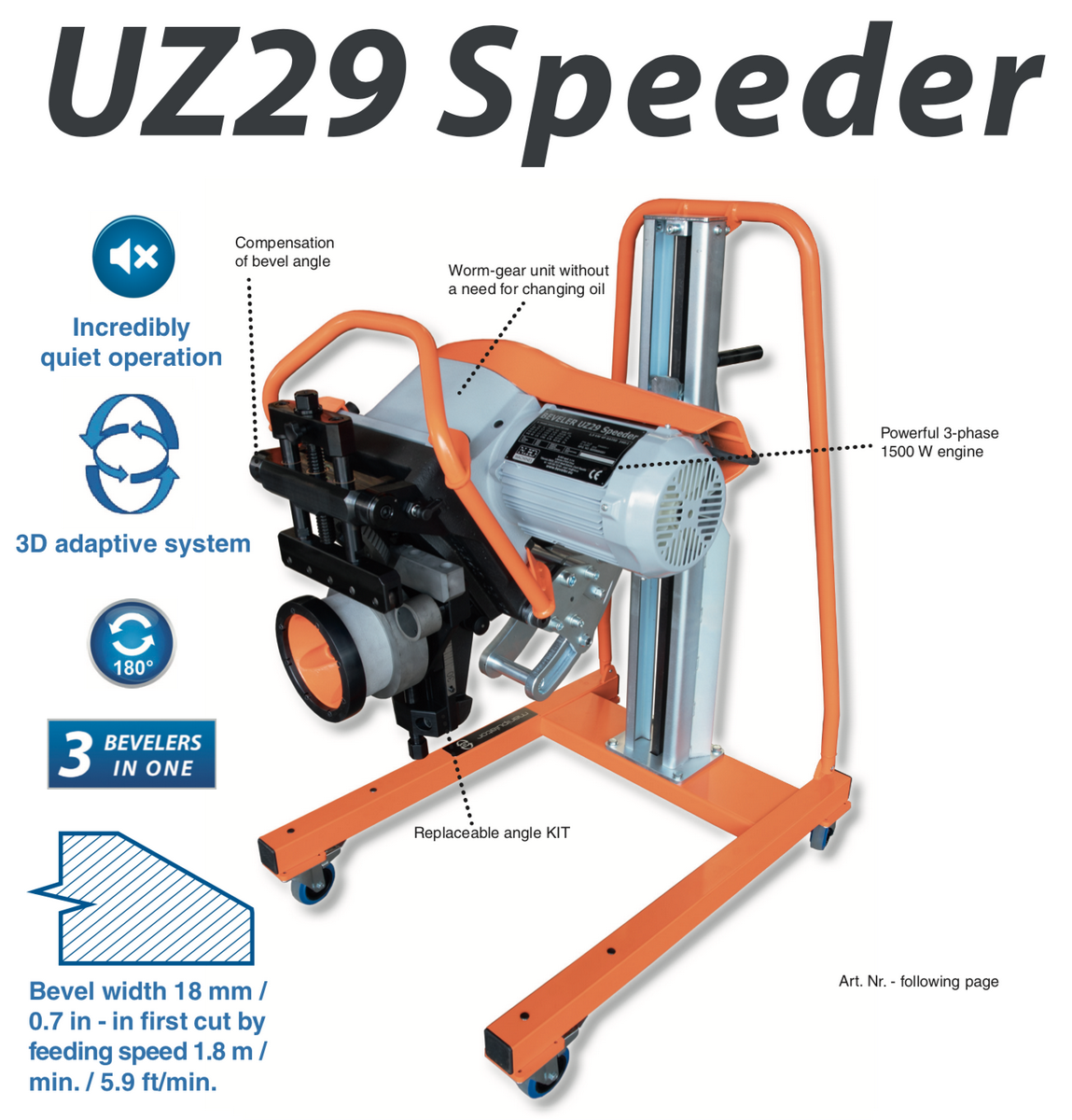

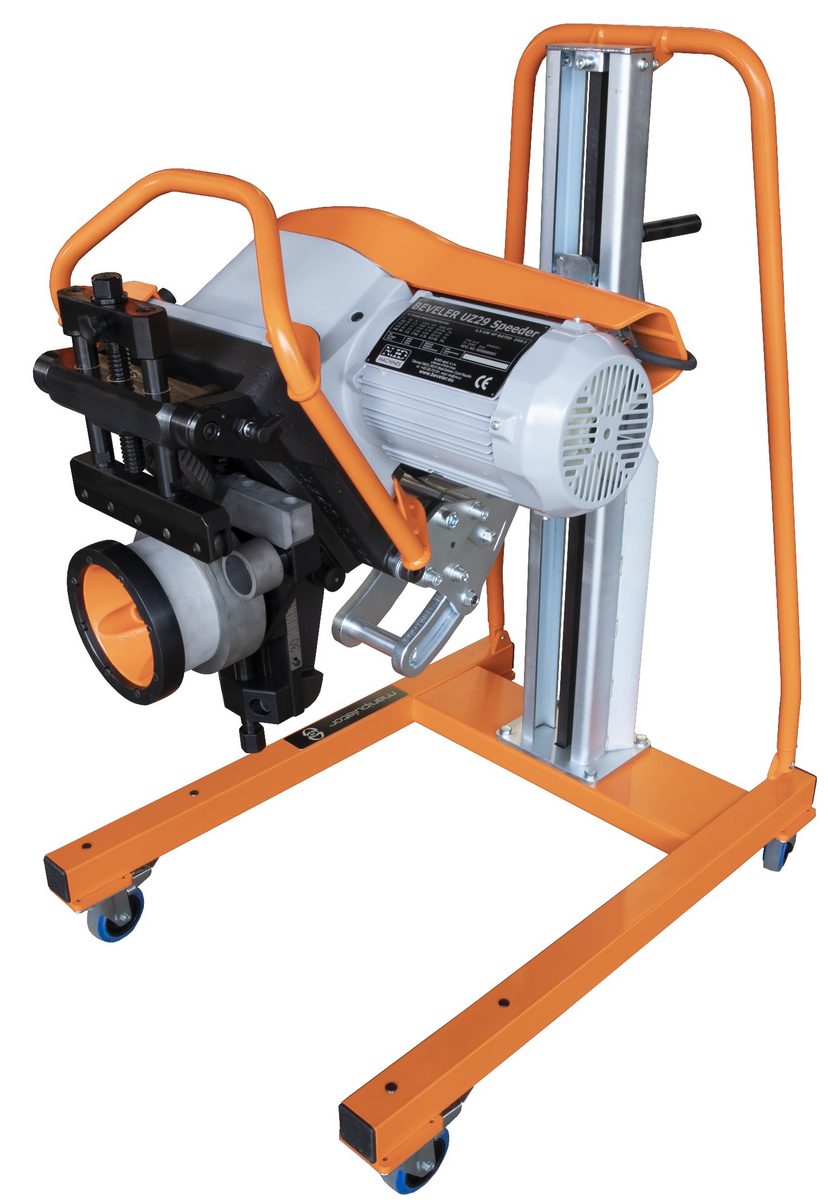

Double Sided High Speed Beveler UZ29 SPEEDER
Max. width of bevel 1,14 in. / 29 mm
Automatic feed.

Bevel width 0.7in / 18mm in first cut by feeding speed 5.9ft/min. / 1.8m/min.

UZ29 SPEEDER machine is one of the largest and most powerful machines in the field of rotary cutting bevelling machines.

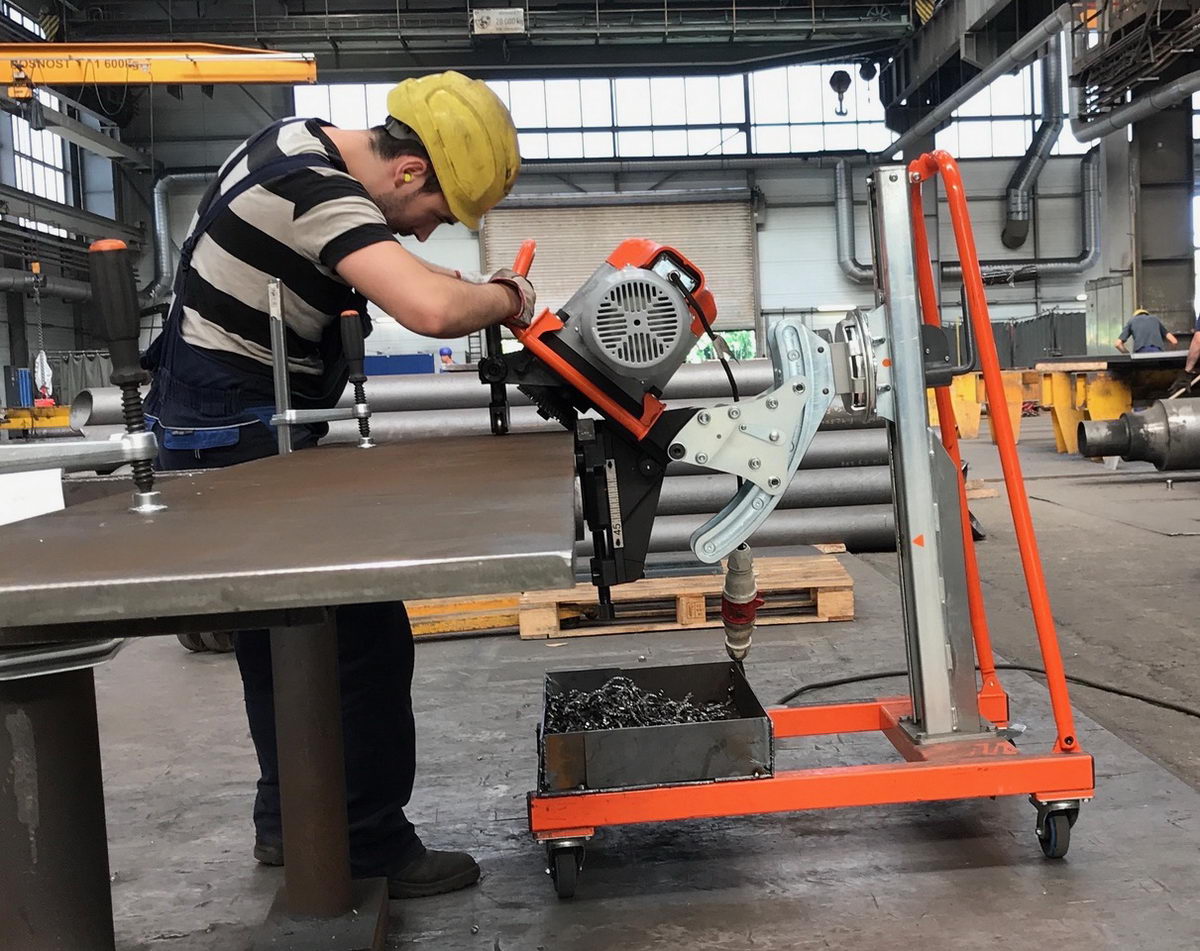

The machine is equipped with an automatic feed and can be used as a stationary machine designed for large and small volumes of smaller workpieces.

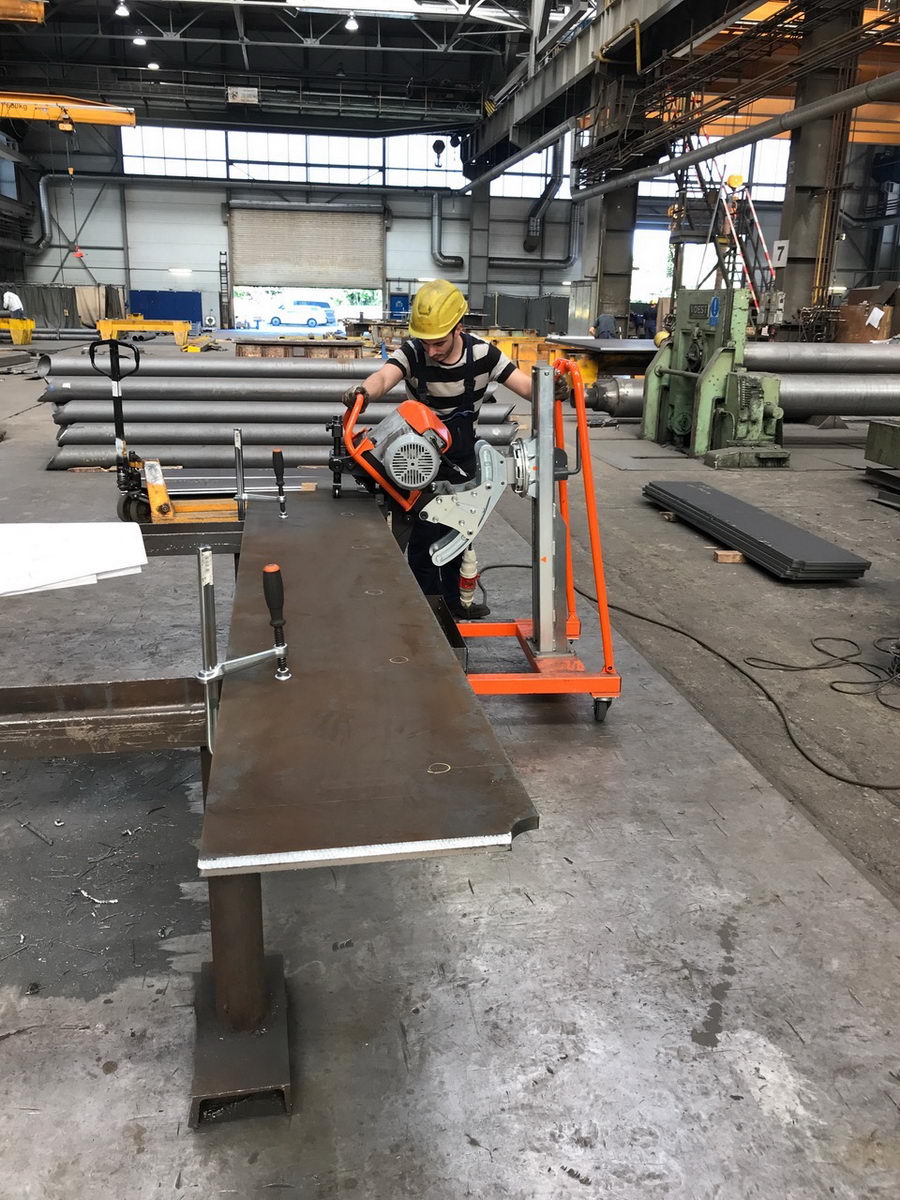

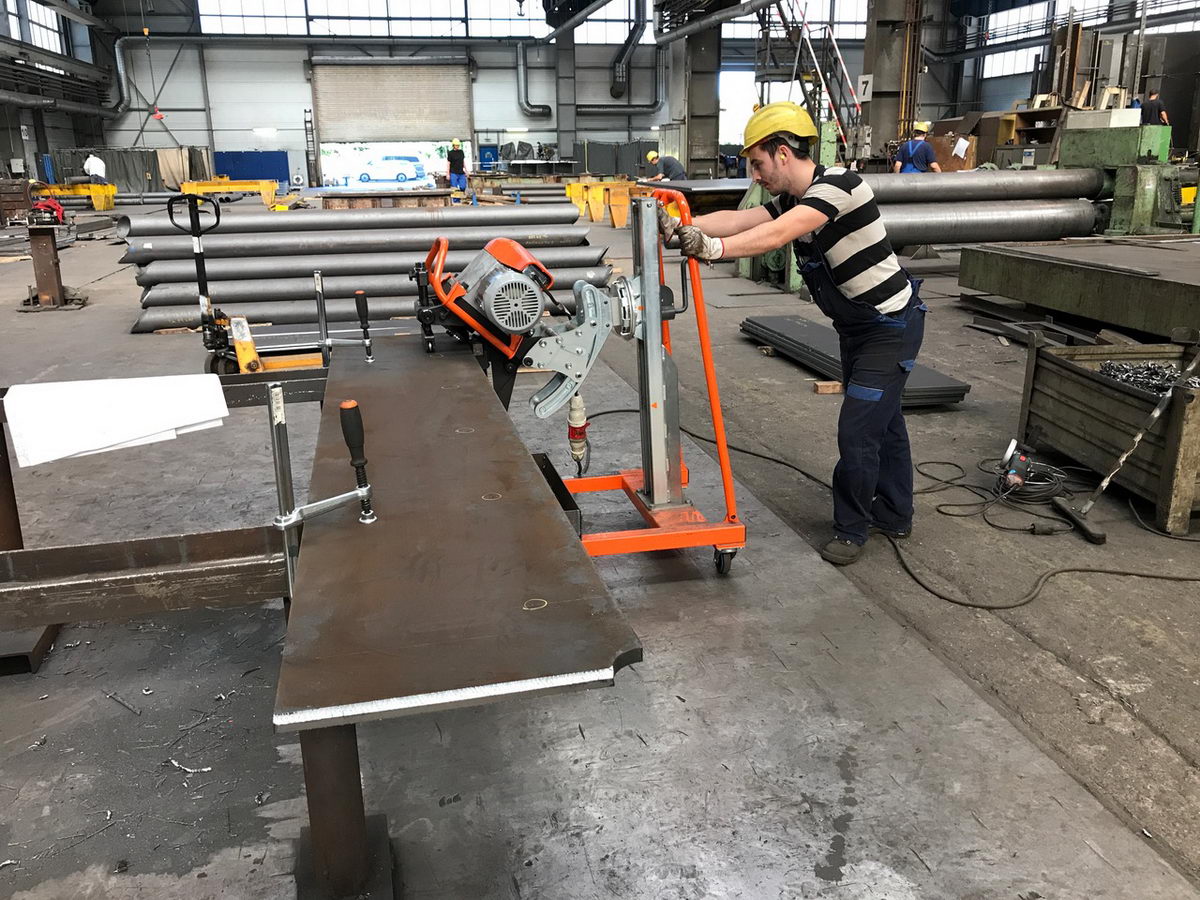

At the same time it can be used as a mobile bevelling system when the machine moves along the machined steel sheet at a rare of almost two meters per minute.
The UZ29 SPEEDER machine is capable of machining both, standard and stainless steel.
The machine has a supersilent drive not increasing the noice at the workplace.

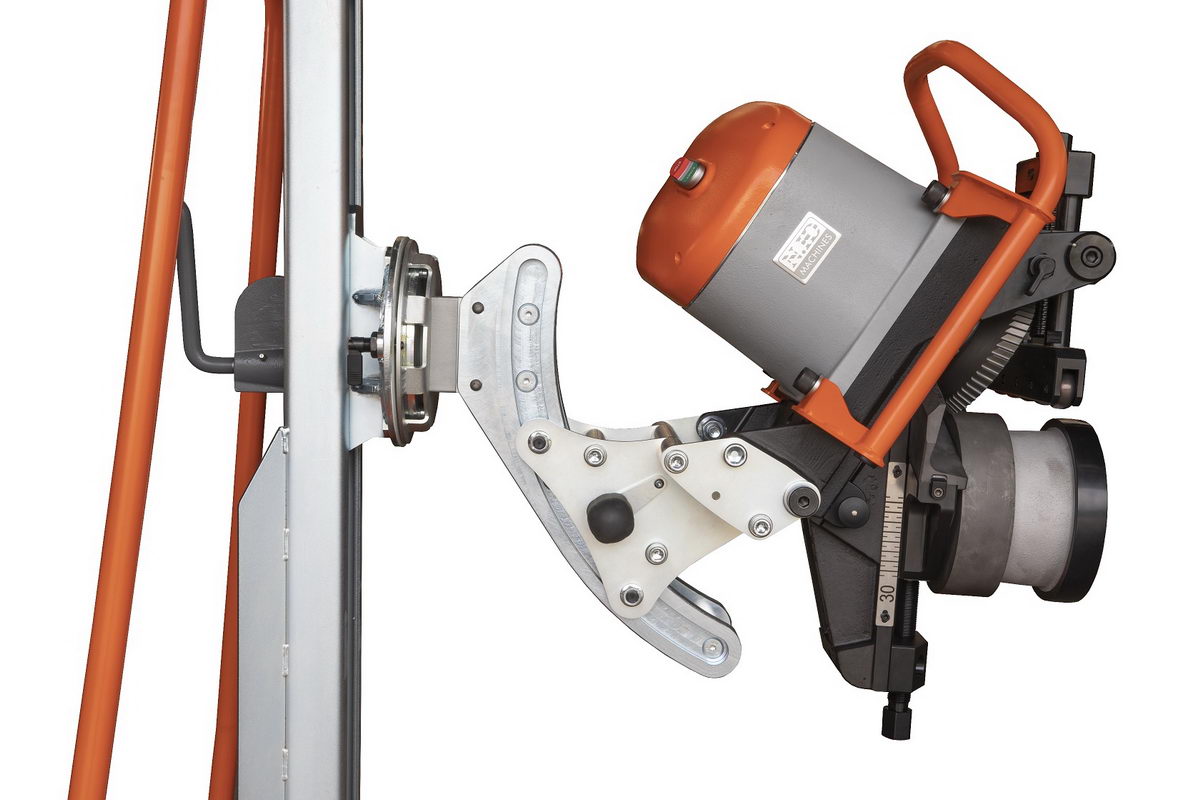

In addition it is possible to flip the entire machining unit upside down and create bevels for X and K form of the welds without handling machined material.

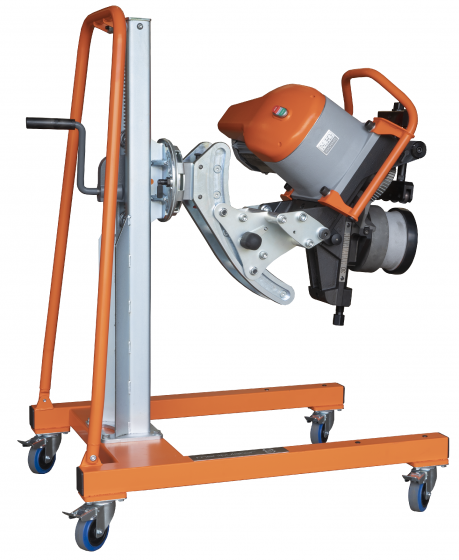

This application is made possible by the rotary mechanism of the 3D manipulator, which is a standard machine equipment.

  • For conventional steel (up to strength 700 MPa / 101 526 PSI), stainless steel, brass, copper and aluminium materials.
  • The bevelled material thickness 0.23 to 2.36 in / 6 to 60 mm.

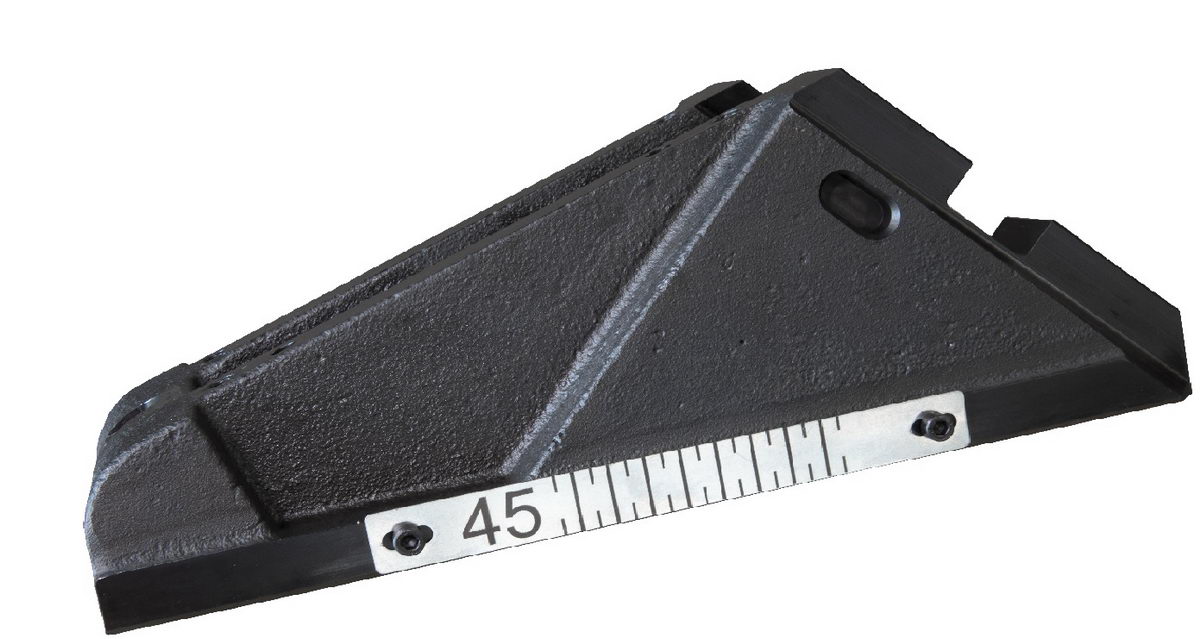

  • The bevel angle can be adjusted by removable arms (KIT for a given angle).
  • The device is able to perform the double-sided bevel (X, K), without any need for material handling.
  • Suprisingly silent drive.
  • The machine is equipped with the automatic feed.
  • The possibility of stationary and mobile use.
  • 3D Manipulator allows to adapt UZ29 Speeder for any unevenness of deformations in the length of machined material. It also allows to work on uneven floor.
  • Smaller parts of the material are inserted directly into the machine.
  • One-man machine.
Technical data:
Max. bevel width:
0 to 1.14 in / 0 to 29 mm < 400 MPa / 58 015 PSI
0 to 1 in / 0 to 25 mm > 400 MPa /58 015 PSI
Bevel angle:
30°; 45°; 22,5°; 37,5°; 50° (replaceable KIT)
The thickness of the bevel. material:
0.23 to 2.36 in / 6 – 60 mm
Motor: 1500 W
Feed rate:
6 ft/min. / 1,8 m/min.
452 lb / 205 kg
39.76 x 29.33 x 52.2 in
1010 x 745 x 1326 mm

Included it the price:
  • Bevelling system UZ29 SPEEDER
  • Tools for an operator
  • User manual

Satisfaction Guaranteed
    If you are not completely satisfied with UZ29 SPEEDER you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.
Machine name:
220V – 3phase 480V – 3phase 400V – 3phase
Bevelling system UZ29 SPEEDER
- KIT 30° + 45°
1907 1903 1962

Recommended accessoriesArt.Nr.
SERVICE PACK - 1/2 off with a purchase of a new machine.
- 10 pcs of ECO cutter ( 1970)
- 1 set of compensates washers ( 1976)
- 4 pcs transportation wheels for 3D Manipulator ( 1930.1002)

Accessories: Art.Nr.

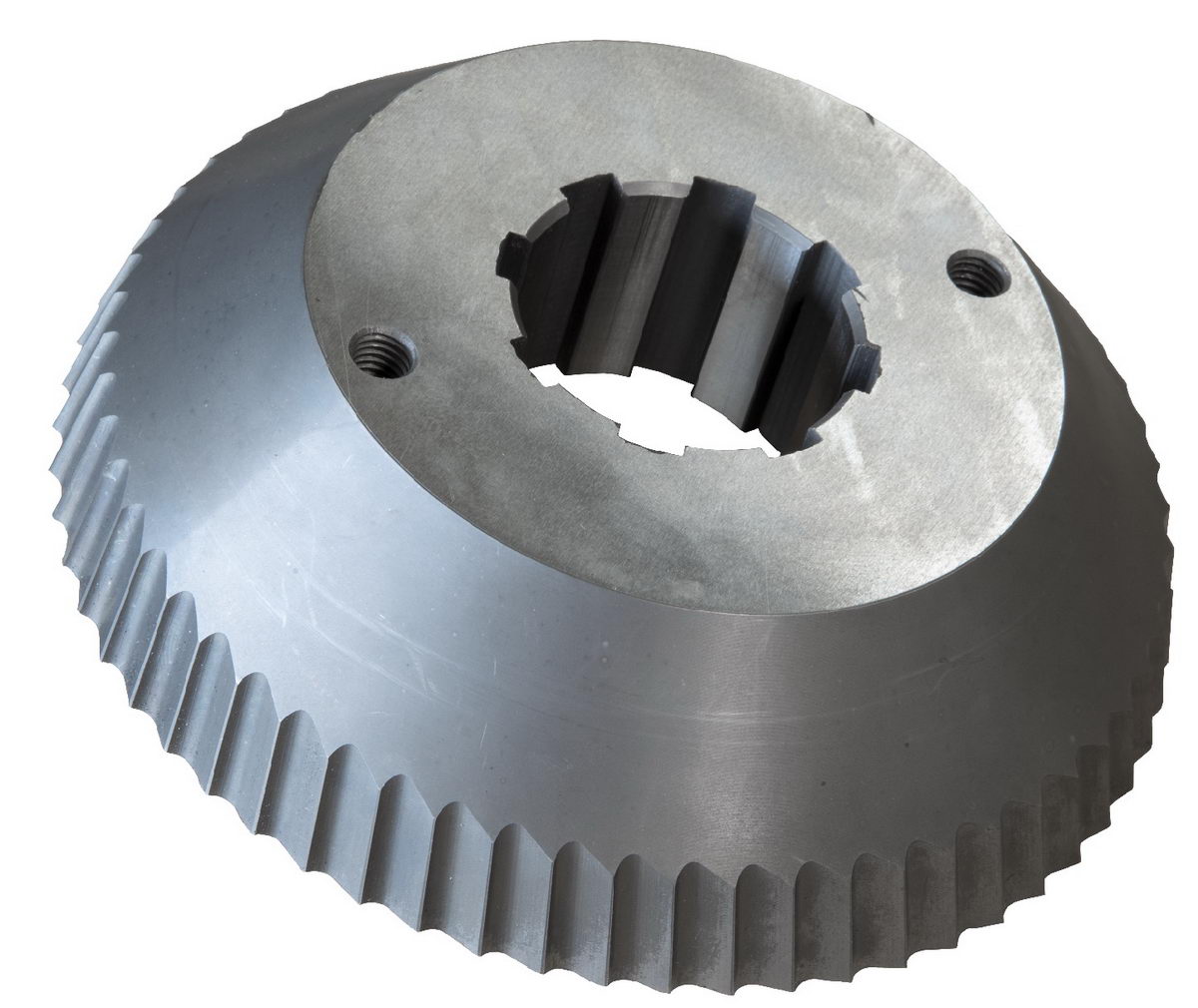

ECO cutting tool
- suitable for conventional steel
ECO cutting tool
- suitable for conventional steel
- 2+1 free set

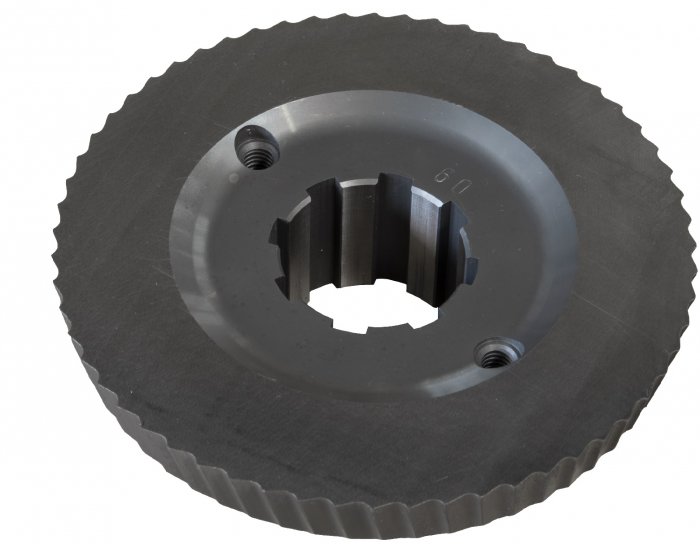

PVD cutting tool
- suitable for tougher materials
PVD cutting tool
- suitable for tougher materials
- 2+1 free set
Separate KIT 22,5° 1966
Separate KIT 30° 1964
Separate KIT 37,5° 1967
Separate KIT 45° 1965
Separate KIT 50° 1968
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in
