X-PIPE Beveler

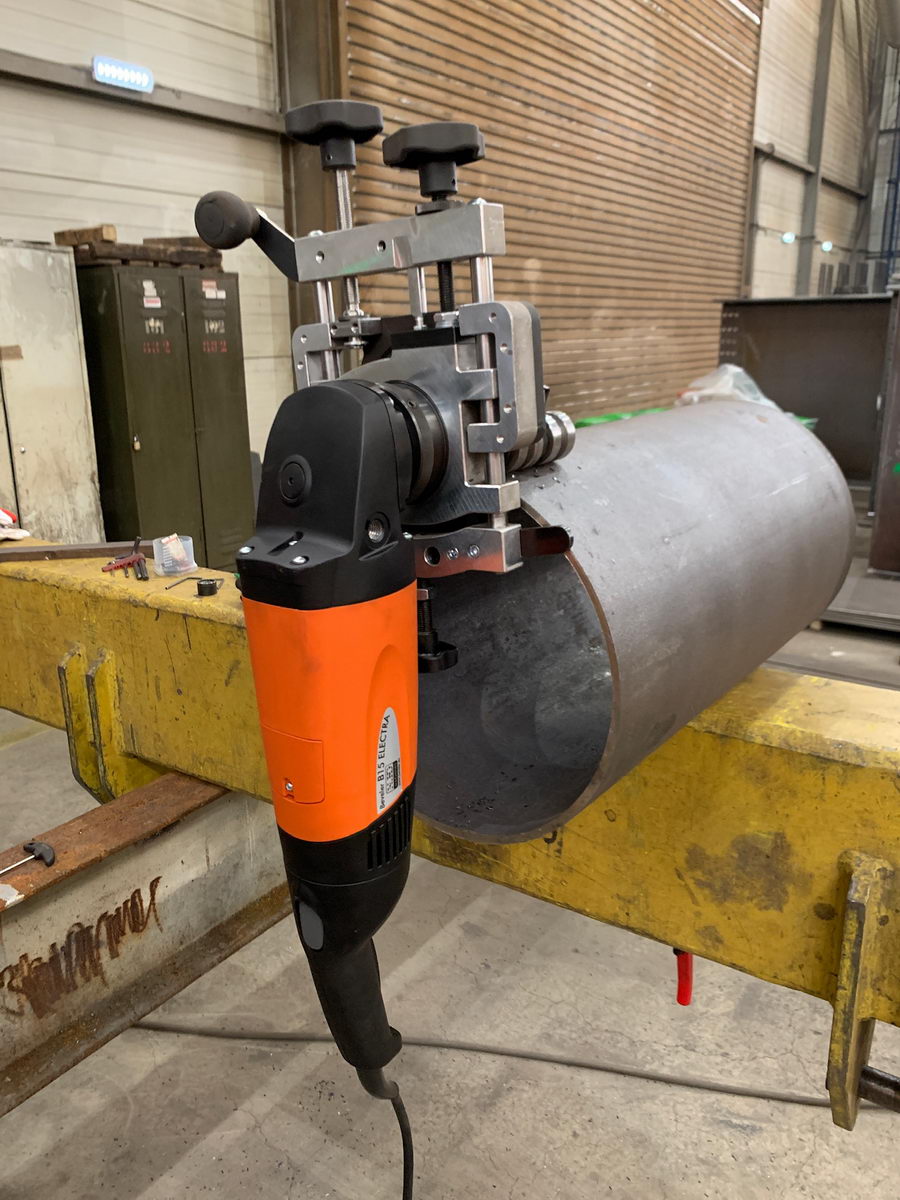

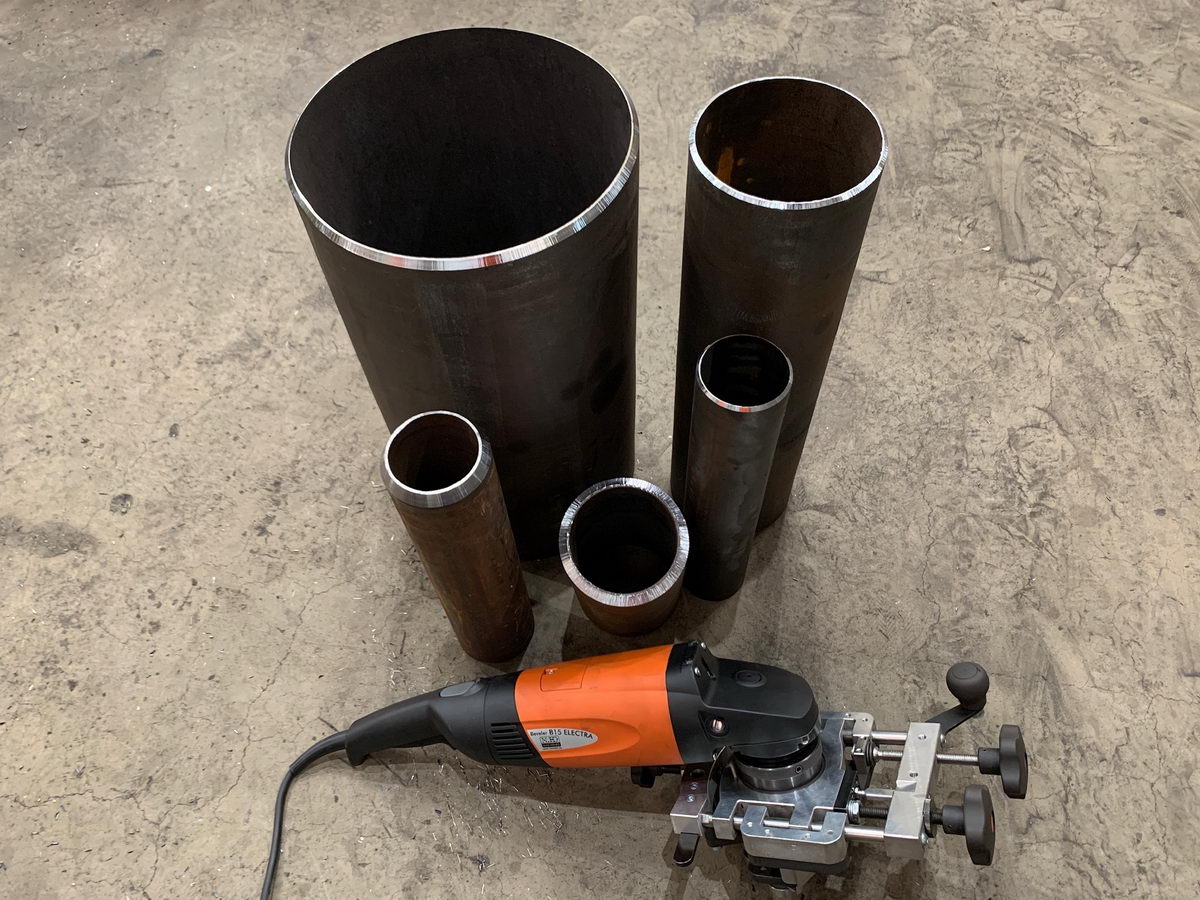

Beveling tool for pipes from Ø 3.75“ (95 mm) for B10 Electra, B15 Electra and B15 AIR bevelers.

  • Unlimited diameter of the pipe

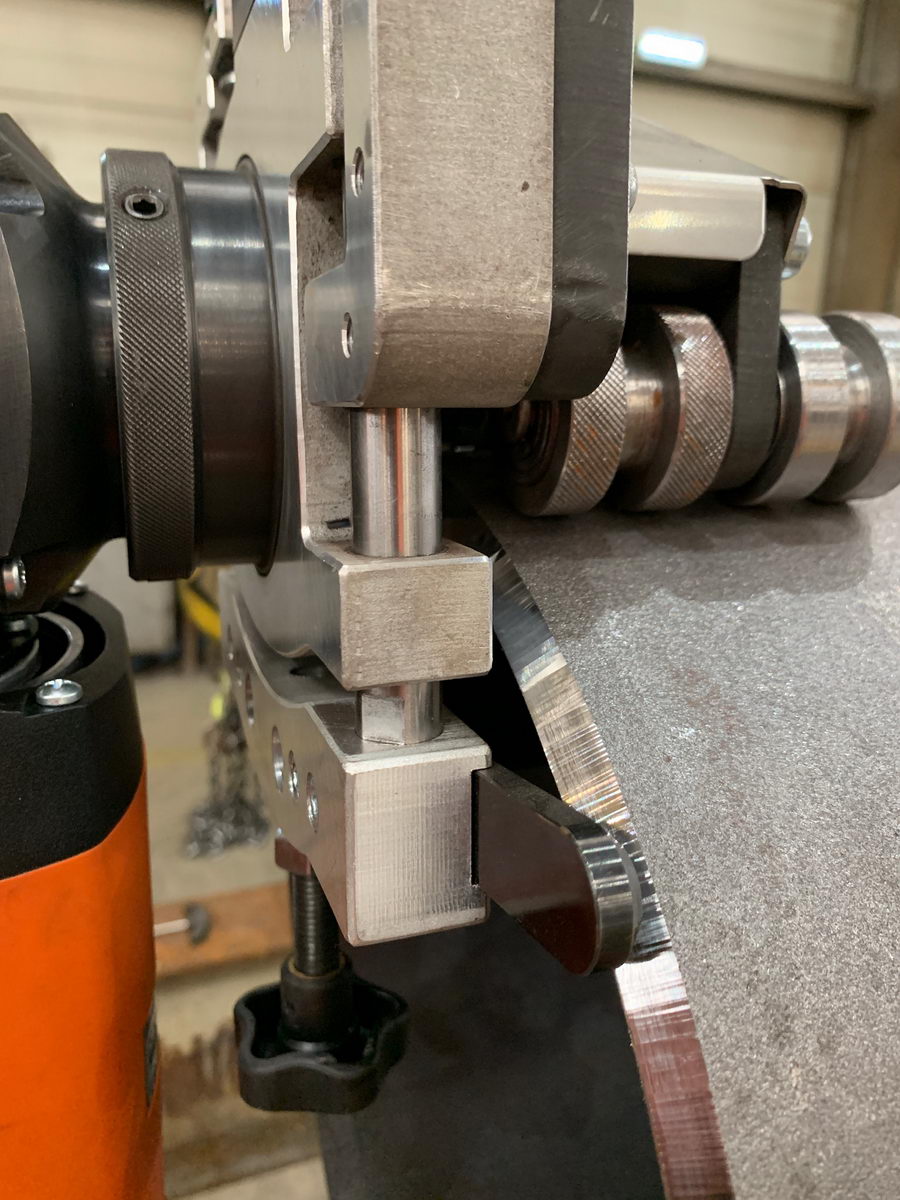

  • Can be used on flat materials

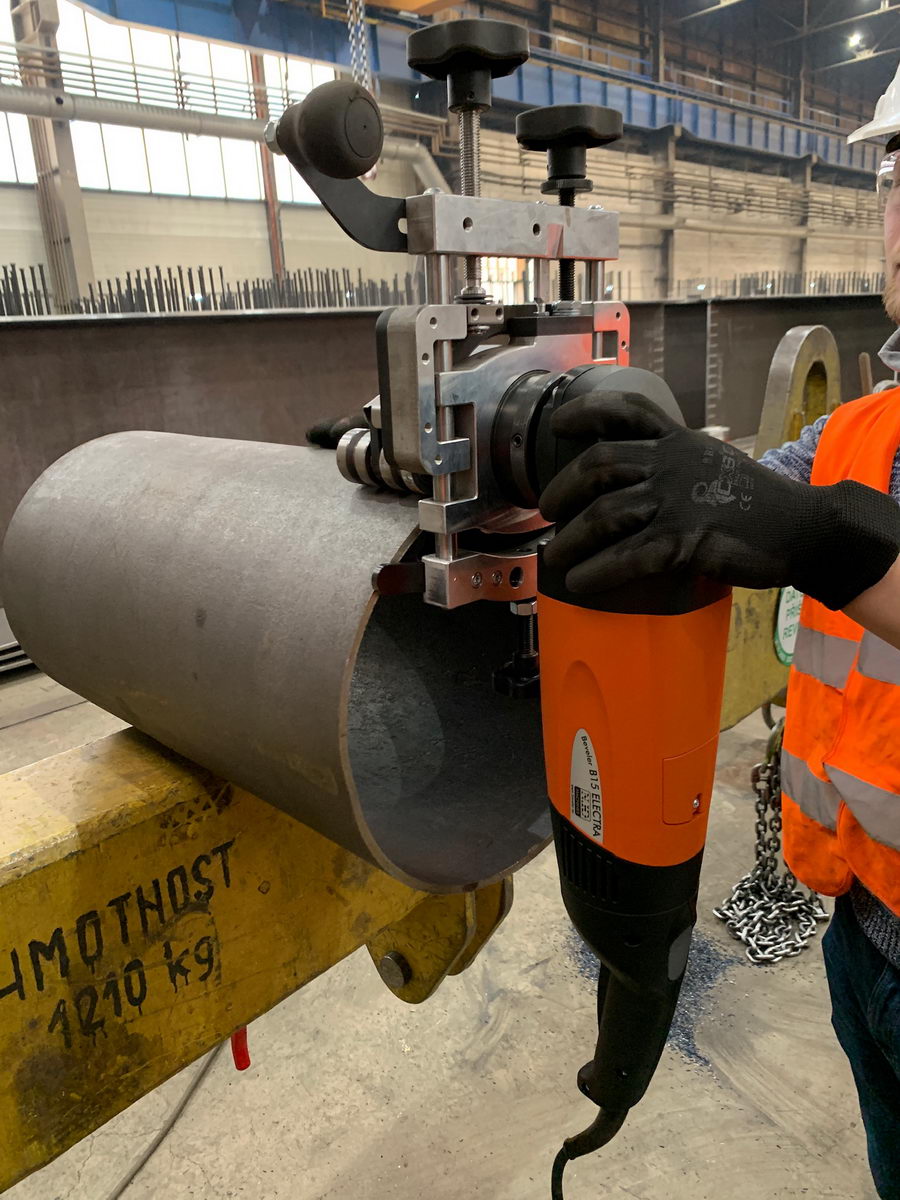

  • Precise, comfortable and safe handling
  • Minimum vibrations
  • Stability of selected angle
  • Built-in scale

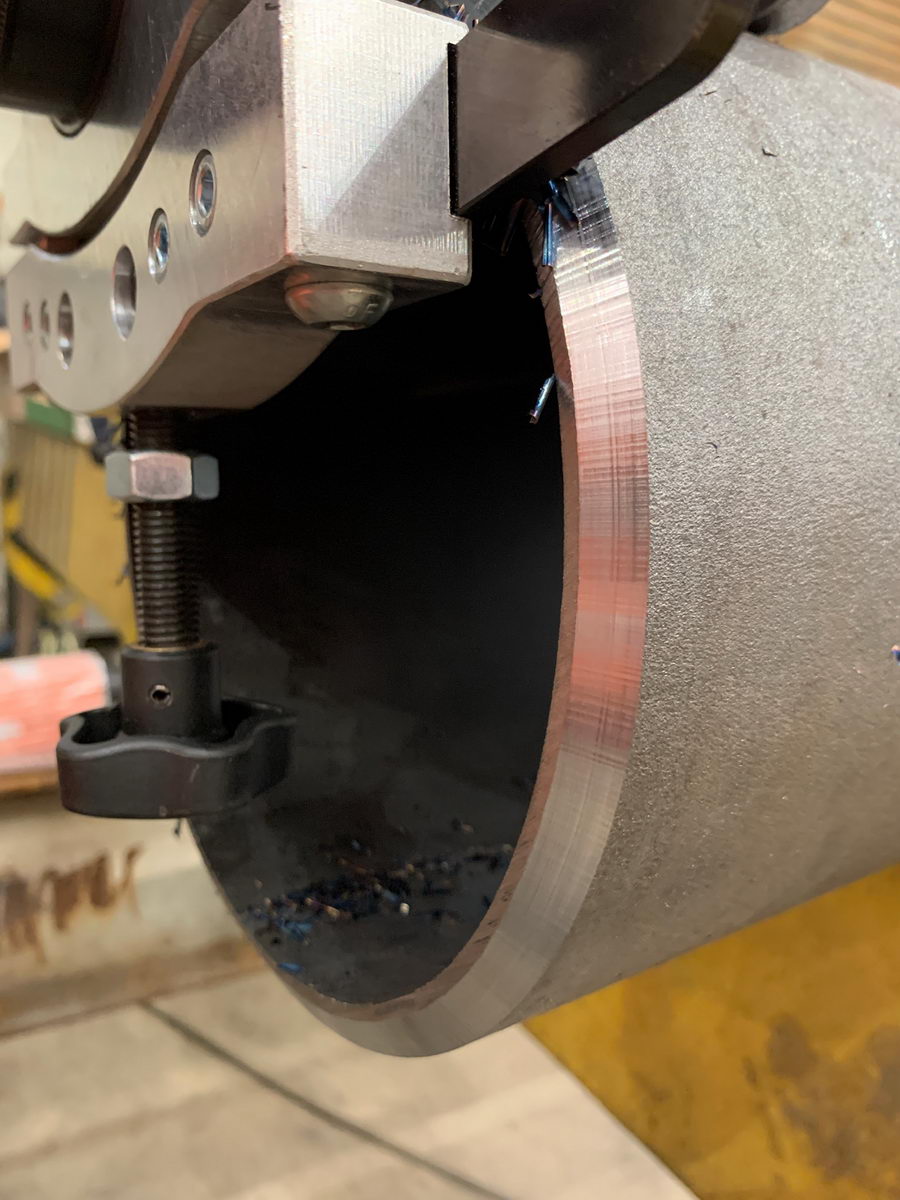

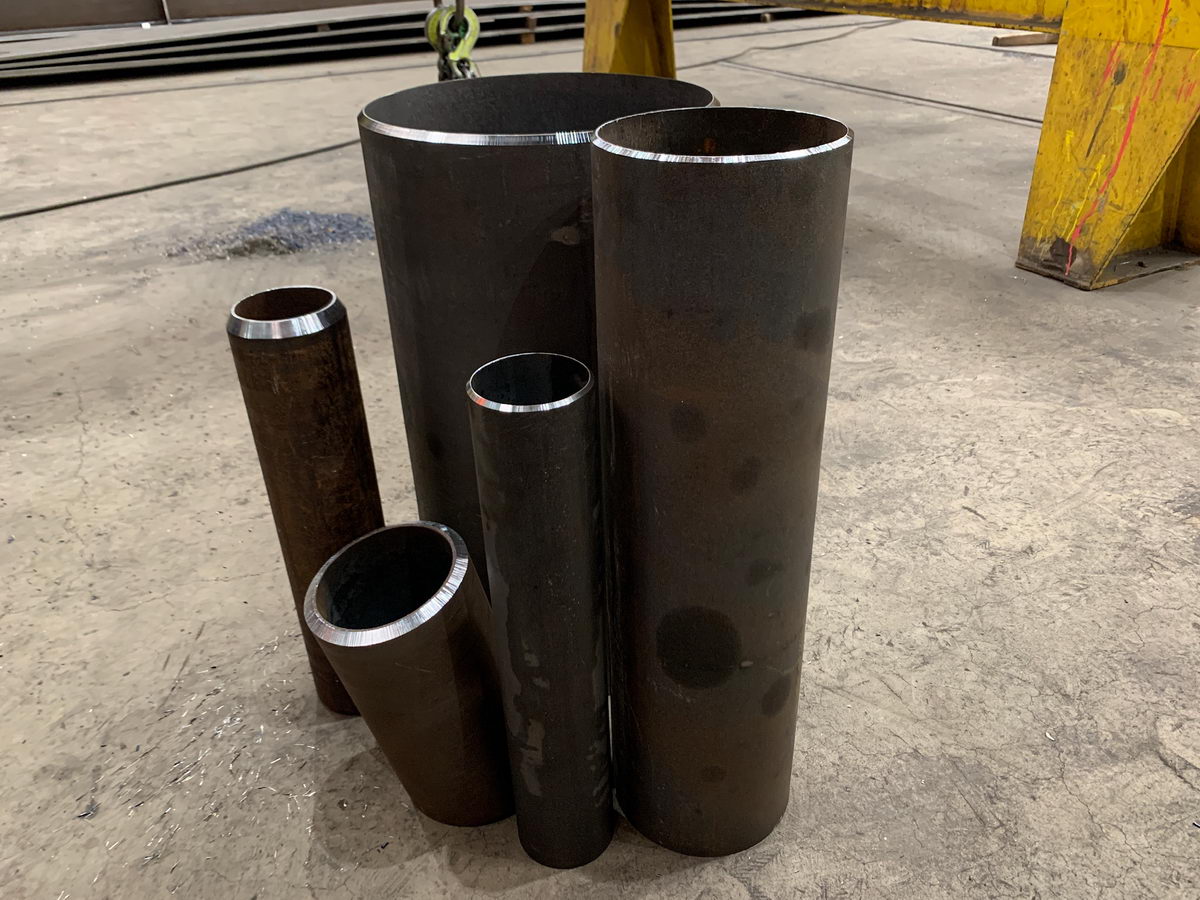

  • Constant chamfering depth
  • Flexible rollers can handle any unevenness and inaccuracies
  • Lightweight and ergonomic tool

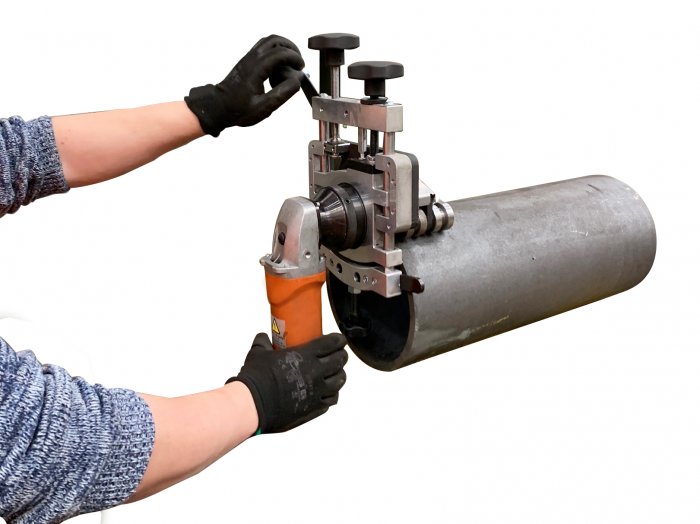

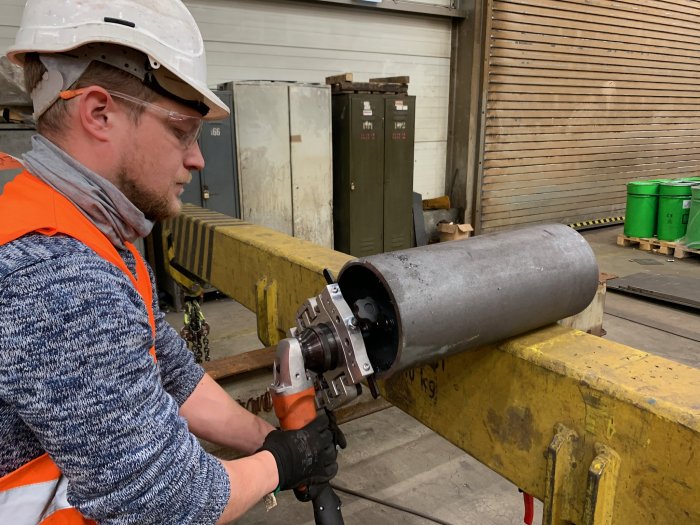

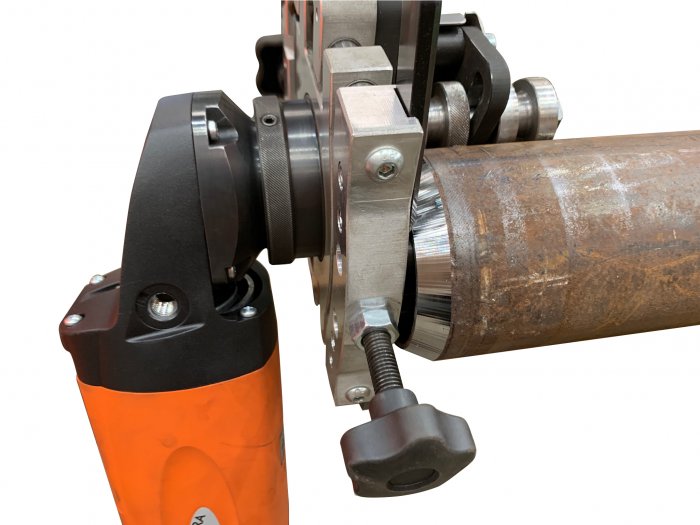

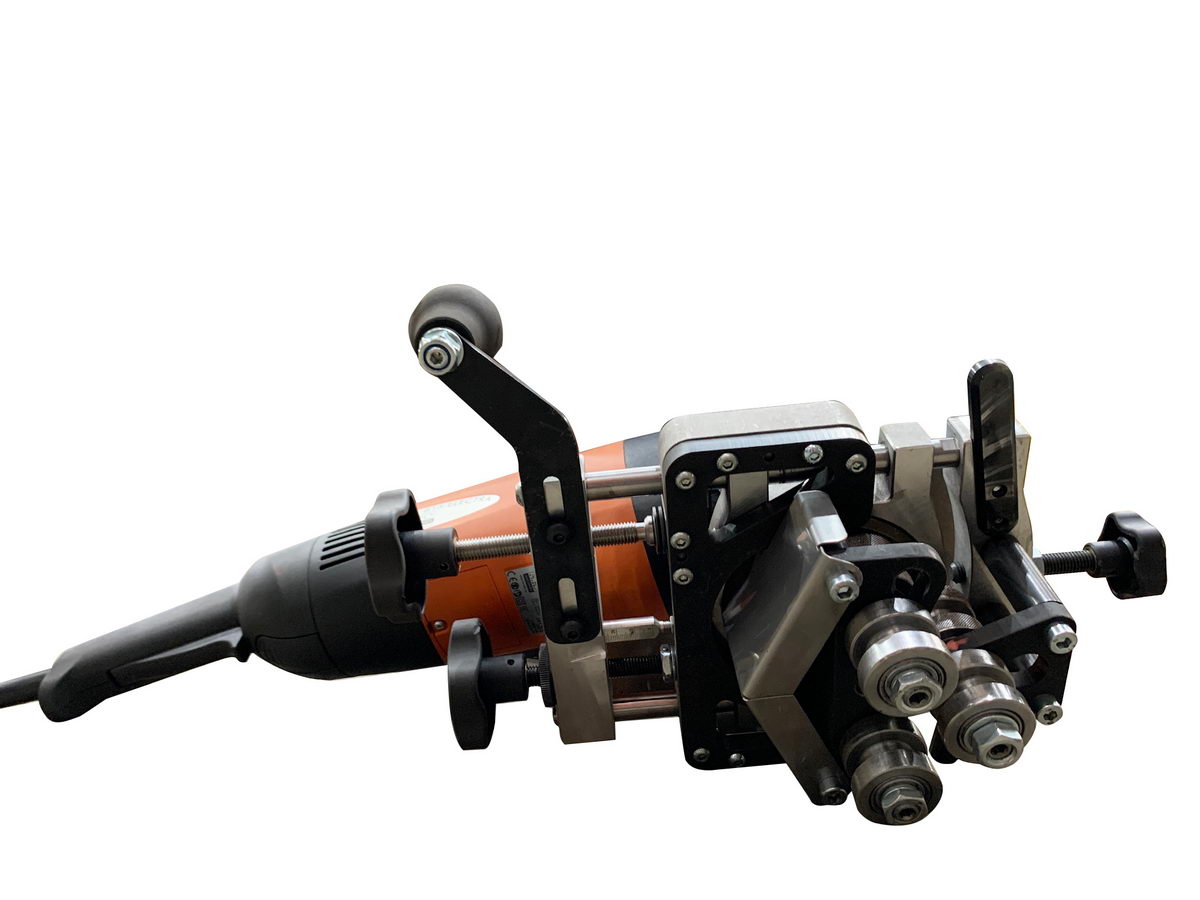

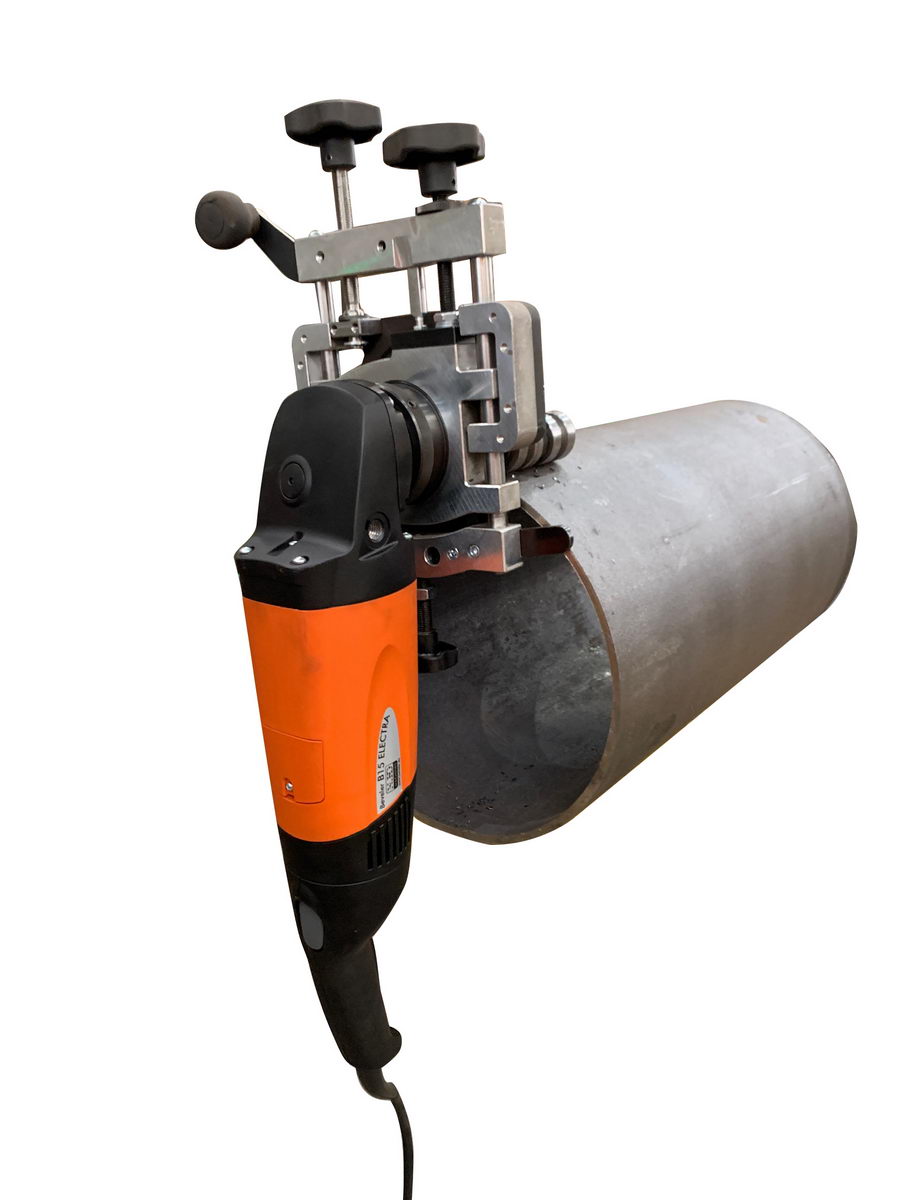

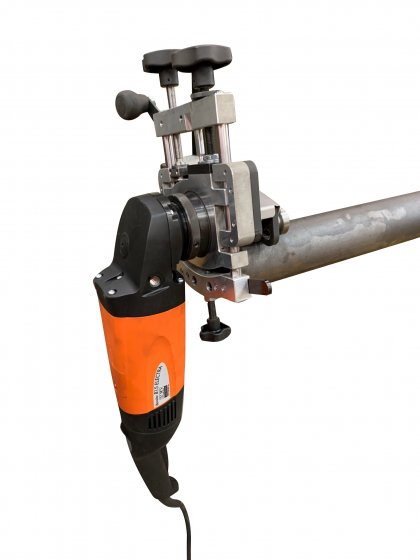

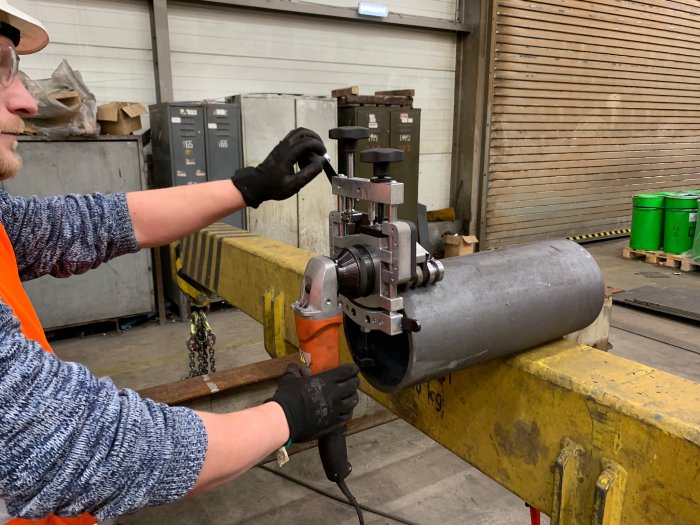

Bevelling tool for easy and fast machining of pipes from Ø 3.75“ (95 mm).
The maximum diameter of the pipe is not limited, and the tool can be used on flat materials.

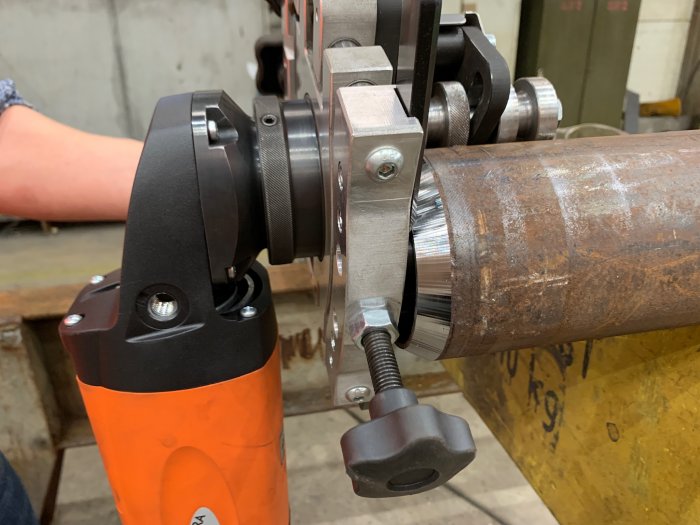

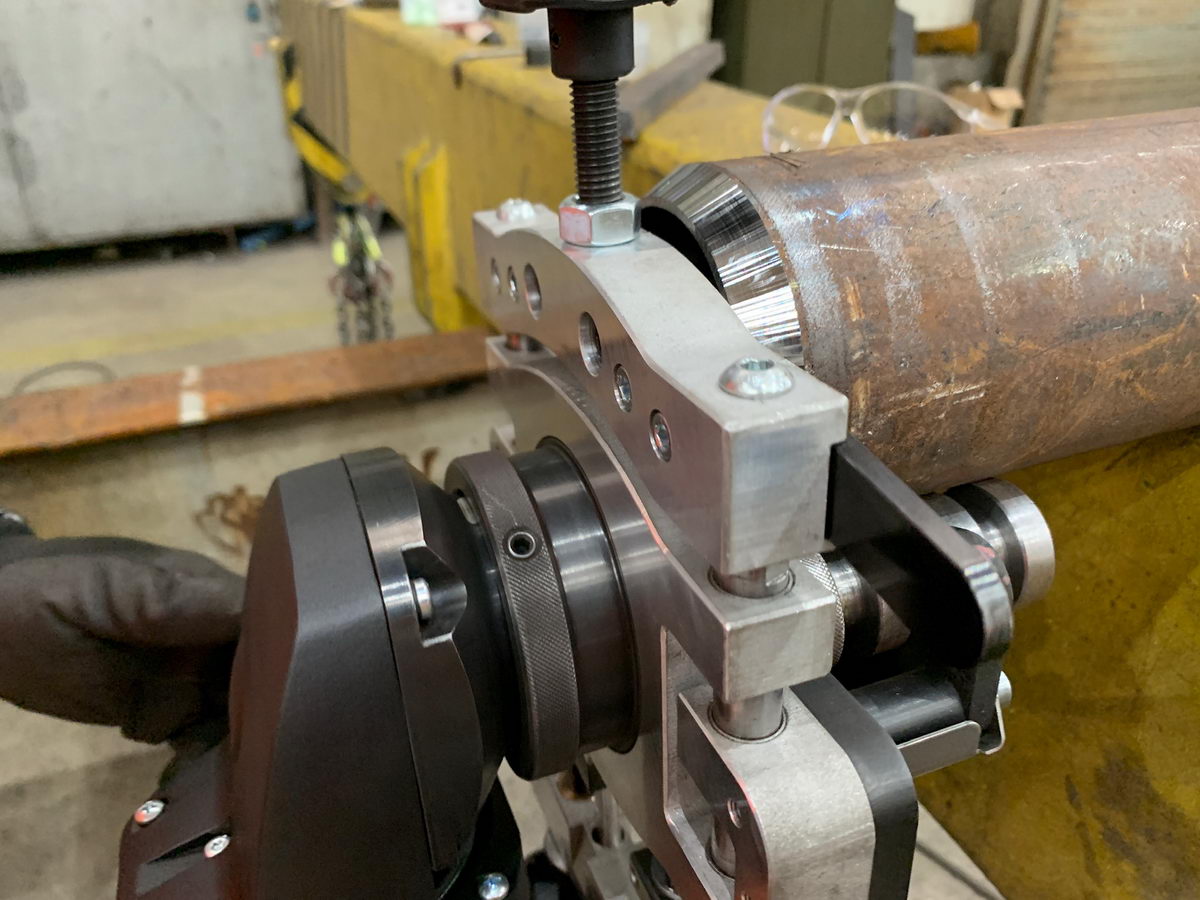

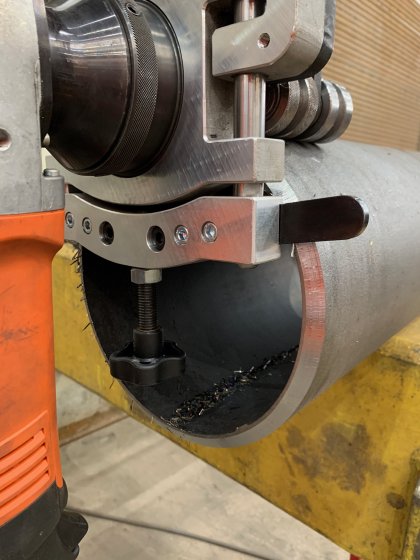

The unique mechanism of clamping, guiding rollers ensures precise and comfortable guiding around the circumference of the machined pipe or along the edge of the sheet metal.

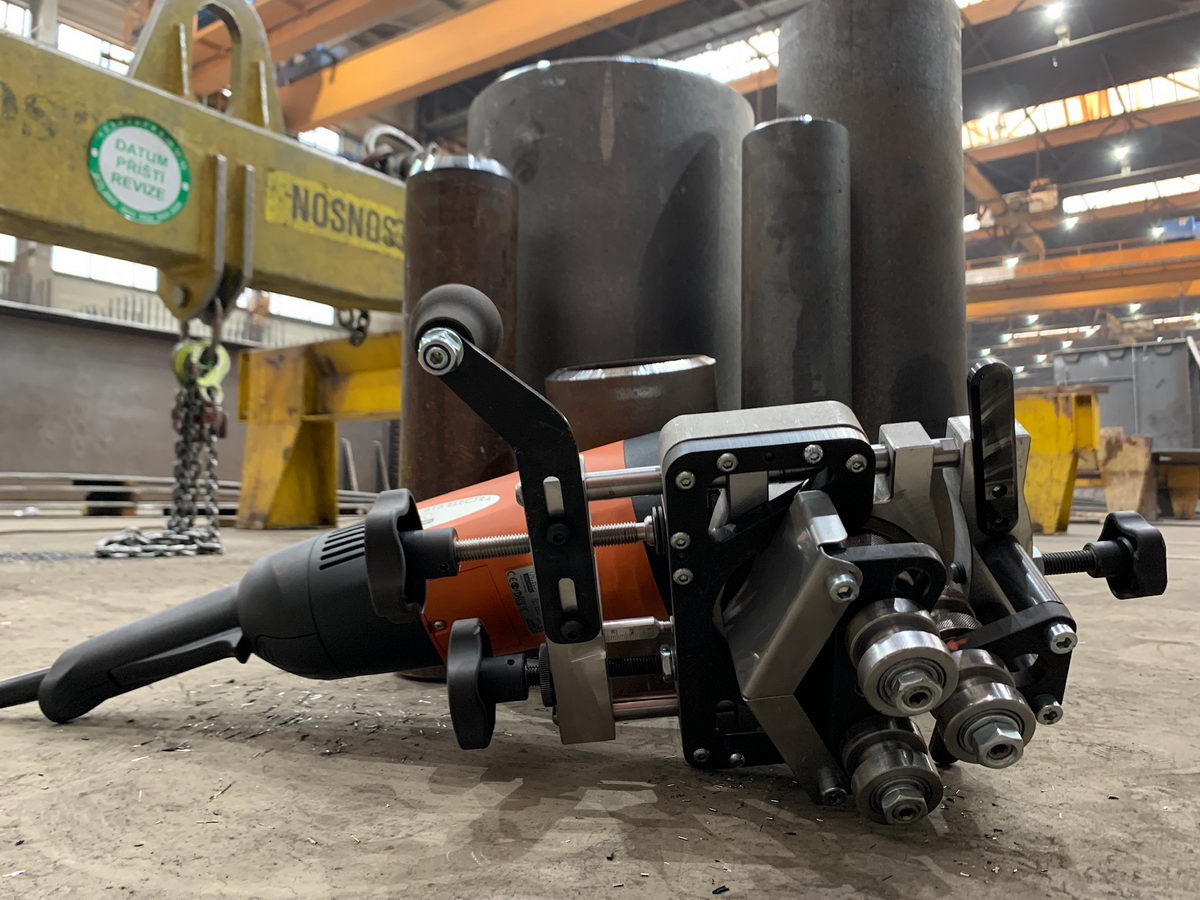

The robust frame of the body of the tool guarantees constant cut with a minimum of possible vibrations and uncompromising stability of the selected bevel angle.

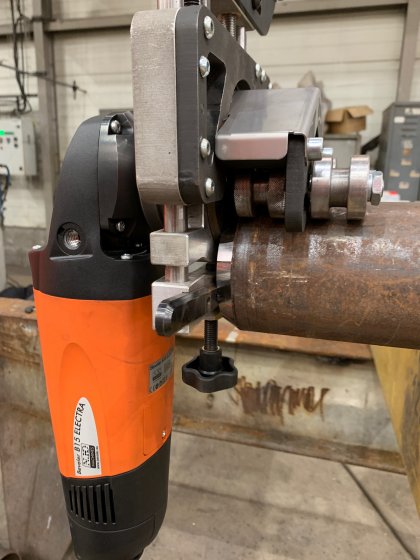

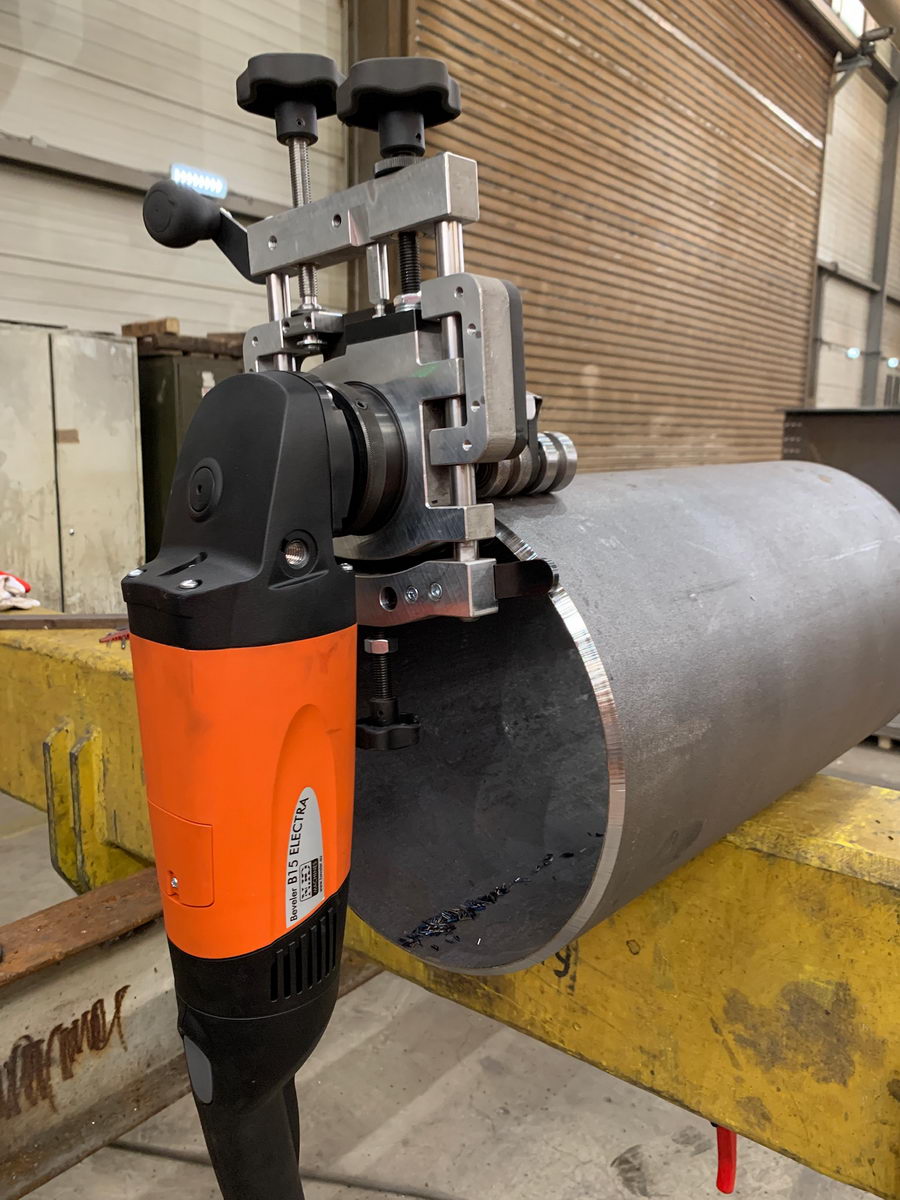

  • This tool is designed to work with B10 Electra, B15 Electra and B15 AIR bevelling machine.
  • The bevel depth can be set continuously, and the values read on the built-in scale.

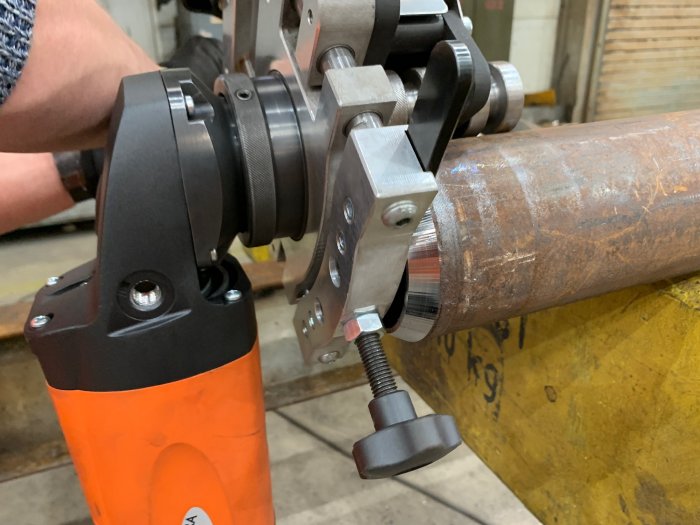

  • Special one-way bearings for the roller shutters prevent any kickback when approaching the material, ensuring truly safe and comfortable beveling process.
  • The set removal value can be ensured, and a constant chamfer depth can be guaranteed even on a larger number of pipes.
  • Thanks to the unique, flexible mounting of the running rollers, the tool can also handle any unevenness and inaccuracies around the circumference of the pipe
  • Lightweight aluminum construction of the machine frame guarantees comfortable handling of the product.

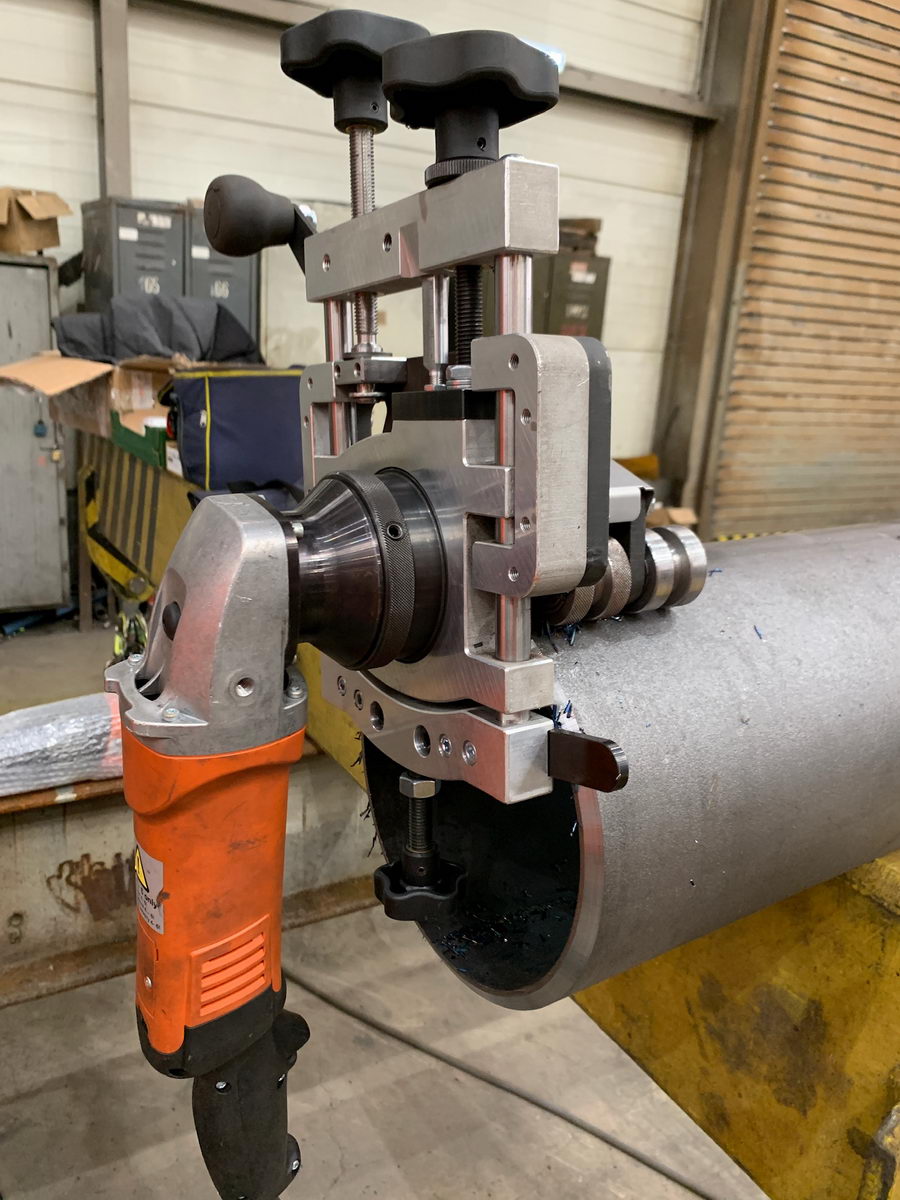

  • Ergonomic, rotating handle increases work productivity and contributes to safe operation of the product.
  • The installed safety cover prevents dangerous flying of chips and the cover protects the operator from possible injuries.

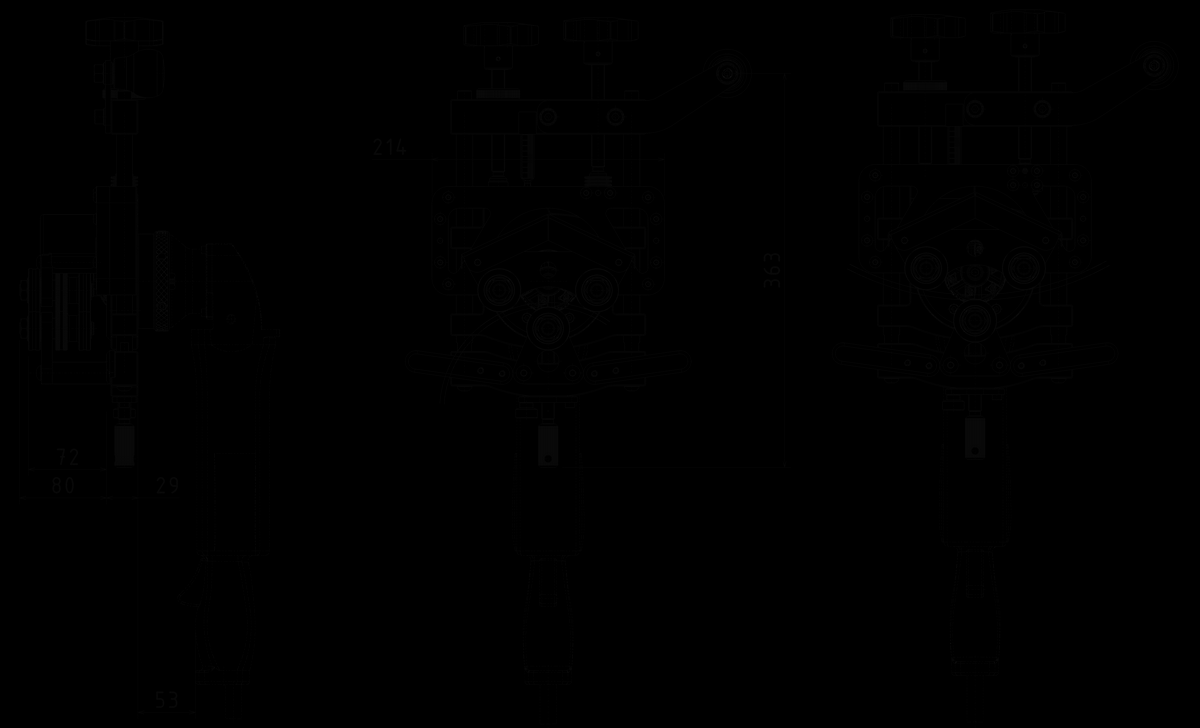

Technical data:
  • Compactible with machines:
B10 ELECTRA, B15 ELECTRA a B15 AIR

  • Bevel angle:
according to the milling head (30° / 45° / 60°)

  • Bevel width:
according the machine used (0.4“ / 10 mm or 0.6“ / 15 mm)

  • Range (machining of the outer diameter OD):
> Ø 3.75“ / 95 mm

  • Wall thickness (machining of the outer diameter OD):
0.01“ – 0.6“ / 2,5 – 15 mm

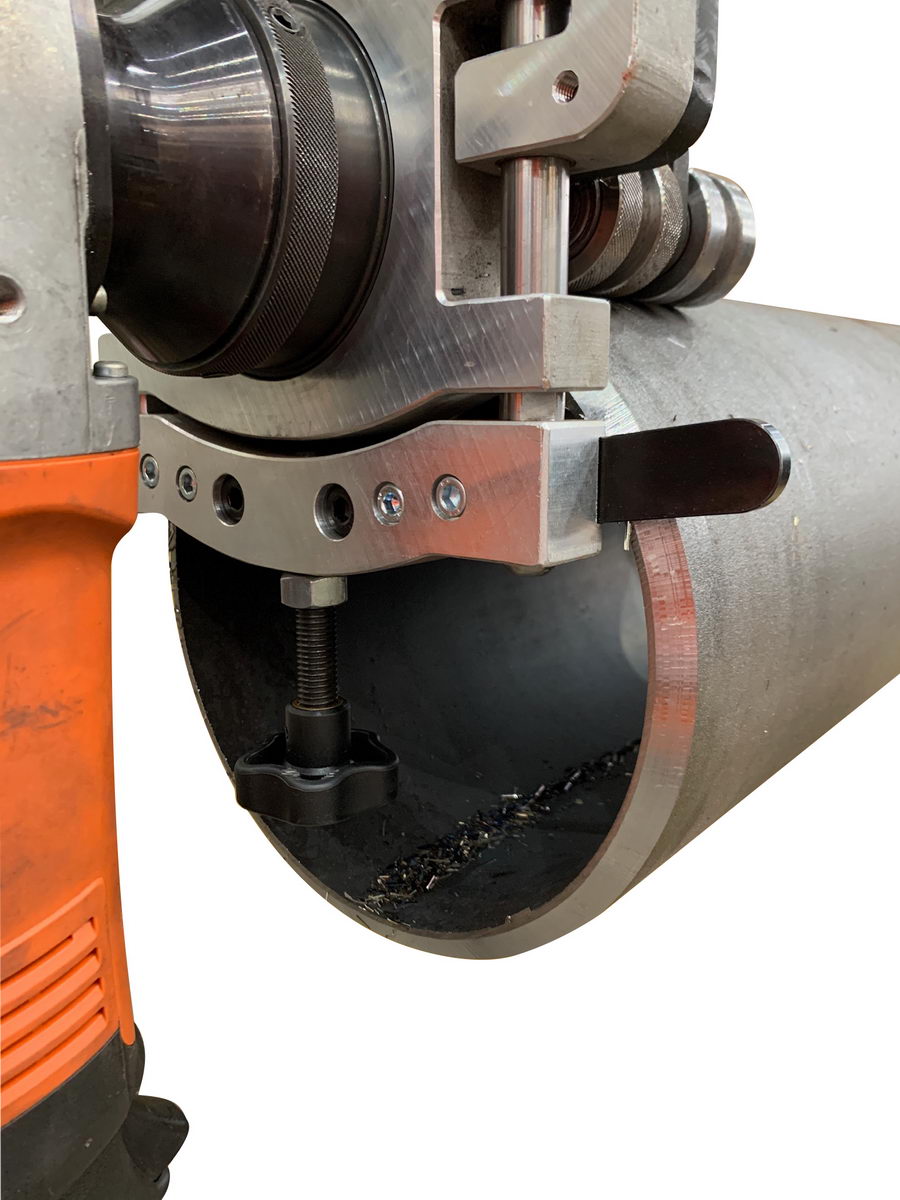

  • Range (machining of the inner diameter ID):
> Ø 20“ / 500 mm (smaller Ø with special accessories)

  • Wall thickness (machining of the inner diameter ID):
0.19 – 0.6“ / 5 – 15 mm

  • Minimum clamping depth: 3.15“ / 80 mm
  • Feed: manual
  • Weight: 18.5 lb / 8,4 kg (without machine B10 / B15)

Included it the price:
  • X-PIPE Beveler (without machine B10 / B15)
  • Packet in a cardboard
  • Operating tools
  • User manual

Satisfaction Guaranteed
If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.
Machine name:
1Phase-120V
Xpipe Beveler (beveler B10 Electra / B15 Electra / B15 AIR is not included)25500
SET Bevelling system B10 ELECTRA + Xpipe Beveler (without the milling head)25306
SET Bevelling system B15 ELECTRA + Xpipe Beveler (without the milling head)25256
SET Bevelling system B10 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)25307
SET Bevelling system B15 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)25257
SET Bevelling and deburring system
B15 AIR + Xpipe Beveler (without the milling head)		27225
SET Bevelling and deburring system
B15 AIR-S – low RPM version for stainless steel + Xpipe Beveler (without the milling head)		27225S


Accessories – PREMIUM milling heads:Art.Nr.
30° milling head PREMIUM
- the cutting inserts and the lead roller Ø 30 mm / 1.19“are included		27223X
37,5° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27227X
45° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27222X
50° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27224X
60° milling head PREMIUM
- the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included		27240X
The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“28013
The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“28014
The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“28006
The spare two sided cutting inserts 15 mm / 0.6“
- two-sided, coated
- pack of 10 pcs
- only for premium milling heads		28015
The shorter four sided cutting inserts 8 mm / 0.3“
- four-sided, coated
- pack of 10 pcs
- only for premium milling heads with additional special roller		28008
The fastening screws for cutting inserts (works with both cutting inserts versions)
- only for premium milling heads		28007

Accessories – Edge cleaner – grinding adapter:Art.Nr.
Edge Cleaner – grinding adapter
- including 10 pcs grinding rings grain 40, 1 pc guiding roller		25310
Grinding rings grain 40 for Edge Cleaner
- pack of 50 pcs		25312
Spare polyurethane guiding roller for Edge Cleaner25311

Accessories – The Rounding milling heads:Art.Nr.
Complete radius milling head R2,5 mm / 0.08“
- including of the guiding roll and fastening screw, the cutting inserts are included
- the lead roller diameter Ø 30 mm / 1.19“		27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“
- including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included
- the lead roller diameter Ø 39,5 mm / 1.55“		27233
Cutting inserts for rounding edges R2,5 mm / 0.08“
- four-sided
- pack of 10 pcs		26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“
- four-sided
- pack of 10 pcs		26110
Coated cutting inserts for rounding edges R4 mm / 0.16“
- four-sided
- pack of 10 pcs		26111
The fastening screws for cutting inserts
- only for rounding milling heads		27242

Accessories – The older ECO milling heads. Available while supplied last.Art.Nr.
30° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 34 mm / 1.34“		27223
37,5° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27227
45° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27222
50° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27224
60° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 27 mm / 1.06“		27240
Cutting head with non-standard angle
- including inserts, screws, bolts and roller		27XXX
Coated cutting inserts
- four-sided
- pack of 10 pcs
- only for ECO milling heads		27231
Screw for the cutting inserts
- only for ECO milling heads		27241

Accessories – others:Art.Nr.
Dock station B-Dock
(beveler B10 Electra / B15 Electra is not included)		25350
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“
(beveler B10 Electra / B15 Electra / B15 AIR is not included)		25500
Pneumatic set for B15 AIR with quick couplings (contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m)27221
Special lubricating paste for the milling heads 120g
– prevents seizing up, wear, cold-welding, solidifying of the threads		33005
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in		NMF0107
Mag Brush - collects all magnetic18654
