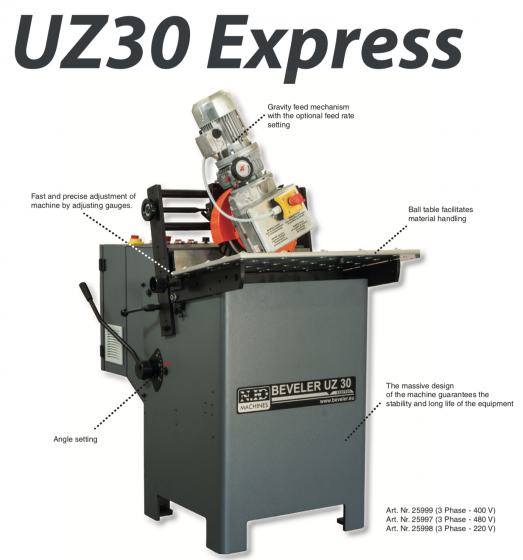

Bevelling Machine UZ 30 EXPRESS

HIGH SPEED Bevelling System UZ30 EXPRESS; automatic feeding 1,9-11,5ft/min, designed especially for bevelling of small and medium dimensions of metal plates

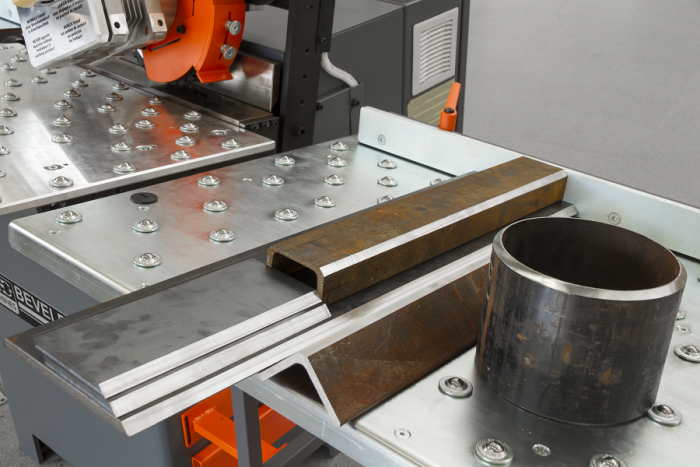

  • Powerful, stationary bevelling and deburring machine for the efficient bevelling of flat steel, plates and profile material
  • For all carbon steels, cast iron, aluminium and light metal alloys, non-ferrous metals and all cuttable materials
  • The feed permits bevel machining without tight camping of the workpiece
  • The swiveling milling spindle permits a milling angle within a continuous range of 30° - 60°.
  • Regulation of feed speed and cutting tool
  • Option to buy additional accessories such a milling devide for pipes, table extension left and right (total 2800 mm - 110-15/64”) with adjustable sidestops left and right

Satisfaction Guaranteed
If you are not completely satisfied with UZ30 EXPRESS you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.
Technical data:

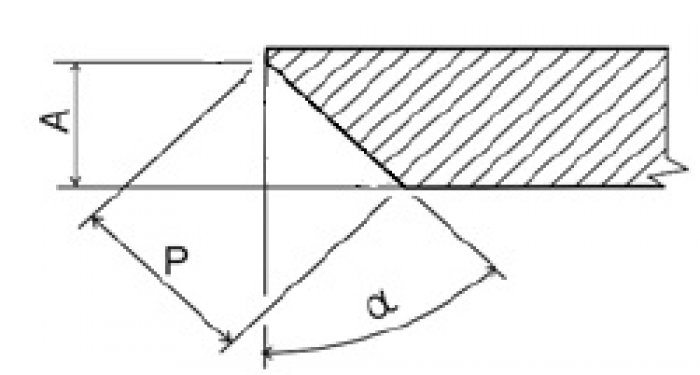

  • Max.bevel width: 1,18” / 30 mm (according to the angle settings)
  • Adjusting the bevel angle: 30°- 60°
  • Milling head motor: 4 kW
  • Milling head speed: 0-5500 RPM (frequency converter)
  • Feed motor:400V /50Hz, 3phase, speed 1,9-11,5ft/min
  • Engine displacement: three-phase, adjustable (variator)
  • Weight: 882 lbs / 400kg
  • Thickness of the material: 0,08” - 3,94” / 2 - 100 mm
  • Dimensions: 32,5” x 47,2” x 63,6” / 825 x 1200 x 1615 mm

Included in the price:
  • Bevelling system UZ30 Express including milling head fitted with indexable inserts
  • Tools
  • User manual
Machine name:
400V3phase 480V3phase 220V3phase
Bevelling system UZ30 EXPRESS 25999 25997 25998

Recommended accessoriesArt.Nr.
SERVICE PACK - 1/2 off with a purchase of a new machine.
- 5 packs of PREMIUM inserts – pack of 10 pcs ( 25907)
- 10 pcs stone screws for inserts fastening ( 25914)
- 10 pcs clamping stone for inserts fastening ( 25917)
- 1 pc feeding wheel ( 25903)
- 1 pc scales ( 25916)
- 5 pcs table balls ( 25999.2967)

Accessories: Art.Nr.
Cutting head
- including inserts, clamping wedges and screws
Premium cutting inserts
- four-sided
- pack of 10 pcs
Wedge for fastening of the inserts 25917
Screw for the wedge 25914
Input and output table with adjustable stops
- table length – 1m/ks / 39,37 in

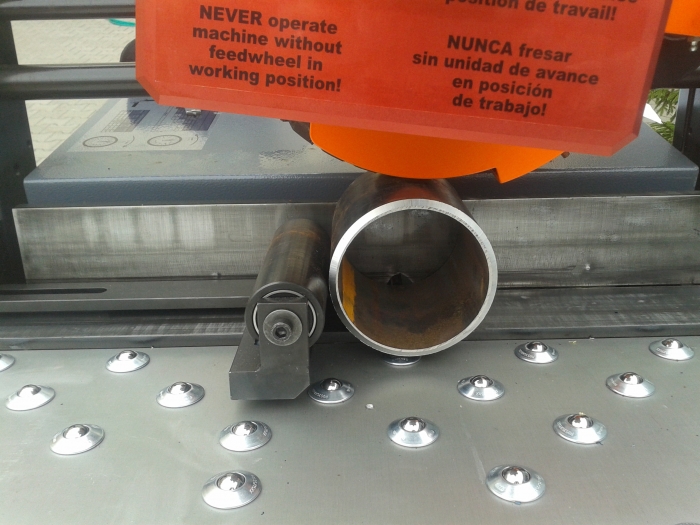

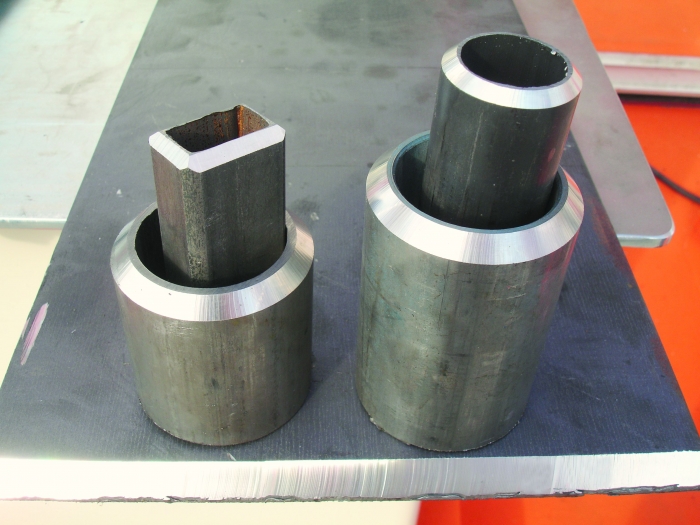

Fixture for bevelling pipes Ø 102–156 mm / 4,02 - 6,14 in 25902
Adjusting gauges for machine adjustment 25916
Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in NMF0107
